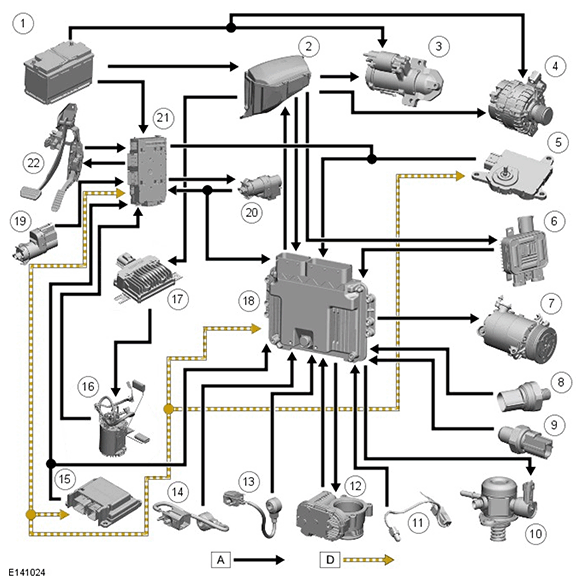

| 1 |
Battery |
| 2 |
BJB (battery junction box) |
| 3 |
Starter motor |
| 4 |
Generator |
| 5 |
TCM (transmission control module) |
| 6 |
Cooling fan control module |
| 7 |
A/C (air conditioning) compressor clutch |
| 8 |
Low Pressure (LP) fuel sensor |
| 9 |
Oil pressure sensor |
| 10 |
Fuel pump metering valve |
| 11 |
Ambient temperature sensor |
| 12 |
Electric throttle |
| 13 |
Knock sensor |
| 14 |
Knock sensor |
| 15 |
RCM (restraints control module) |
| 16 |
Fuel pump module |
| 17 |
FPDM (fuel pump driver module) |
| 18 |
ECM (engine control module) |
| 19 |
Stop lamp diagnostic switch |
| 20 |
Stop lamp switch |
| 21 |
CJB (central junction box) |
| 22 |
APP (accelerator pedal position) sensor |
