Computer Function Switch
The computer function switch is located on the end of the switch stalk. The switch is a momentary switch and allows the driver to select the following information in the IC message center:
- Trip distance
- Distance on fuel remaining in the fuel tank
- Fuel tank remaining quantity
- Average fuel consumption
- Vehicle life fuel consumption
- Average speed
- Instantaneous fuel consumption.
The switch is connected to the IC and ground. When the switch is pressed the circuit is completed and the IC displays the next trip computer information. Repeated presses of the switch selects each display in the message center in turn.
For additional information, refer to: Information and Message Center

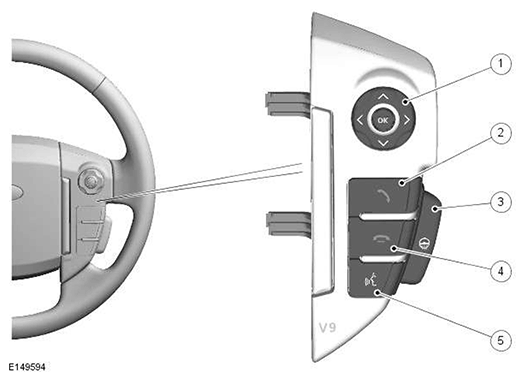

AUDIO CONTROL SWITCHES
| ITEM | DESCRIPTION |
|---|---|
| 1 | Press to switch between radio, CD, or AUX |
| 2 | Connect. Press and release to send or accept a call or to access the last 10 dialed list. Press and hold to access the phonebook. |
| 3 | Heated Steering Wheel Switch (HSW) |
| 4 | Disconnect. Use to end or reject a call. Press and release to scroll through preset radio stations or CD tracks. Press to search up or down for the next or previous radio station/CD track |
| 5 | Voice activation - where fitted |
The audio control switches are resistive ladder switches. These switches connect to the Infotainment Control Module (ICM) or Integrated Audio Module (IAM) (dependant upon the level of audio fitted to the vehicle) via the clockspring.
For additional information, refer to: Audio System - Overview
