Smart Key Handset - Lower-Level Service Repair (LTB00563NAS2)

Publication date: 2013-10-01
Reference number: LTB00563NAS2
Supersedes refnos: LTB00563NAS1

SMART KEY HANDSET - LOWER-LEVEL SERVICE REPAIR

TECHNICAL SERVICE BULLETIN

Reference Number(s): LTB00563NAS2, Date of Issue: October 1, 2013

LAND ROVER:	2010-2012 Range Rover Sport (LS), LR4 (LA), Range Rover (LM)
SECTION:	501-14
AFFECTED VEHICLES:	Range Rover Sport (LS) Model Year: 2010-2012 VIN: AA212147-CA717166; LR4 (LA) Model Year: 2010-2012 VIN: AA510742-CA596988; Range Rover (LM) Model Year: 2010-2012 VIN: AA304426-CA393639

Superceded Bulletin(s): LTB00563NAS1, Date of Issue: July 22, 2013

NOTE: This reissue replaces all previous versions. Please destroy all previous versions. Only refer to the electronic version of this Technical Bulletin in TOPIx.

MARKETS

NAS

CONDITION SUMMARY

Situation: The face of the Smart Key handset may peel away from the handset main body.

Cause: This may be caused by the handset manufacturing process.

Action: Should a customer express this concern, follow the Service Instruction outlined below.

PARTS

LR052882	Smart key kit - LR4	Quantity: 1
LR052905	Smart key kit - Range Rover Sport, Range Rover	Quantity: 1

TOOLS

Suitable tool lever; see Service Instruction

WARRANTY

NOTE: Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.

NOTE: DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

DESCRIPTION	SRO	TIME (HOURS)	CONDITION CODE	CAUSAL PART
Casing - Handset/Smart key - Renew - LR4	86.77.36	0.1	49	LR024096
Casing - Handset/Smart key - Renew - Range Rover Sport, Range Rover	86.77.36	0.1	49	LR024070

NOTE: Normal Warranty policies and procedures apply.

SERVICE INSTRUCTION

NOTE: Refer to SSM66357, 'Smart key low level repair, animation of process', to view animation file.

multimedia:A supplement to the article is available.

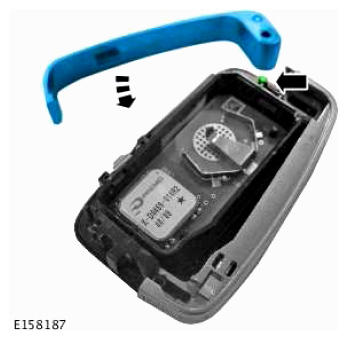

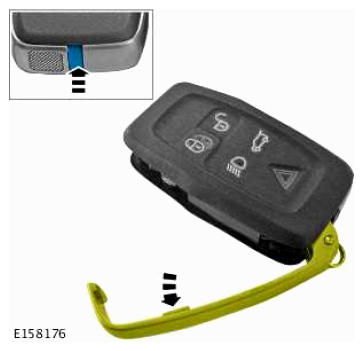

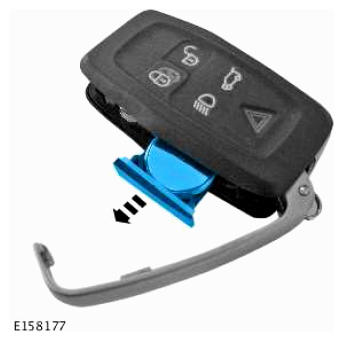

Press the release button and pull the battery cover frame open.
Remove the battery holder assembly; place to one side.

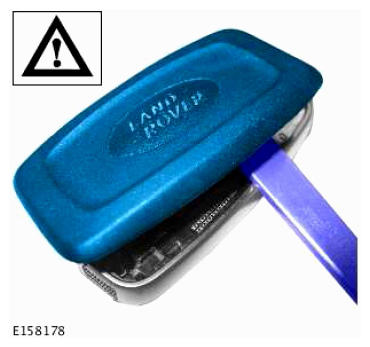

Using a suitable tool lever, open the body of the handset:
- Discard the handset upper case.

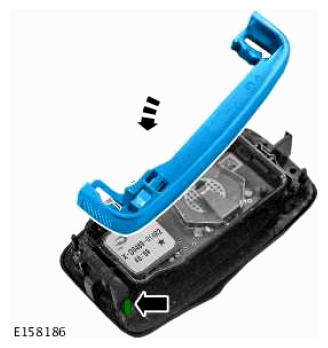

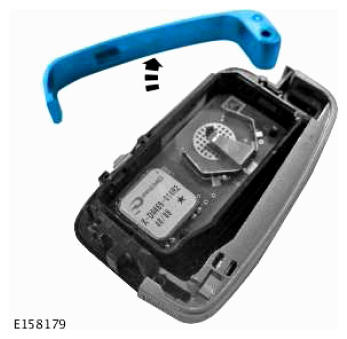

Remove the battery cover frame; place to one side.

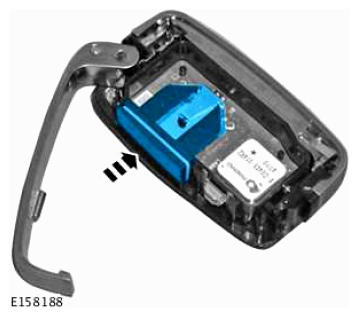

Remove the key frame holder; place to one side.

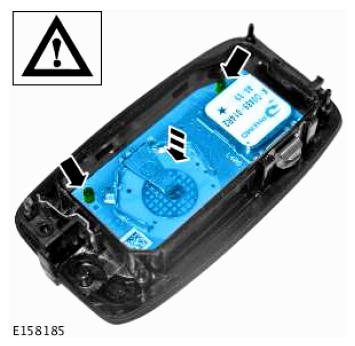

CAUTION: When removing the Printed Circuit Board (PCB), only handle on the outer edges of the PCB.

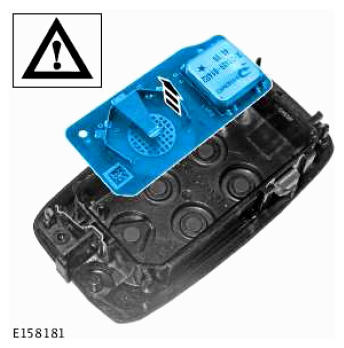

Remove the Printed Circuit Board (PCB); place to one side.

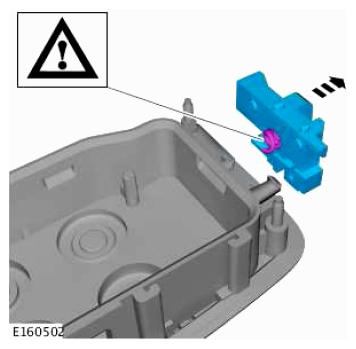

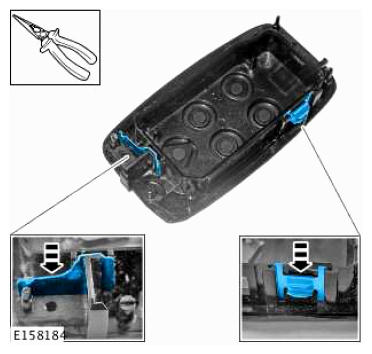

Remove retaining clip and leaf spring; place to one side.

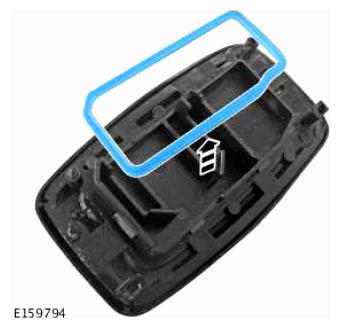

Remove the silicon seal; place to one side.

NOTE: Make sure the spring is retained as it is required on the install procedure.

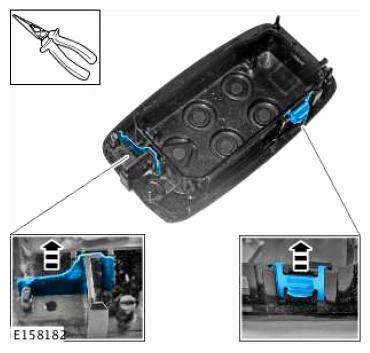

Remove the release button.
- Discard the handset lower case.
NOTE: Make sure the spring is fitted and located correctly.
Install the release button into the new handset lower case.

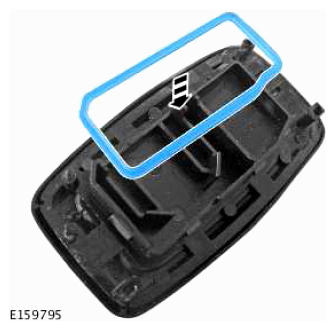

Install the silicon seal.

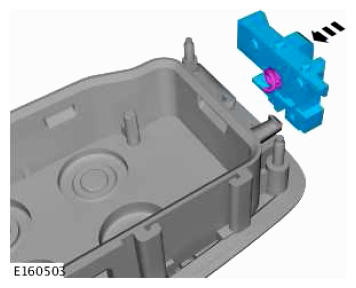

Install the retaining clip and leaf spring into the lower case.

CAUTION: When installing the Printed Circuit Board (PCB), only handle on the outer edges of the PCB.
Install the Printed Circuit Board (PCB).
Install the key frame holder.
Install the battery cover frame.
Install the battery holder assembly.
Press the new handset upper and lower cases together:

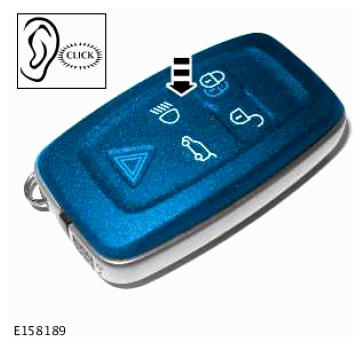

- Listen for an audible 'click' to make sure the handset is correctly assembled.
NOTE: IDS/SDD is not required to program the key at the end of this process.
Check correct operation of the Smart Key handset.
