Digital Versatile Disc (DVD) Player: Removal

WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH lower rear quarter trim panel. Refer to Rear Quarter Trim Panel .
  2. Release the DVD player harness.
    • Release the clip.
    GJ0014593
  3. Release the DVD player from the body.
    • Remove the 2 bolts.
    • Remove the nut.
    GJ0014594
  4. Detach the DVD player from the body.
    GJ0014595
    5. CAUTION: Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
    CAUTION: Make sure that the optical connectors are clean and free of foreign material.
  5. Remove the DVD player.
    • Disconnect the 3 electrical connectors.
    GJ0014596

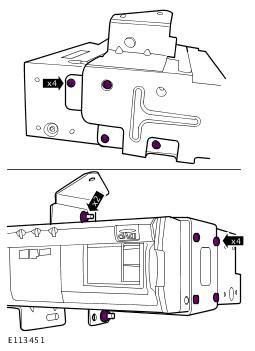

  6. Remove the DVD player mounting bracket.
    • Remove the 8 screws.
    • Loosen the 2 nuts.
    GJ0014597
