Selector Lever Knob, Boot And Bezel: Removal

NOTE: Make sure that the selector lights function correctly. If the ribbon cable is damaged it will be necessary to remove the floor console to access the ribbon cable connector on the selector lever assembly.
  1. Position the gearshift lever in NEUTRAL.
  2. Switch the ignition off.

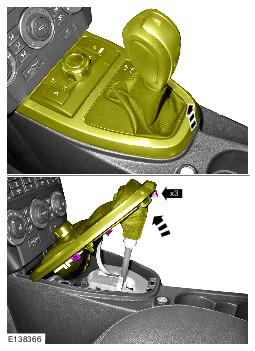

    • Release the gear lever surround by pulling upwards firmly at the rear.
    GJ0020770

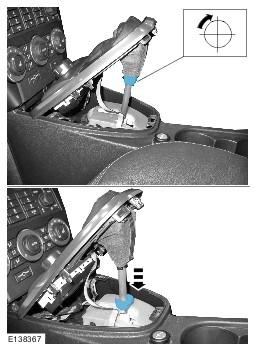

    • Release the locking ring.
    GJ0020771
  5. See figure
    GJ0020772
  6. See figure
    GJ0020773
  7. See figure
    WARNING: The selector lever knob will be released suddenly, keep face clear during removal.
    CAUTION: Make sure the selector lever button is depressed when removing the selector lever knob. Failure to follow this instruction may result in damage to the selector lever assembly.
    GJ0020774
  8. See figure
    GJ0020775
  9. See figure
    CAUTION: Take care not to touch the printed side of the printed circuit board (PCB).
    GJ0020776
  10. See figure
    CAUTION: Discard the component.
    GJ0020777
  11. See figure
    CAUTION: Discard the component.
    GJ0020778
    12. CAUTION: Discard the component.
  12. Remove and discard the selector lever assembly printed circuit board.
    GJ0020779
