Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

  1. Refer to: Front Row Seat .

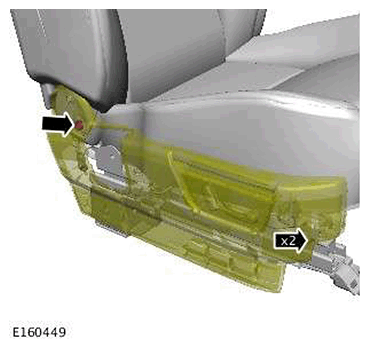

  2. G11593730

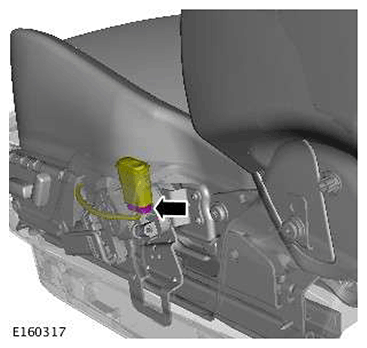

  3. G11593731

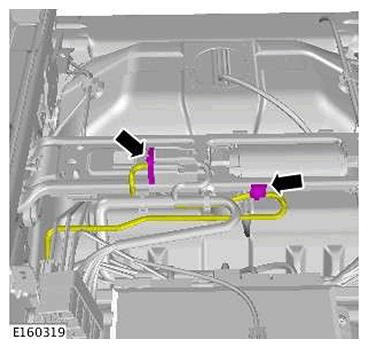

  4. CAUTION: Note the position of the wiring harnesses clip to aid installation.
    G11593732

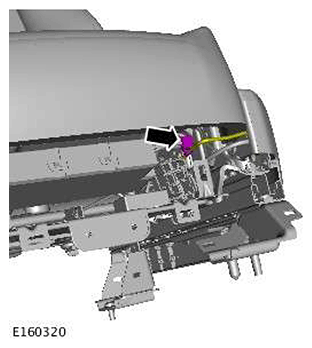

  5. G11593733

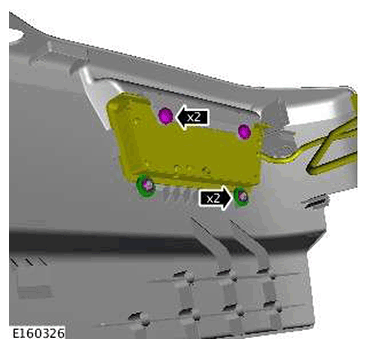

  6. NOTE: Note the orientation of the clips.
    G11593734

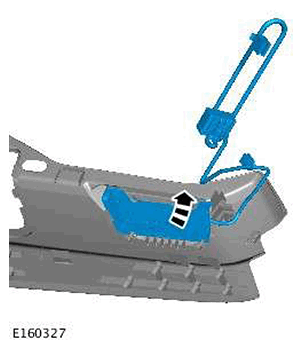

  7. CAUTION: Take extra care not to damage the surrounding components.
    G11593735
