Transfer Case Control Module (G1677435): Installation

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

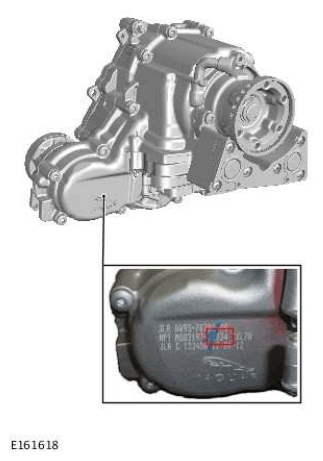

  2. G11423830

    Record the transfer case classification code.

    1. Connect the approved diagnostic equipment.
    2. Clear any DTC's.
    3. Carry out the transfer case control module configuration  procedure.
    4. Manually input the classification code if TCCM fails to configure. Complete the transfer case control module configuration  procedure.
    5. Clear DTC's after configuration and check for correct operation.
