Component Location

WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

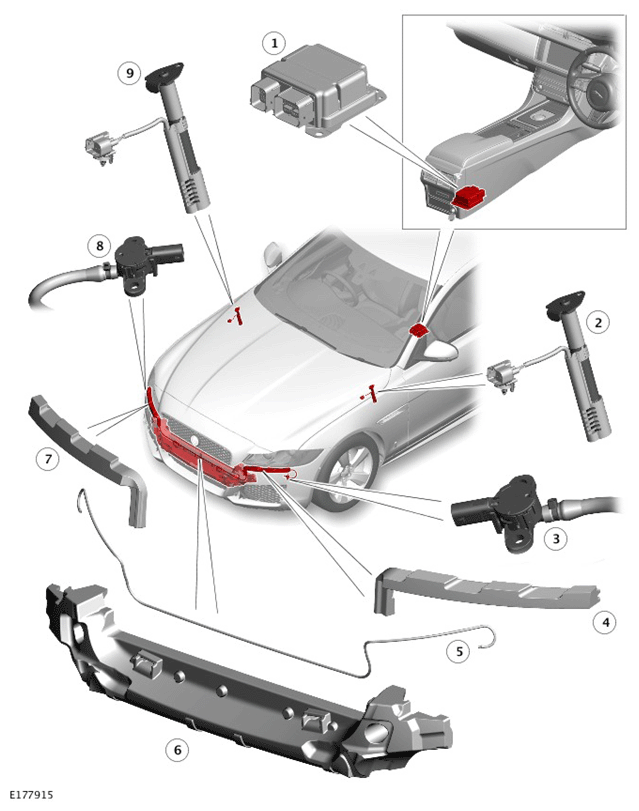

G11332753
ITEM DESCRIPTION
1 Restraints Control Module (RCM)
2 Left hood deployment control
3 Left pressure sensor
4 Left pressure tube foam
5 Pressure tube
6 Middle pressure tube foam
7 Right pressure tube foam
8 Right pressure sensor
9 Right hood deployment control
