Digital Versatile Disc (DVD) Player: Removal

WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH rear quarter trim panel. Refer to Loadspace Trim Panel RH .
  2. Release the rear quarter trim panel mounting bracket.
    • Remove the 2 screws.
    GJ0018797
  3. Remove the rear quarter trim panel mounting bracket.
    • Release the 2 clips.

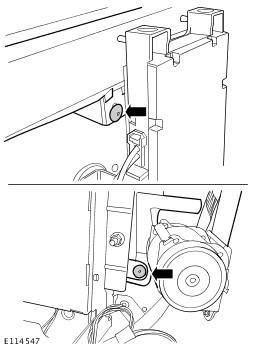

    GJ0018798
    4. CAUTION: Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
  4. Release the rear seat entertainment module.
    • Remove the 3 nuts. TORQUE: 10 Nm
    • Position aside.
    GJ0018799
  5. Release the DVD player from the body.
    • Remove the 4 Torx bolts.

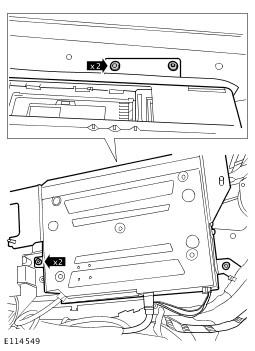

    GJ0018800
    6. CAUTION: Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.
    CAUTION: Make sure that the optical connectors are clean and free of foreign material.
  6. Remove the DVD player.
    • Disconnect the 3 electrical connectors.
    GJ0018801
  7. Remove the DVD player mounting bracket.
    • Remove the 8 screws.

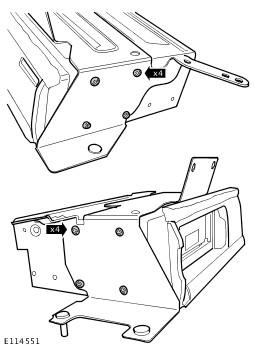

    GJ0018802
