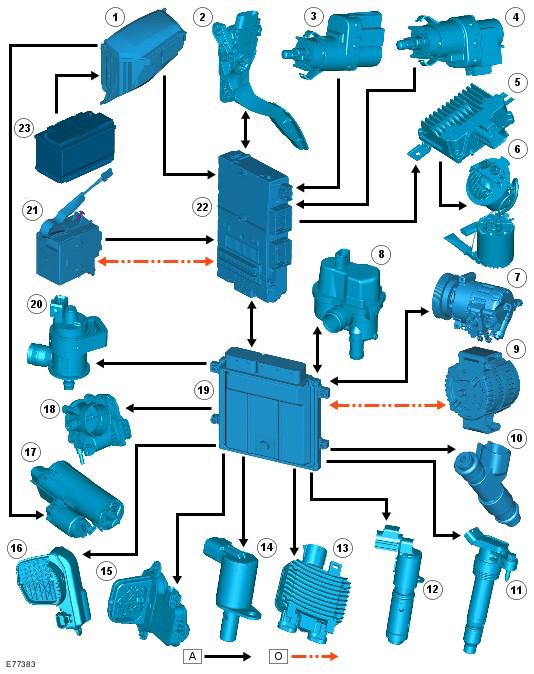

Control Diagram Sheet 1 Of 2
NOTE:
A
= Hardwired; N
= Medium speed CAN bus; O
= Local Interconnect Network (LIN) bus
| Item Number | Description |
|---|---|
| 1 | BJB |
| 2 | APP sensor |
| 3 | Speed control inhibit switch |
| 4 | Stop lamp switch |
| 5 | FPDM |
| 6 | Fuel pump |
| 7 | Air Conditioning (A/C) compressor |
| 8 | Fuel tank leakage monitoring module (North American Specification (NAS) only) |
| 9 | Generator |
| 10 | Injectors (6 off) |
| 11 | Ignition coils (6 off) |
| 12 | VCT solenoid |
| 13 | Electric fan control module |
| 14 | CPS solenoids- front/rear |
| 15 | Intake tract variable intake manifold valve |
| 16 | Plenum variable intake manifold valve |
| 17 | Starter motor |
| 18 | Electric throttle |
| 19 | ECM |
| 20 | Purge valve |
| 21 | Start/stop switch |
| 22 | Central Junction Box (CJB) |
| 23 | Battery |
