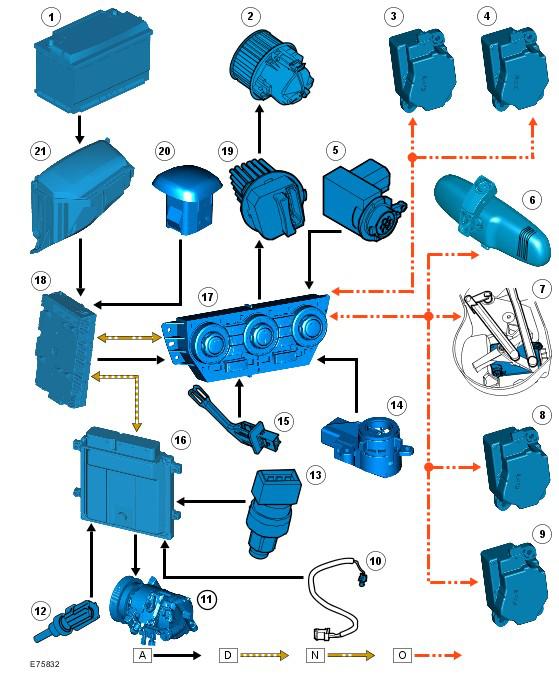

Control Diagram
NOTE:
A
= Hardwired; D
= High Speed CAN bus; N
= Medium Speed CAN bus; O
= LIN bus
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Blower motor |
| 3 | LH temperature blend stepper motor |
| 4 | Windshield distribution (defrost) stepper motor |
| 5 | Pollution sensor |
| 6 | Cabin humidity sensor |
| 7 | Air intake stepper motor |
| 8 | RH temperature blend stepper motor |
| 9 | Face/feet distribution stepper motor |
| 10 | Ambient air temperature sensor |
| 11 | A/C compressor solenoid - i6 only |
| 12 | ECT sensor |
| 13 | Refrigerant pressure sensor |
| 14 | Cabin temperature sensor |
| 15 | Evaporator temperature sensor |
| 16 | ECM |
| 17 | ATC module |
| 18 | Fuse 27, CJB |
| 19 | Blower motor control module |
| 20 | Sunload sensor |
| 21 | Fusible link 17, BJB |
