Torque Converter

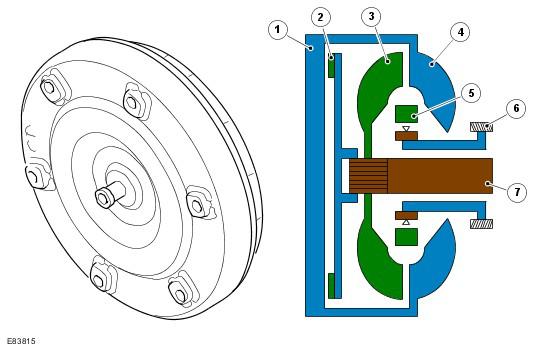

| Item Number | Description |
|---|---|
| 1 | Torque converter housing |
| 2 | Lock-up clutch |
| 3 | Turbine |
| 4 | Impeller |
| 5 | Stator |
| 6 | Fluid pump |
| 7 | Input shaft |
The torque converter is the coupling element between the engine and the transmission and is located in the transmission housing, on the engine side of the transmission. The driven power from the engine crankshaft is transmitted hydraulically and mechanically through the torque converter to the transmission. The torque converter is connected to the engine by a drive plate.
The torque converter comprises an impeller, a stator and a turbine. The torque converter is a sealed unit with all components located between the converter housing cover and the impeller. The two components are welded together to form a sealed, fluid filled housing. With the impeller welded to the converter housing cover, the impeller is therefore driven at engine crankshaft speed.
The torque converter contains a hydraulically operated lock-up clutch which is controlled by the TCM via a solenoid in the valve block which actuates spool valves to control the hydraulic pressure applied to the clutch. This allows the TCM to provide 3 modes of converter operation; unlocked, partially locked and fully locked.
