Component Location

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

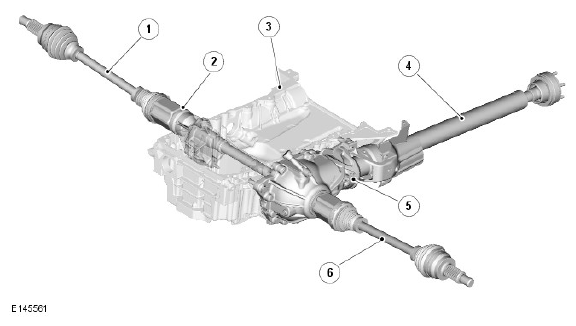

G11420796
ITEM DESCRIPTION
1 Right halfshaft
2 Front halfshaft support bracket
3 Engine oil pan
4 Front driveshaft
5 Front differential assembly
6 Left halfshaft
