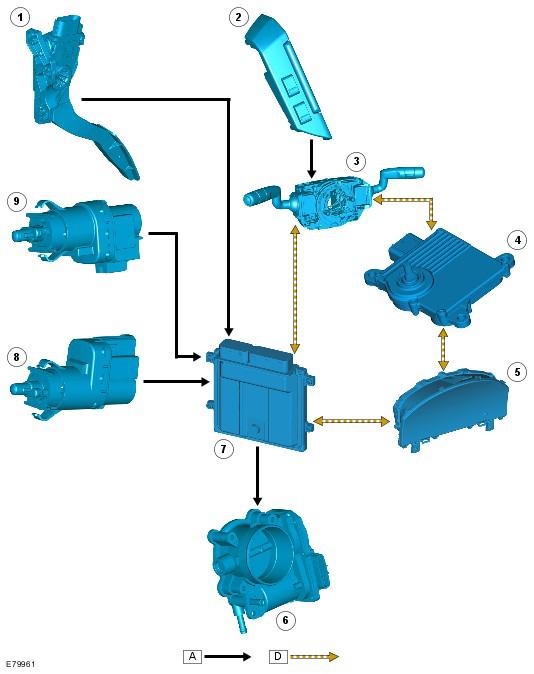

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN bus
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
APP |
| 2 |
Speed control steering wheel switches |
| 3 |
Clockspring |
| 4 |
TCM |
| 5 |
Instrument cluster |
| 6 |
Electric throttle |
| 7 |
ECM |
| 8 |
Speed control inhibit switch |
| 9 |
Stoplamp switch |
