Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Central Junction Box (C0580) Right side of dash. See Figure.

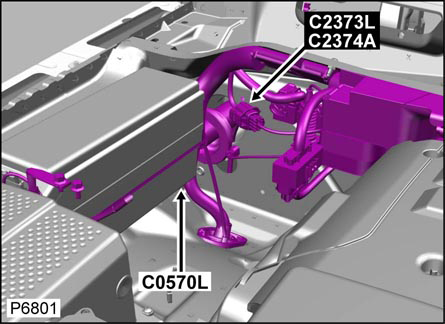

Engine Junction Box (C0570) Right side of engine compartment. See Figure.
