Home >> Land Rover >> 2009 >> Range Rover Sport HSE >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Component Location Graphics

Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

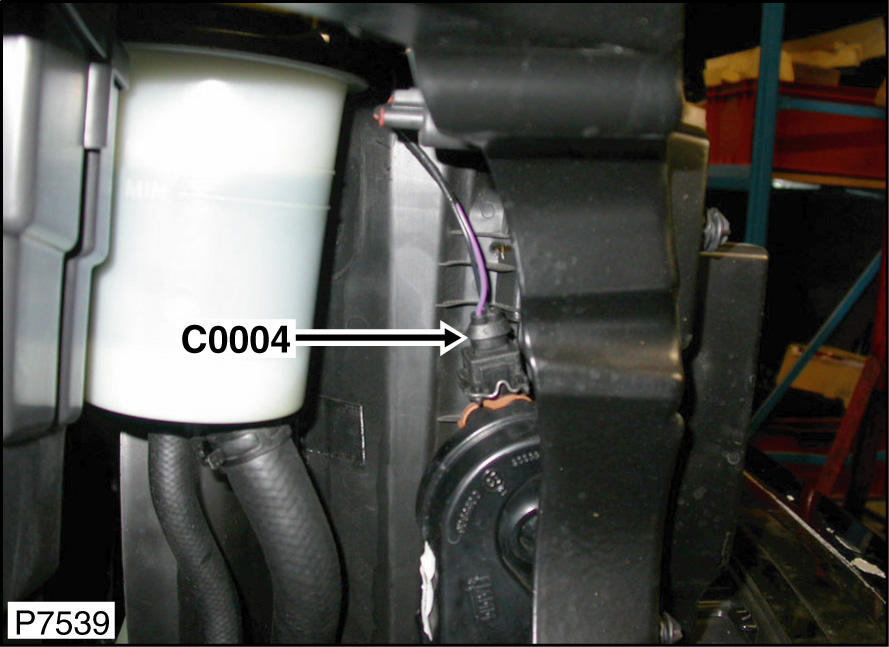

Fig 1: Right Front Of Engine Compartment
G00451073Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Left Side Of Engine Compartment
G00422794Courtesy of LAND ROVER NORTH AMERICA, INC.

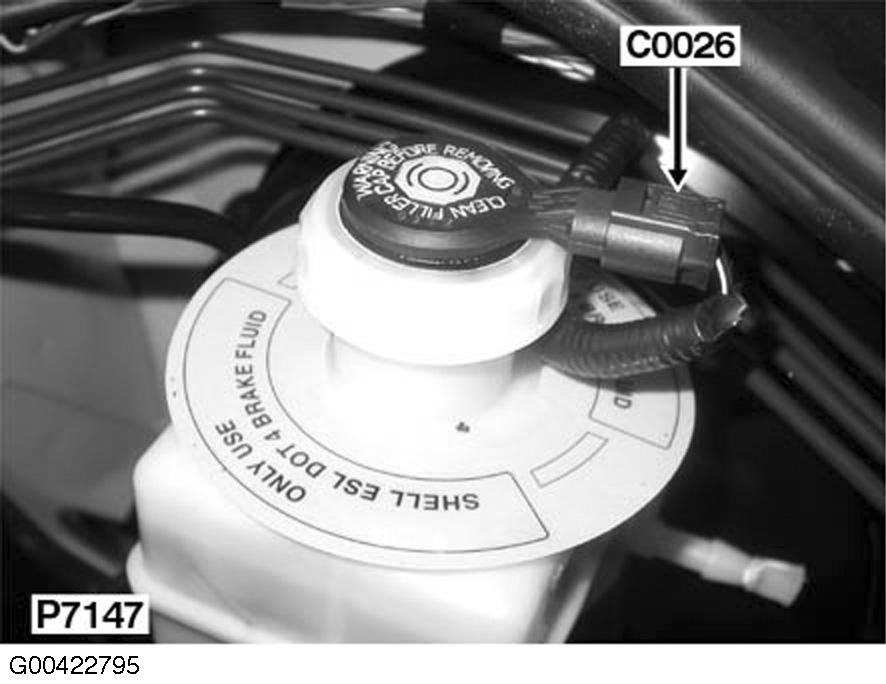

Fig 3: Left Rear Of Engine Compartment
G00422795Courtesy of LAND ROVER NORTH AMERICA, INC.

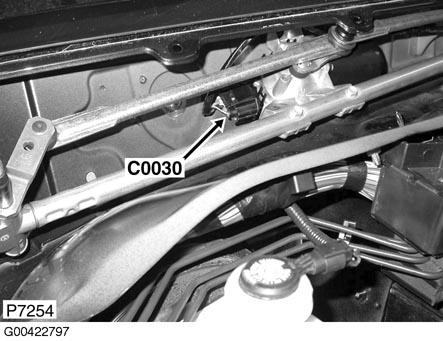

Fig 4: Rear Of Engine Compartment
G00422797Courtesy of LAND ROVER NORTH AMERICA, INC.

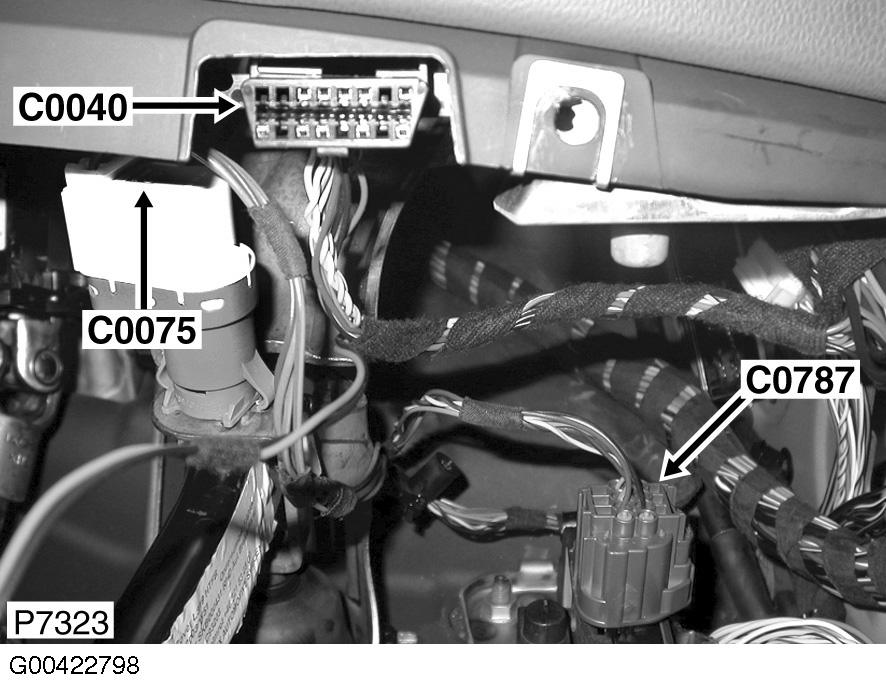

Fig 5: Left Side Of Dash
G00422798Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 6: Right Kick Panel
G00422800Courtesy of LAND ROVER NORTH AMERICA, INC.

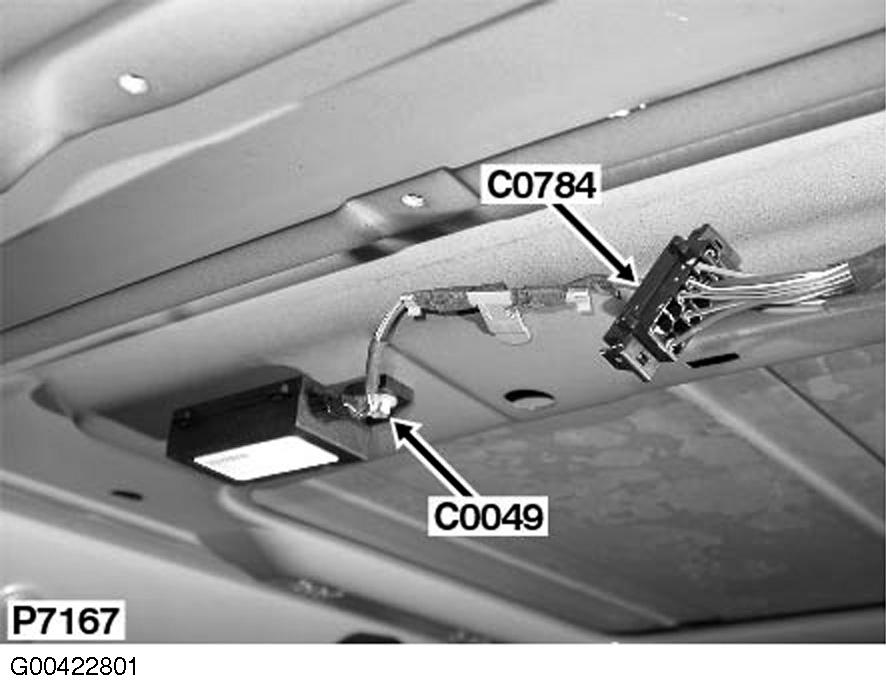

Fig 7: Center Of Headliner
G00422801Courtesy of LAND ROVER NORTH AMERICA, INC.

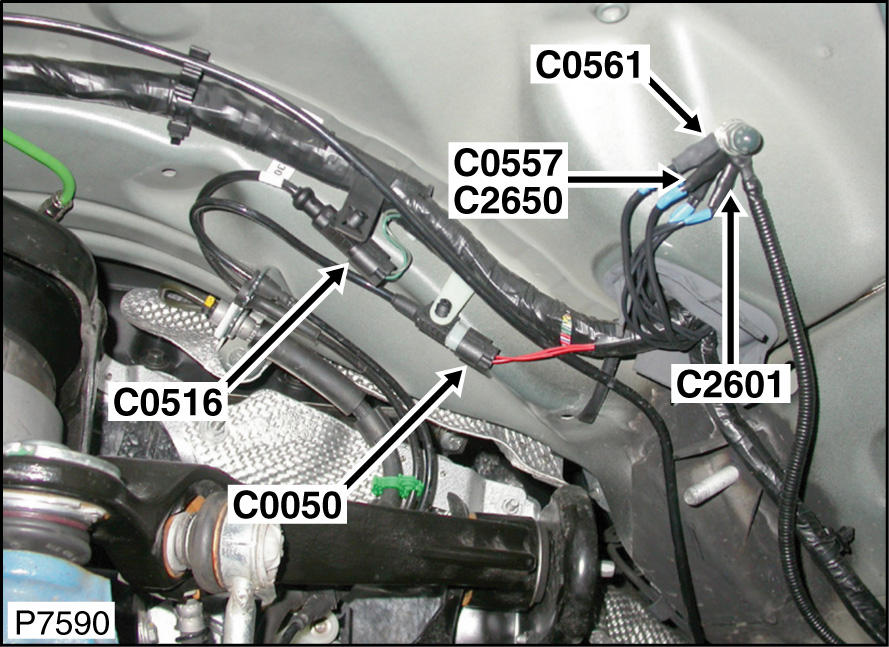

Fig 8: Left Front Wheel Arch
G00451075Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 9: Top Of Engine (4.4L)
G00422803Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 10: Top Of Engine (4.2L)
G00422804Courtesy of LAND ROVER NORTH AMERICA, INC.

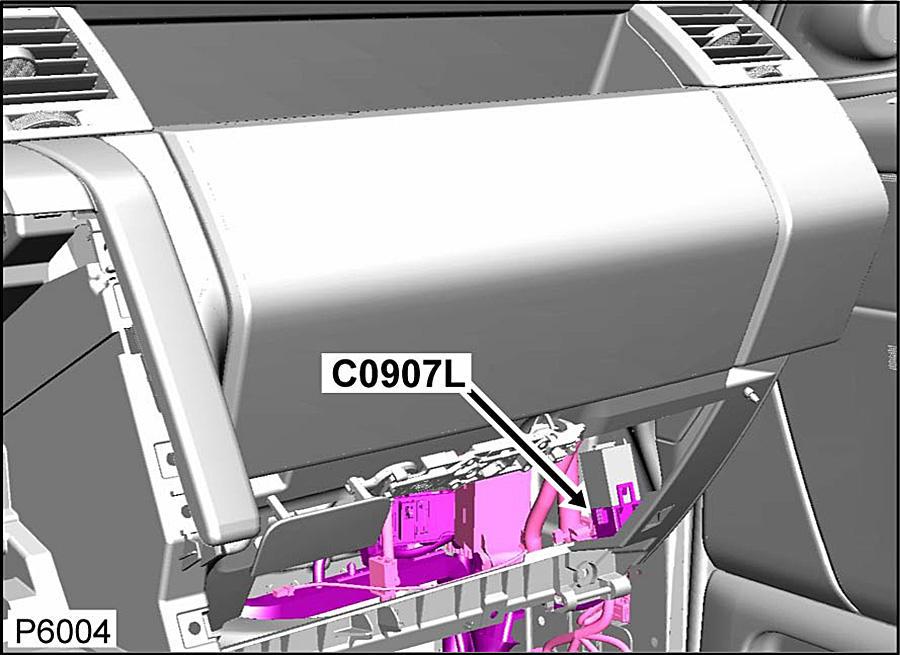

Fig 11: Right Side Of Dash
G00422805Courtesy of LAND ROVER NORTH AMERICA, INC.

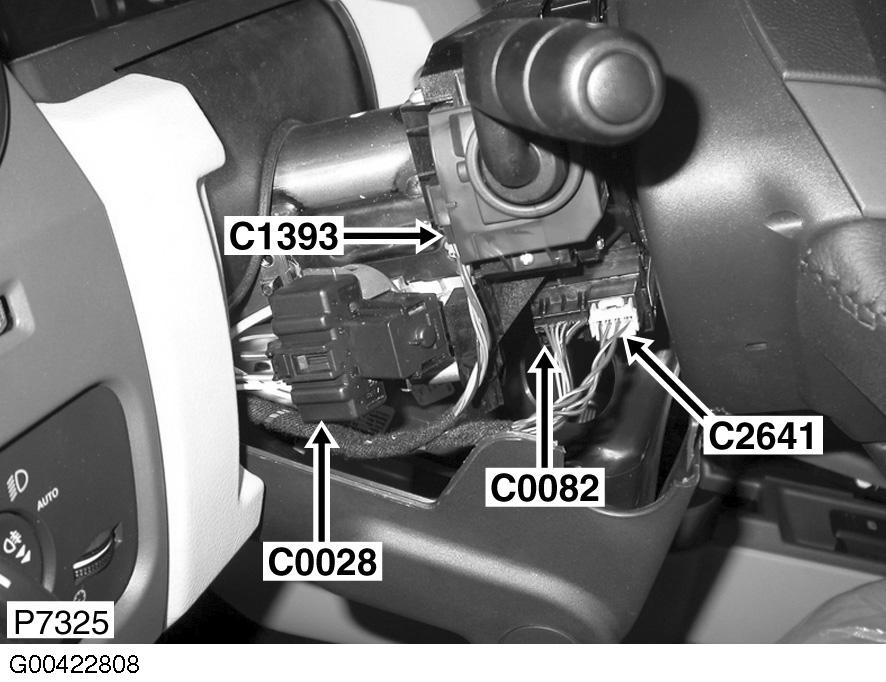

Fig 12: Steering Column
G00422808Courtesy of LAND ROVER NORTH AMERICA, INC.

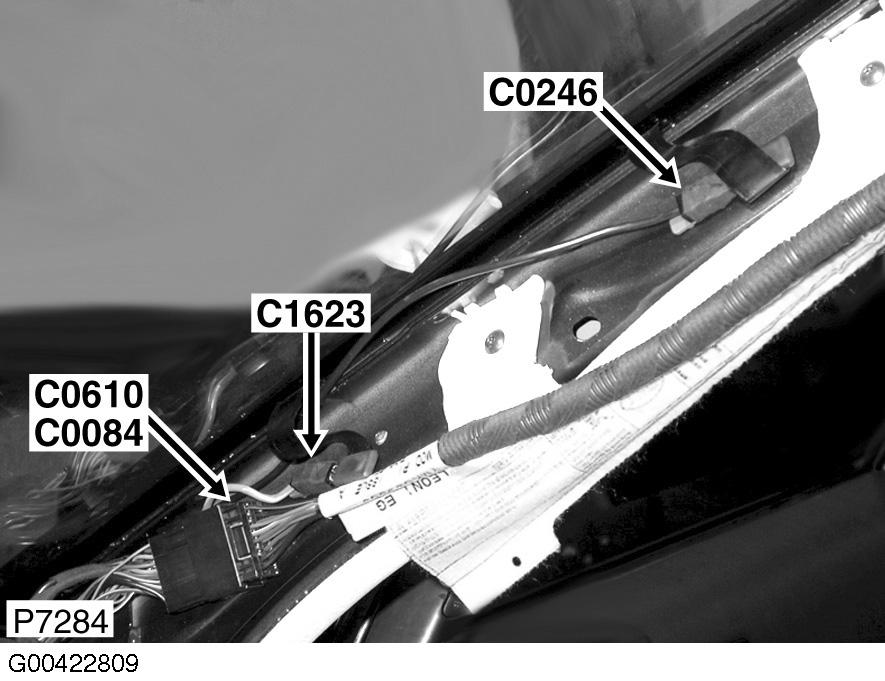

Fig 13: Right "A" Pillar
G00422809Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 14: Under Driver's Seat
G00422810Courtesy of LAND ROVER NORTH AMERICA, INC.

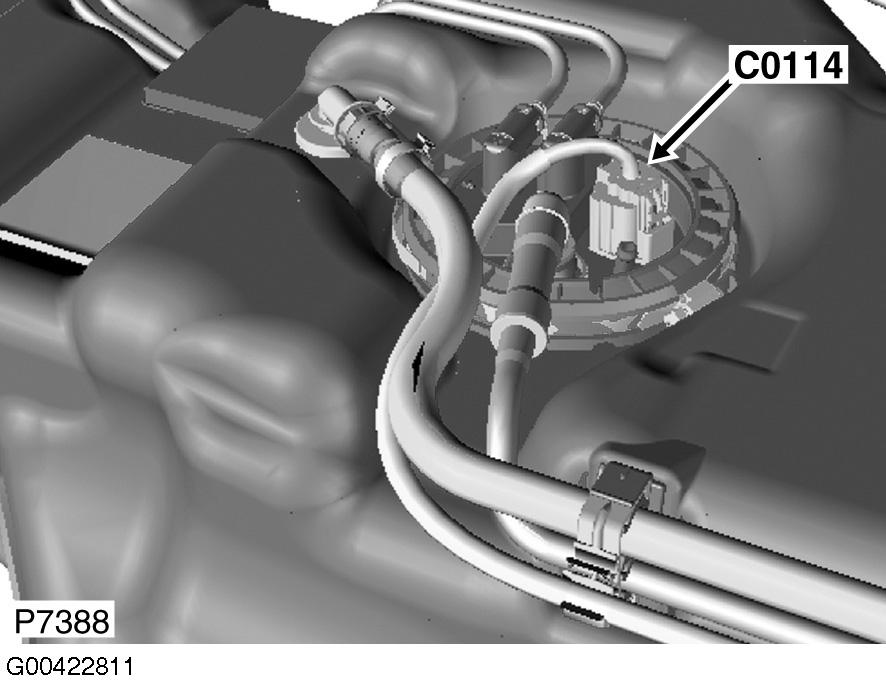

Fig 15: Top Of Fuel Tank
G00422811Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 16: Rear Of Headliner
G00451076Courtesy of LAND ROVER NORTH AMERICA, INC.

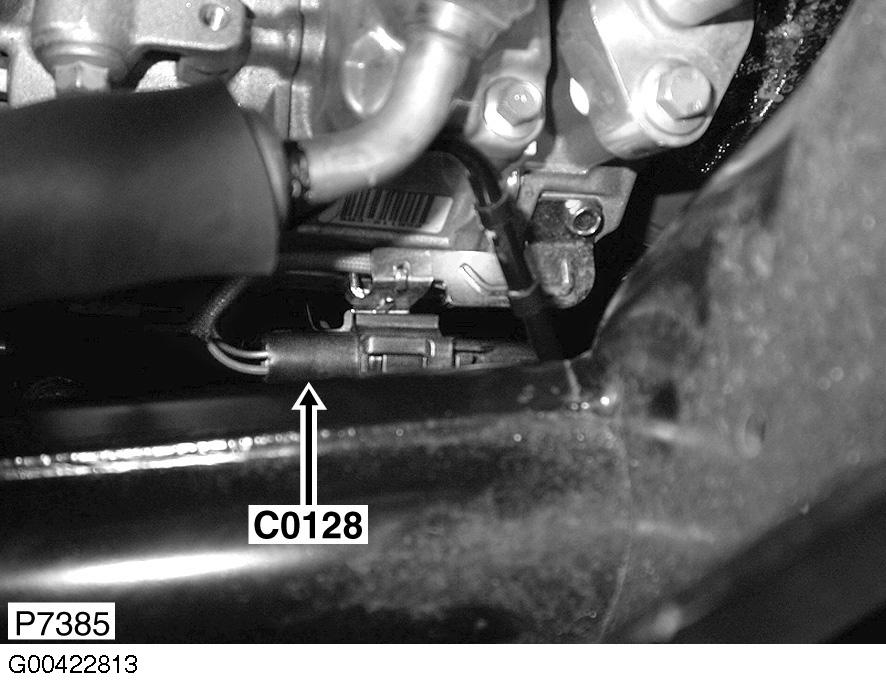

Fig 17: Left Side Of Engine (4.4L)
G00422813Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 18: Rear Of Headliner
G00422814Courtesy of LAND ROVER NORTH AMERICA, INC.

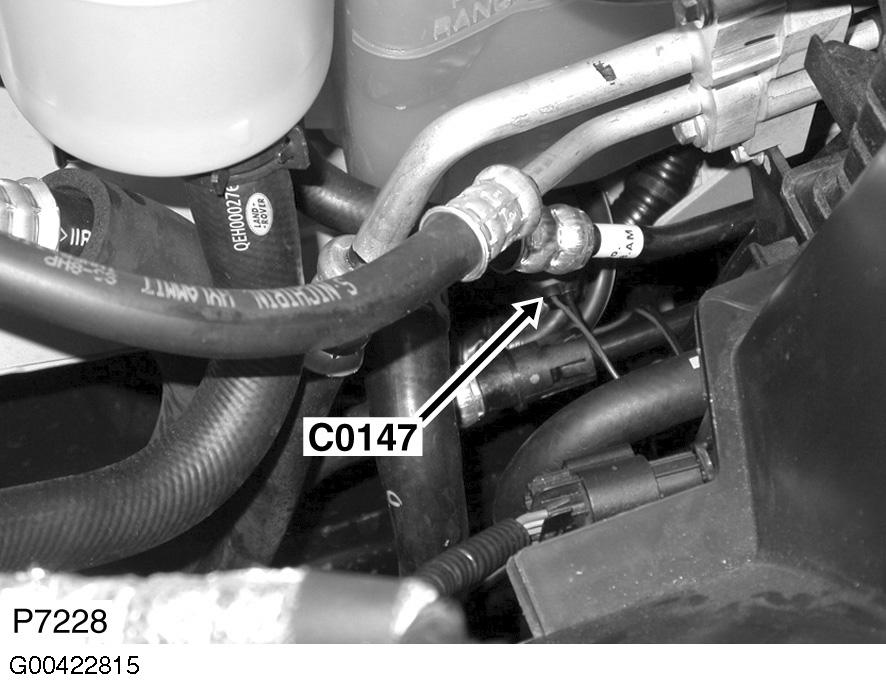

Fig 19: Left Front Of Engine Compartment
G00422815Courtesy of LAND ROVER NORTH AMERICA, INC.

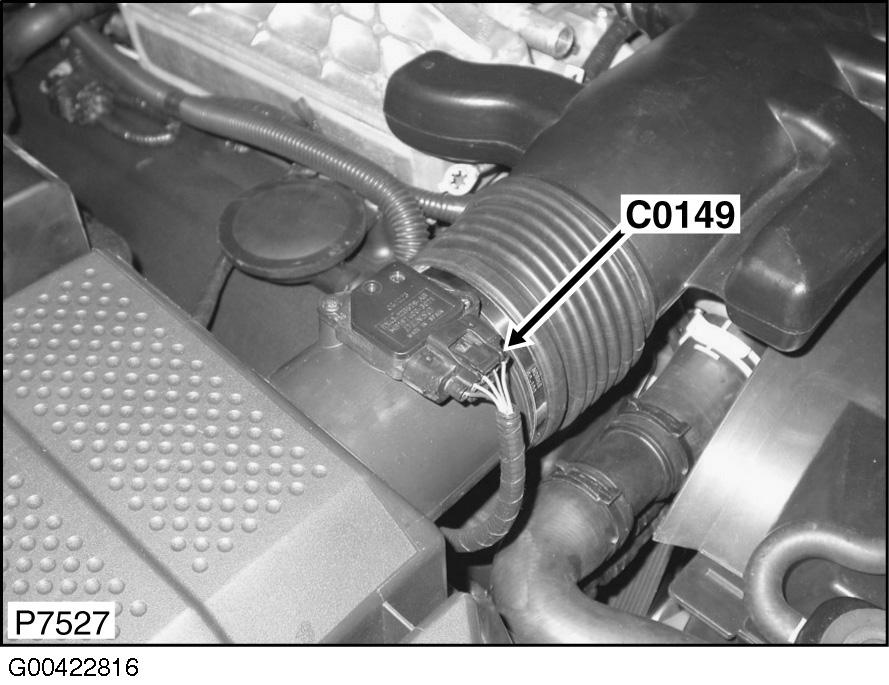

Fig 20: Right Front Of Engine Compartment (4.4L)
G00422816Courtesy of LAND ROVER NORTH AMERICA, INC.

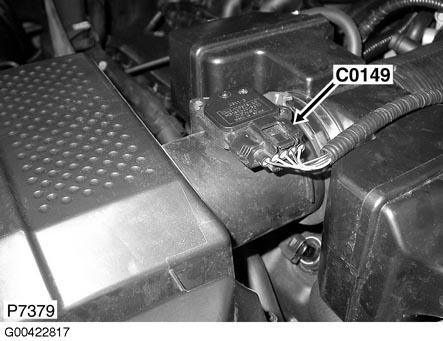

Fig 21: Right Front Of Engine Compartment (4.2L)
G00422817Courtesy of LAND ROVER NORTH AMERICA, INC.

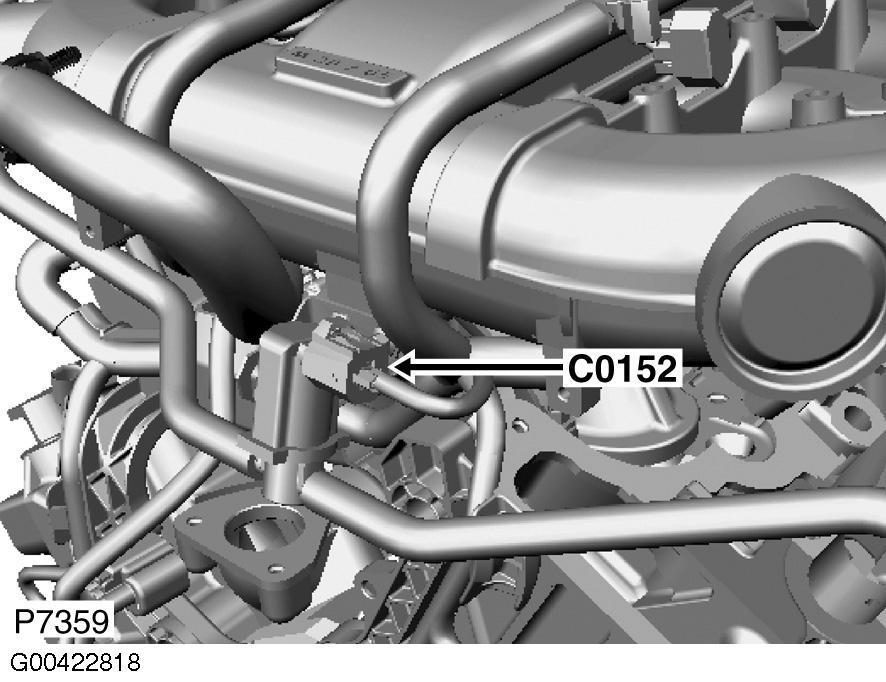

Fig 22: Left Rear Of Engine (4.4L)
G00422818Courtesy of LAND ROVER NORTH AMERICA, INC.

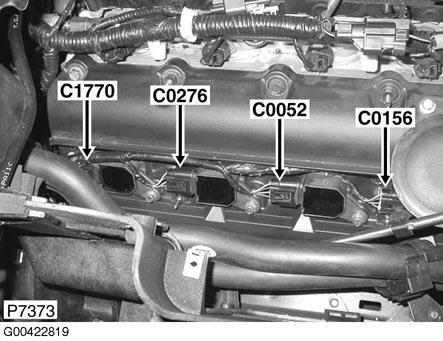

Fig 23: Top Of Engine (4.4L)
G00422819Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 24: Top Of Engine (4.2L)
G00422820Courtesy of LAND ROVER NORTH AMERICA, INC.

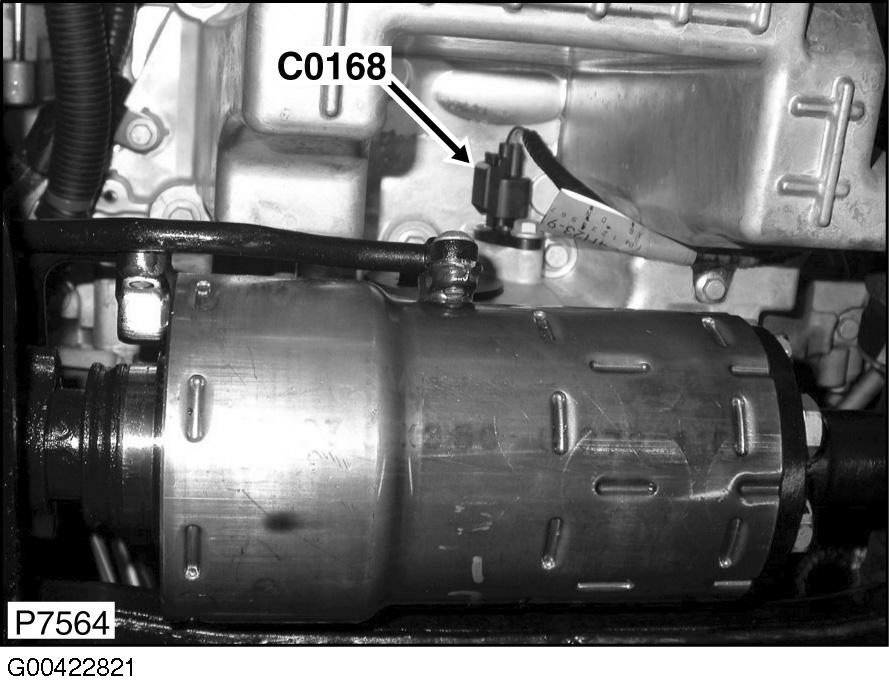

Fig 25: Lower Rear Center Of Engine
G00422821Courtesy of LAND ROVER NORTH AMERICA, INC.

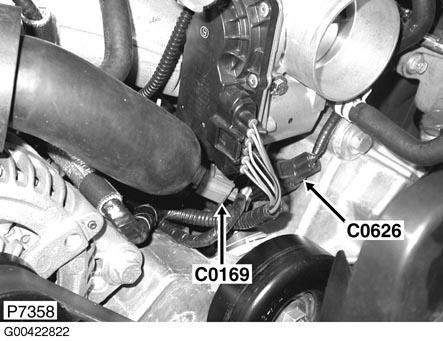

Fig 26: Top Of Engine (4.4L)
G00422822Courtesy of LAND ROVER NORTH AMERICA, INC.

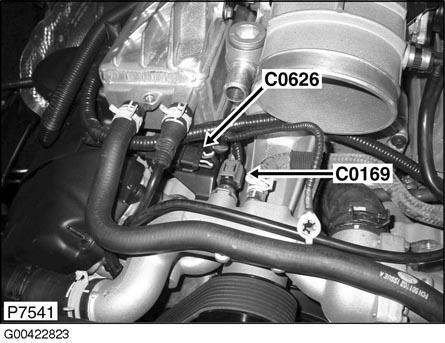

Fig 27: Top Of Engine (4.2L)
G00422823Courtesy of LAND ROVER NORTH AMERICA, INC.

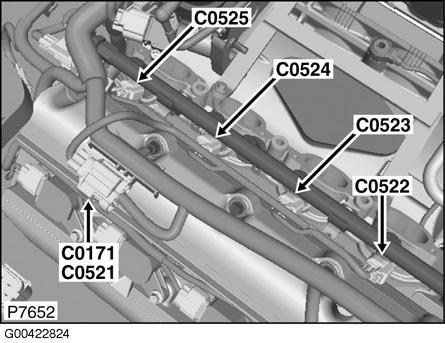

Fig 28: Top Of Engine
G00422824Courtesy of LAND ROVER NORTH AMERICA, INC.

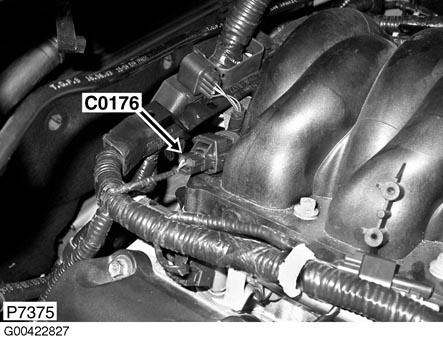

Fig 29: Right Rear Of Engine (4.4L)
G00422827Courtesy of LAND ROVER NORTH AMERICA, INC.

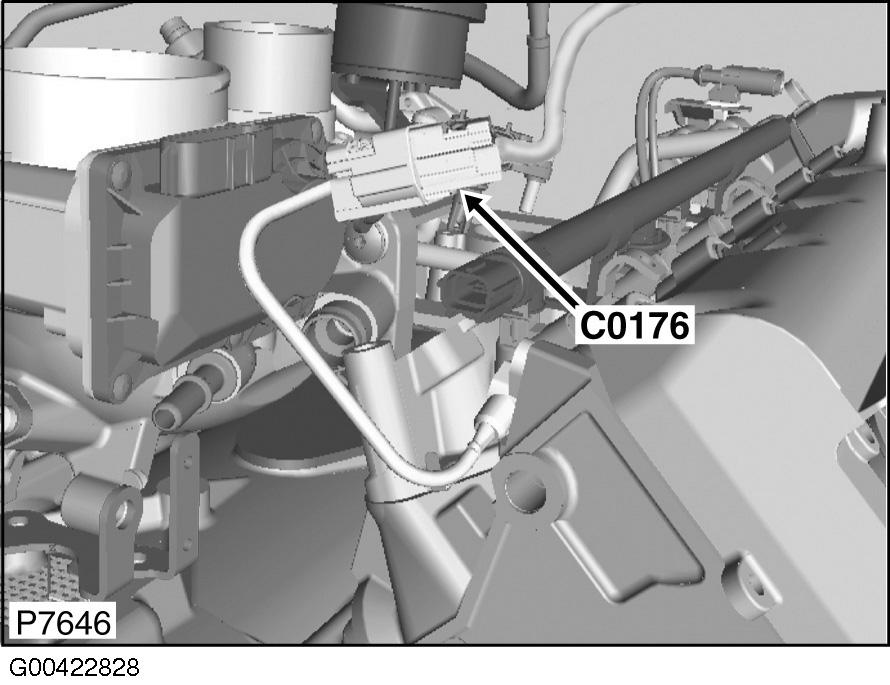

Fig 30: Center Front Of Engine (4.2L)
G00422828Courtesy of LAND ROVER NORTH AMERICA, INC.

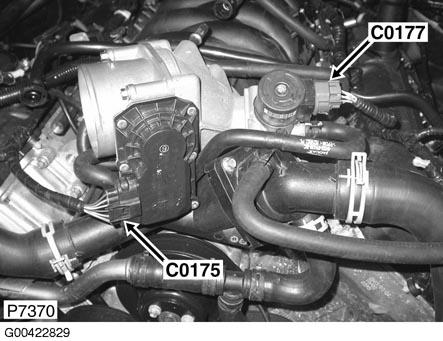

Fig 31: Top Of Engine (4.4L)
G00422829Courtesy of LAND ROVER NORTH AMERICA, INC.

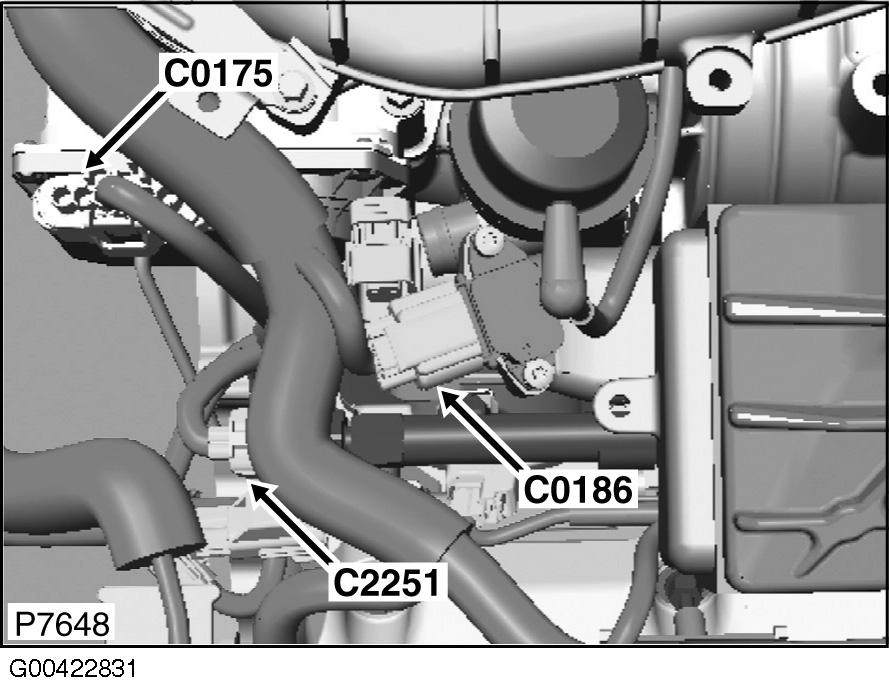

Fig 32: Top Of Engine
G00422831Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 33: Top Of Engine
G00422832Courtesy of LAND ROVER NORTH AMERICA, INC.

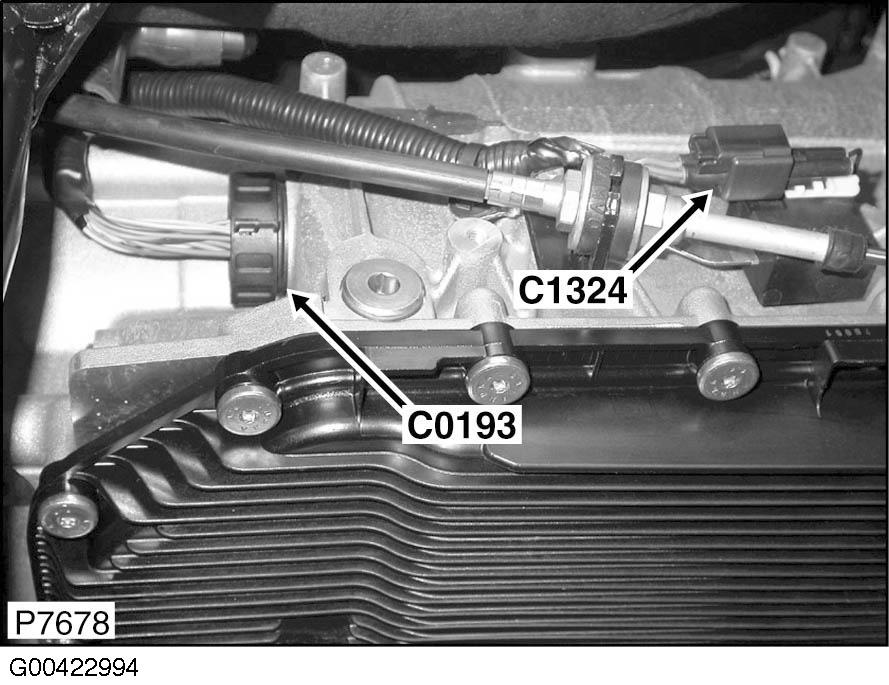

Fig 34: Rear Of Transmission
G00422994Courtesy of LAND ROVER NORTH AMERICA, INC.

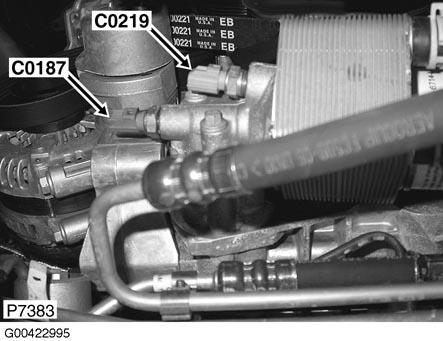

Fig 35: Top Of Engine
G00422995Courtesy of LAND ROVER NORTH AMERICA, INC.

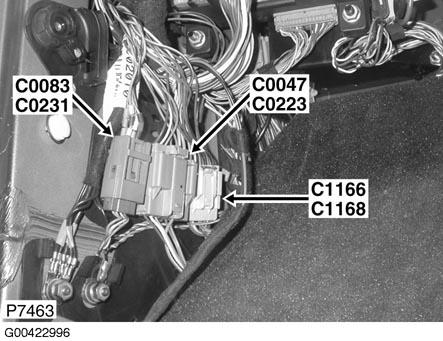

Fig 36: Left Kick Panel
G00422996Courtesy of LAND ROVER NORTH AMERICA, INC.

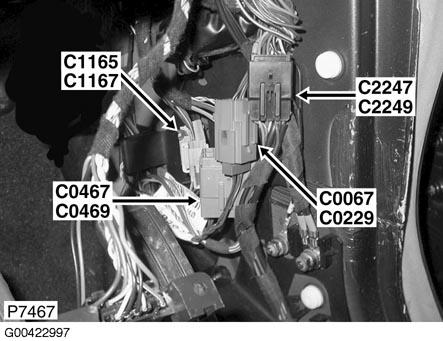

Fig 37: Left Side Of Dash
G00422997Courtesy of LAND ROVER NORTH AMERICA, INC.

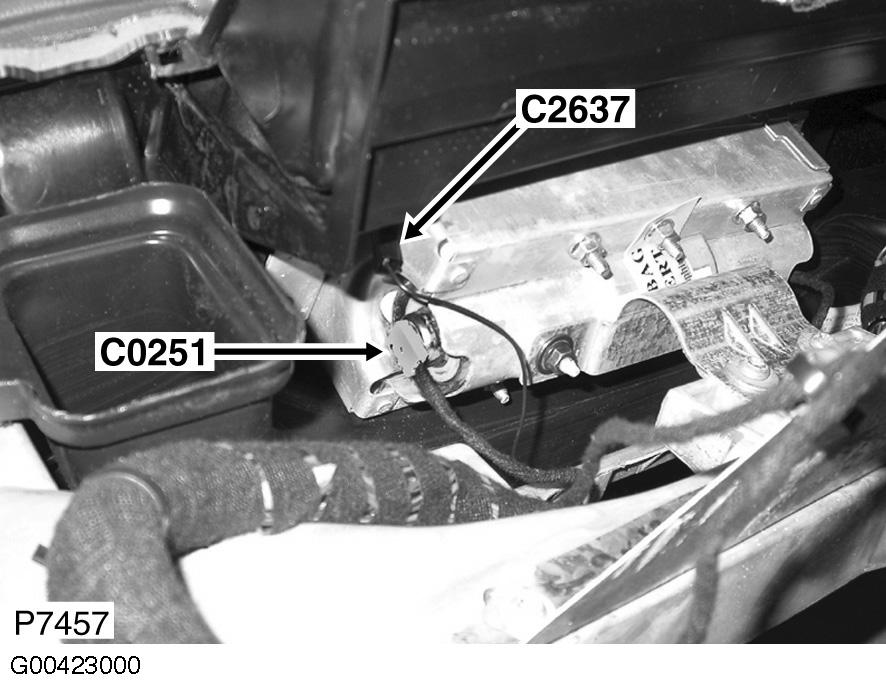

Fig 38: Right Side Of Dash
G00423000Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 39: Under Driver's Seat
G00423001Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 40: Center Console
G00423002Courtesy of LAND ROVER NORTH AMERICA, INC.

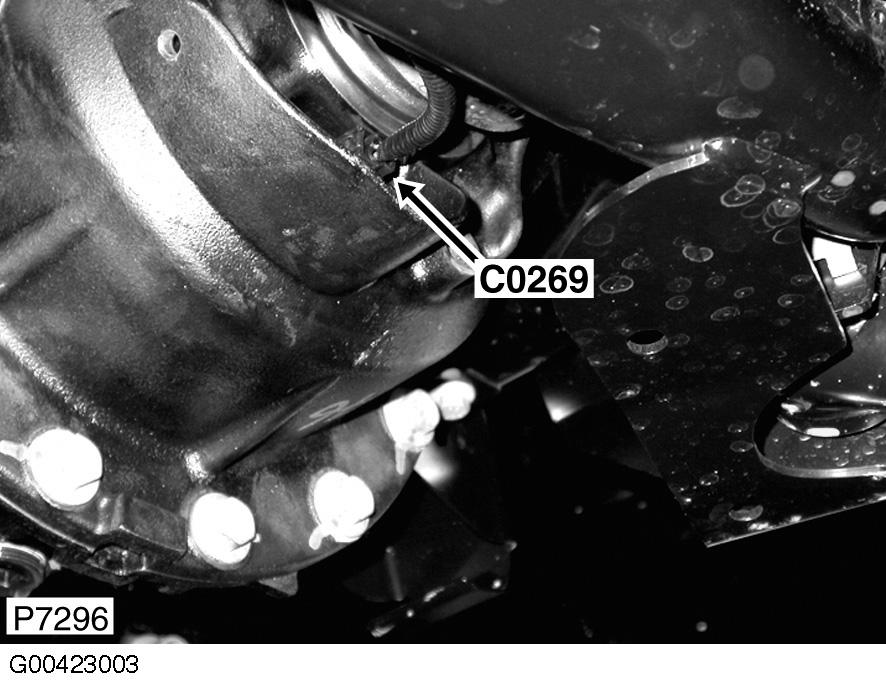

Fig 41: Right Rear Underside Of Vehicle
G00423003Courtesy of LAND ROVER NORTH AMERICA, INC.

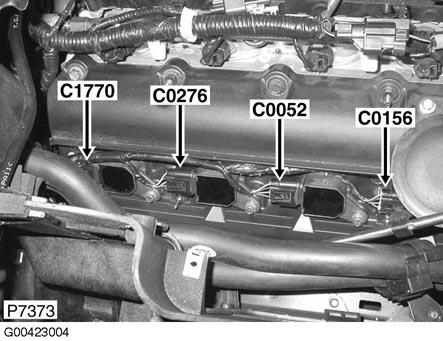

Fig 42: Top Of Engine (4.4L)
G00423004Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 43: Top Of Engine (4.2L)
G00423005Courtesy of LAND ROVER NORTH AMERICA, INC.

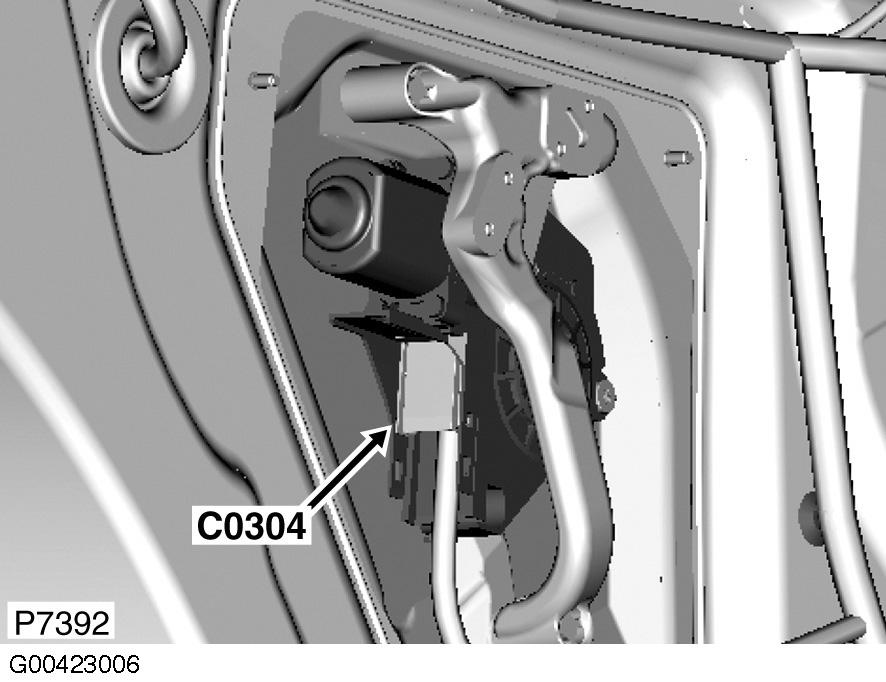

Fig 44: Left Rear Door
G00423006Courtesy of LAND ROVER NORTH AMERICA, INC.

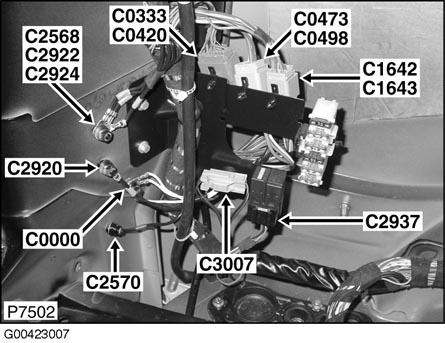

Fig 45: Left Rear Corner Of Vehicle
G00423007Courtesy of LAND ROVER NORTH AMERICA, INC.

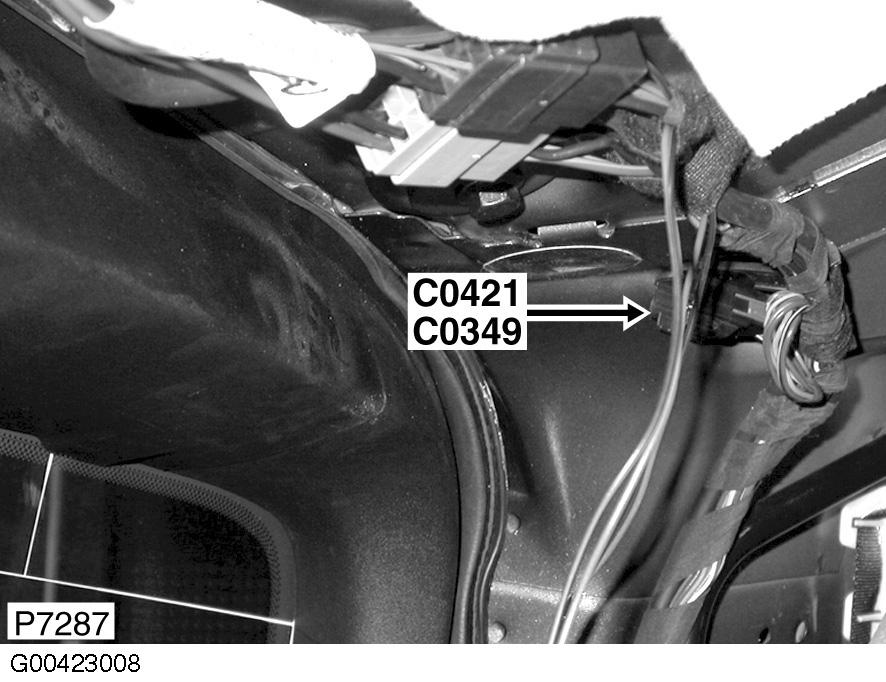

Fig 46: Rear Of Headliner
G00423008Courtesy of LAND ROVER NORTH AMERICA, INC.

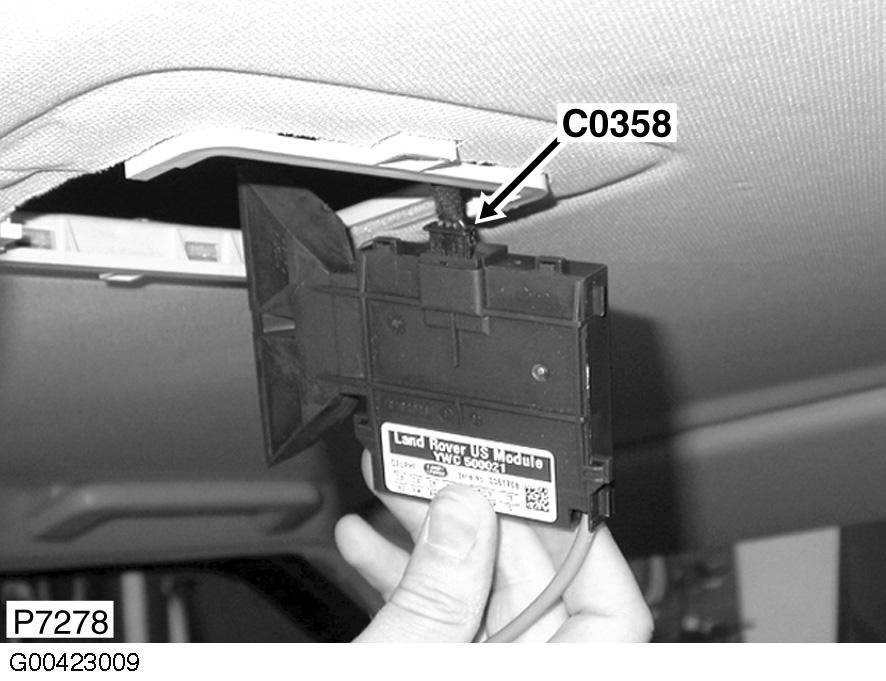

Fig 47: Center Headliner
G00423009Courtesy of LAND ROVER NORTH AMERICA, INC.

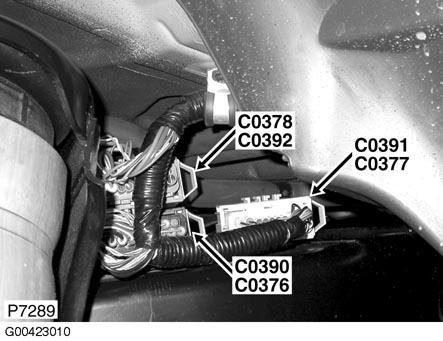

Fig 48: Left Rear Wheelwell
G00423010Courtesy of LAND ROVER NORTH AMERICA, INC.

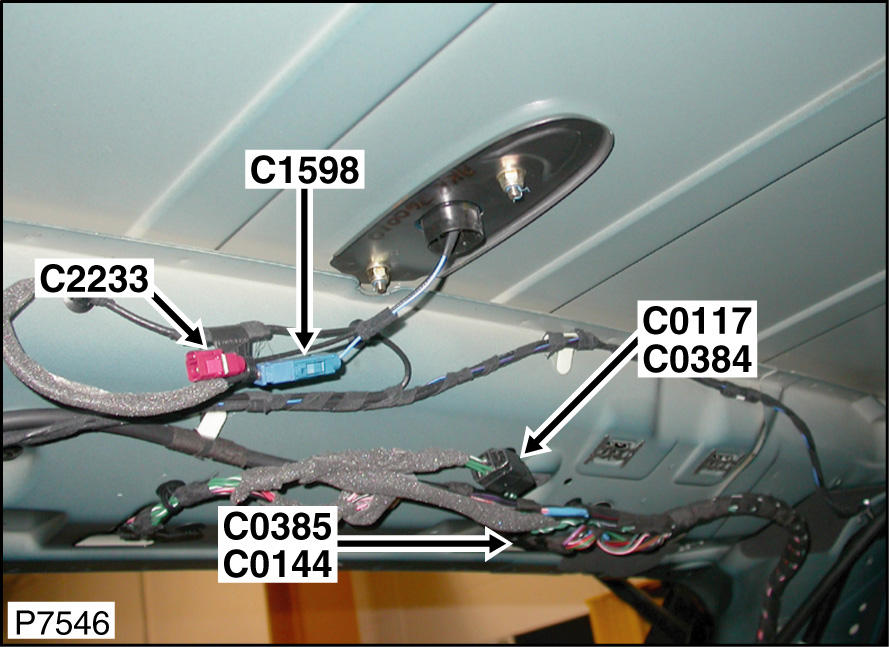

Fig 49: Rear Of Headliner
G00451080Courtesy of LAND ROVER NORTH AMERICA, INC.

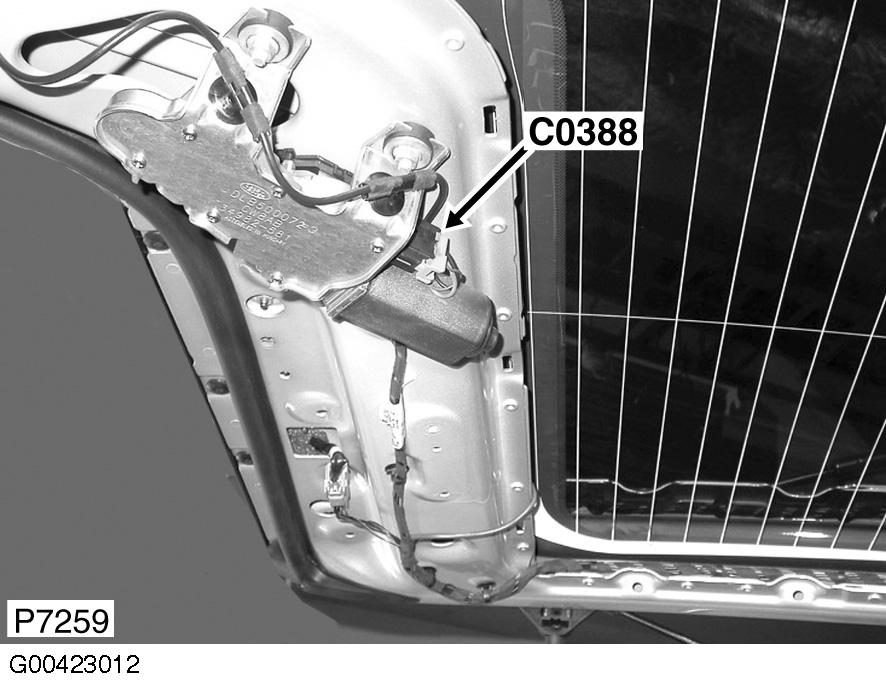

Fig 50: Center Of Tailgate
G00423012Courtesy of LAND ROVER NORTH AMERICA, INC.

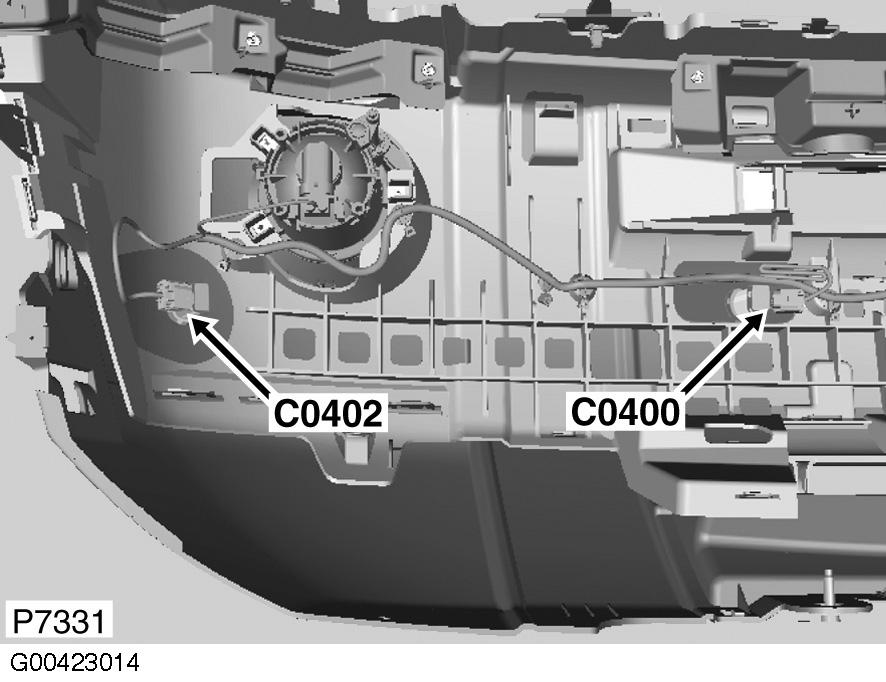

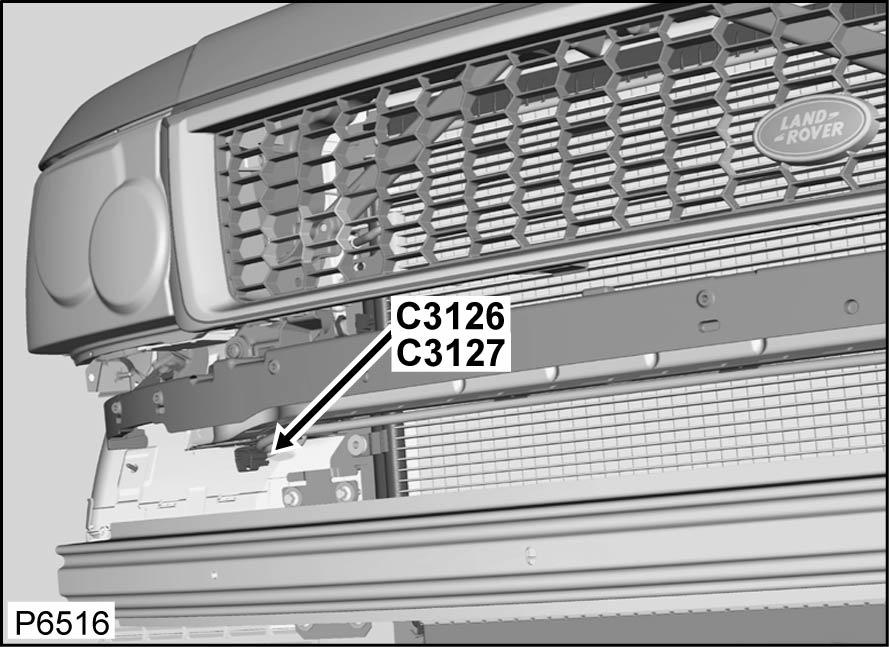

Fig 51: Front Bumper
G00423014Courtesy of LAND ROVER NORTH AMERICA, INC.

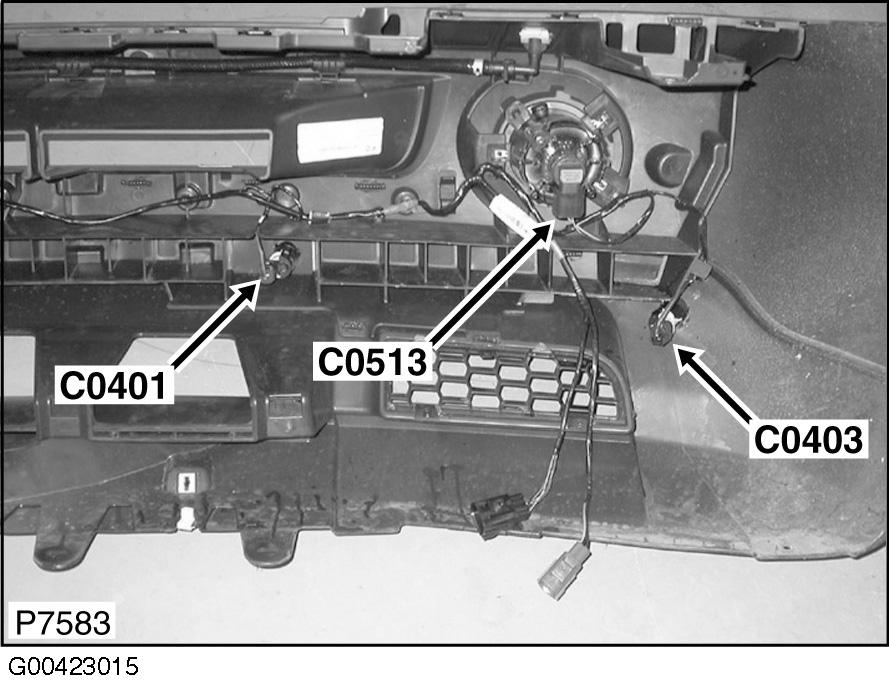

Fig 52: Front Bumper
G00423015Courtesy of LAND ROVER NORTH AMERICA, INC.

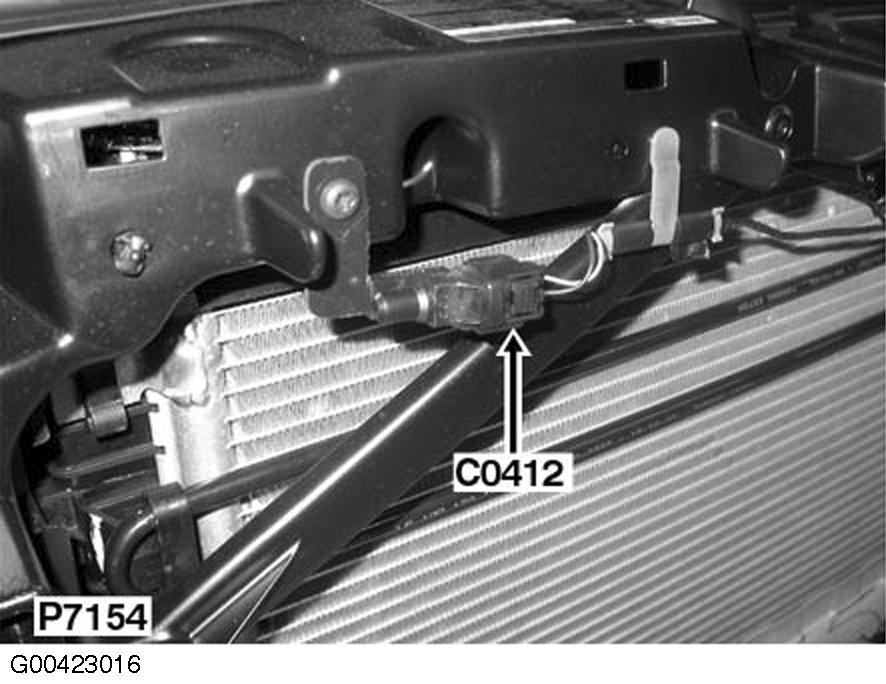

Fig 53: Front Of Engine Compartment
G00423016Courtesy of LAND ROVER NORTH AMERICA, INC.

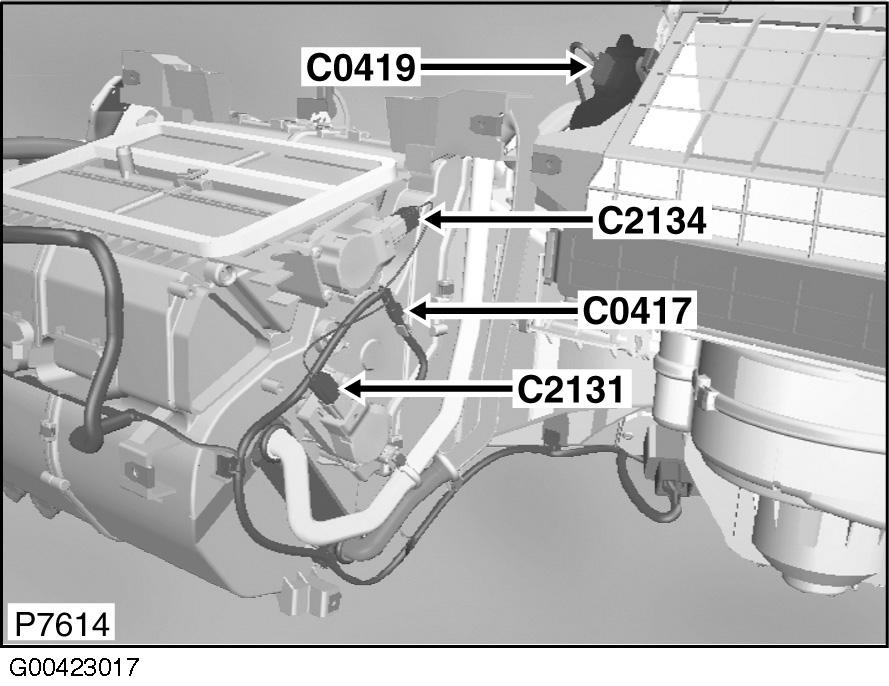

Fig 54: Center Of Dash
G00423017Courtesy of LAND ROVER NORTH AMERICA, INC.

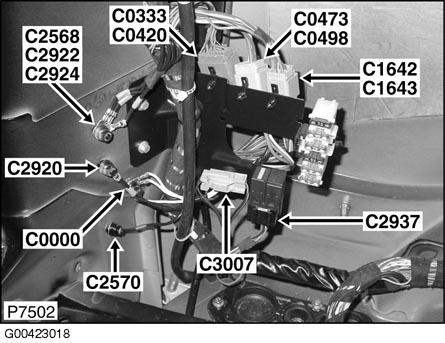

Fig 55: Left Rear Corner Of Vehicle
G00423018Courtesy of LAND ROVER NORTH AMERICA, INC.

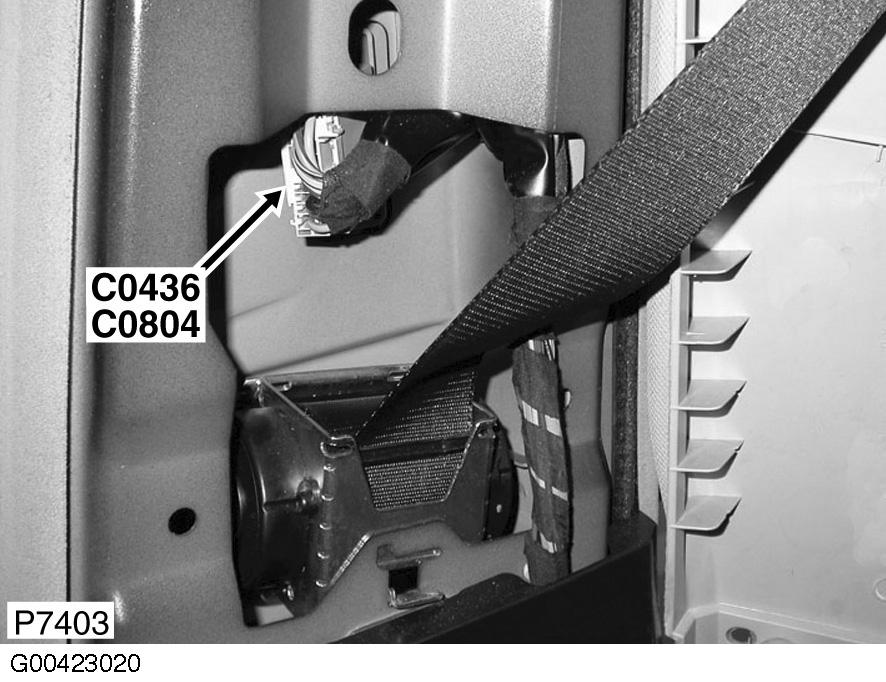

Fig 56: Right "B" Pillar
G00423020Courtesy of LAND ROVER NORTH AMERICA, INC.

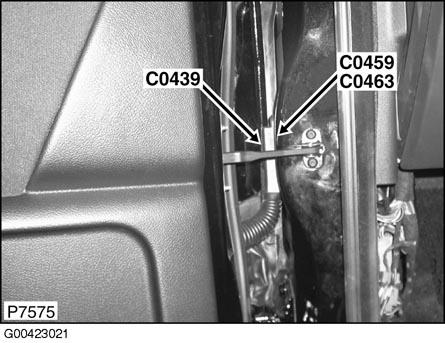

Fig 57: Left Kick Panel
G00423021Courtesy of LAND ROVER NORTH AMERICA, INC.

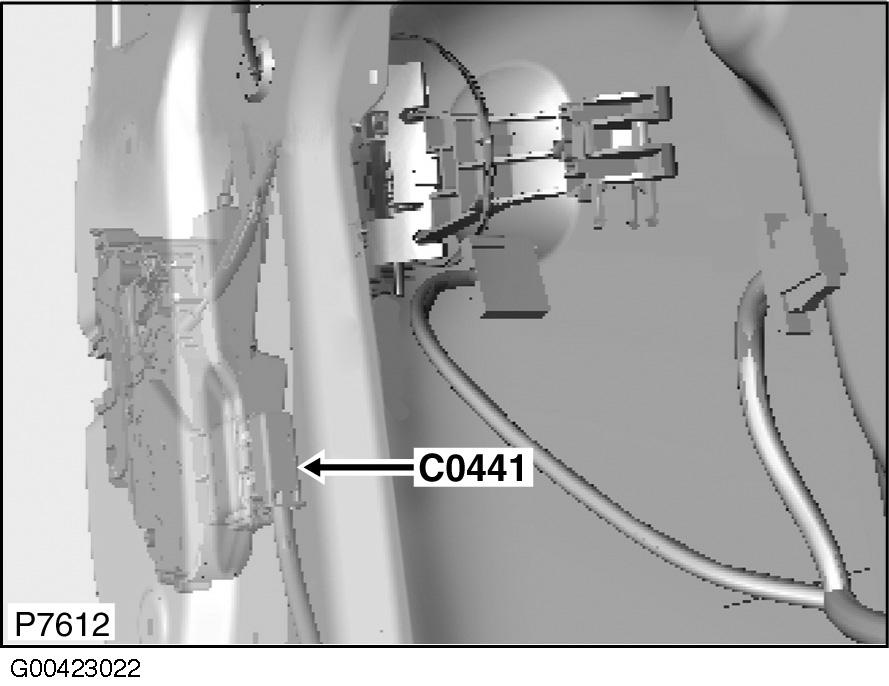

Fig 58: Front Doors (Driver's Shown)
G00423022Courtesy of LAND ROVER NORTH AMERICA, INC.

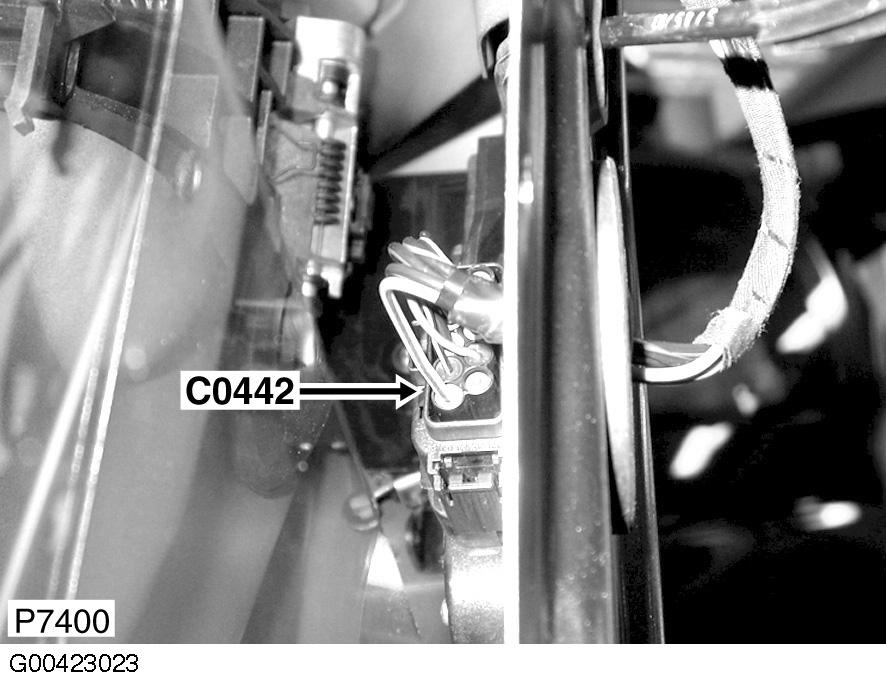

Fig 59: Rear Doors (Left Shown)
G00423023Courtesy of LAND ROVER NORTH AMERICA, INC.

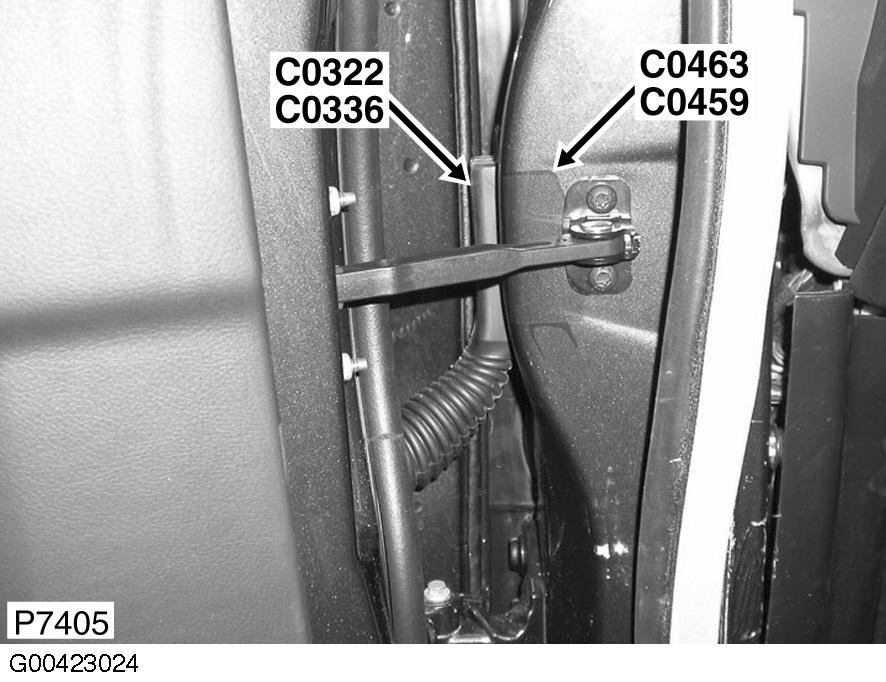

Fig 60: Left Kick Panel
G00423024Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 61: Right Kick Panel
G00423025Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 62: Left "D" Pillar
G00451083Courtesy of LAND ROVER NORTH AMERICA, INC.

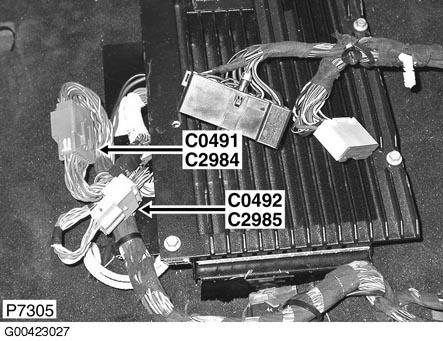

Fig 63: Under Driver's Seat
G00423027Courtesy of LAND ROVER NORTH AMERICA, INC.

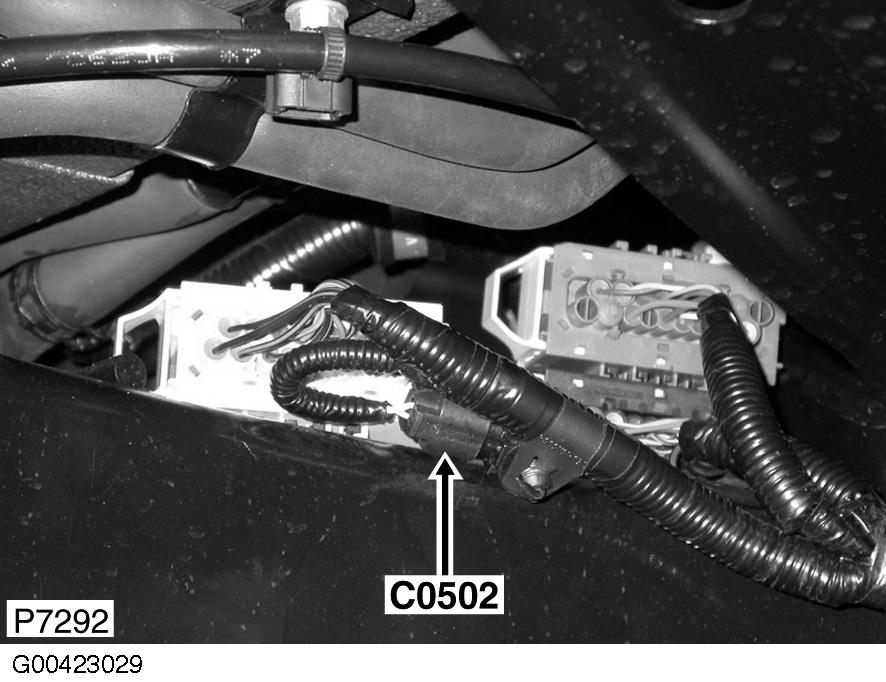

Fig 64: Left Rear Wheelwell
G00423029Courtesy of LAND ROVER NORTH AMERICA, INC.

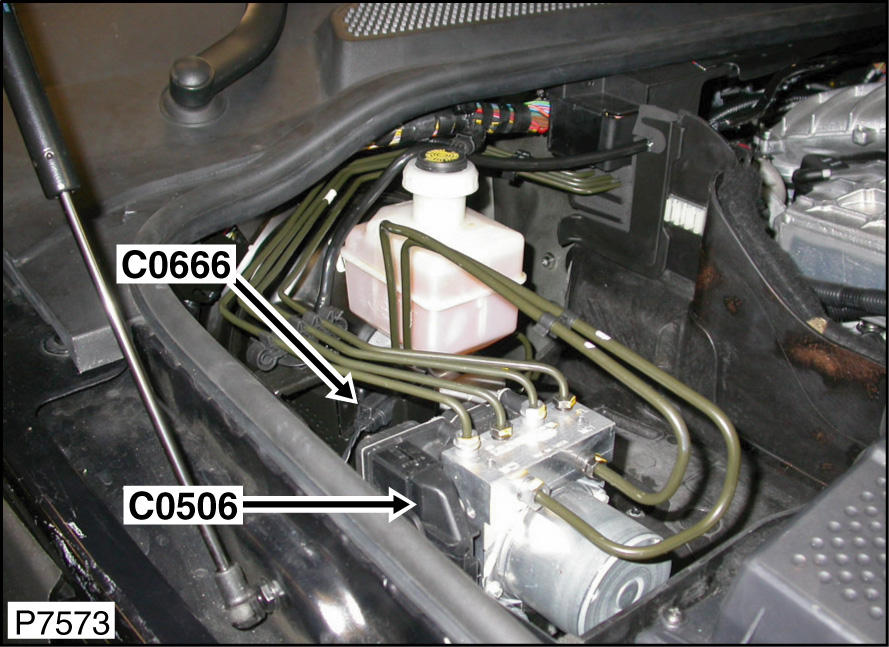

Fig 65: Right Rear Of Engine Compartment
G00451094Courtesy of LAND ROVER NORTH AMERICA, INC.

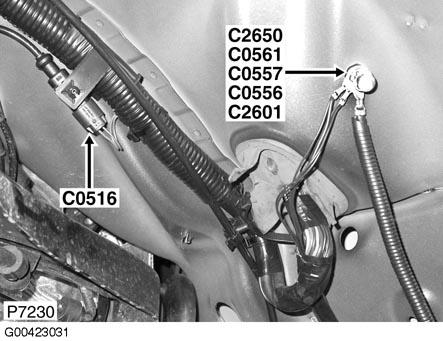

Fig 66: Left Front Wheelwell
G00423031Courtesy of LAND ROVER NORTH AMERICA, INC.

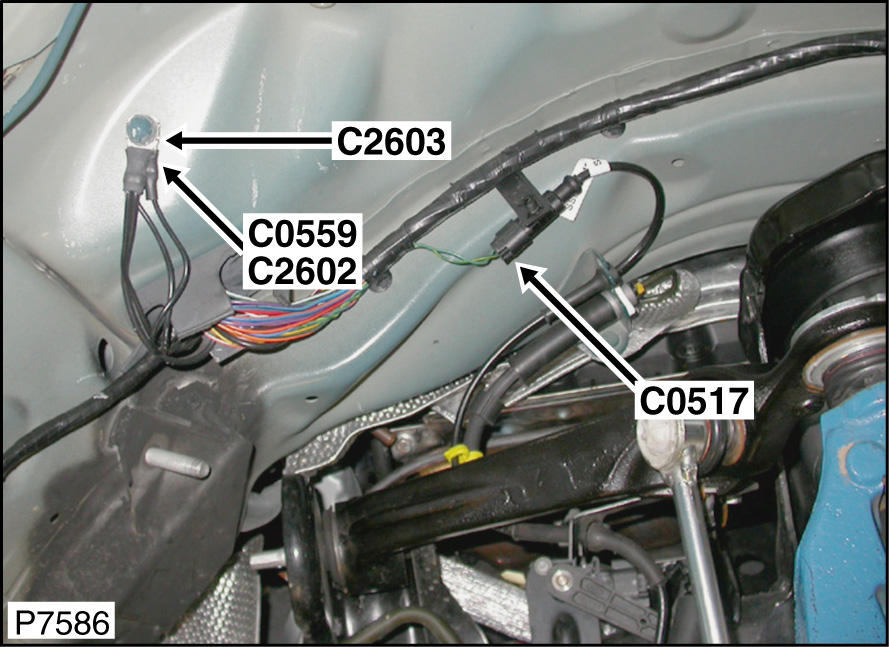

Fig 67: Right Front Wheelwell
G00451085Courtesy of LAND ROVER NORTH AMERICA, INC.

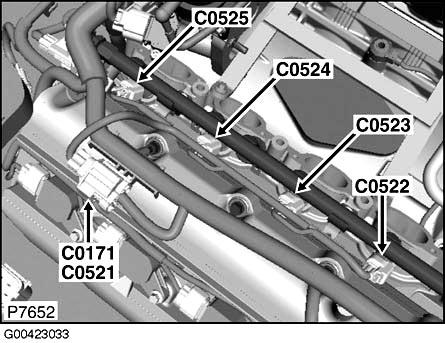

Fig 68: Top Of Engine
G00423033Courtesy of LAND ROVER NORTH AMERICA, INC.

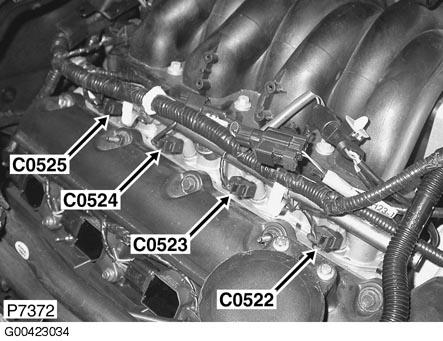

Fig 69: Top Of Engine (4.4L)
G00423034Courtesy of LAND ROVER NORTH AMERICA, INC.

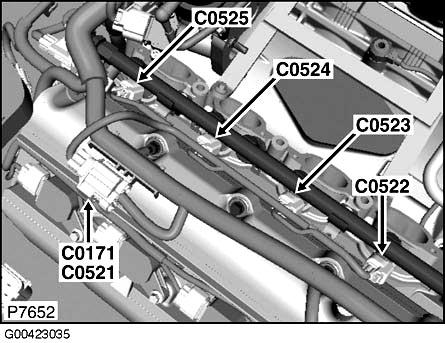

Fig 70: Top Of Engine (4.2L)
G00423035Courtesy of LAND ROVER NORTH AMERICA, INC.

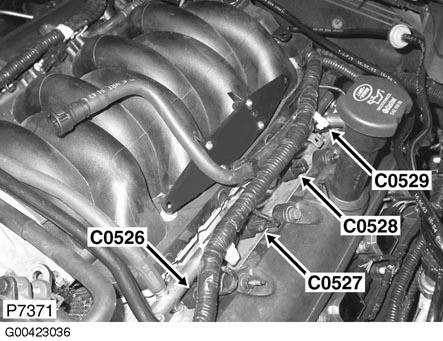

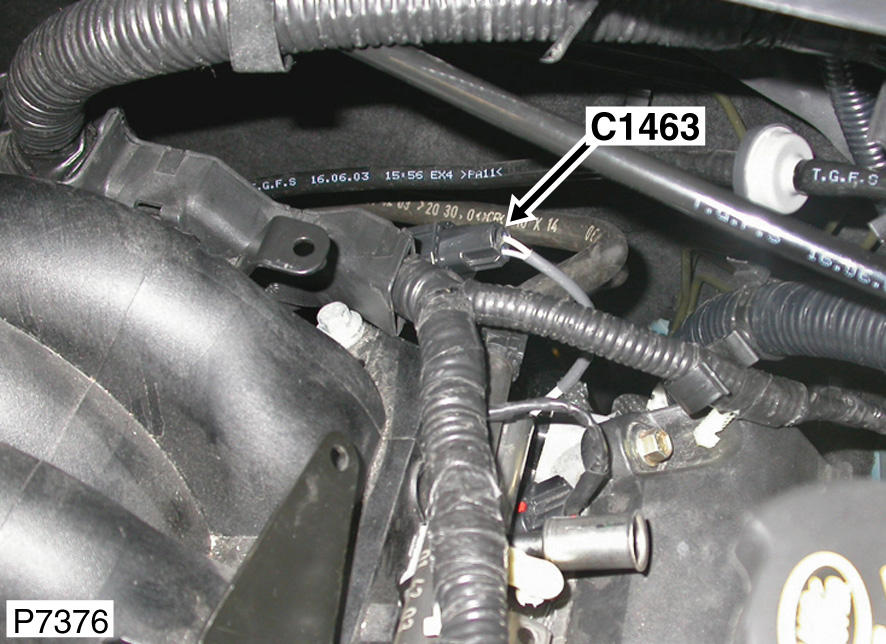

Fig 71: Top Of Engine (4.4L)
G00423036Courtesy of LAND ROVER NORTH AMERICA, INC.

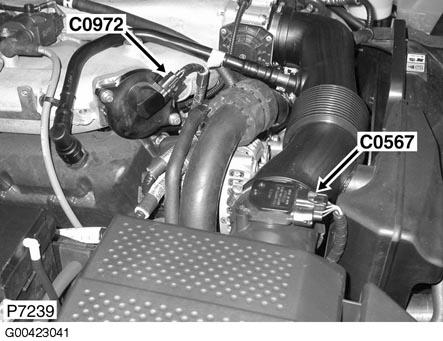

Fig 72: Right Front Of Engine Compartment
G00423041Courtesy of LAND ROVER NORTH AMERICA, INC.

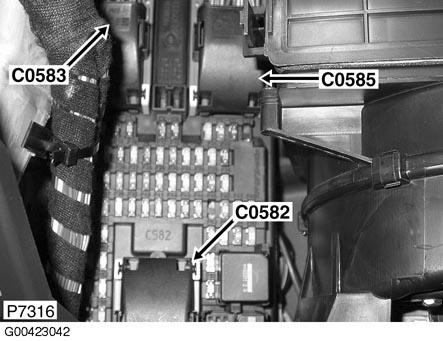

Fig 73: Right Side Of Dash
G00423042Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 74: Right "A" Pillar
G00423043Courtesy of LAND ROVER NORTH AMERICA, INC.

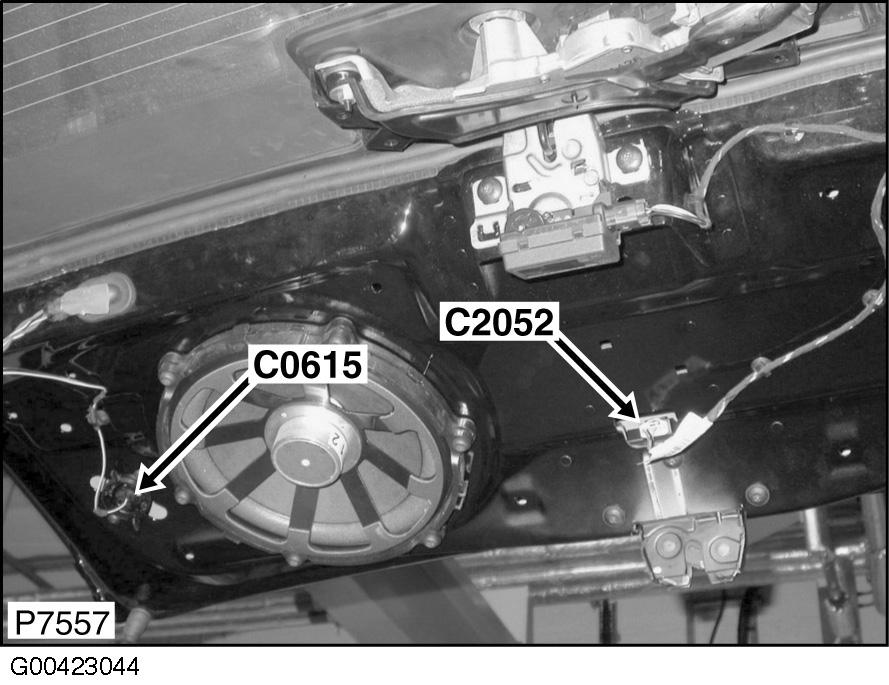

Fig 75: Center Of Tailgate
G00423044Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 76: Left Side Of Engine Compartment
G00423045Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 77: Front Center Of Engine (4.2L)
G00423046Courtesy of LAND ROVER NORTH AMERICA, INC.

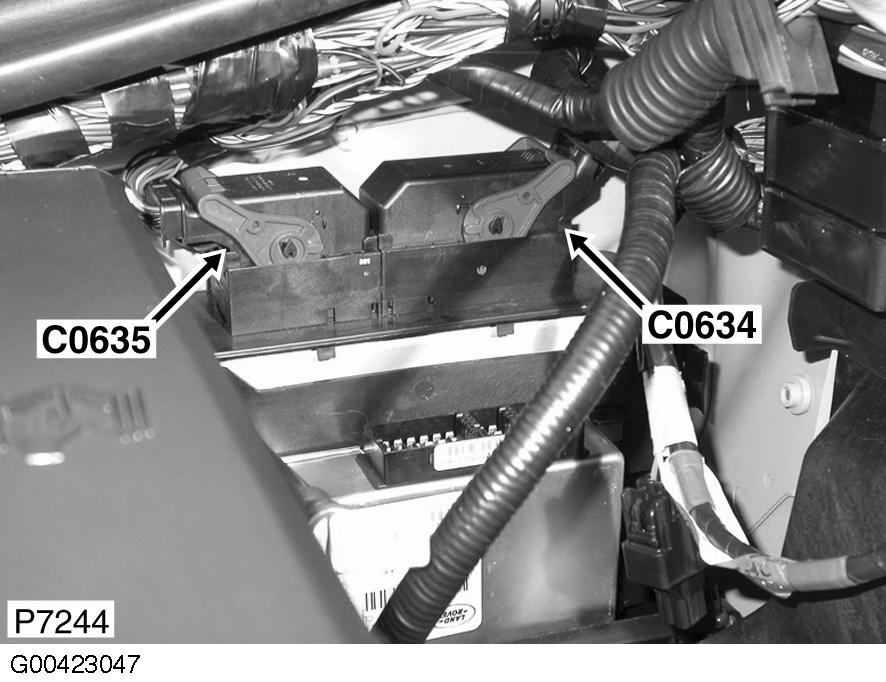

Fig 78: Right Rear Of Engine Compartment
G00423047Courtesy of LAND ROVER NORTH AMERICA, INC.

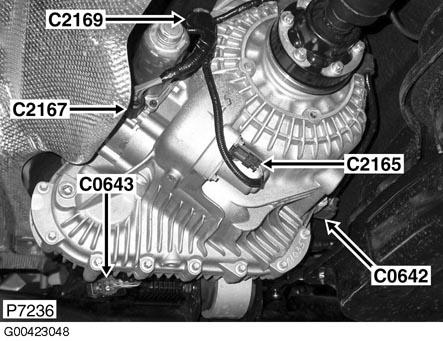

Fig 79: Underside Of Vehicle
G00423048Courtesy of LAND ROVER NORTH AMERICA, INC.

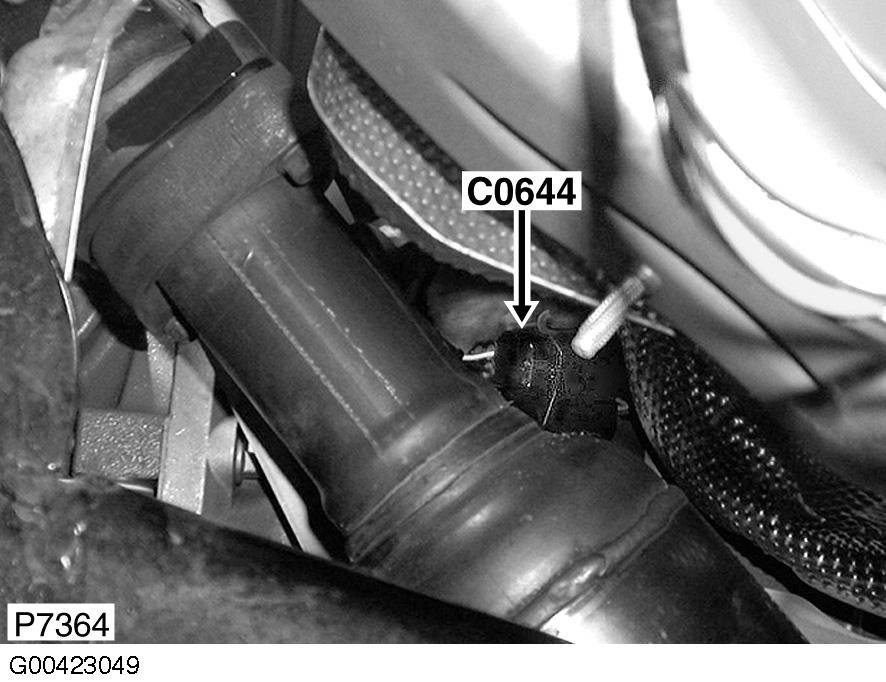

Fig 80: Underside Of Vehicle
G00423049Courtesy of LAND ROVER NORTH AMERICA, INC.

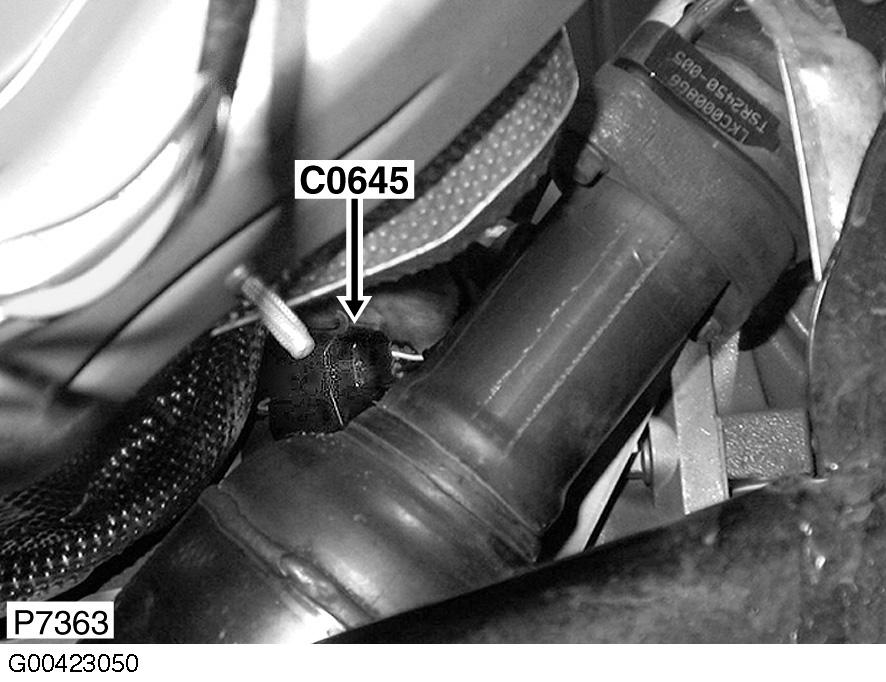

Fig 81: Underside Of Vehicle
G00423050Courtesy of LAND ROVER NORTH AMERICA, INC.

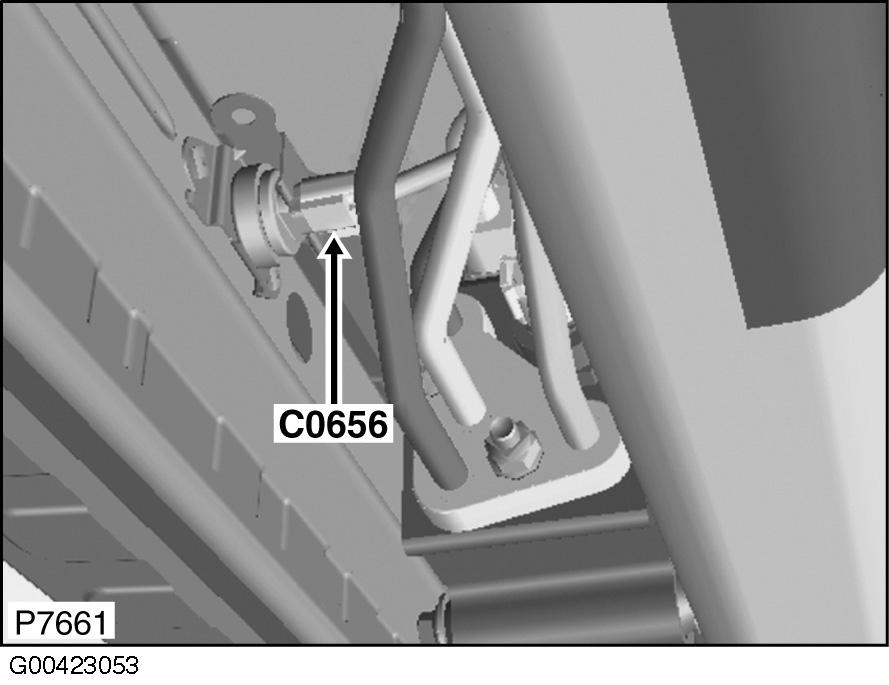

Fig 82: Left Rear Underside Of Vehicle
G00423053Courtesy of LAND ROVER NORTH AMERICA, INC.

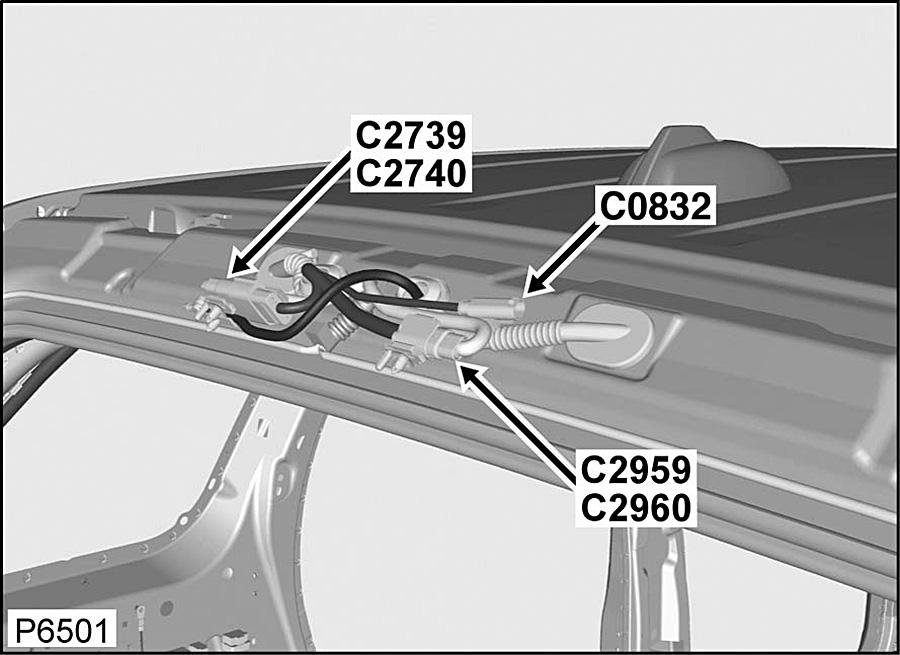

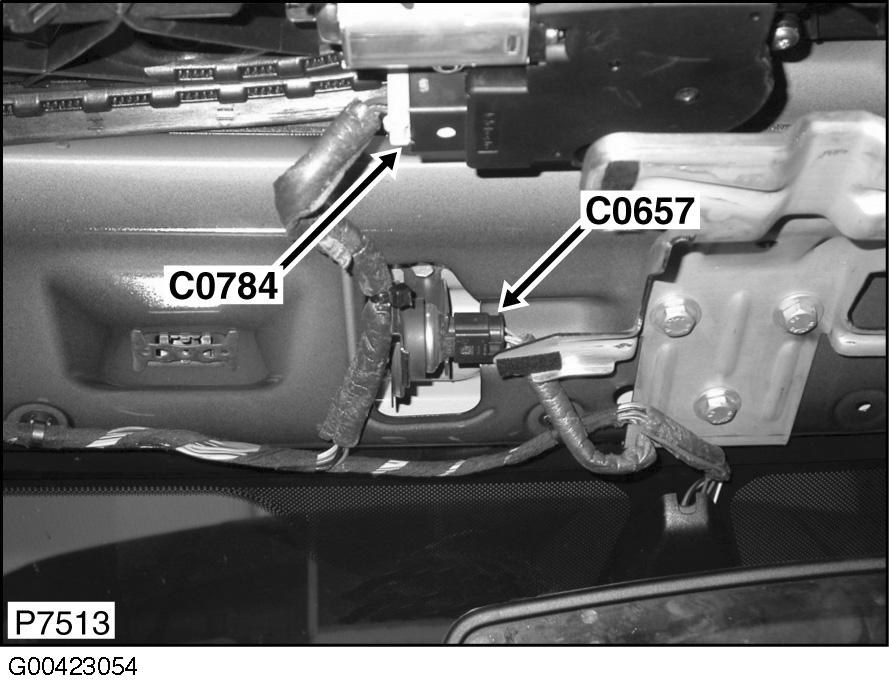

Fig 83: Front Of Roof
G00423054Courtesy of LAND ROVER NORTH AMERICA, INC.

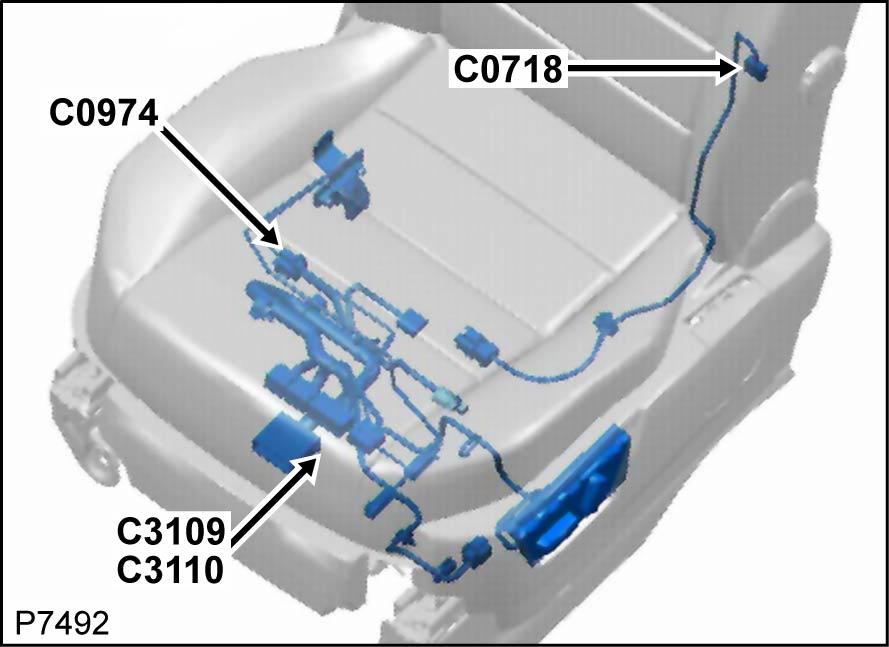

Fig 84: Driver's Seat
G00451095Courtesy of LAND ROVER NORTH AMERICA, INC.

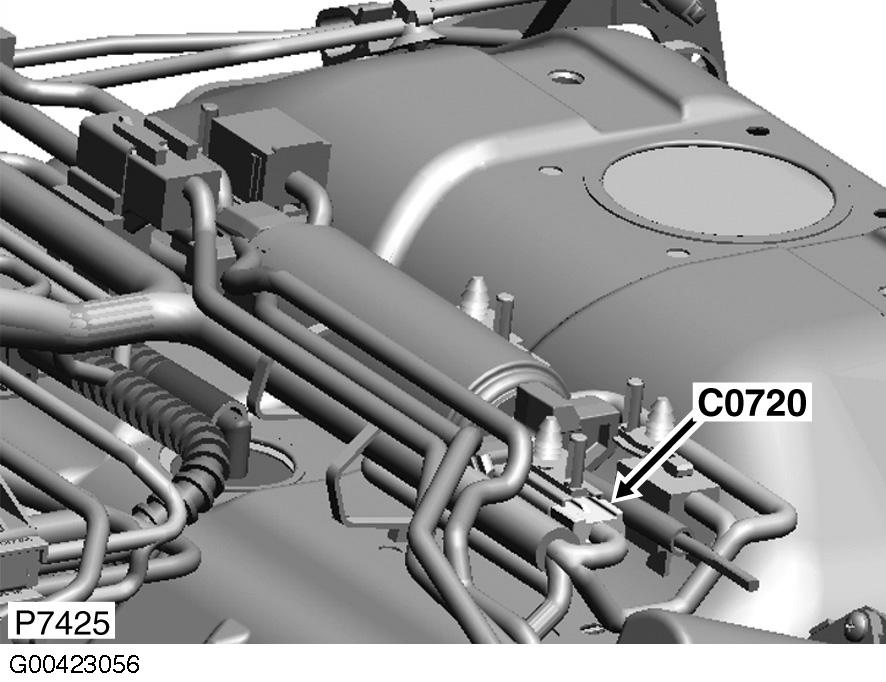

Fig 85: Under Front Passenger's Seat
G00423056Courtesy of LAND ROVER NORTH AMERICA, INC.

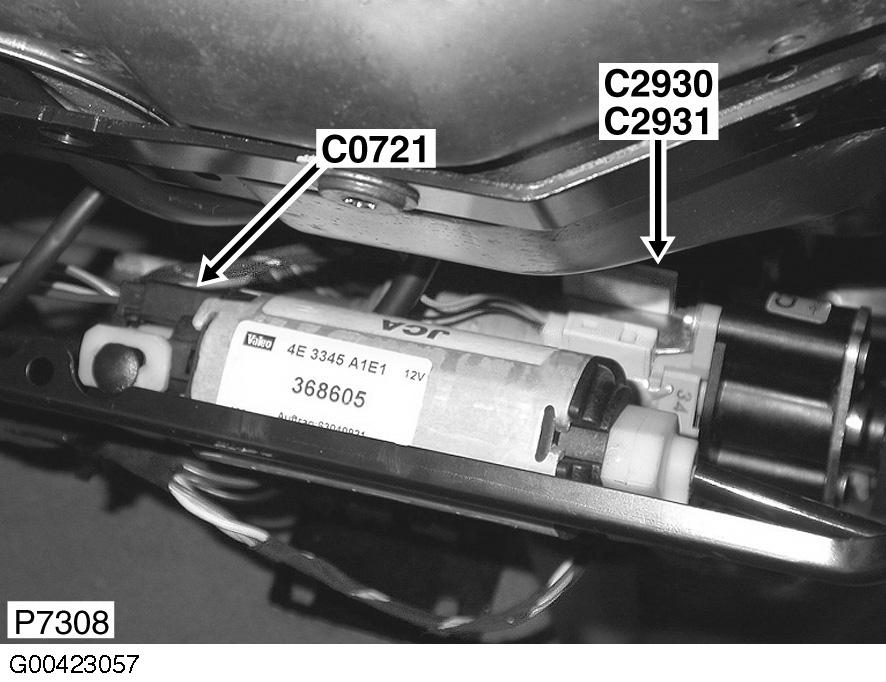

Fig 86: Under Driver's Seat
G00423057Courtesy of LAND ROVER NORTH AMERICA, INC.

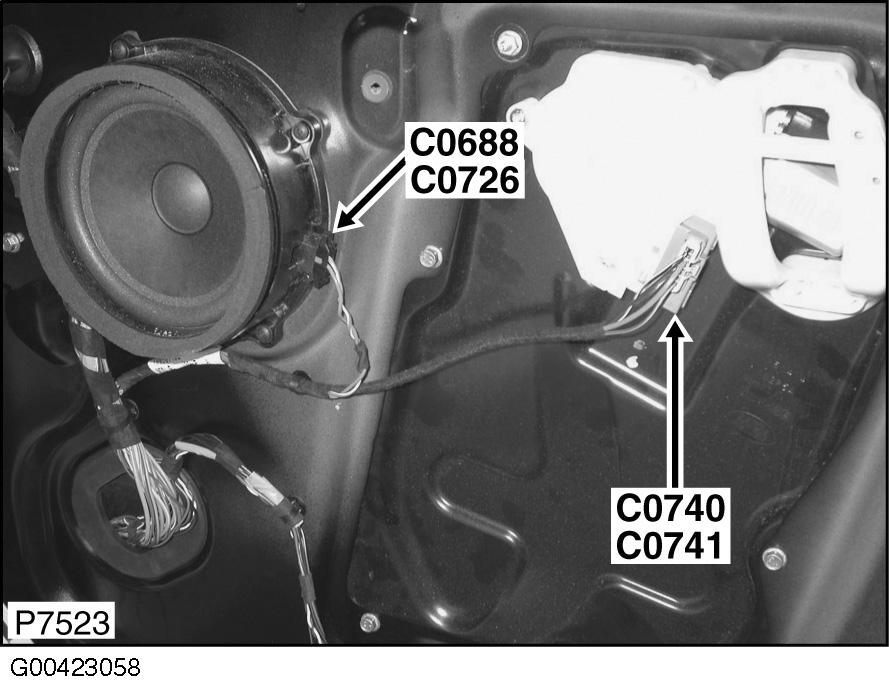

Fig 87: Front Doors (Passenger's Shown)
G00423058Courtesy of LAND ROVER NORTH AMERICA, INC.

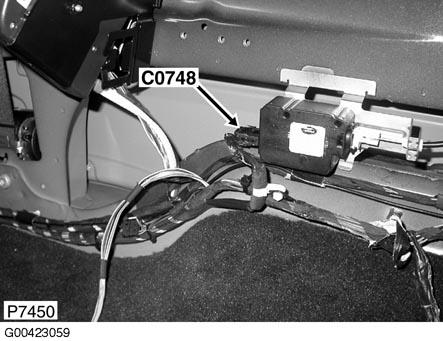

Fig 88: Right Rear Quarterpanel
G00423059Courtesy of LAND ROVER NORTH AMERICA, INC.

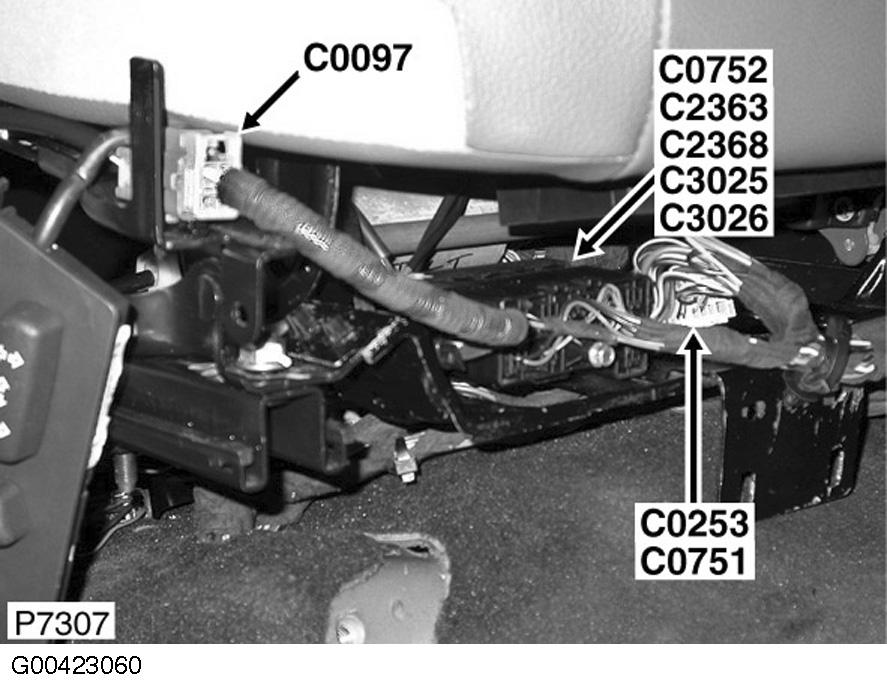

Fig 89: Under Driver's Seat
G00423060Courtesy of LAND ROVER NORTH AMERICA, INC.

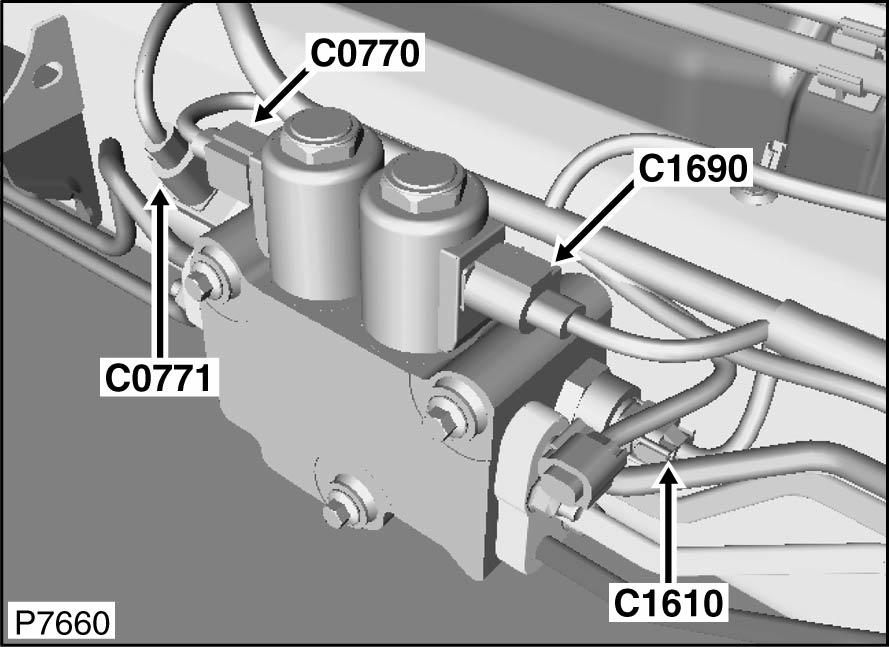

Fig 90: Right Rear Underside Of Vehicle
G00451096Courtesy of LAND ROVER NORTH AMERICA, INC.

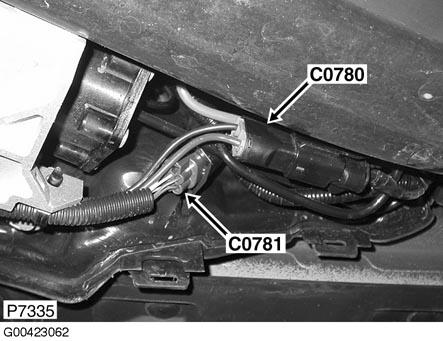

Fig 91: Left Underside Of Vehicle
G00423062Courtesy of LAND ROVER NORTH AMERICA, INC.

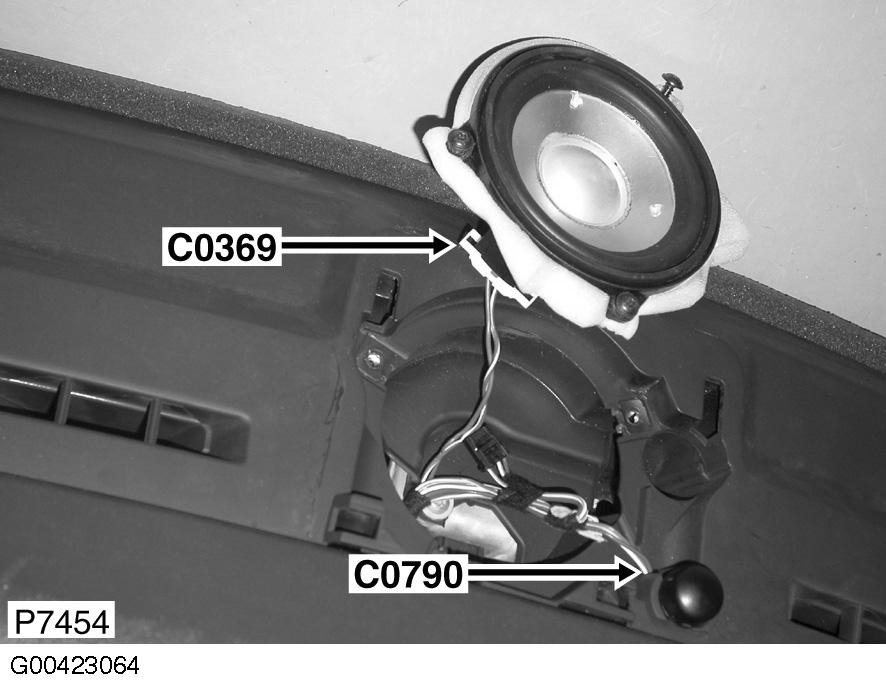

Fig 92: Center Of Dash
G00423064Courtesy of LAND ROVER NORTH AMERICA, INC.

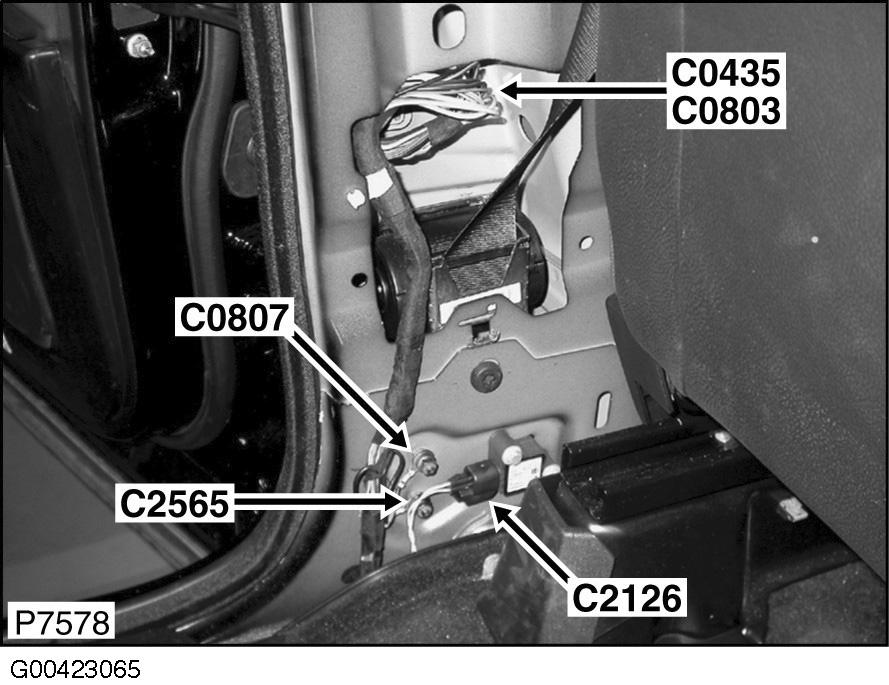

Fig 93: Left "B" Pillar
G00423065Courtesy of LAND ROVER NORTH AMERICA, INC.

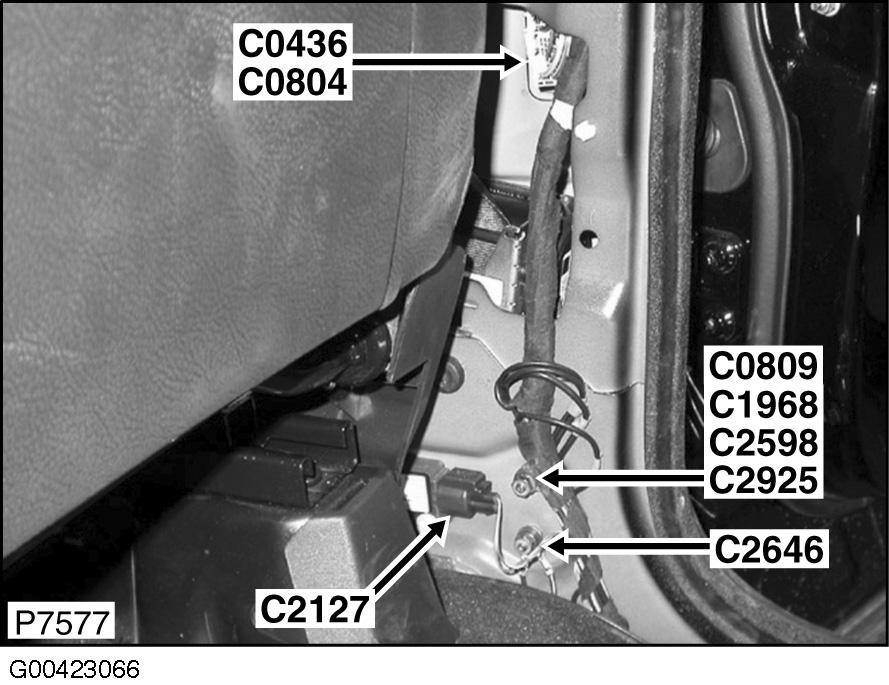

Fig 94: Right "B" Pillar
G00423066Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 95: Left Side Of Engine Compartment

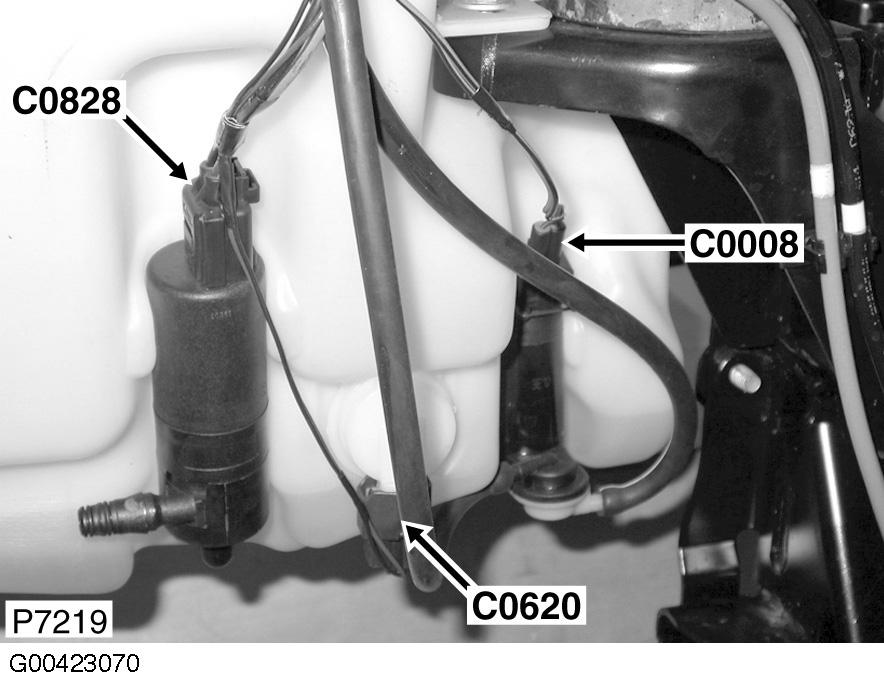

G00423070Courtesy of LAND ROVER NORTH AMERICA, INC.

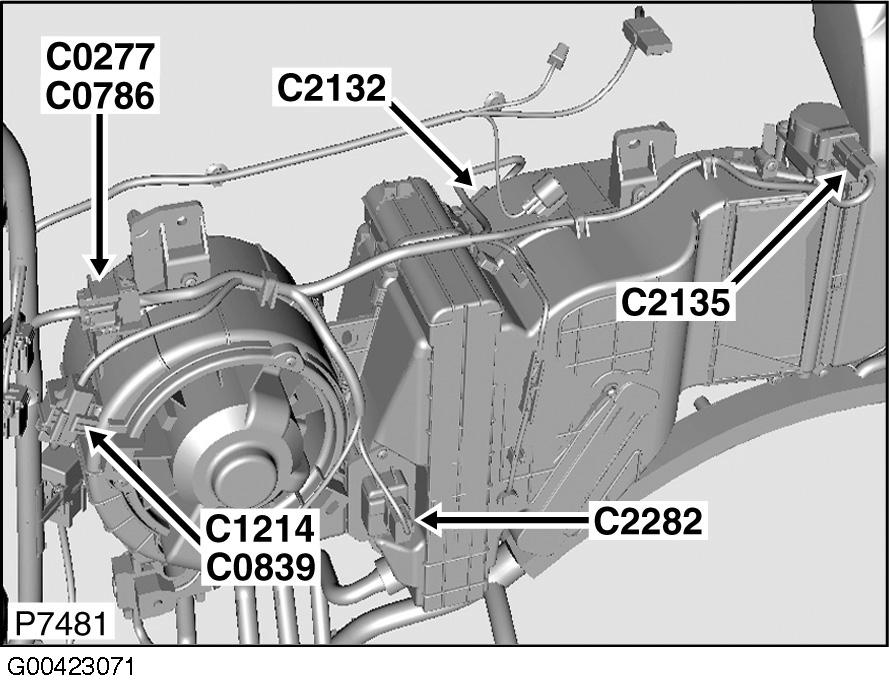

Fig 96: Left Rear Quarterpanel
G00423071Courtesy of LAND ROVER NORTH AMERICA, INC.

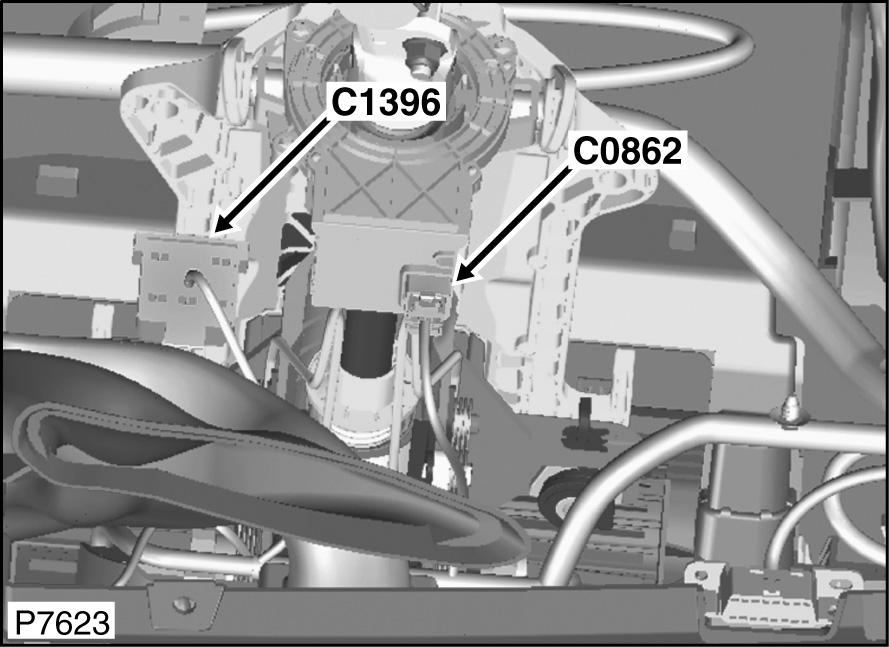

Fig 97: Steering Column
G00451097Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 98: Left Rear Of Vehicle
G00422834Courtesy of LAND ROVER NORTH AMERICA, INC.

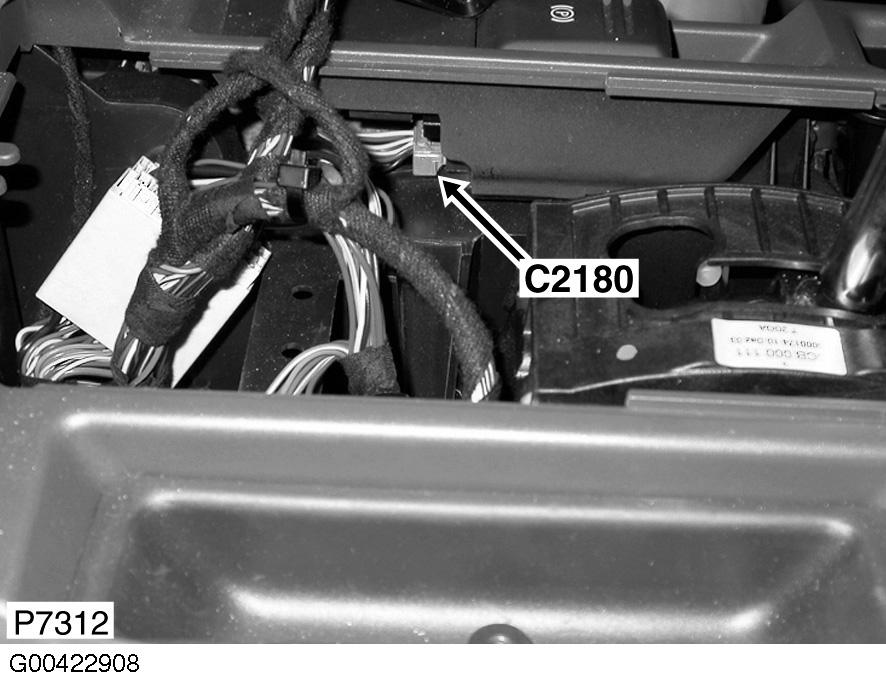

Fig 99: Center Console
G00422835Courtesy of LAND ROVER NORTH AMERICA, INC.

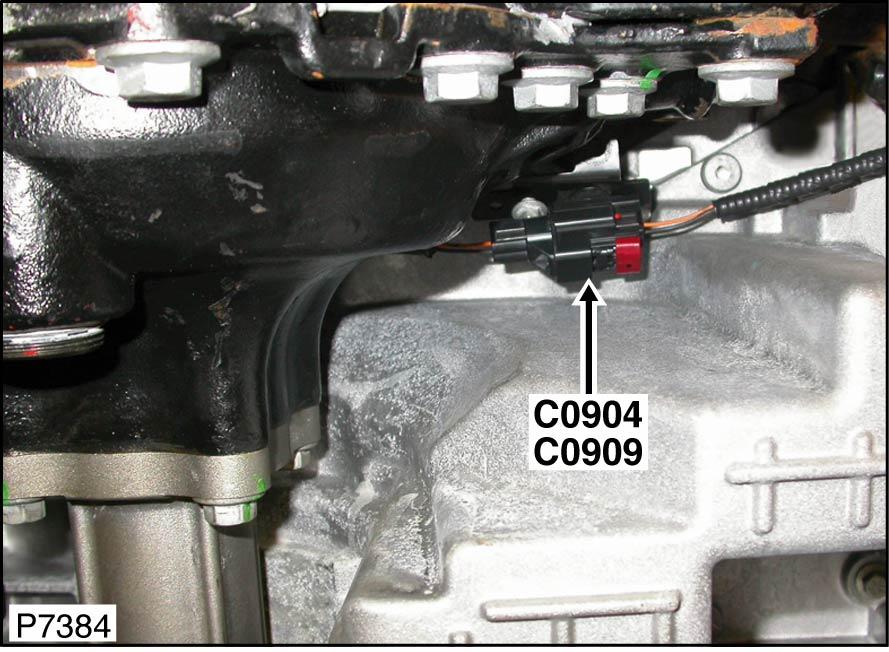

Fig 100: Rear Of Engine
G00451098Courtesy of LAND ROVER NORTH AMERICA, INC.

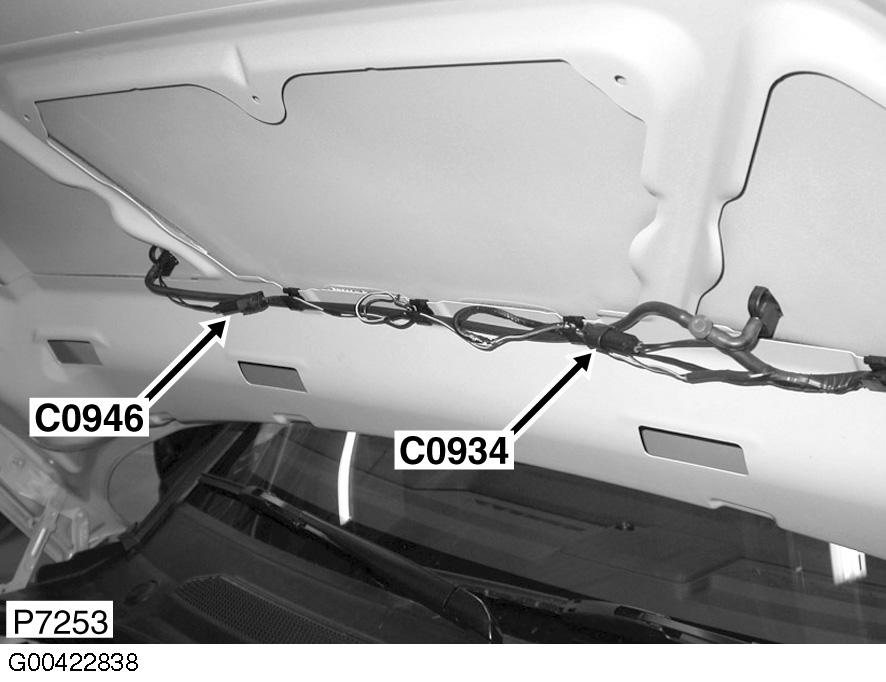

Fig 101: Engine Compartment Lid
G00422838Courtesy of LAND ROVER NORTH AMERICA, INC.

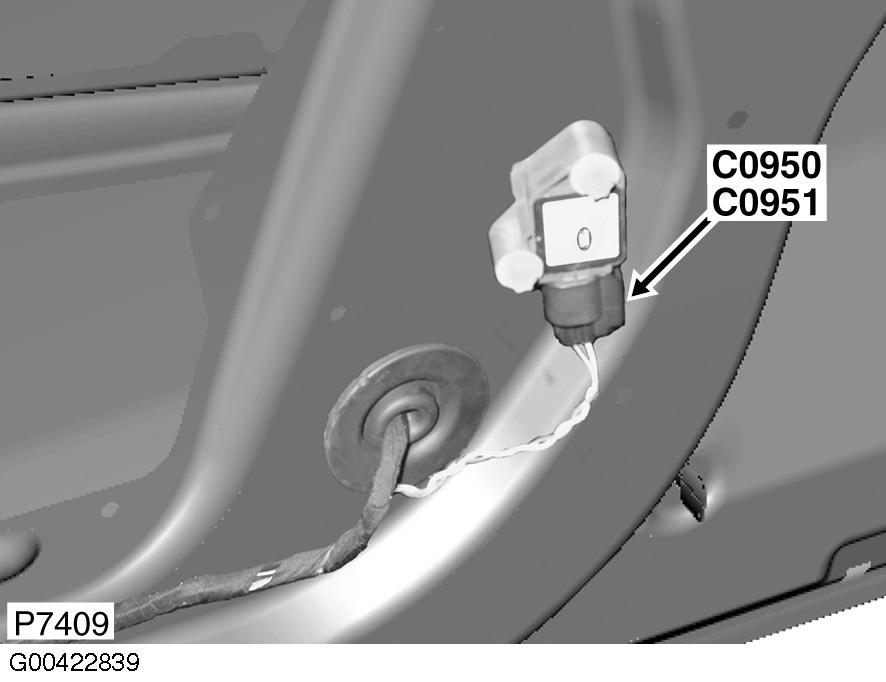

Fig 102: Front Doors (Front Passenger's Shown)
G00422839Courtesy of LAND ROVER NORTH AMERICA, INC.

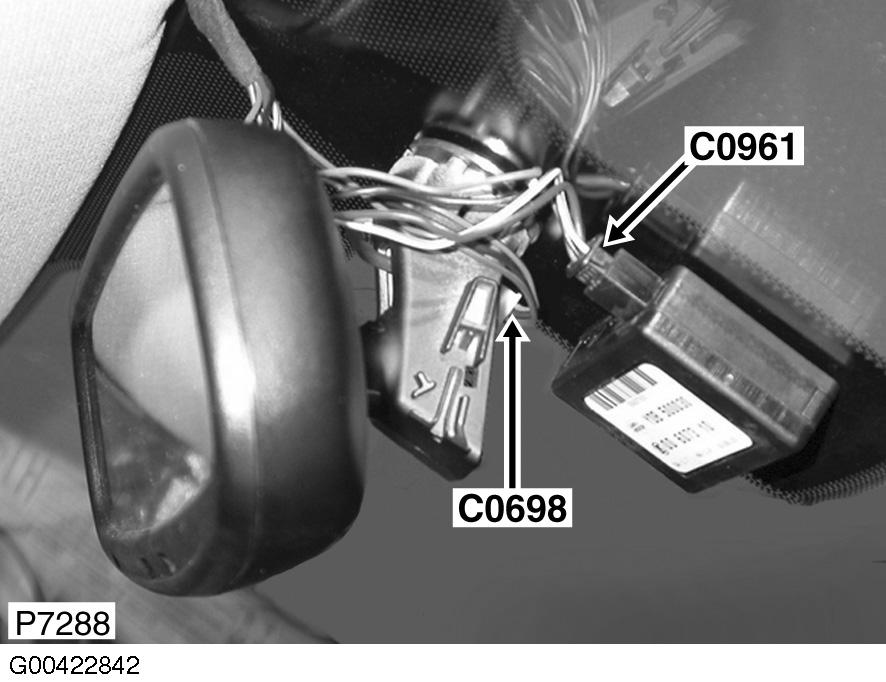

Fig 103: Rearview Mirror
G00422842Courtesy of LAND ROVER NORTH AMERICA, INC.

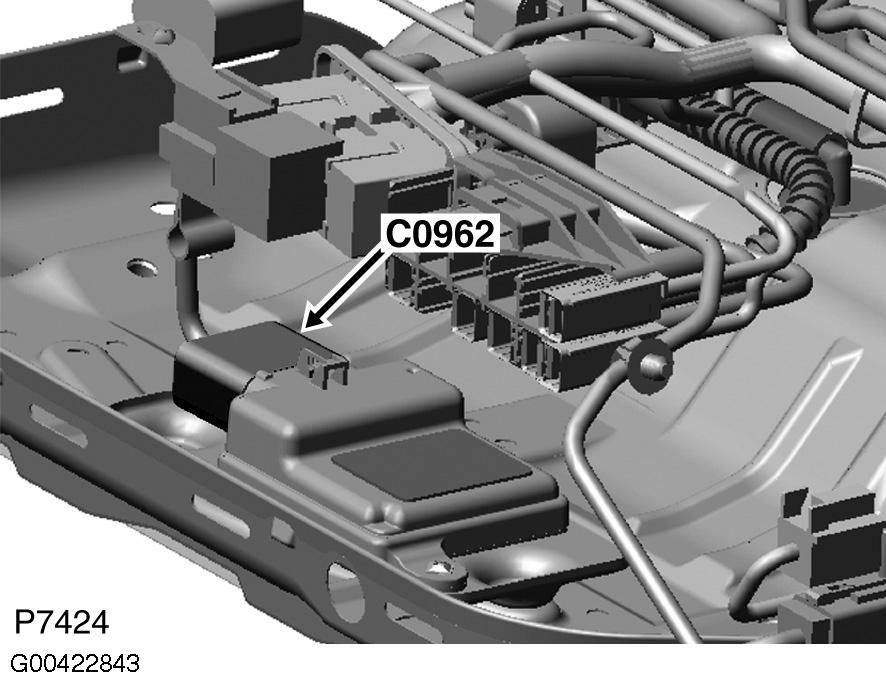

Fig 104: Under Front Passenger's Seat
G00422843Courtesy of LAND ROVER NORTH AMERICA, INC.

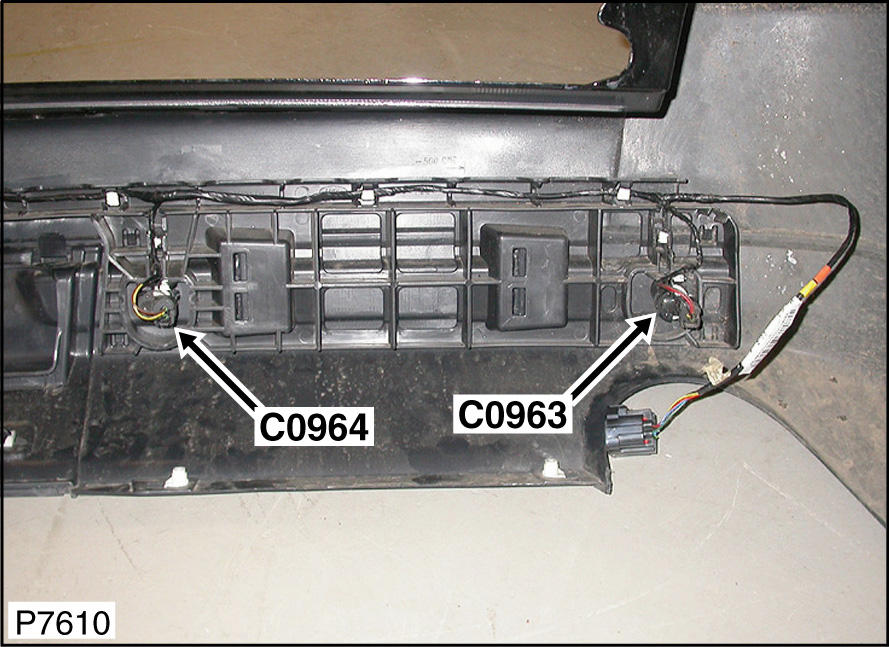

Fig 105: Left Side Of Rear Bumper
G00451099Courtesy of LAND ROVER NORTH AMERICA, INC.

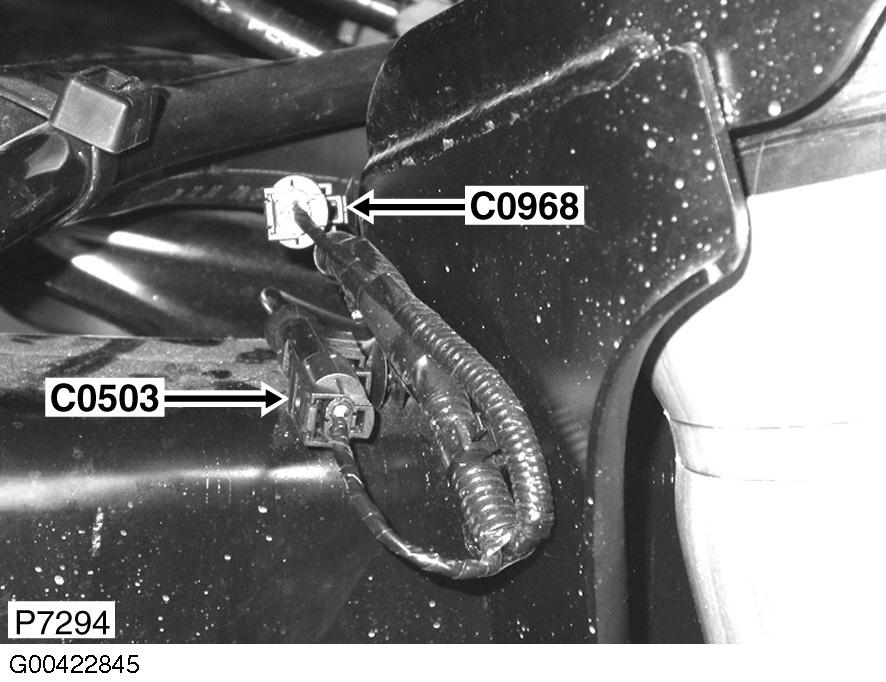

Fig 106: Right Rear Wheelwell
G00422845Courtesy of LAND ROVER NORTH AMERICA, INC.

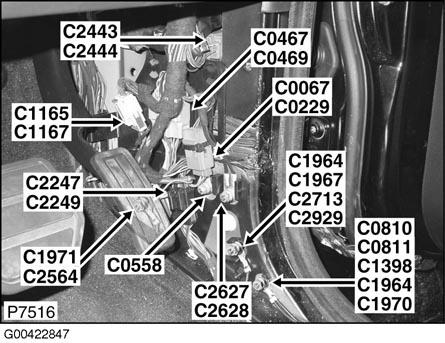

Fig 107: Right Kick Panel
G00422847Courtesy of LAND ROVER NORTH AMERICA, INC.

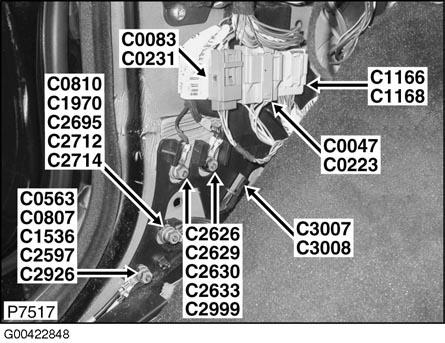

Fig 108: Left Kick Panel
G00422848Courtesy of LAND ROVER NORTH AMERICA, INC.

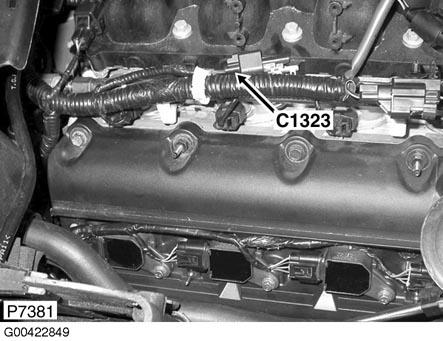

Fig 109: Top Of Engine (4.4L)
G00422849Courtesy of LAND ROVER NORTH AMERICA, INC.

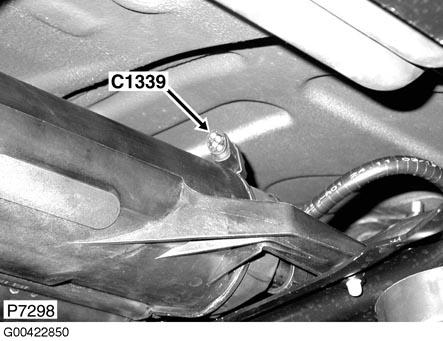

Fig 110: Center Underside Of Vehicle
G00422850Courtesy of LAND ROVER NORTH AMERICA, INC.

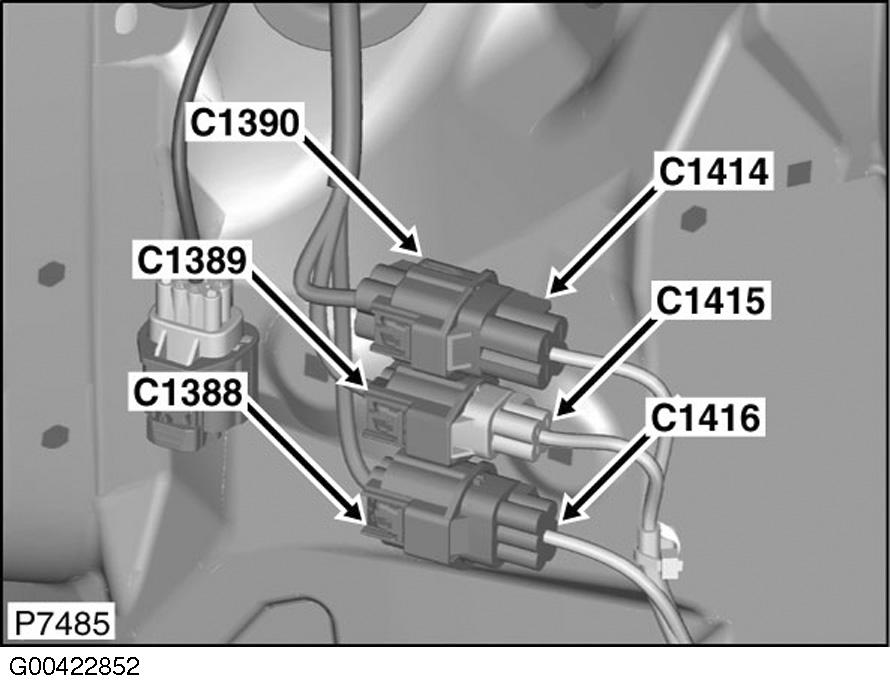

Fig 111: Left Rear Quarterpanel
G00422852Courtesy of LAND ROVER NORTH AMERICA, INC.

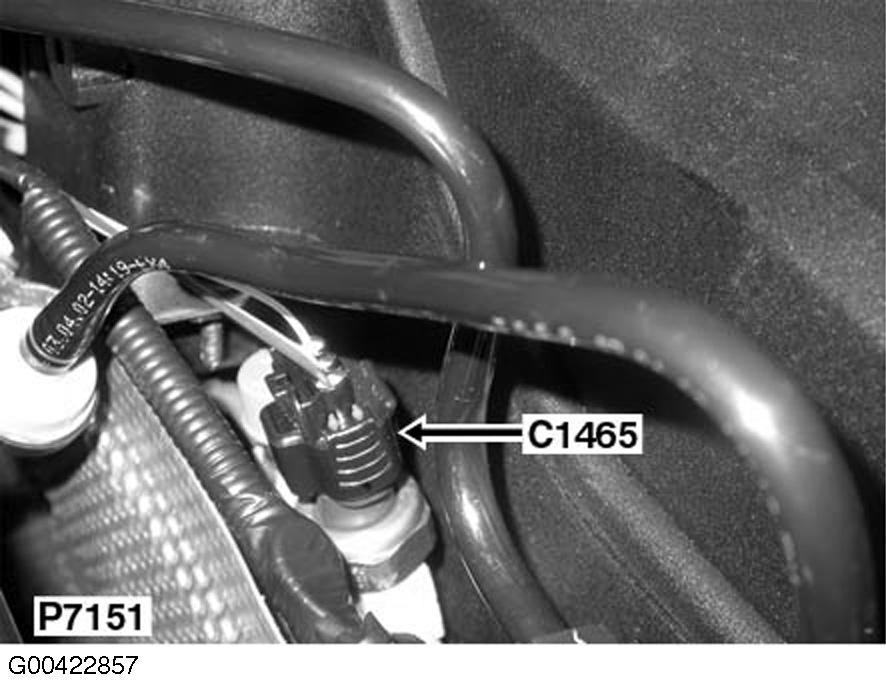

Fig 112: Left Side Of Engine Compartment
G00422857Courtesy of LAND ROVER NORTH AMERICA, INC.

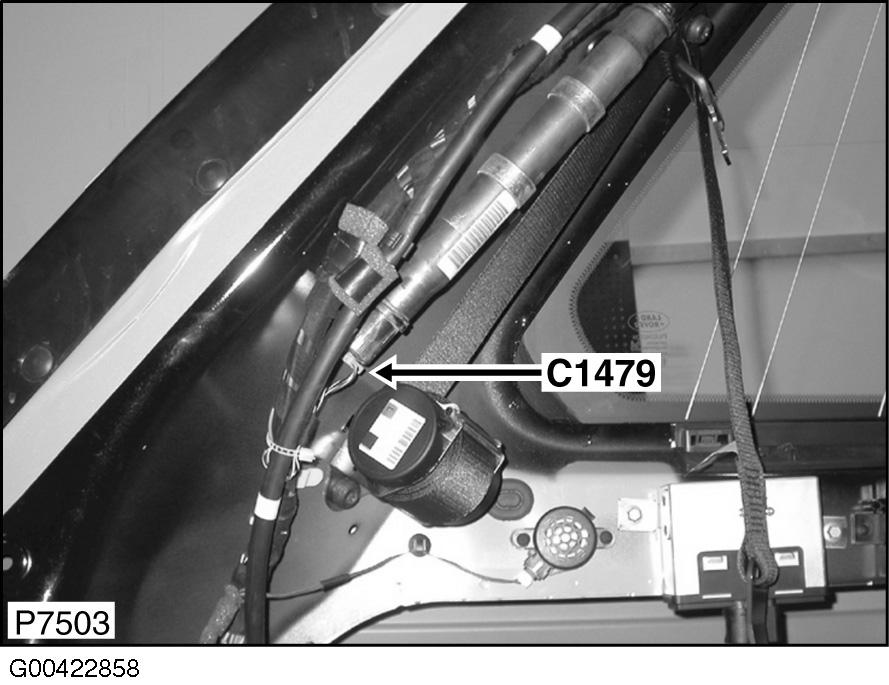

Fig 113: Left Front Of Headliner
G00422858Courtesy of LAND ROVER NORTH AMERICA, INC.

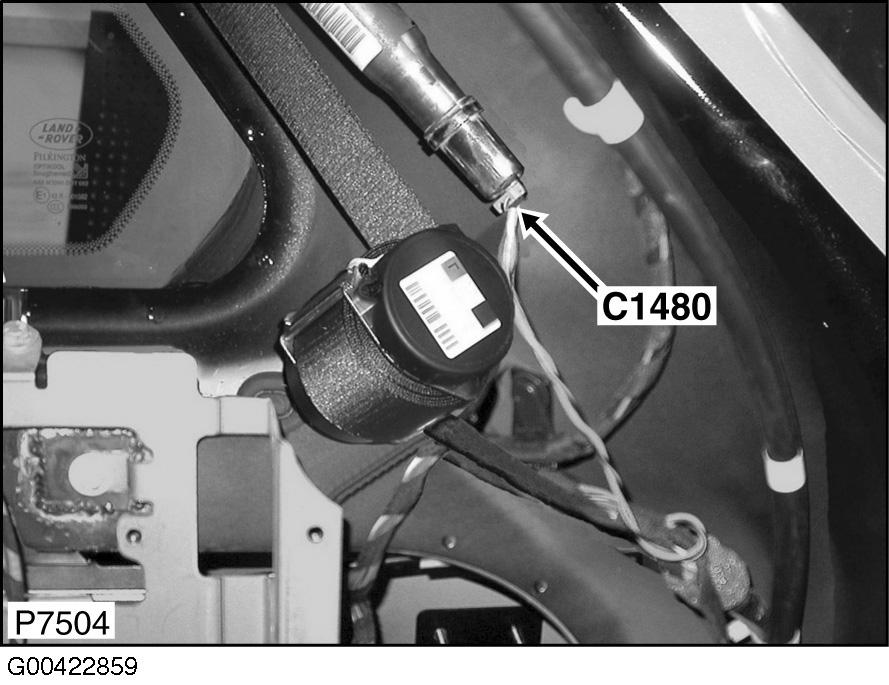

Fig 114: Right Front Of Headliner
G00422859Courtesy of LAND ROVER NORTH AMERICA, INC.

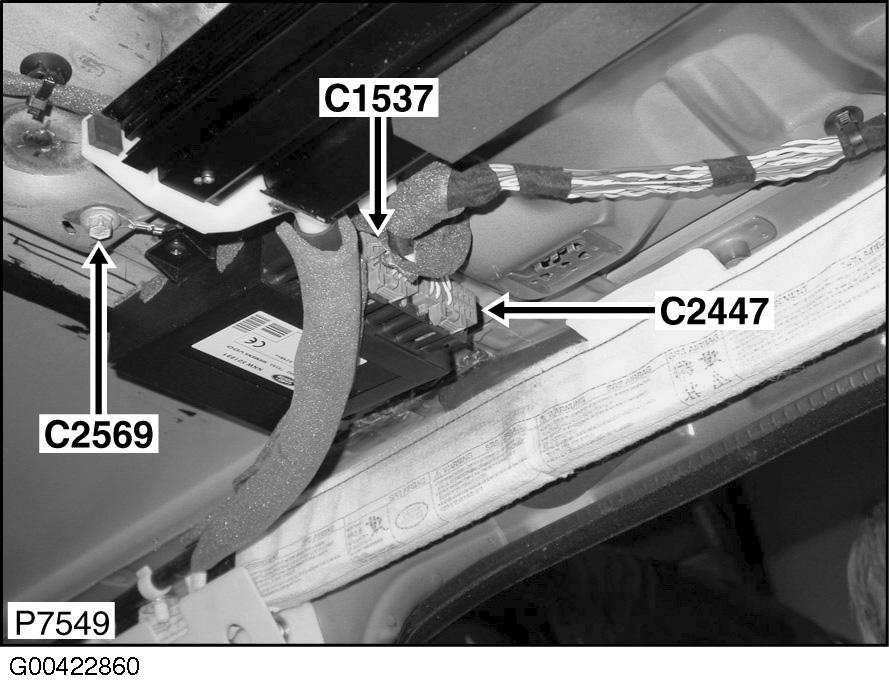

Fig 115: Front Of Headliner
G00422860Courtesy of LAND ROVER NORTH AMERICA, INC.

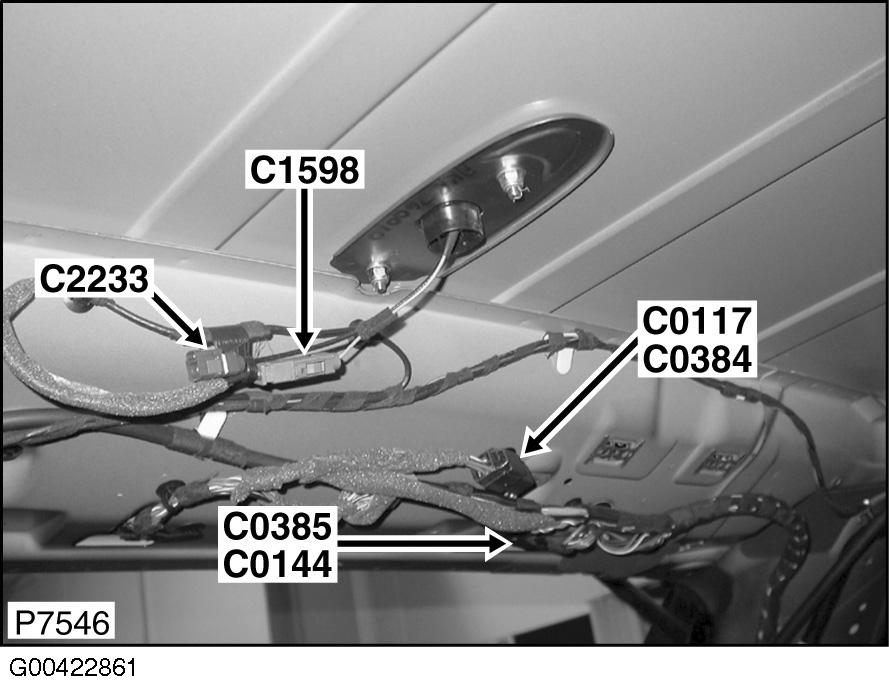

Fig 116: Rear Of Headliner
G00422861Courtesy of LAND ROVER NORTH AMERICA, INC.

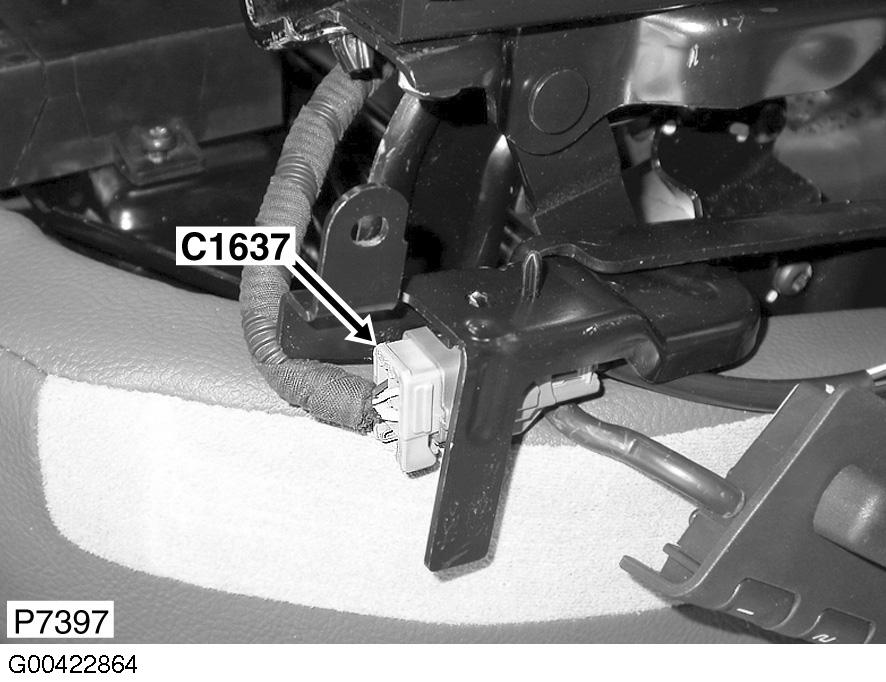

Fig 117: Under Front Passenger's Seat
G00422864Courtesy of LAND ROVER NORTH AMERICA, INC.

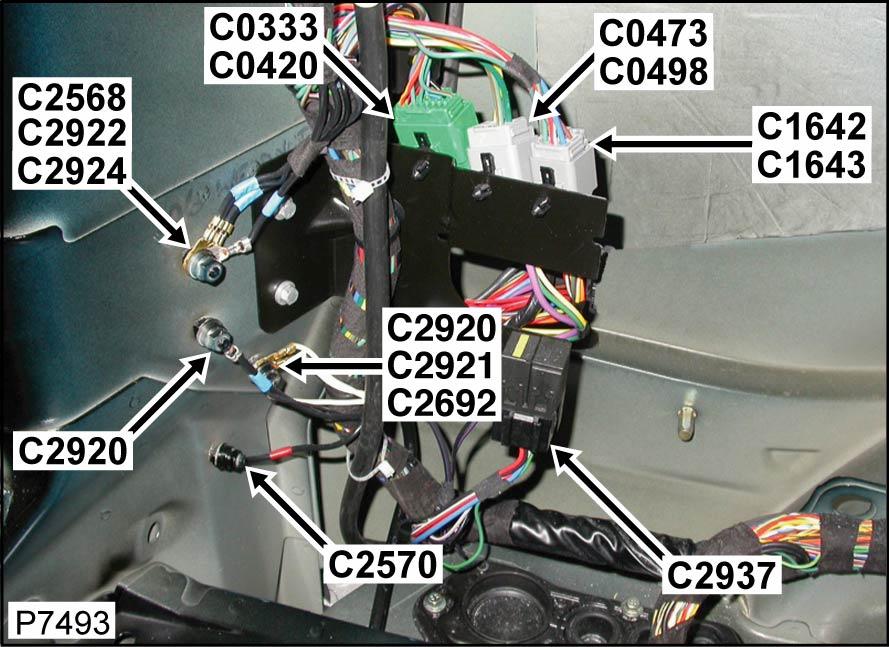

Fig 118: Left "D" Pillar
G00451107Courtesy of LAND ROVER NORTH AMERICA, INC.

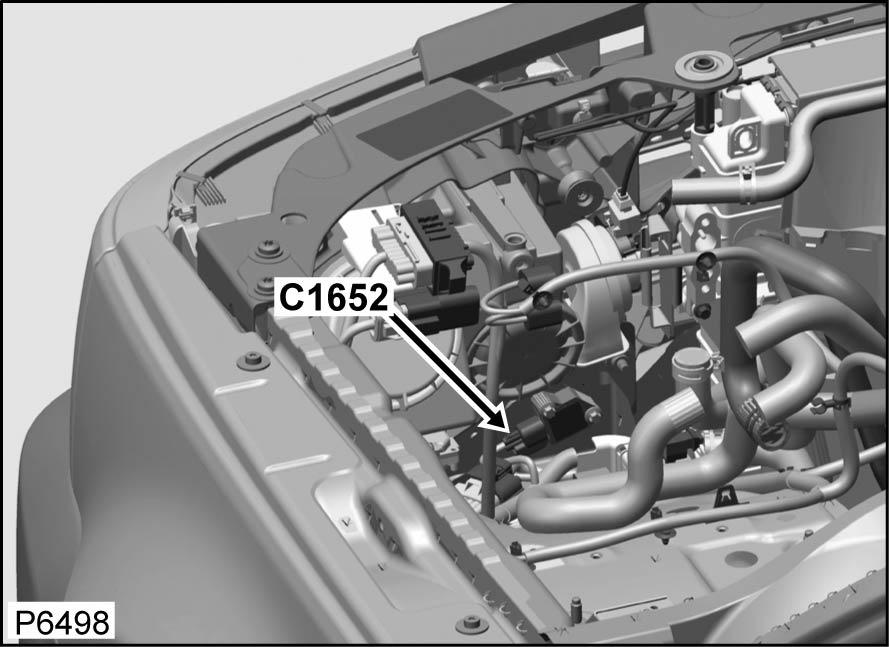

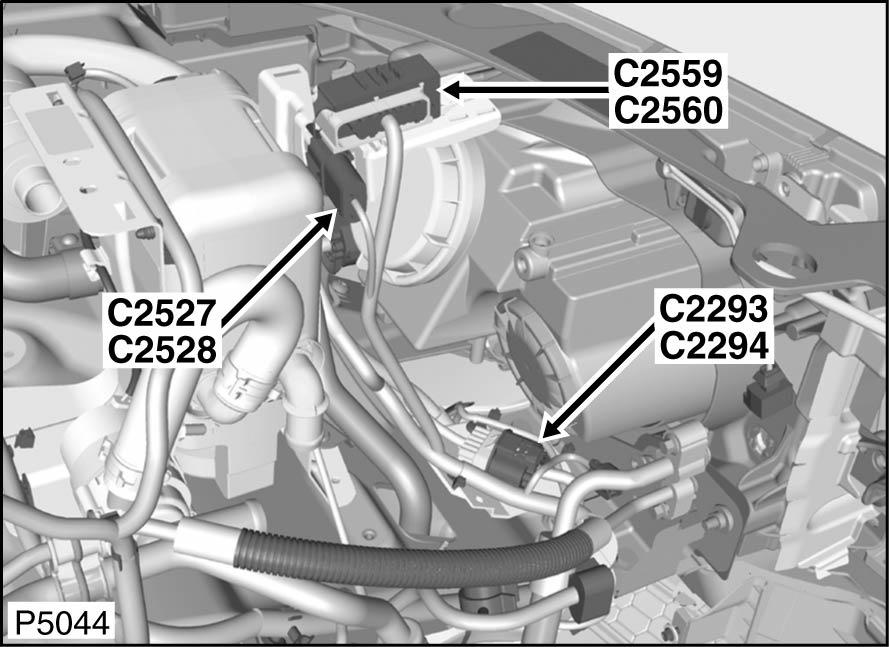

Fig 119: Left Front Corner Of Engine Compartment
G00451197Courtesy of LAND ROVER NORTH AMERICA, INC.

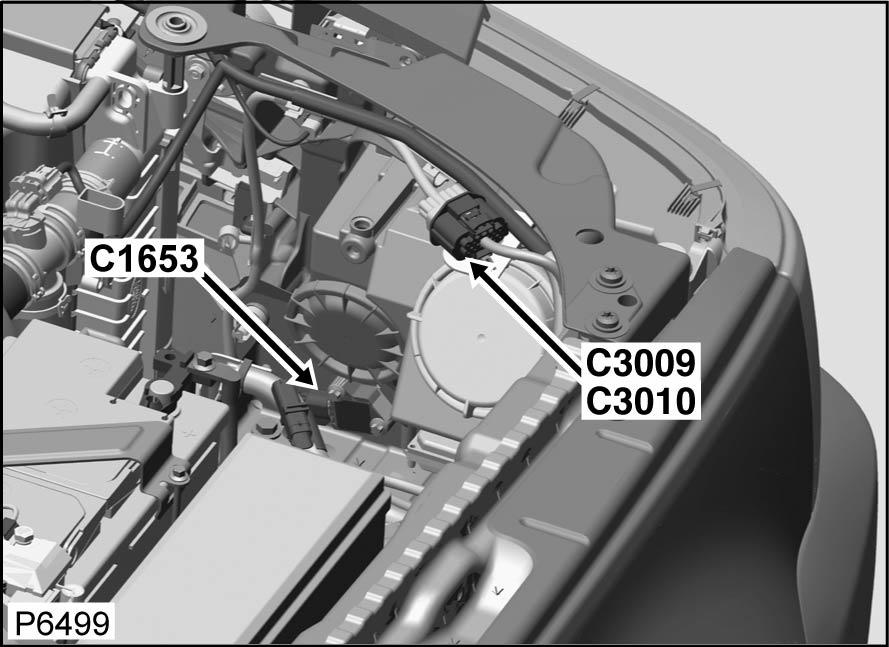

Fig 120: Right Front Corner Of Engine Compartment
G00451198Courtesy of LAND ROVER NORTH AMERICA, INC.

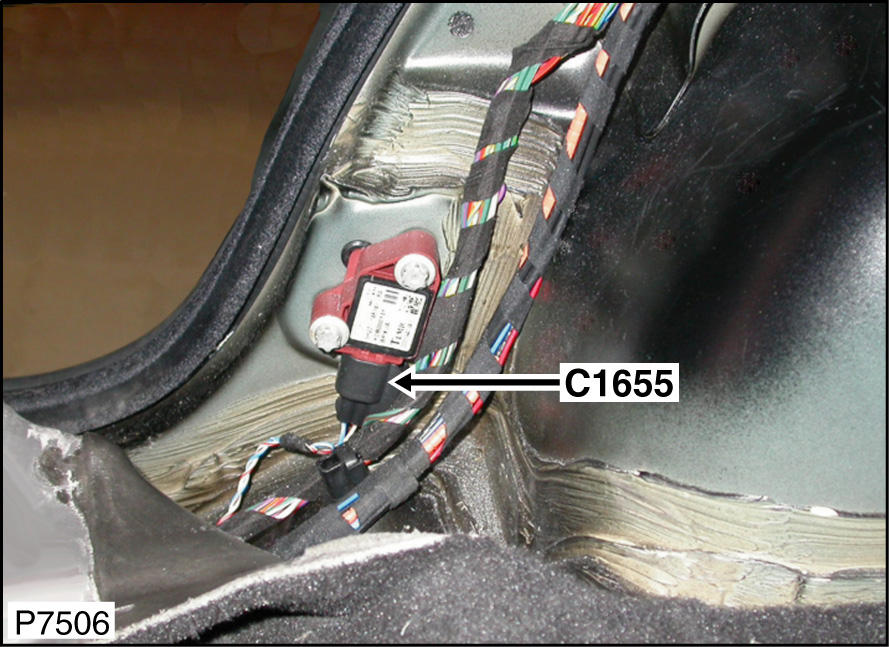

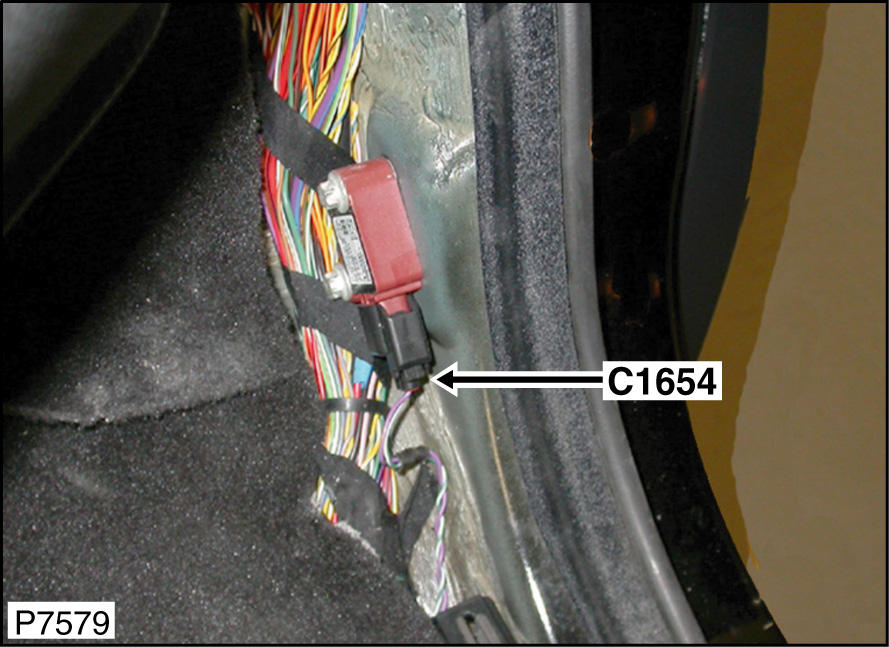

Fig 121: Left Rear Quarterpanel
G00451195Courtesy of LAND ROVER NORTH AMERICA, INC.

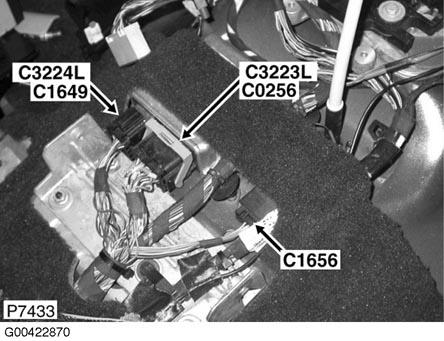

Fig 122: Center Console
G00422870Courtesy of LAND ROVER NORTH AMERICA, INC.

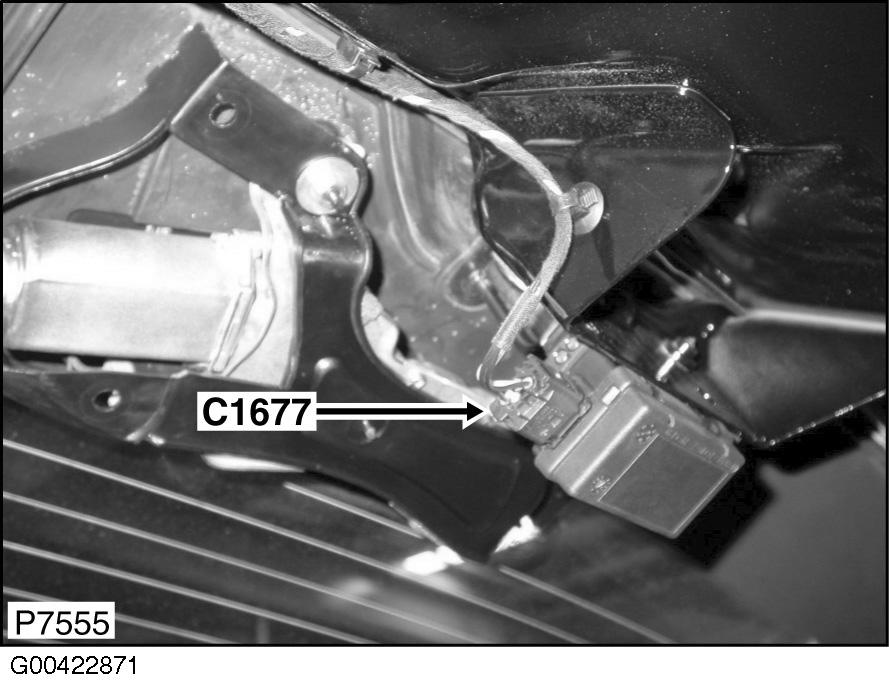

Fig 123: Tailgate
G00422871Courtesy of LAND ROVER NORTH AMERICA, INC.

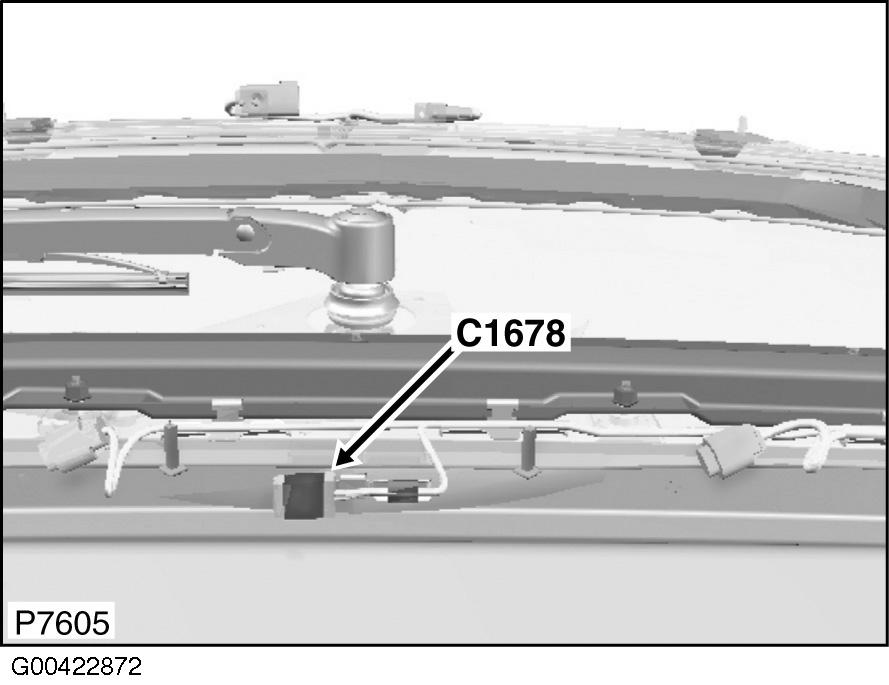

Fig 124: Tailgate
G00422872Courtesy of LAND ROVER NORTH AMERICA, INC.

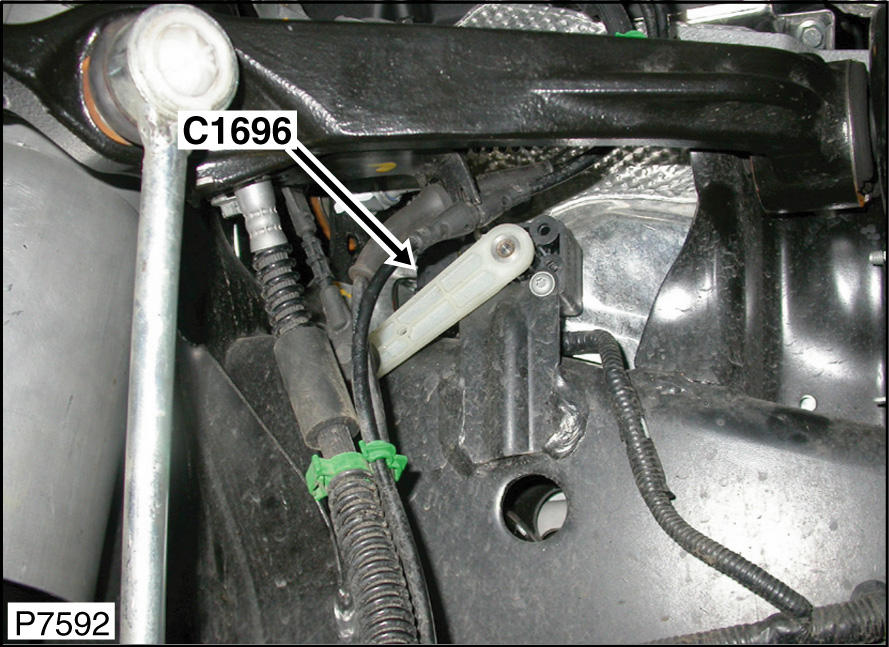

Fig 125: Left Front Wheelwell
G00451108Courtesy of LAND ROVER NORTH AMERICA, INC.

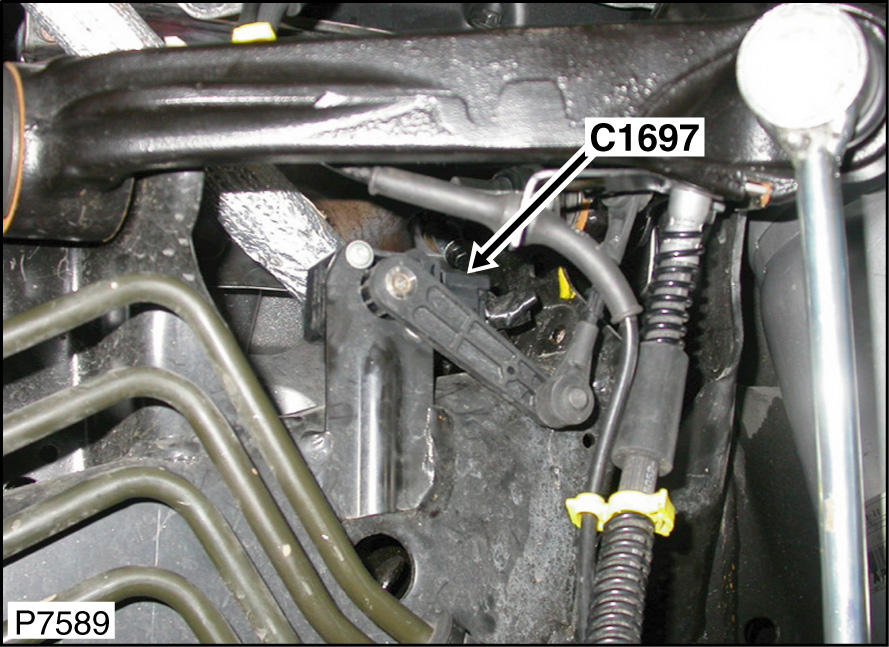

Fig 126: Right Front Wheelwell
G00451109Courtesy of LAND ROVER NORTH AMERICA, INC.

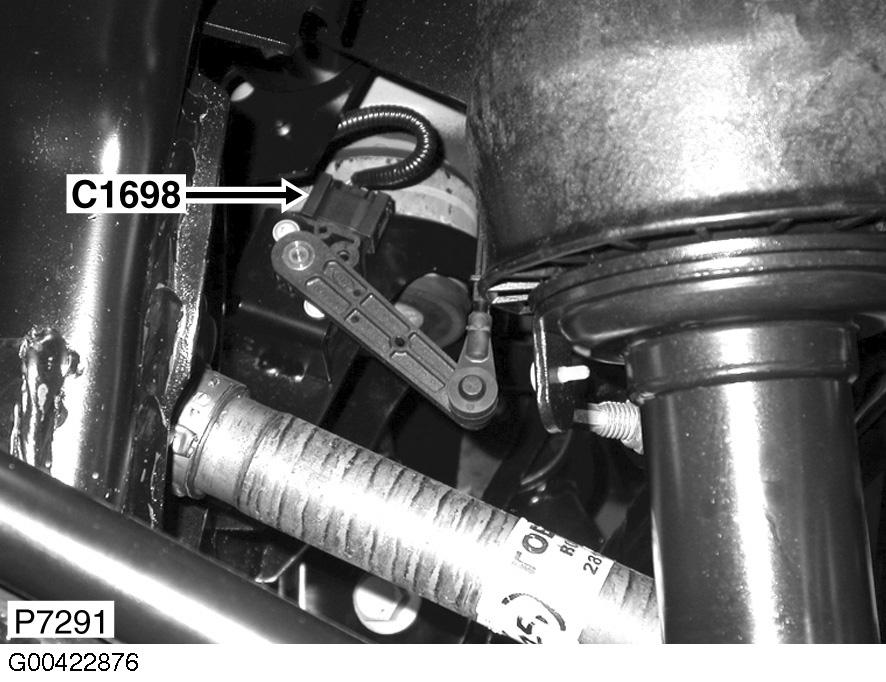

Fig 127: Right Rear Wheelwell
G00422876Courtesy of LAND ROVER NORTH AMERICA, INC.

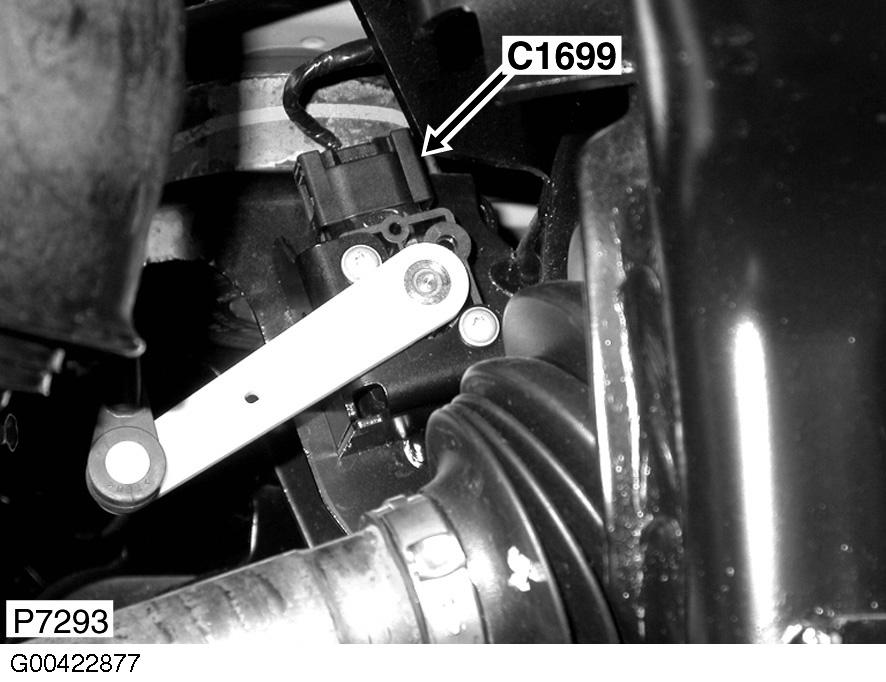

Fig 128: Left Rear Wheelwell
G00422877Courtesy of LAND ROVER NORTH AMERICA, INC.

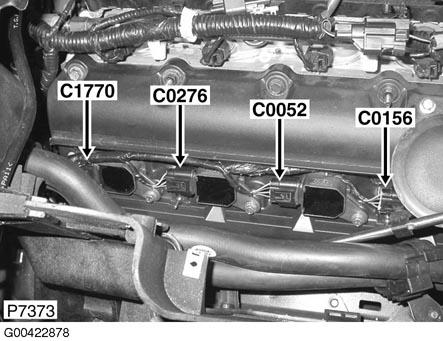

Fig 129: Top Of Engine (4.4L)
G00422878Courtesy of LAND ROVER NORTH AMERICA, INC.

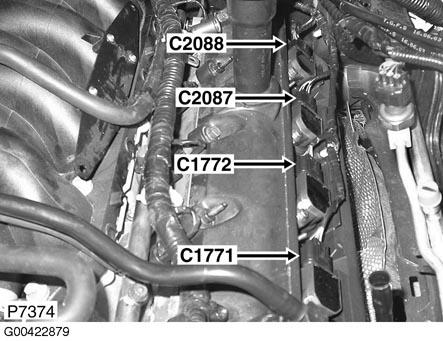

Fig 130: Top Of Engine (4.4L)
G00422879Courtesy of LAND ROVER NORTH AMERICA, INC.

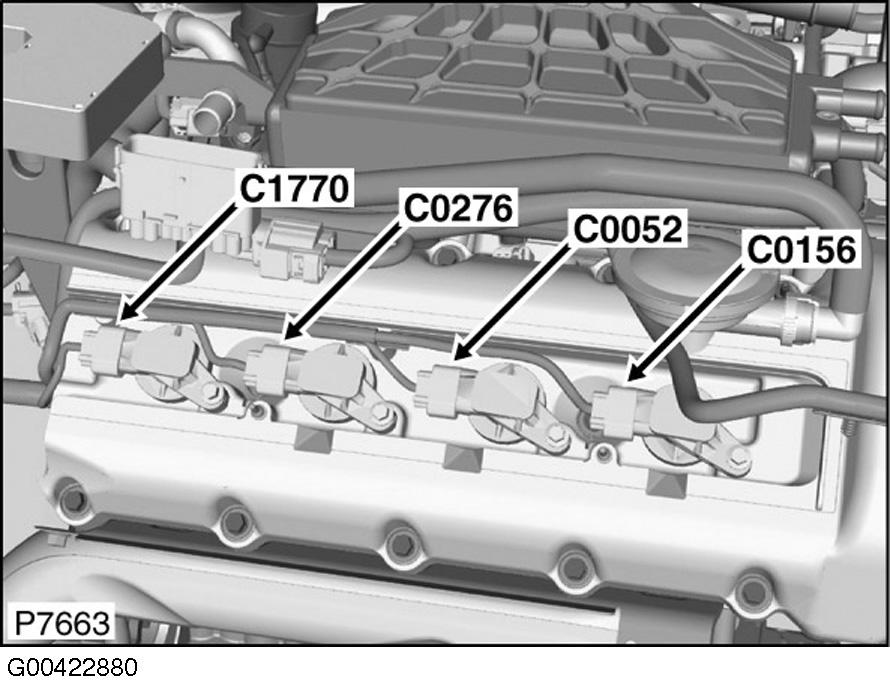

Fig 131: Top Of Engine (4.2L)
G00422880Courtesy of LAND ROVER NORTH AMERICA, INC.

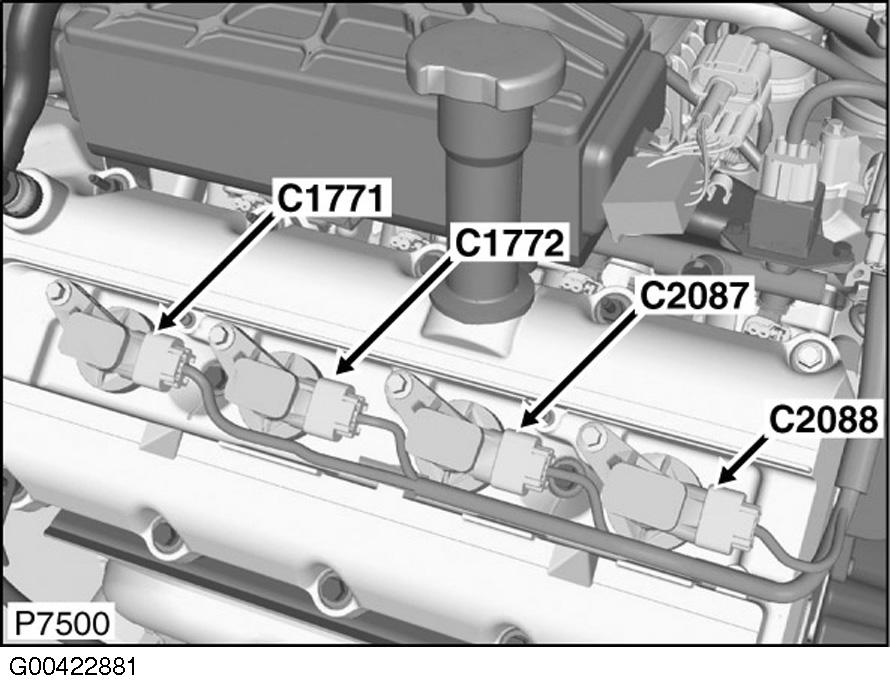

Fig 132: Top Of Engine (4.2L)
G00422881Courtesy of LAND ROVER NORTH AMERICA, INC.

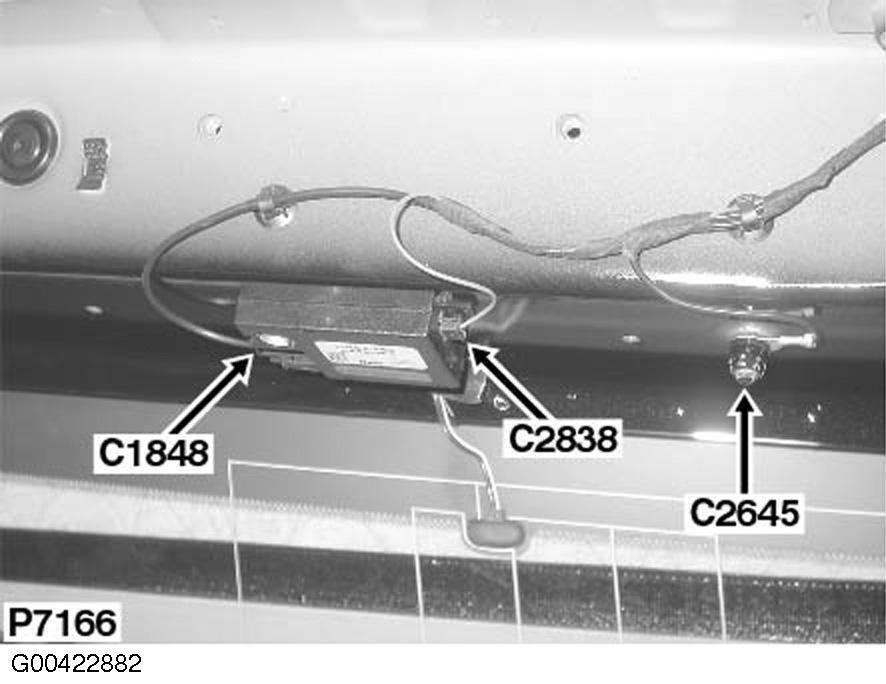

Fig 133: Rear Of Headliner
G00422882Courtesy of LAND ROVER NORTH AMERICA, INC.

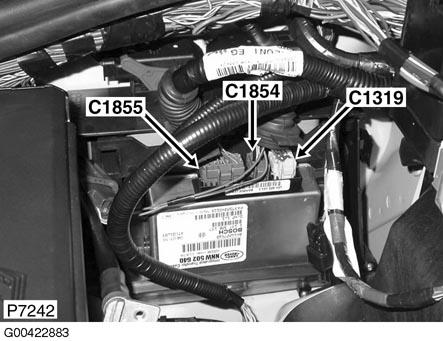

Fig 134: Rear Of Engine Compartment
G00422883Courtesy of LAND ROVER NORTH AMERICA, INC.

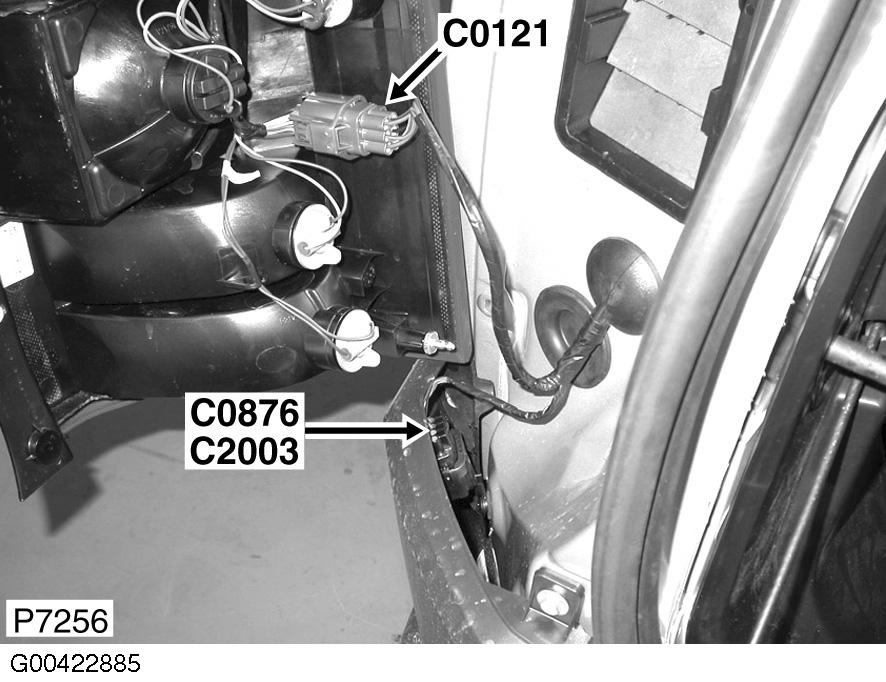

Fig 135: Left Rear Of Vehicle
G00422885Courtesy of LAND ROVER NORTH AMERICA, INC.

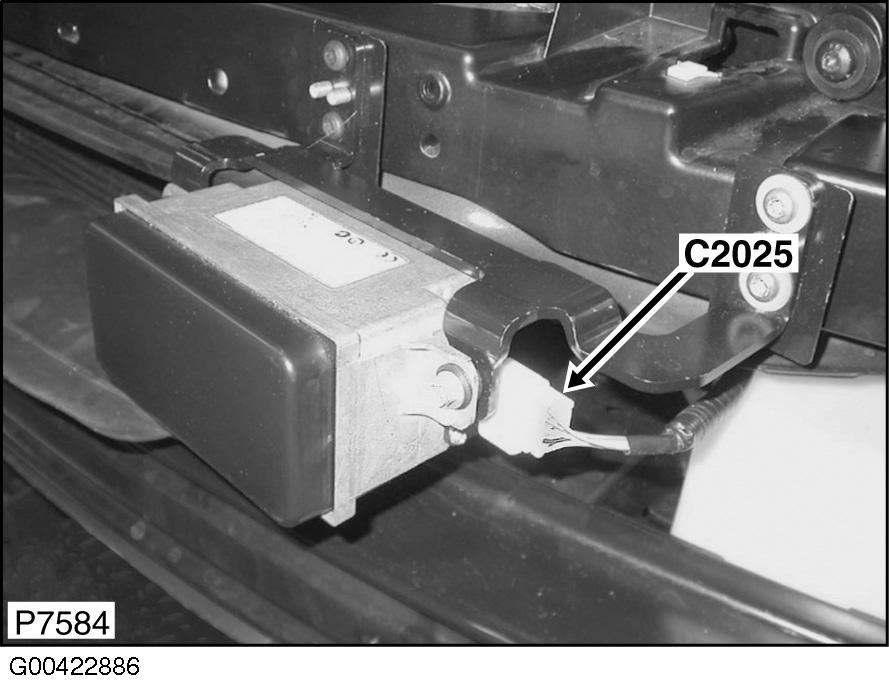

Fig 136: Behind Front Grille
G00422886Courtesy of LAND ROVER NORTH AMERICA, INC.

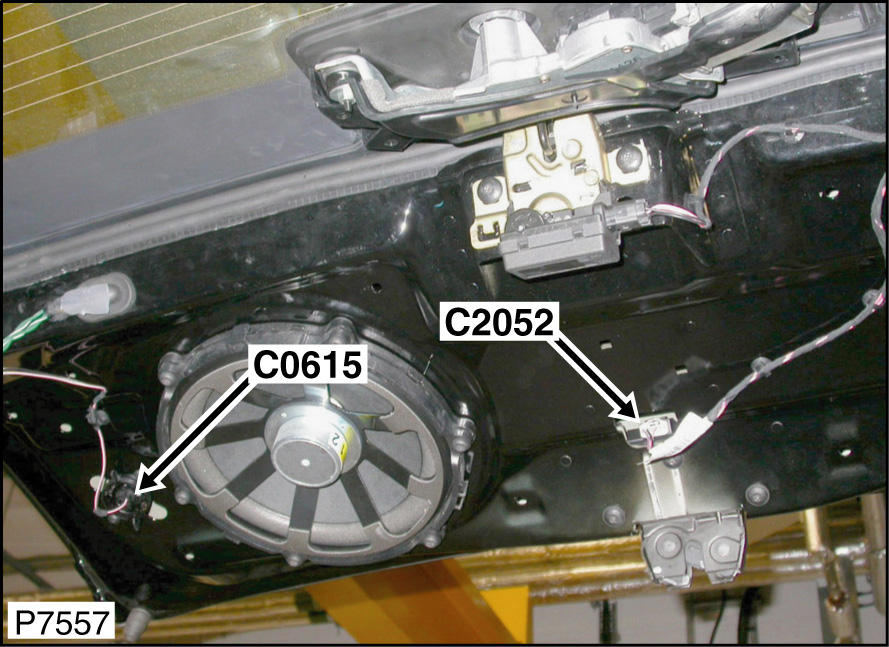

Fig 137: Liftgate
G00451192Courtesy of LAND ROVER NORTH AMERICA, INC.

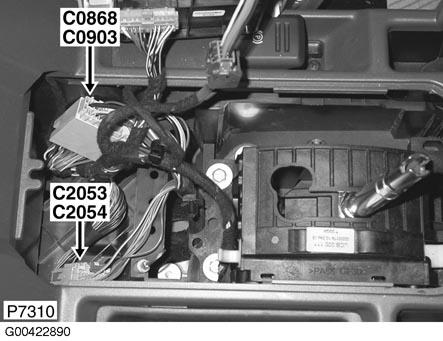

Fig 138: Center Console
G00422890Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 139: Top Of Engine (4.4L)
G00422892Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 140: Top Of Engine (4.2L)
G00422893Courtesy of LAND ROVER NORTH AMERICA, INC.

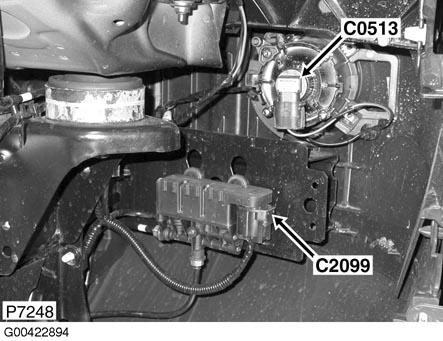

Fig 141: Right Front Wheelwell
G00422894Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 142: Left Rear Wheelwell

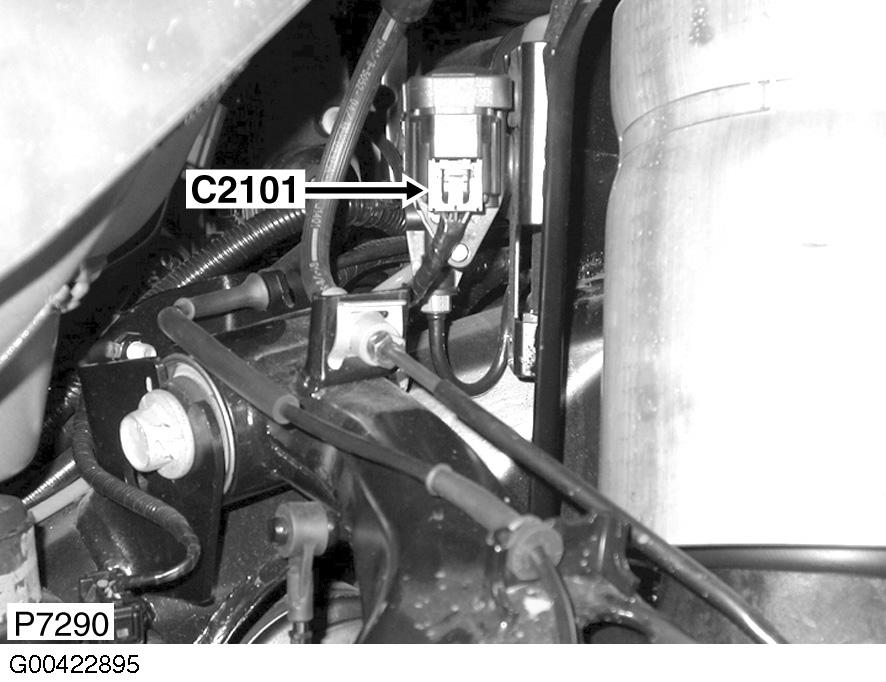

G00422895Courtesy of LAND ROVER NORTH AMERICA, INC.

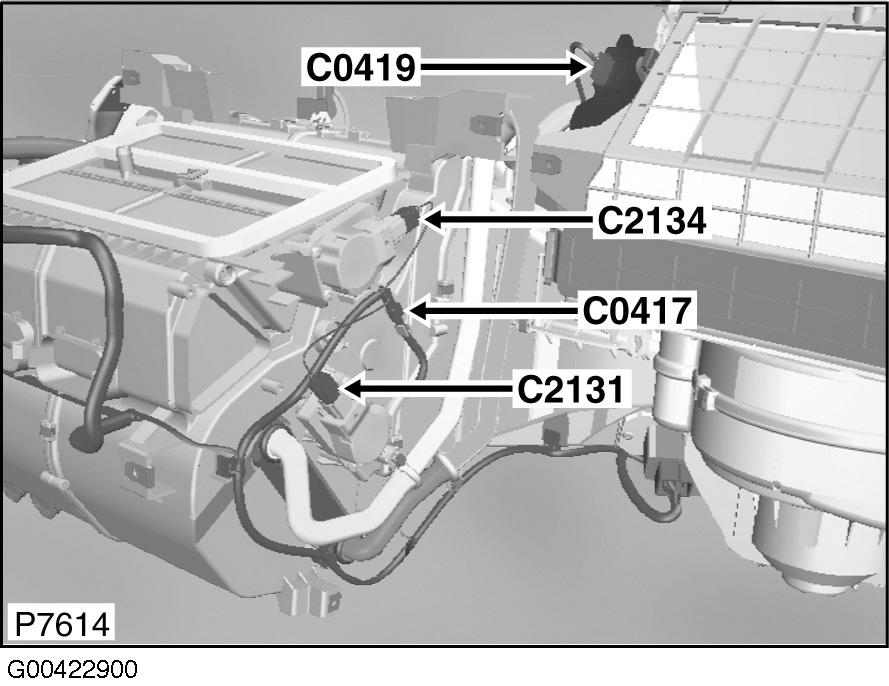

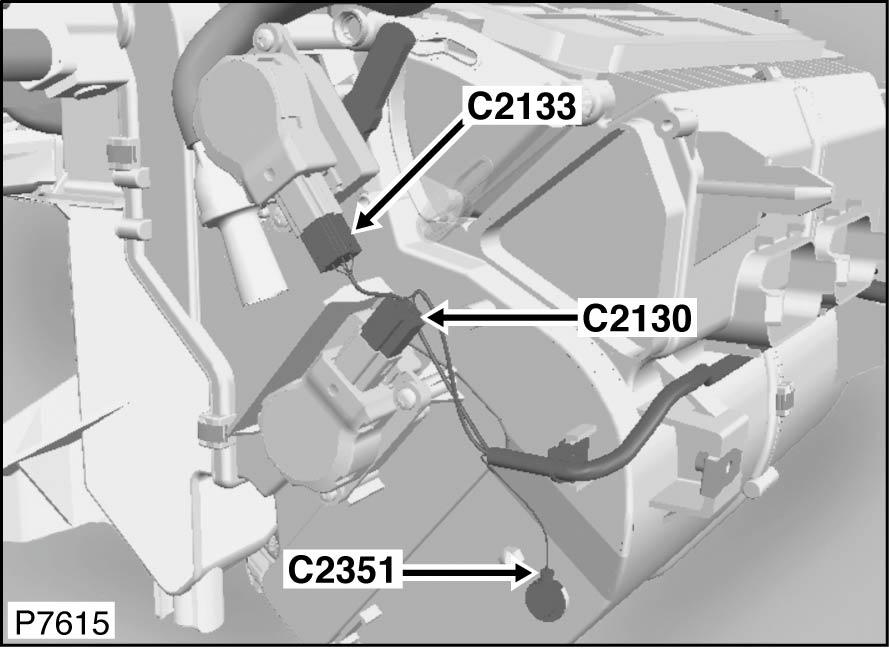

Fig 143: Center Of Dash
G00451082Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 144: Center Of Dash
G00422900Courtesy of LAND ROVER NORTH AMERICA, INC.

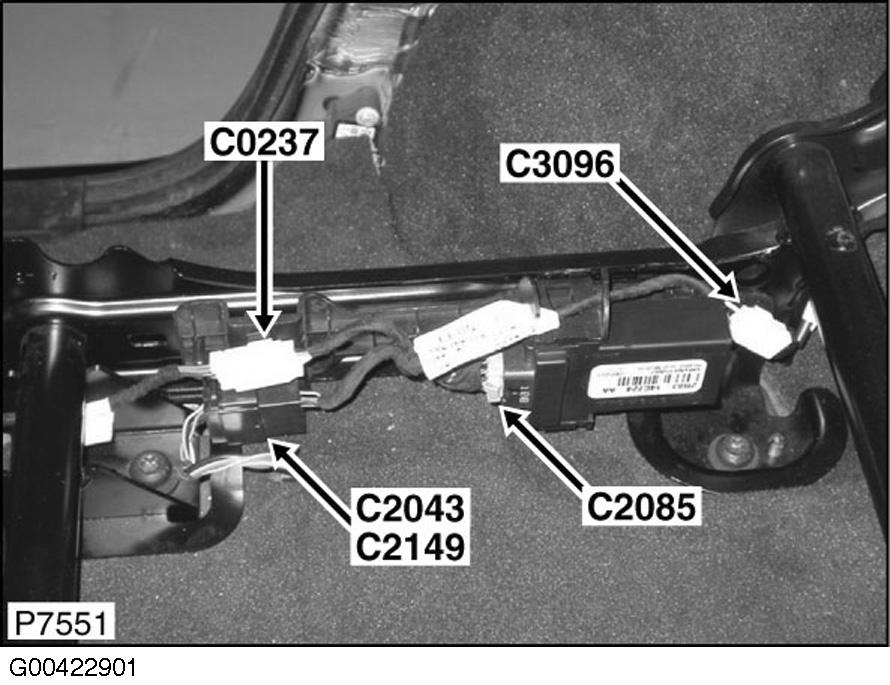

Fig 145: Under Rear Seat
G00422901Courtesy of LAND ROVER NORTH AMERICA, INC.

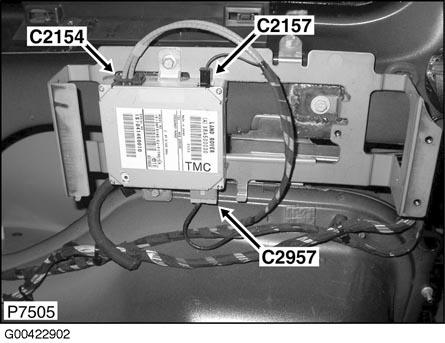

Fig 146: Right Rear Quarterpanel
G00422902Courtesy of LAND ROVER NORTH AMERICA, INC.

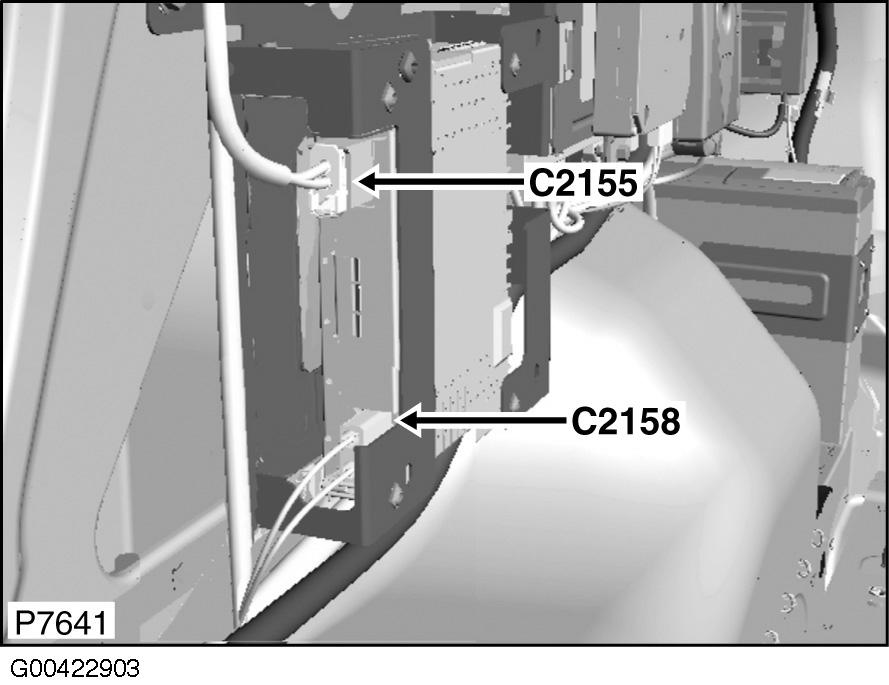

Fig 147: Right Rear Quarterpanel
G00422903Courtesy of LAND ROVER NORTH AMERICA, INC.

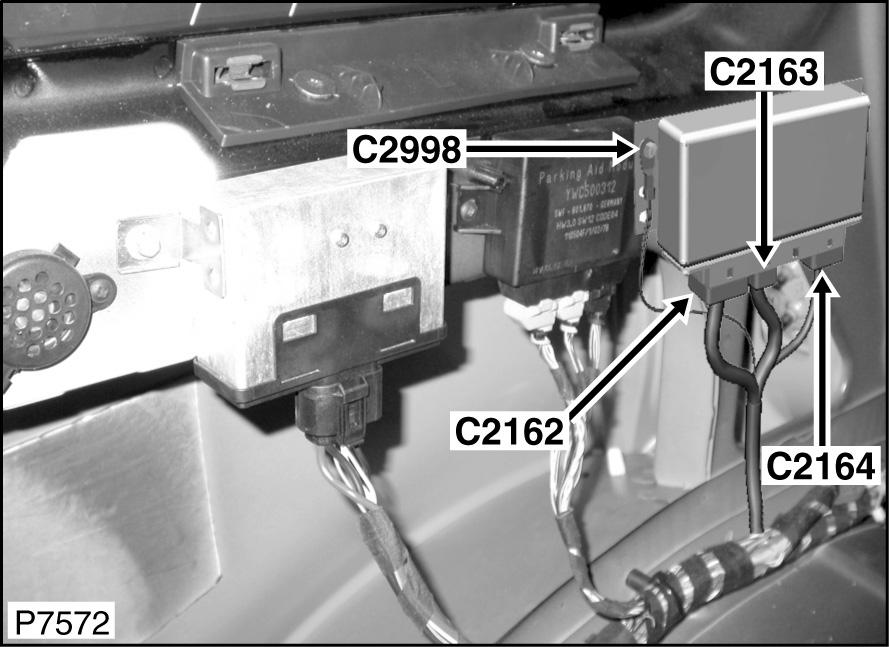

Fig 148: Left "C" Pillar
G00451203Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 149: Rear Of Transmission
G00422905Courtesy of LAND ROVER NORTH AMERICA, INC.

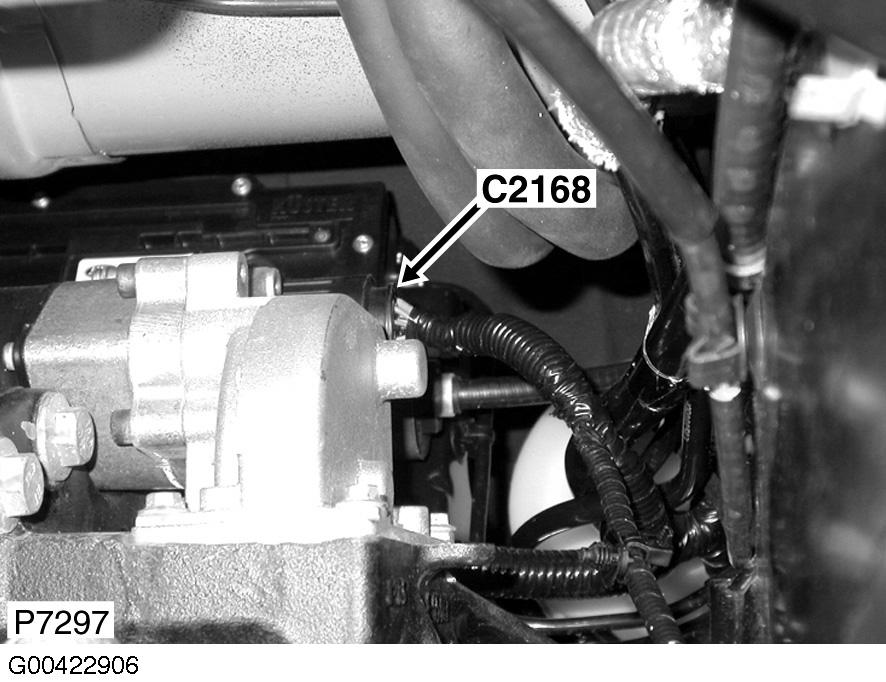

Fig 150: Under Center Of Vehicle
G00422906Courtesy of LAND ROVER NORTH AMERICA, INC.

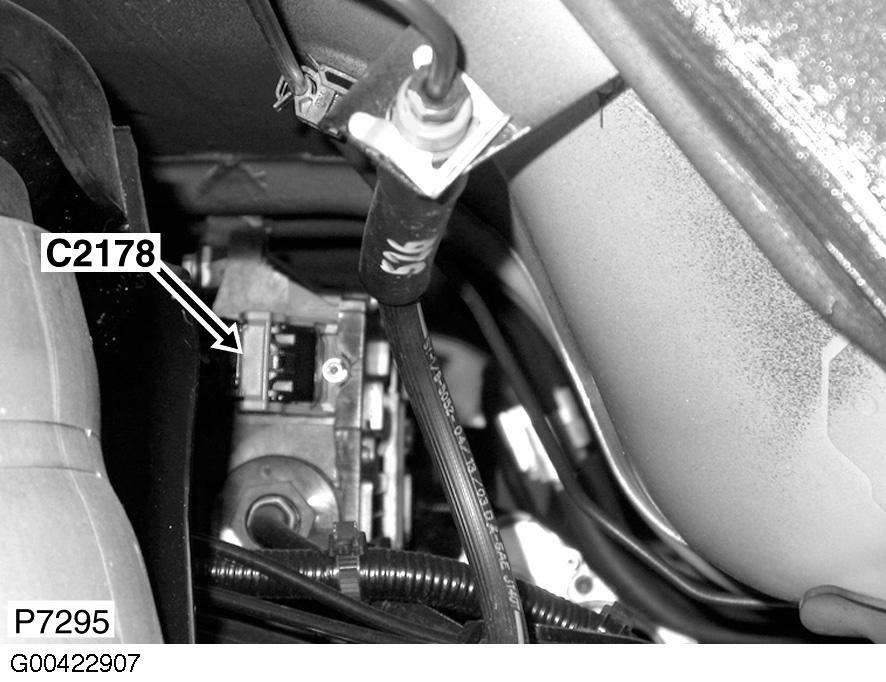

Fig 151: Under Center Of Vehicle
G00422907Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 152: Center Console
G00422908Courtesy of LAND ROVER NORTH AMERICA, INC.

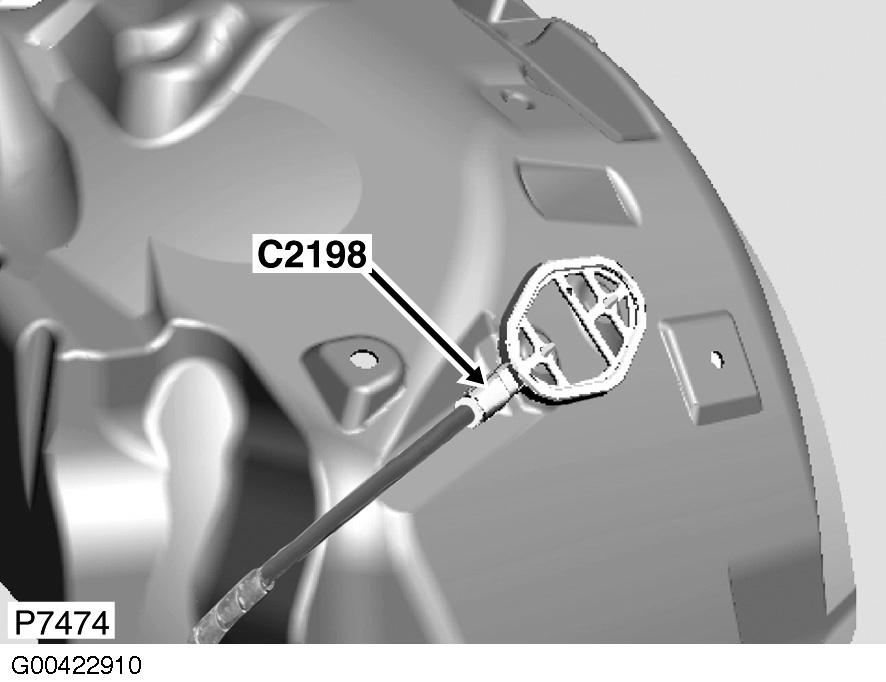

Fig 153: Left Front Wheelwell
G00422910Courtesy of LAND ROVER NORTH AMERICA, INC.

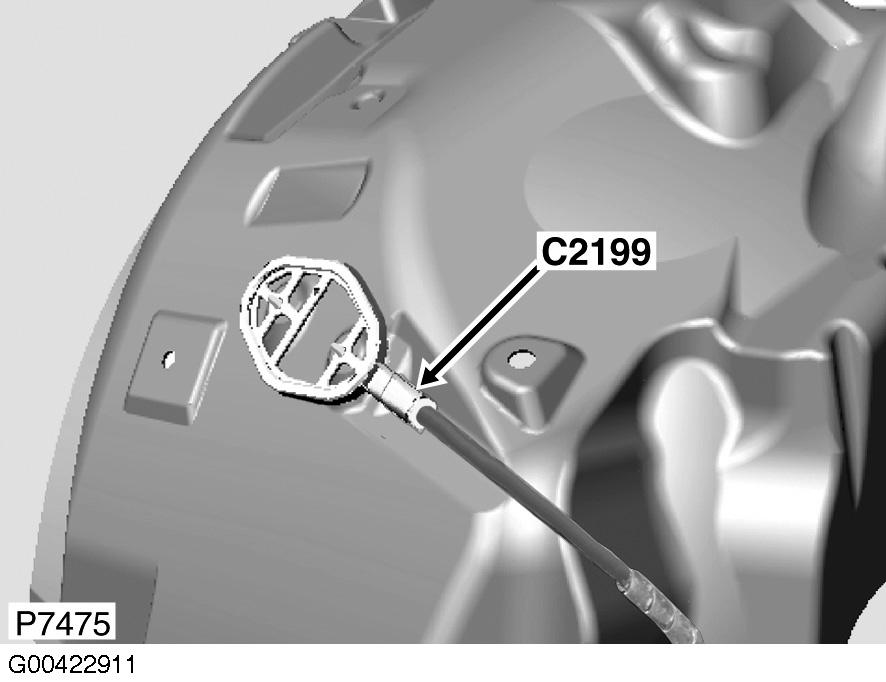

Fig 154: Right Front Wheelwell
G00422911Courtesy of LAND ROVER NORTH AMERICA, INC.

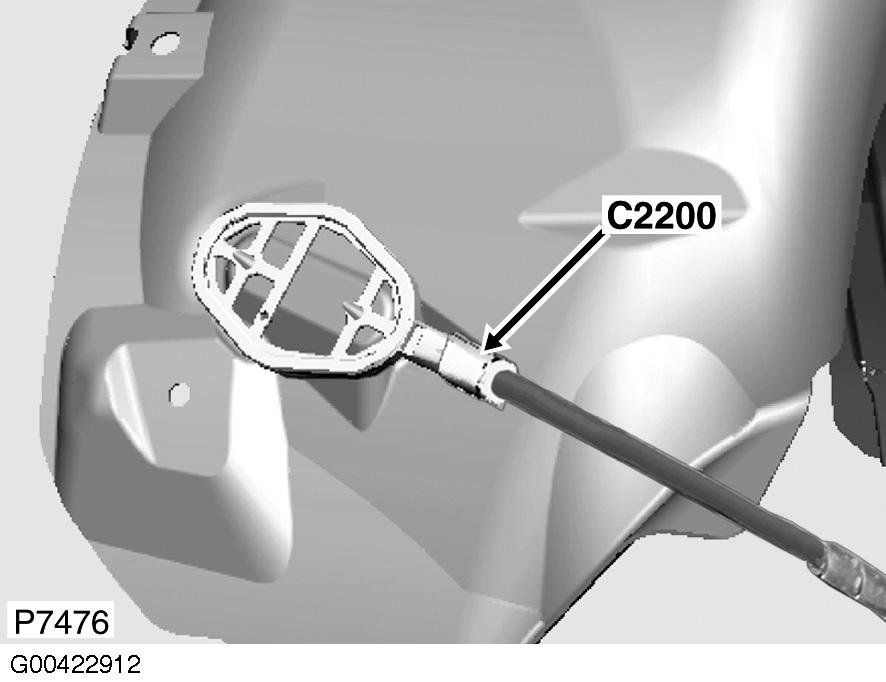

Fig 155: Left Rear Wheelwell
G00422912Courtesy of LAND ROVER NORTH AMERICA, INC.

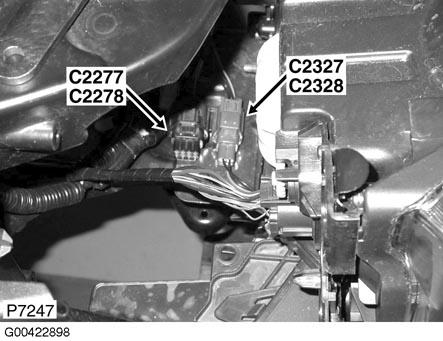

Fig 156: Behind Right Headlight
G00422898Courtesy of LAND ROVER NORTH AMERICA, INC.

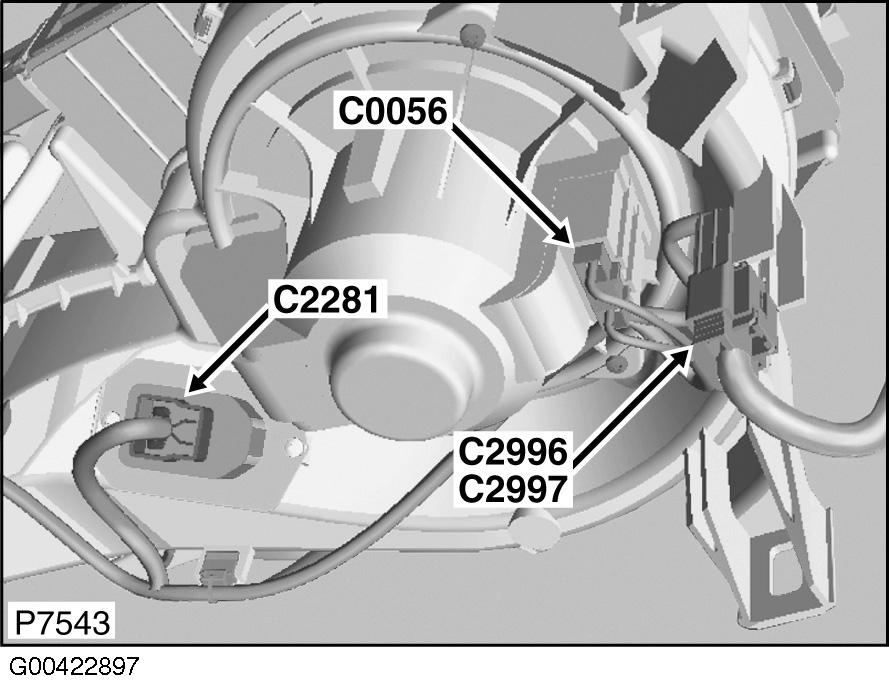

Fig 157: Behind Center Of Dash
G00422897Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 158: Left Side Of Engine Compartment
G00451212Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 159: Behind Right Headlight
G00422891Courtesy of LAND ROVER NORTH AMERICA, INC.

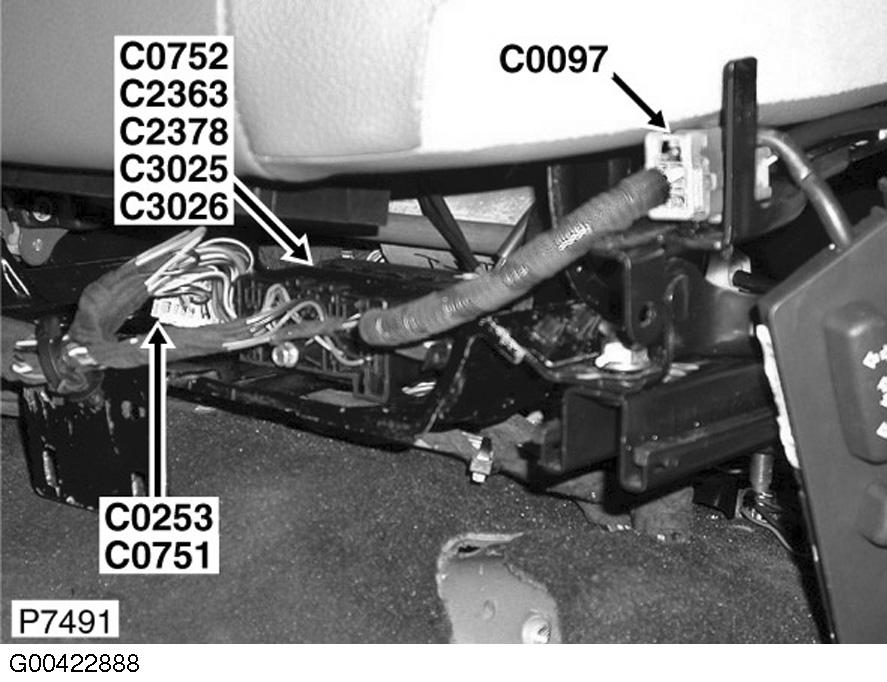

Fig 160: Under Front Passenger's Seat
G00422888Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 161: Right Rear Of Engine Compartment
G00422887Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 162: Left "C" Pillar

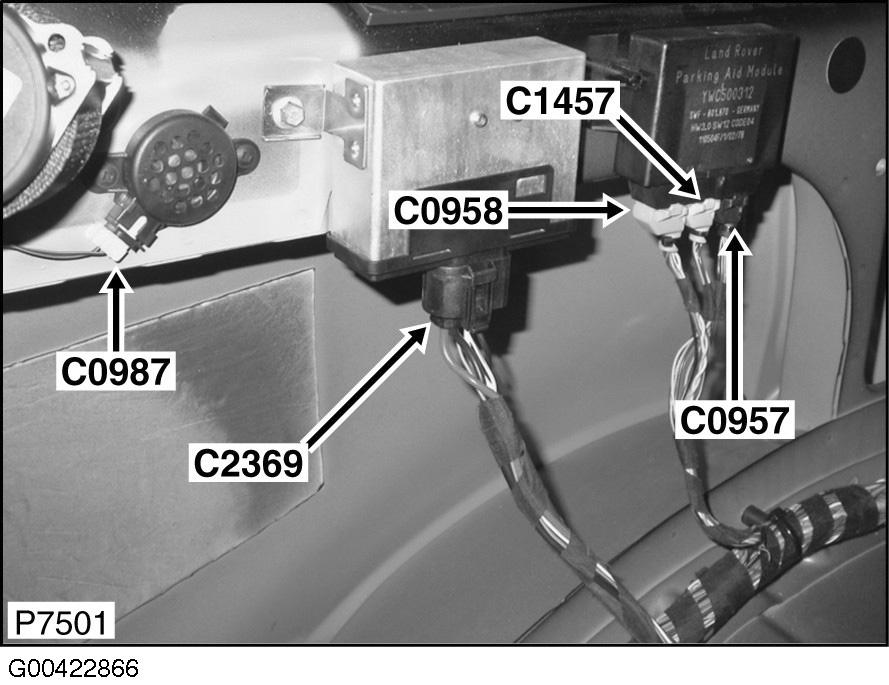

G00422866Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 163: Right Rear Of Engine Compartment
G00422863Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 164: Under Driver's Seat
G00422862Courtesy of LAND ROVER NORTH AMERICA, INC.

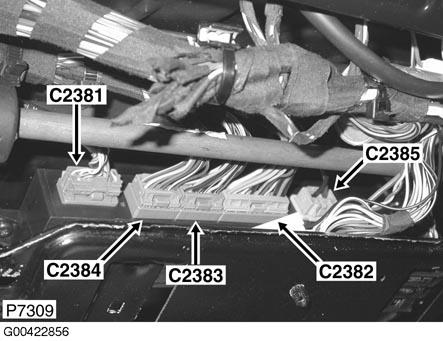

Fig 165: Under Driver's Seat
G00422856Courtesy of LAND ROVER NORTH AMERICA, INC.

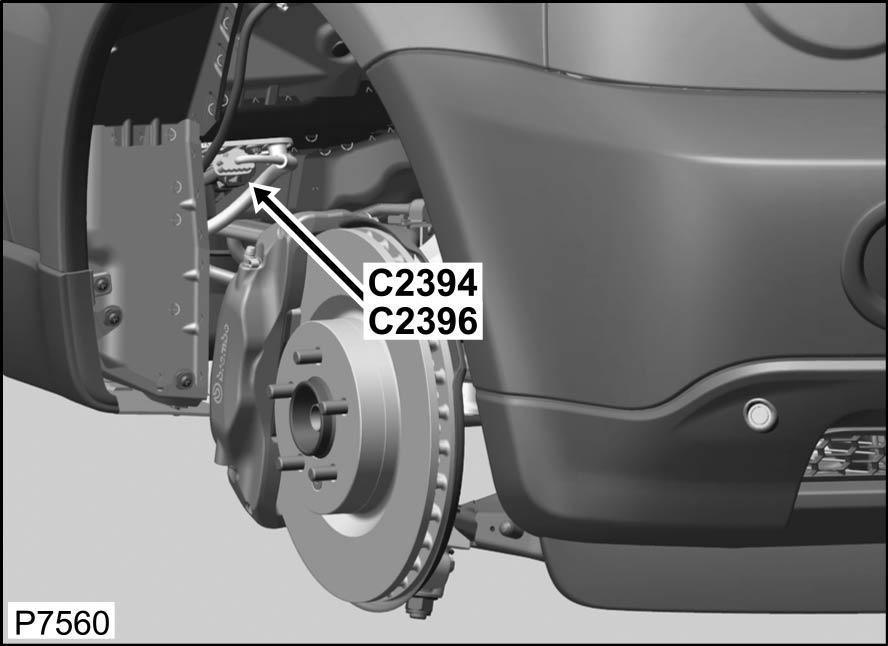

Fig 166: Right Front Wheelwell
G00451223Courtesy of LAND ROVER NORTH AMERICA, INC.

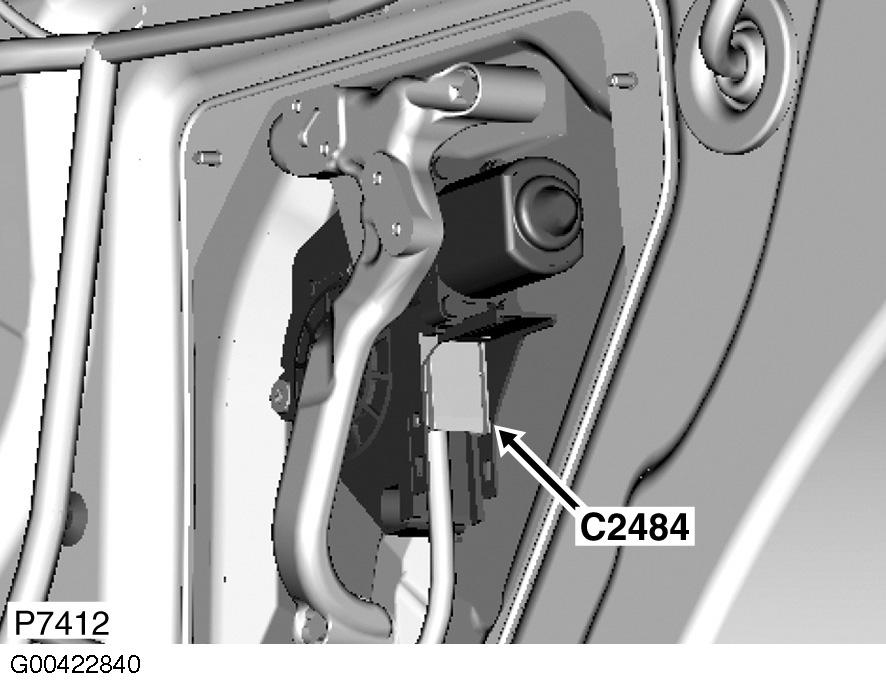

Fig 167: Right Rear Door
G00422840Courtesy of LAND ROVER NORTH AMERICA, INC.

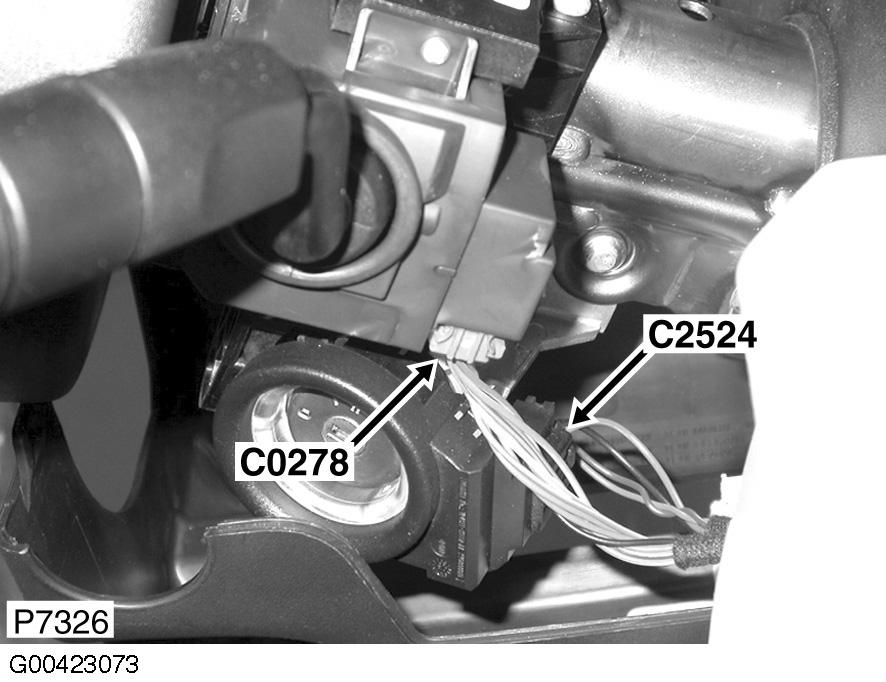

Fig 168: Center Console
G00423073Courtesy of LAND ROVER NORTH AMERICA, INC.

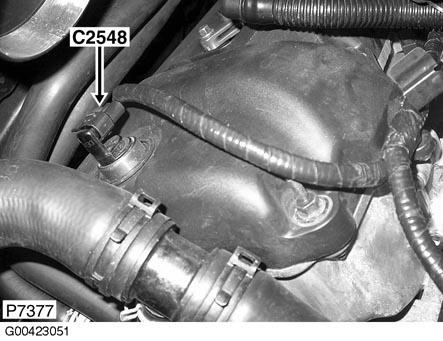

Fig 169: Right Front Of Engine (4.4L)
G00423051Courtesy of LAND ROVER NORTH AMERICA, INC.

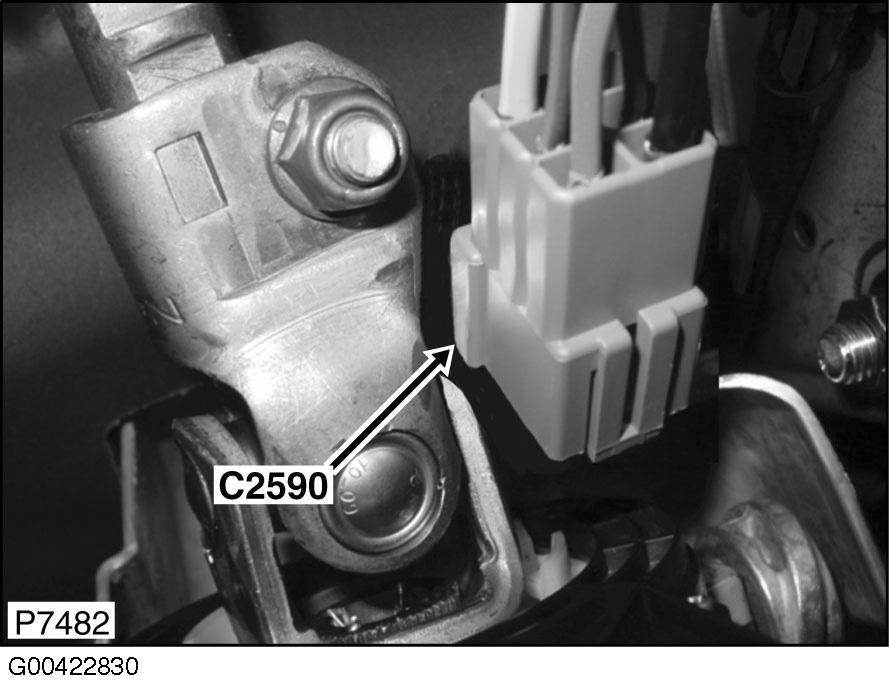

Fig 170: Near Pedal Box
G00422830Courtesy of LAND ROVER NORTH AMERICA, INC.

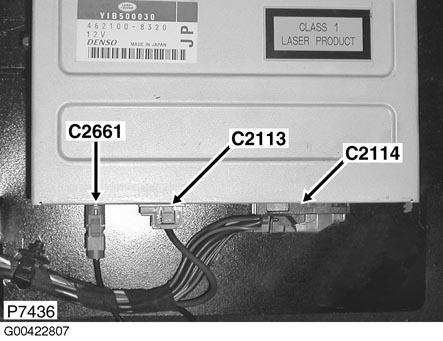

Fig 171: Under Driver's Seat
G00422807Courtesy of LAND ROVER NORTH AMERICA, INC.

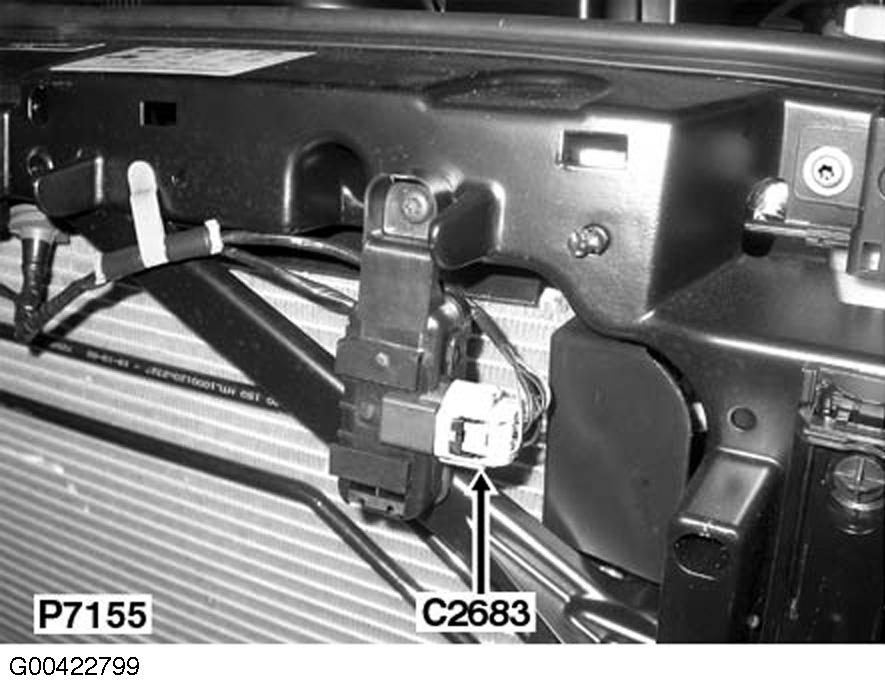

Fig 172: Left Front Corner Of Engine Compartment
G00422799Courtesy of LAND ROVER NORTH AMERICA, INC.

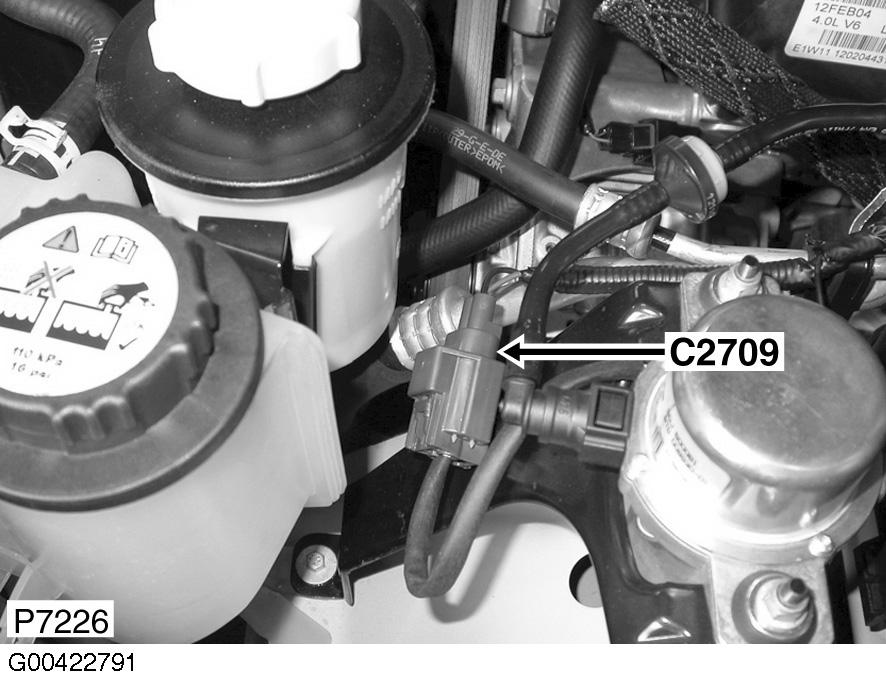

Fig 173: Left Front Of Engine Compartment
G00422791Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 174: Right Side Of Engine Compartment

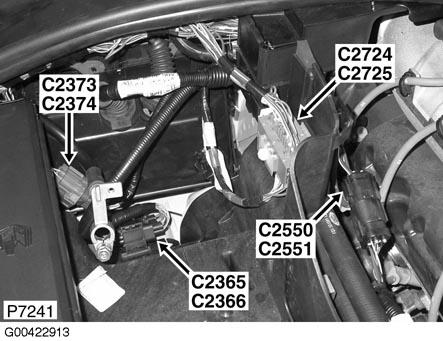

G00422913Courtesy of LAND ROVER NORTH AMERICA, INC.

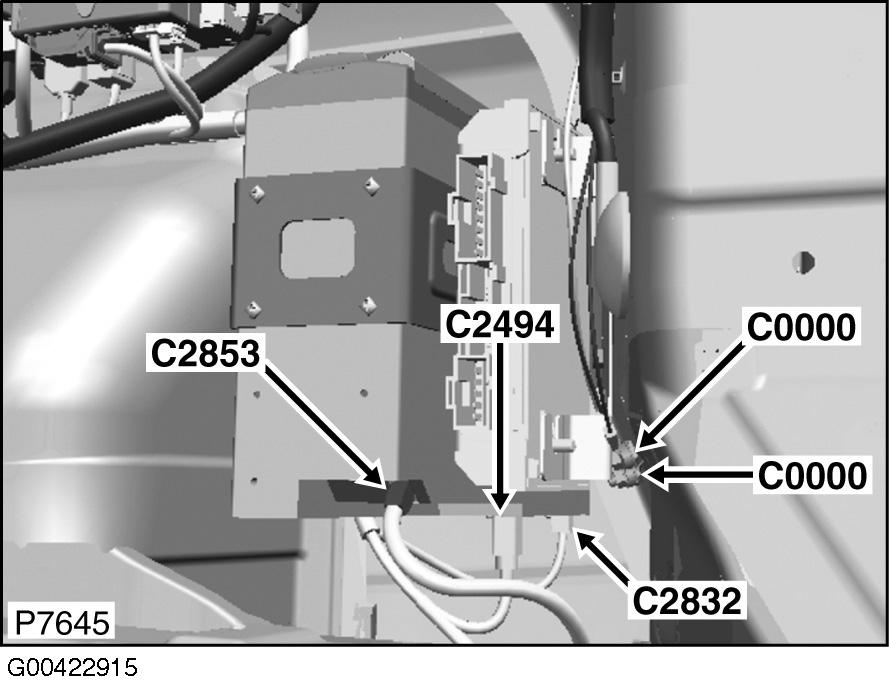

Fig 175: Right Rear Quarterpanel
G00422915Courtesy of LAND ROVER NORTH AMERICA, INC.

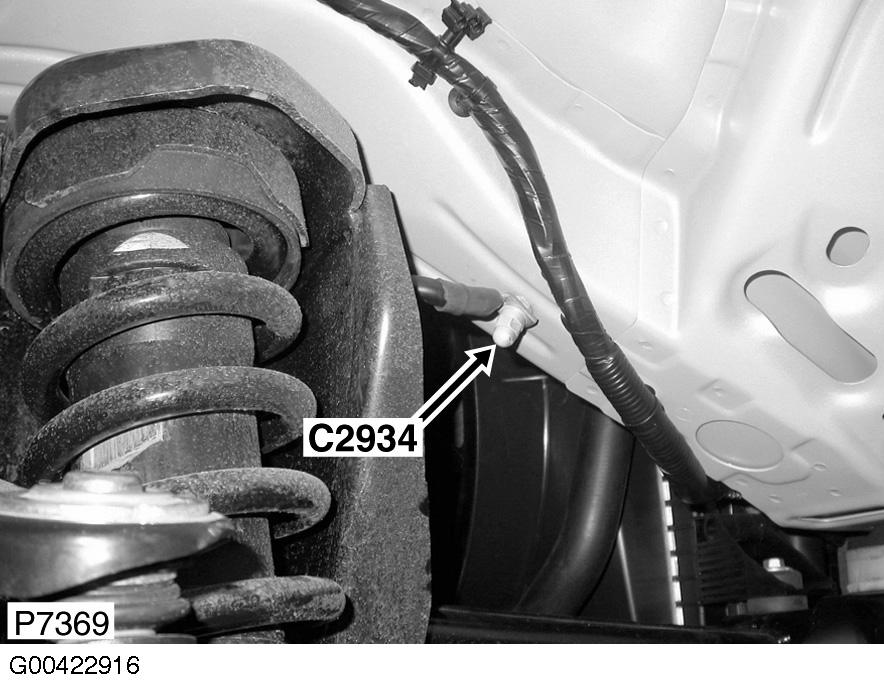

Fig 176: Right Rear Wheelwell
G00422916Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 177: Under Driver's Seat
G00422917Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 178: Left Kick Panel

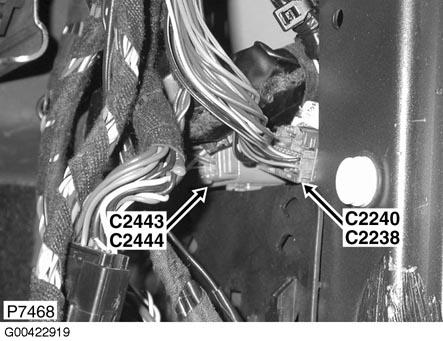

G00422919Courtesy of LAND ROVER NORTH AMERICA, INC.

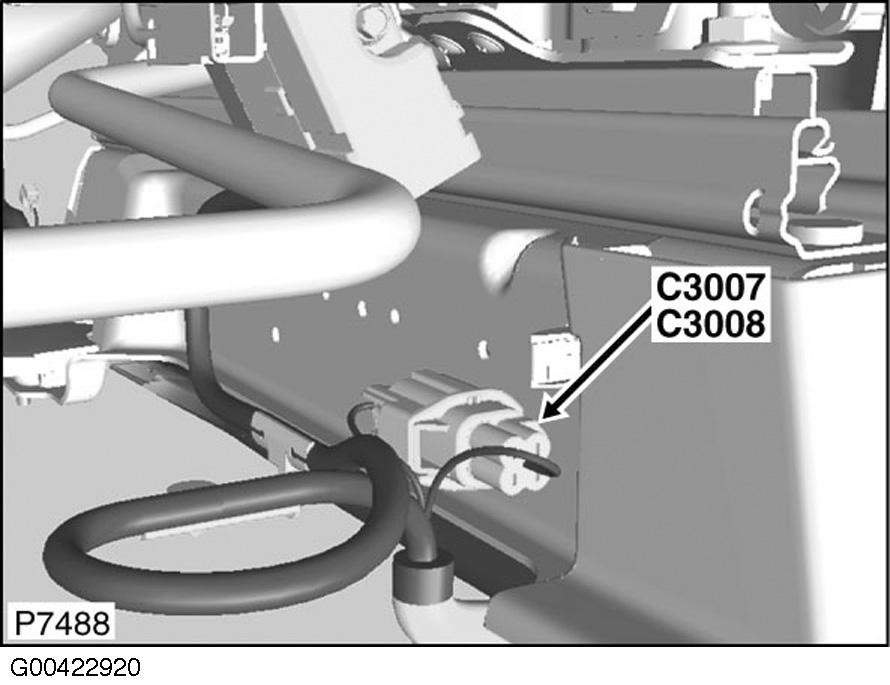

Fig 179: Under Driver's Seat
G00422920Courtesy of LAND ROVER NORTH AMERICA, INC.

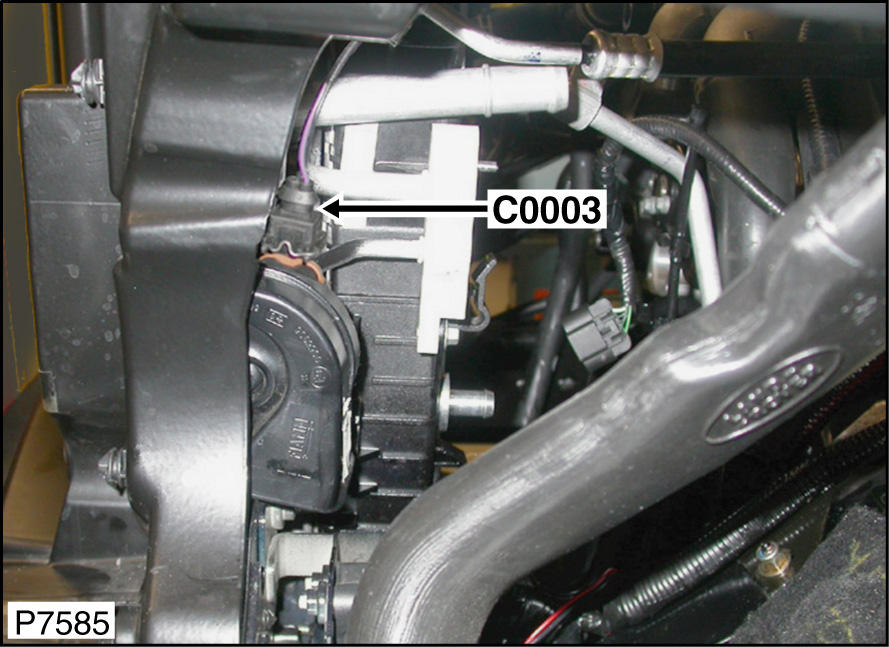

Fig 180: Left Front Of Engine Compartment
G00451072Courtesy of LAND ROVER NORTH AMERICA, INC.

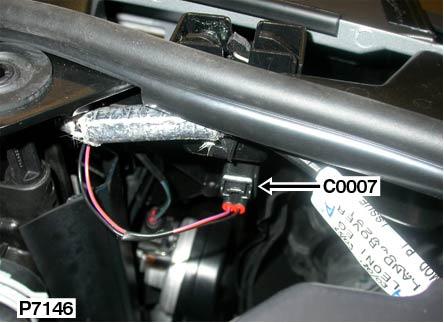

Fig 181: Right Front Of Engine Compartment
G00451074Courtesy of LAND ROVER NORTH AMERICA, INC.

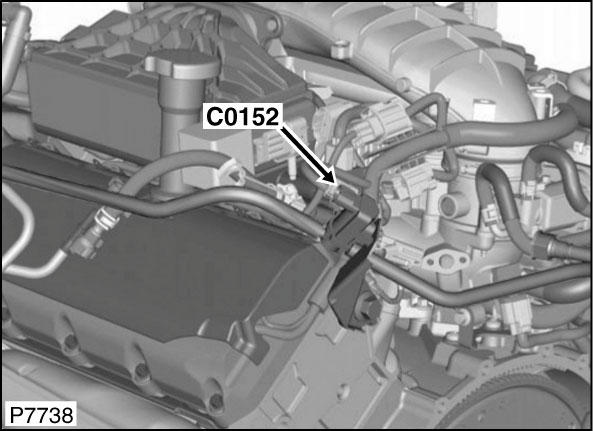

Fig 182: Left Rear Of Engine (4.2L)
G00451077Courtesy of LAND ROVER NORTH AMERICA, INC.

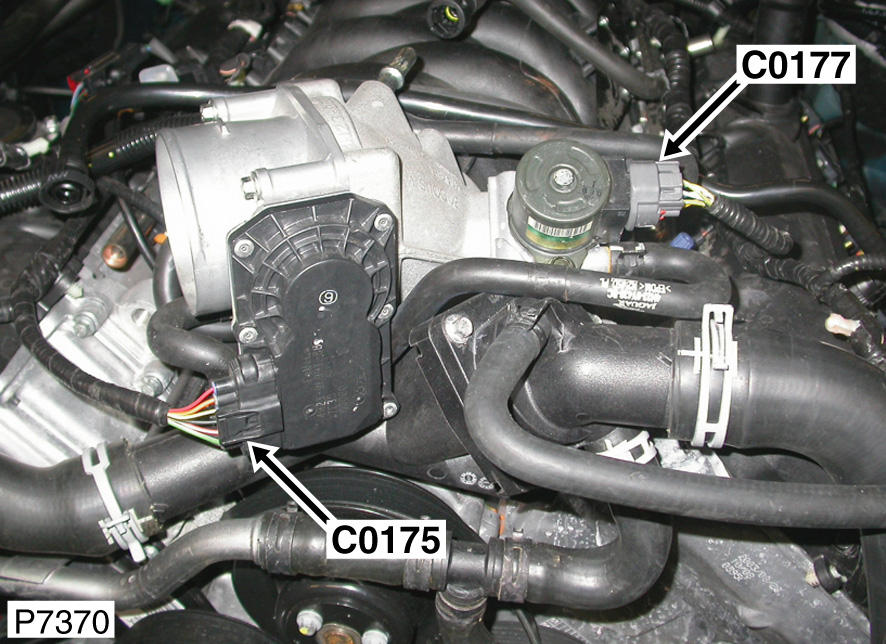

Fig 183: Top Front Of Engine (4.4L)
G00451078Courtesy of LAND ROVER NORTH AMERICA, INC.

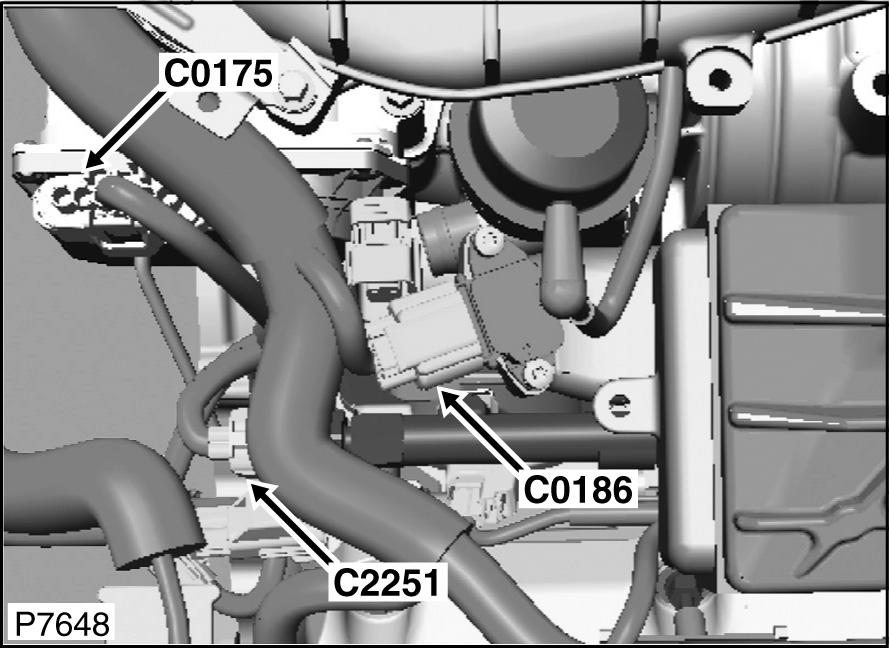

Fig 184: Top Front Of Engine (4.2L)
G00451079Courtesy of LAND ROVER NORTH AMERICA, INC.

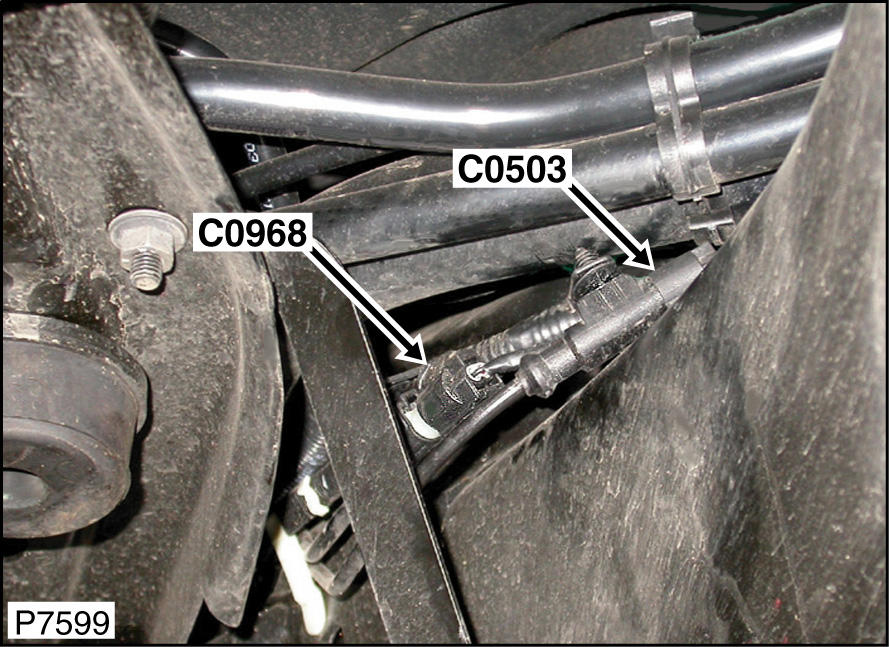

Fig 185: Right Rear Wheelwell
G00451084Courtesy of LAND ROVER NORTH AMERICA, INC.

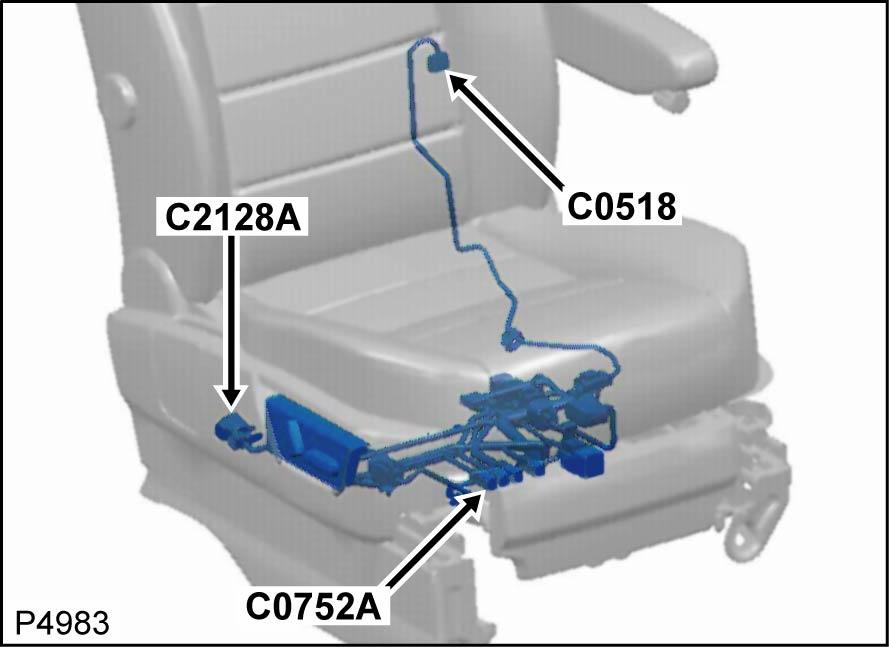

Fig 186: Front Passenger's Seat
G00451086Courtesy of LAND ROVER NORTH AMERICA, INC.

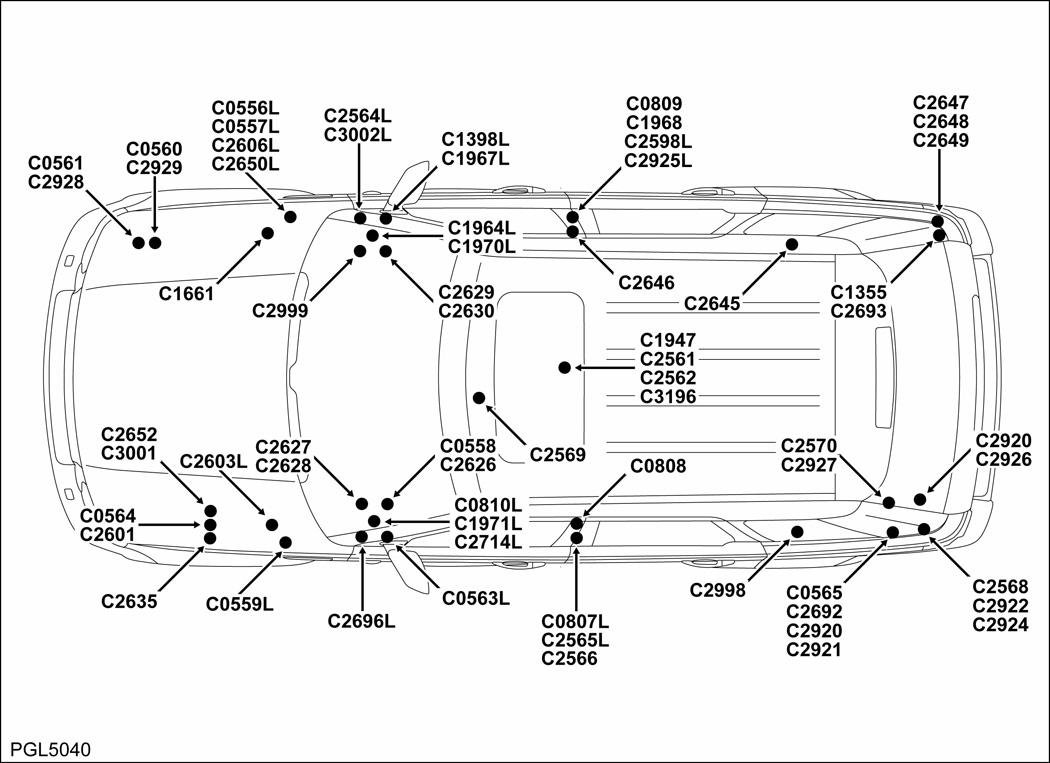

Fig 187: Vehicle Overview (Grounds)
G00451088Courtesy of LAND ROVER NORTH AMERICA, INC.

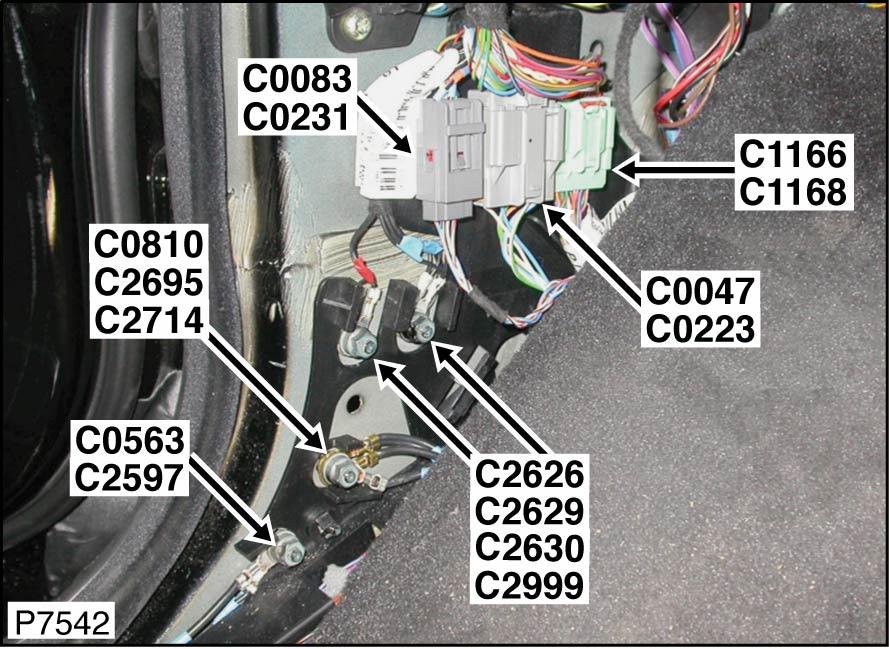

Fig 188: Left Kick Panel
G00451081Courtesy of LAND ROVER NORTH AMERICA, INC.

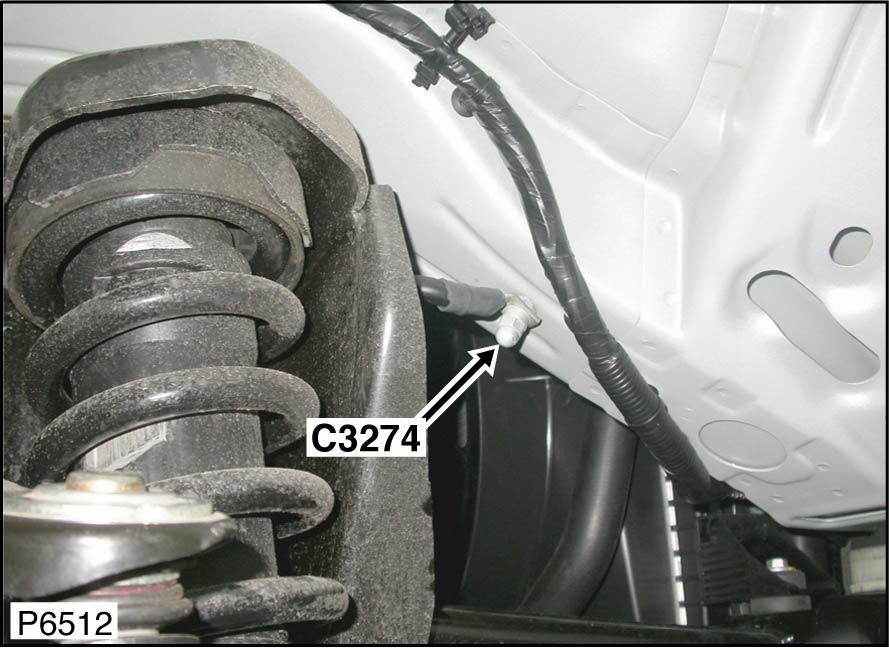

Fig 189: Right Front Wheelwell
G00451087Courtesy of LAND ROVER NORTH AMERICA, INC.

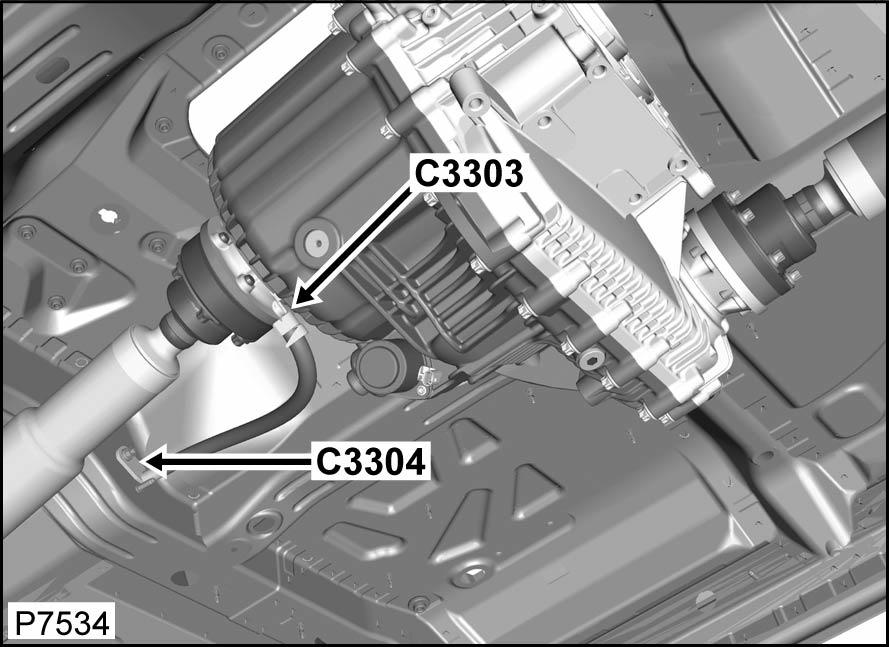

Fig 190: Under Center Of Vehicle
G00451089Courtesy of LAND ROVER NORTH AMERICA, INC.

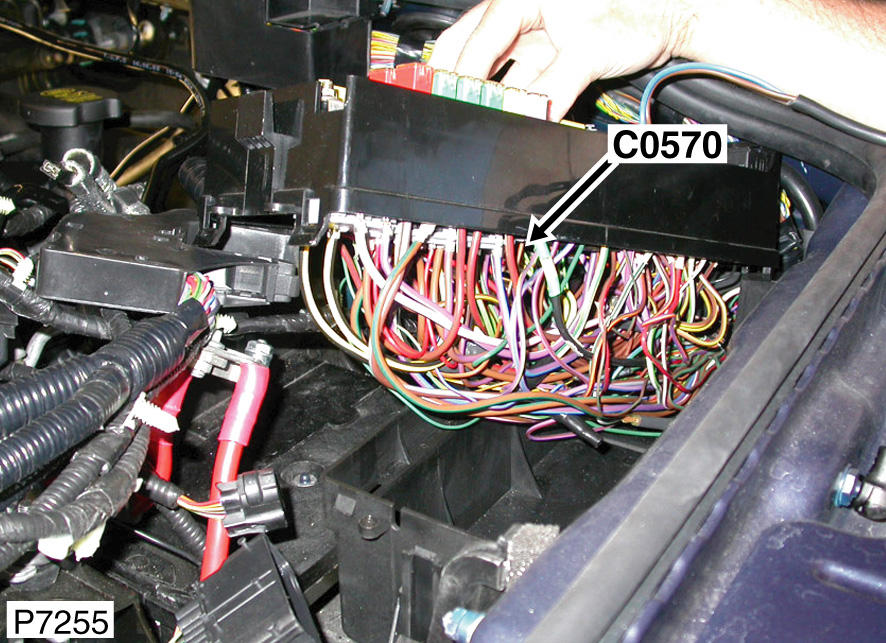

Fig 191: Engine Compartment
G00451091Courtesy of LAND ROVER NORTH AMERICA, INC.

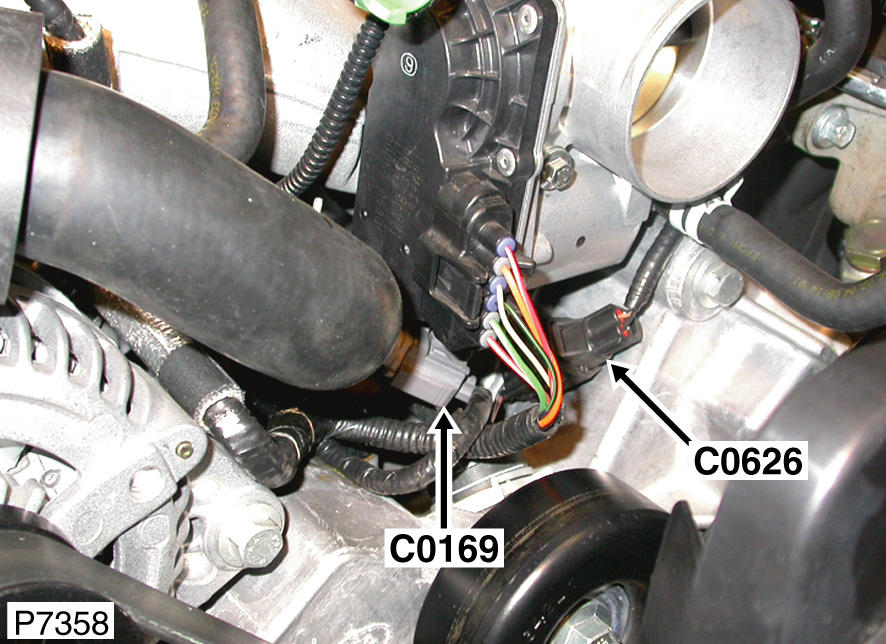

Fig 192: Front Of Engine (4.4L)
G00451092Courtesy of LAND ROVER NORTH AMERICA, INC.

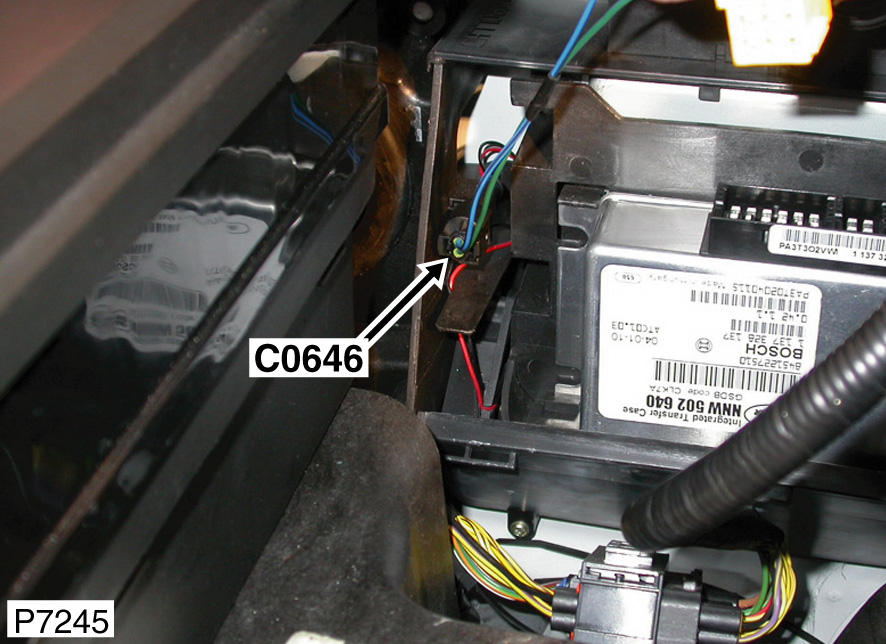

Fig 193: Engine Compartment
G00451090Courtesy of LAND ROVER NORTH AMERICA, INC.

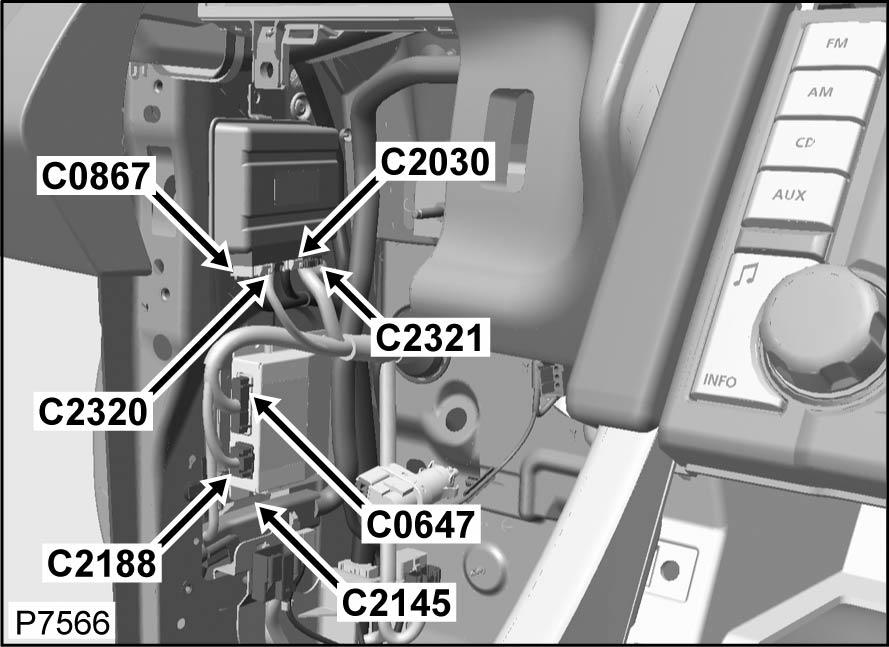

Fig 194: Left Kick Panel
G00451093Courtesy of LAND ROVER NORTH AMERICA, INC.

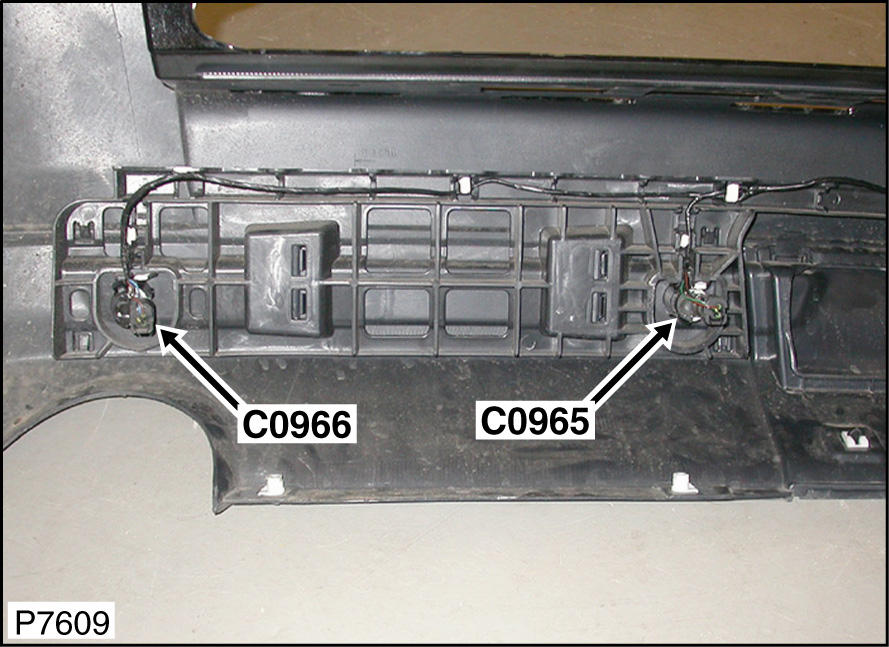

Fig 195: Right Side Of Rear Bumper
G00451100Courtesy of LAND ROVER NORTH AMERICA, INC.

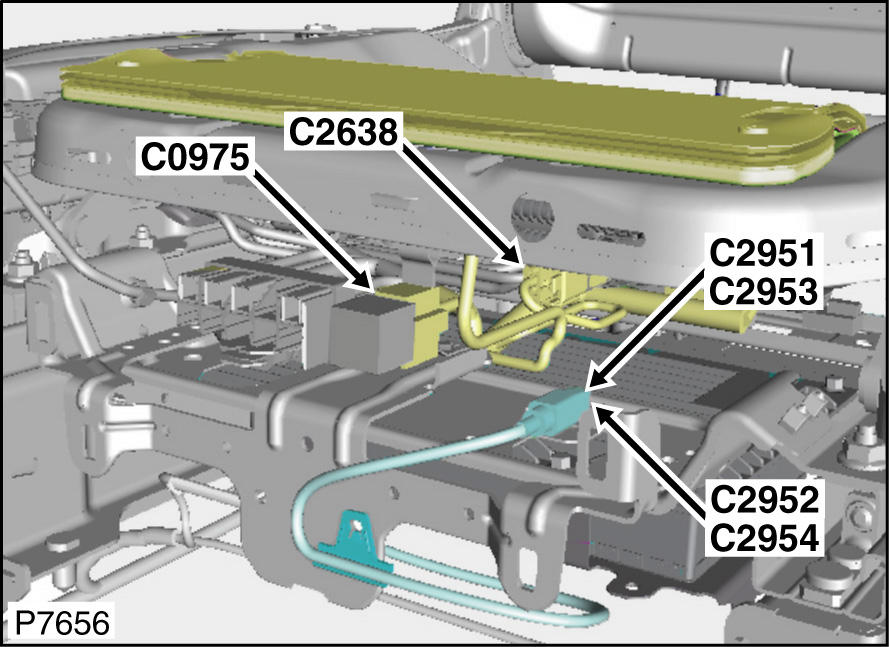

Fig 196: Under Front Passenger's Seat
G00451101Courtesy of LAND ROVER NORTH AMERICA, INC.

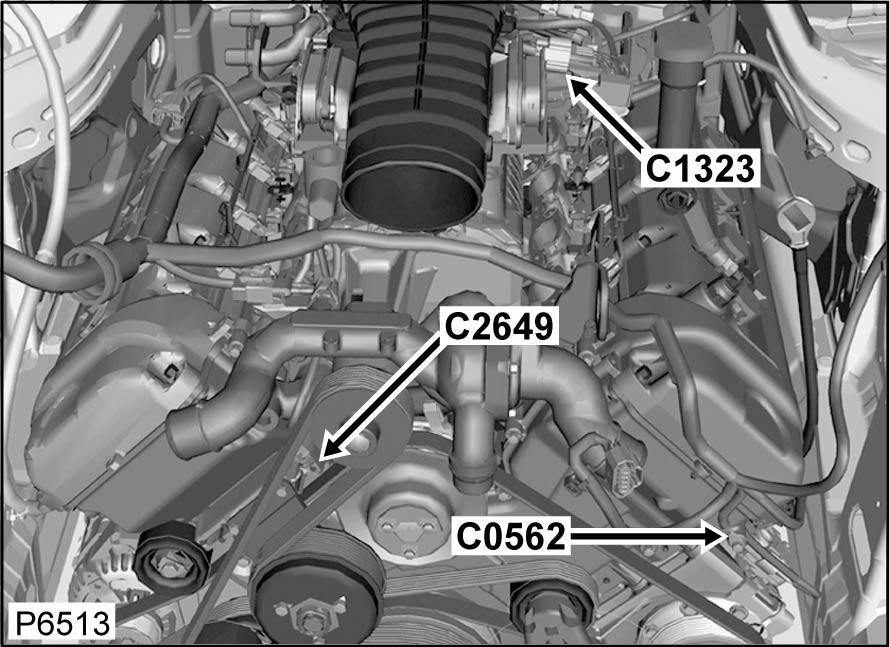

Fig 197: Top Of Engine (4.2L)
G00451102Courtesy of LAND ROVER NORTH AMERICA, INC.

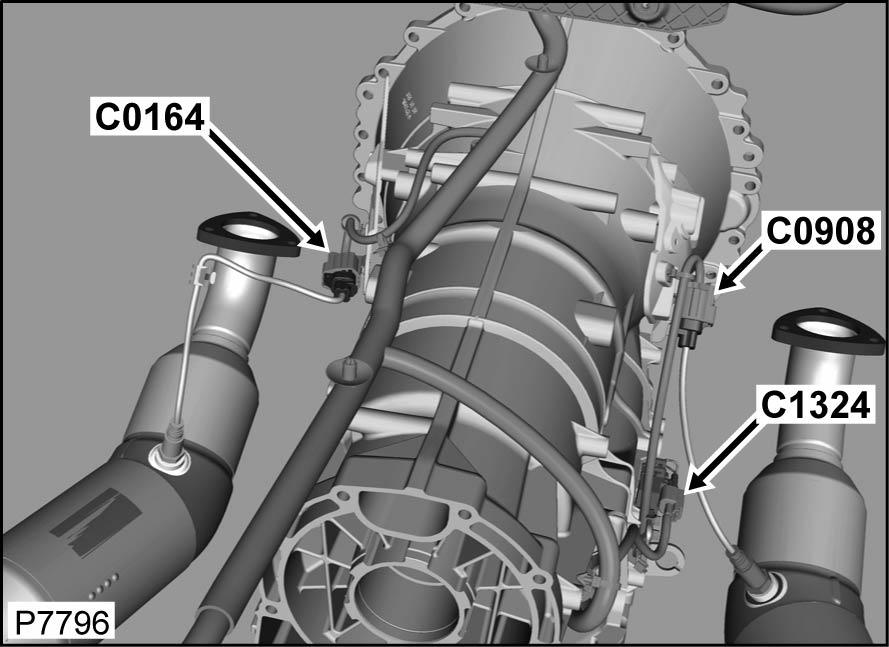

Fig 198: Transmission
G00451103Courtesy of LAND ROVER NORTH AMERICA, INC.

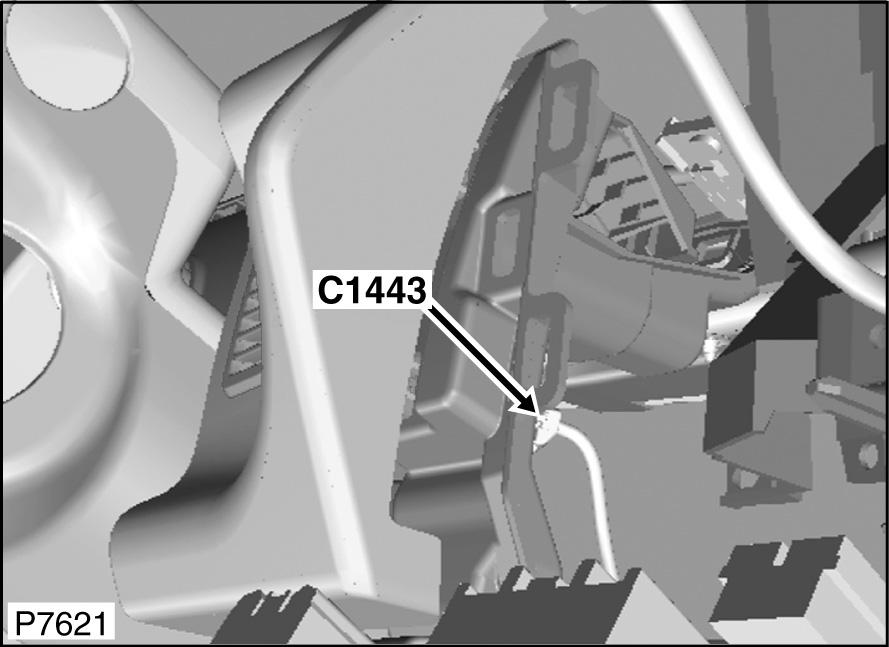

Fig 199: Behind Left Side Of Dash
G00451104Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 200: Top Left Side Of Engine (4.2L)

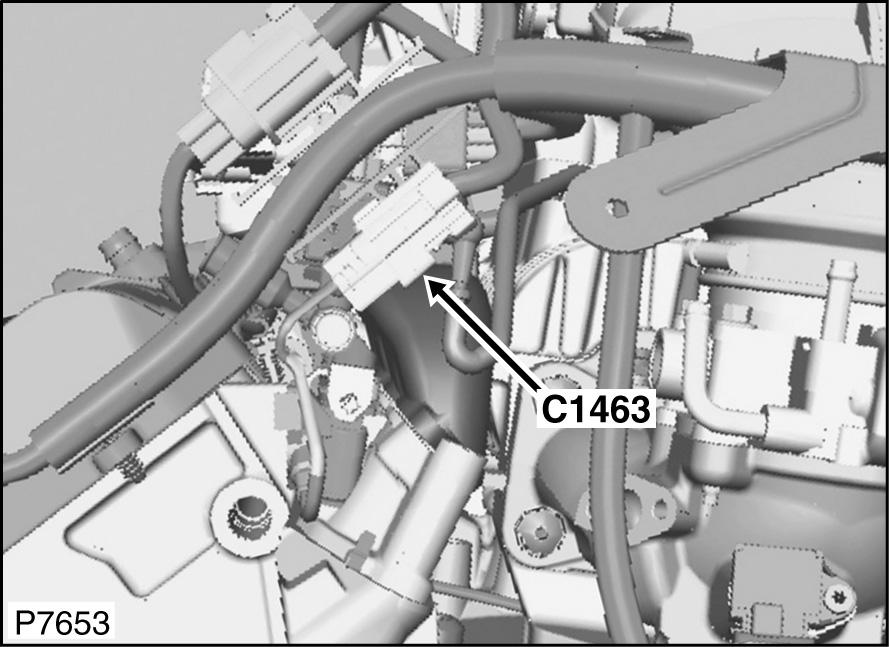

G00451105Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 201: Left Rear Of Engine (4.4L)
G00451106Courtesy of LAND ROVER NORTH AMERICA, INC.

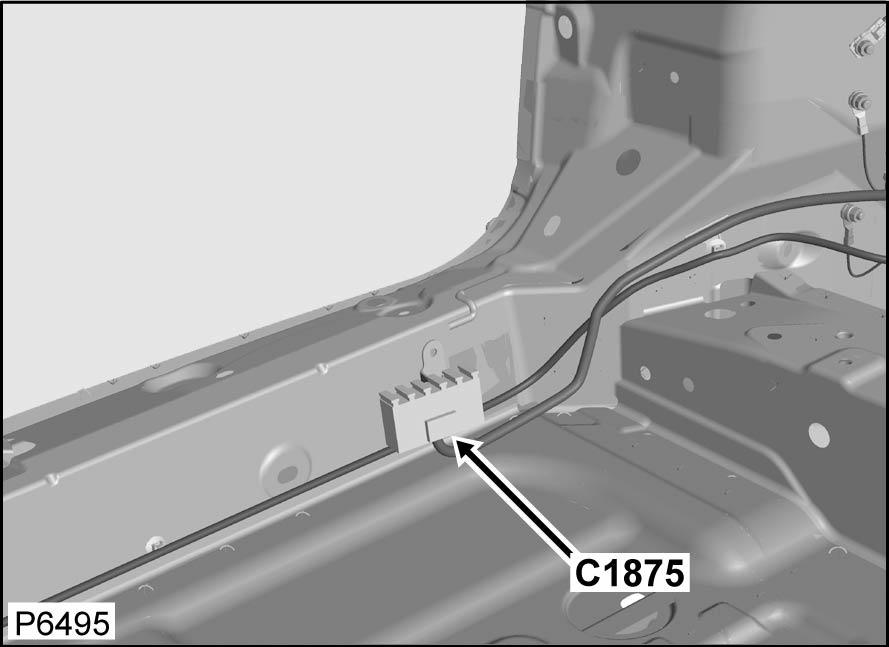

Fig 202: Rear Of Luggage Compartment
G00451190Courtesy of LAND ROVER NORTH AMERICA, INC.

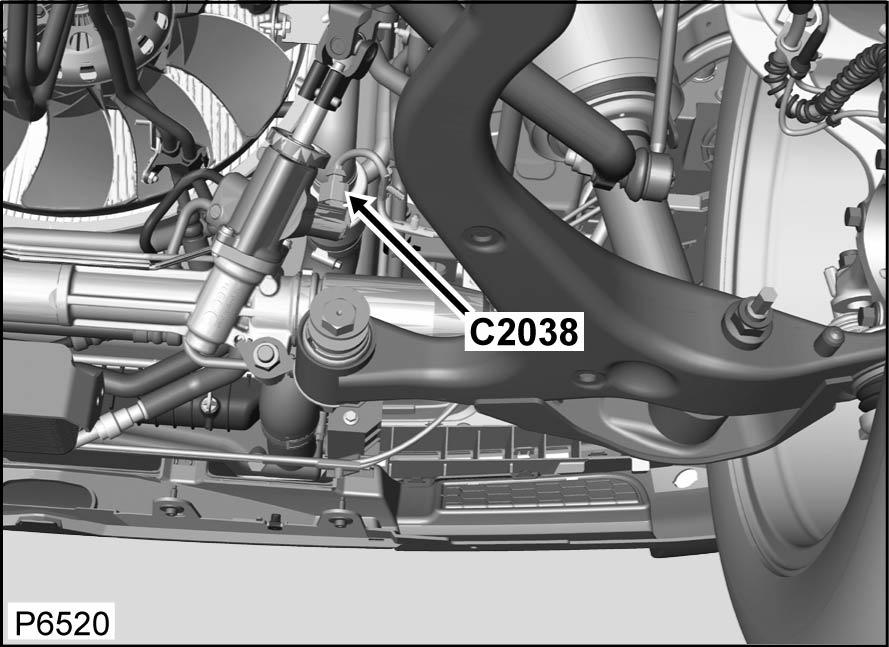

Fig 203: Lower Left Rear Of Engine Compartment
G00451191Courtesy of LAND ROVER NORTH AMERICA, INC.

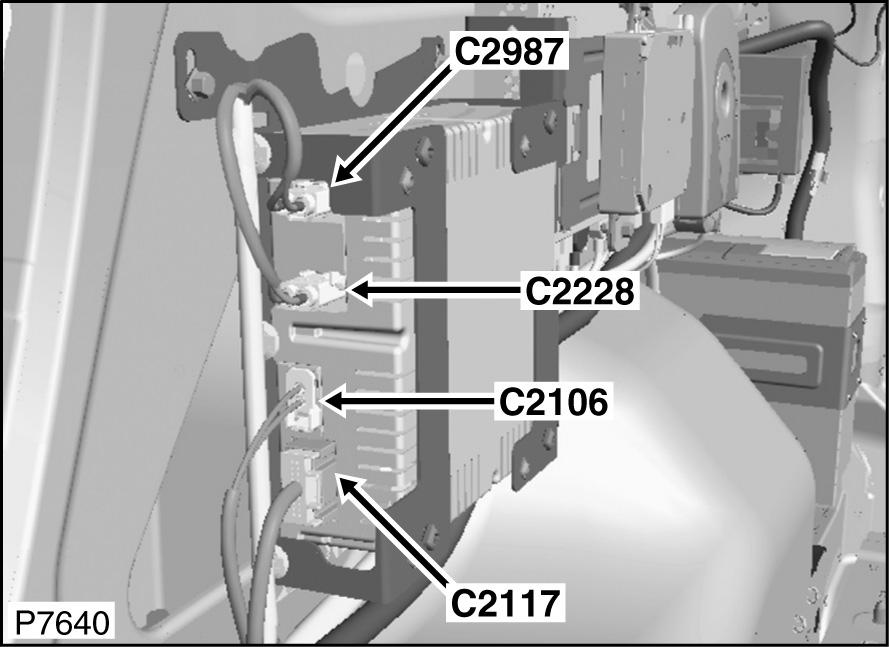

Fig 204: Left Rear Quarterpanel
G00451193Courtesy of LAND ROVER NORTH AMERICA, INC.

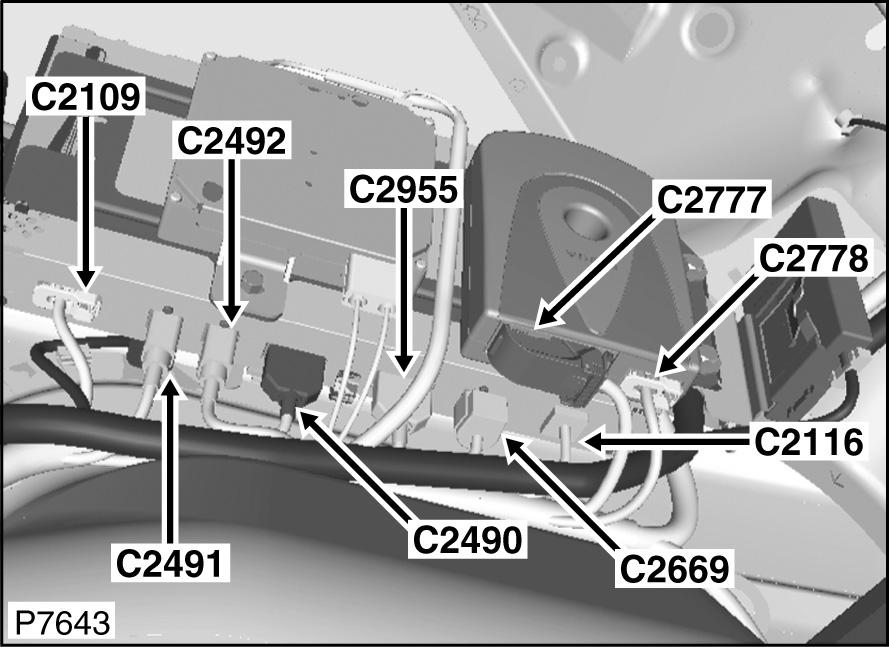

Fig 205: Right Rear Quarter Trim Panel
G00451194Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 206: Right Rear Quarterpanel
G00451196Courtesy of LAND ROVER NORTH AMERICA, INC.

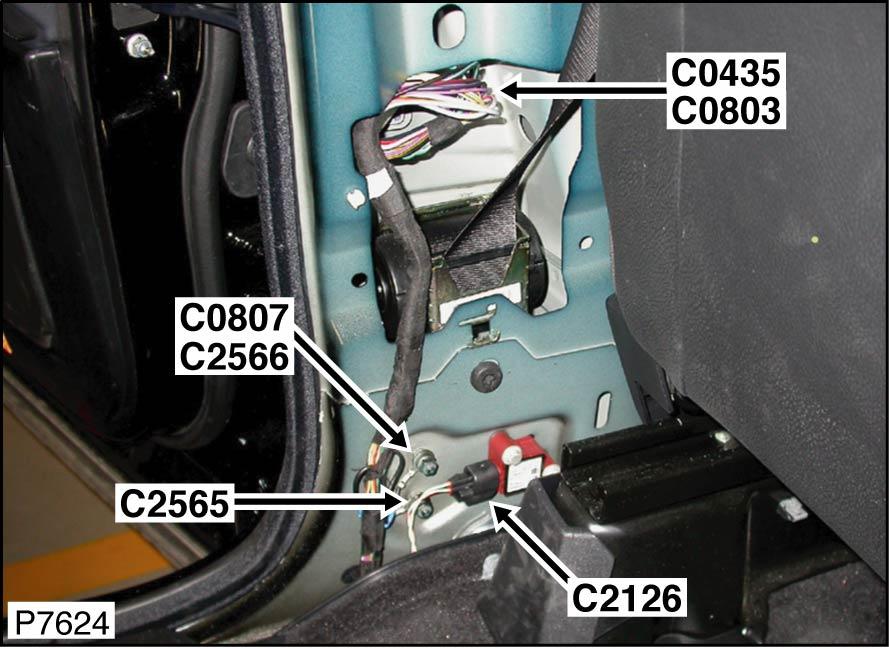

Fig 207: Left "B" Pillar
G00451199Courtesy of LAND ROVER NORTH AMERICA, INC.

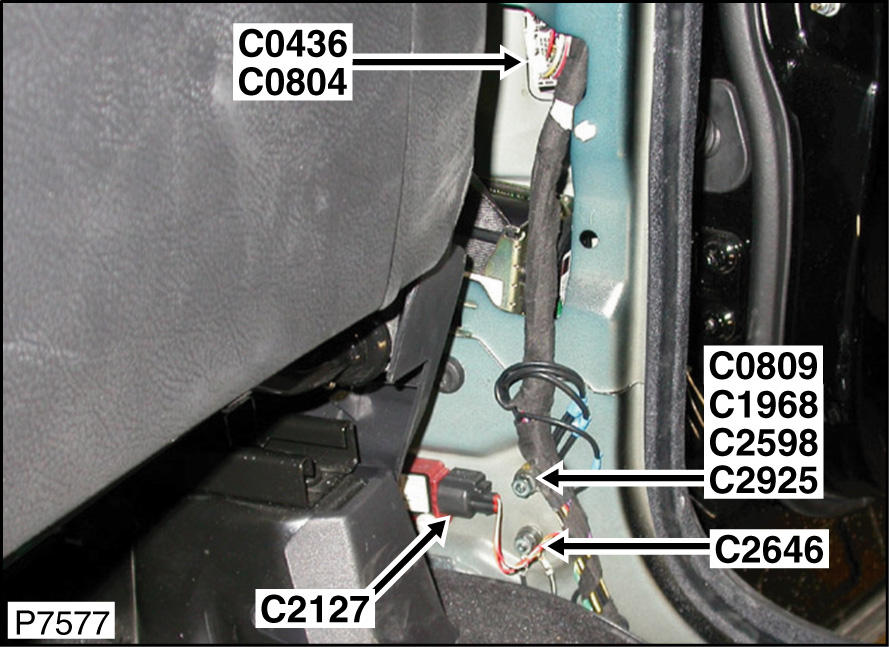

Fig 208: Right "B" Pillar
G00451200Courtesy of LAND ROVER NORTH AMERICA, INC.

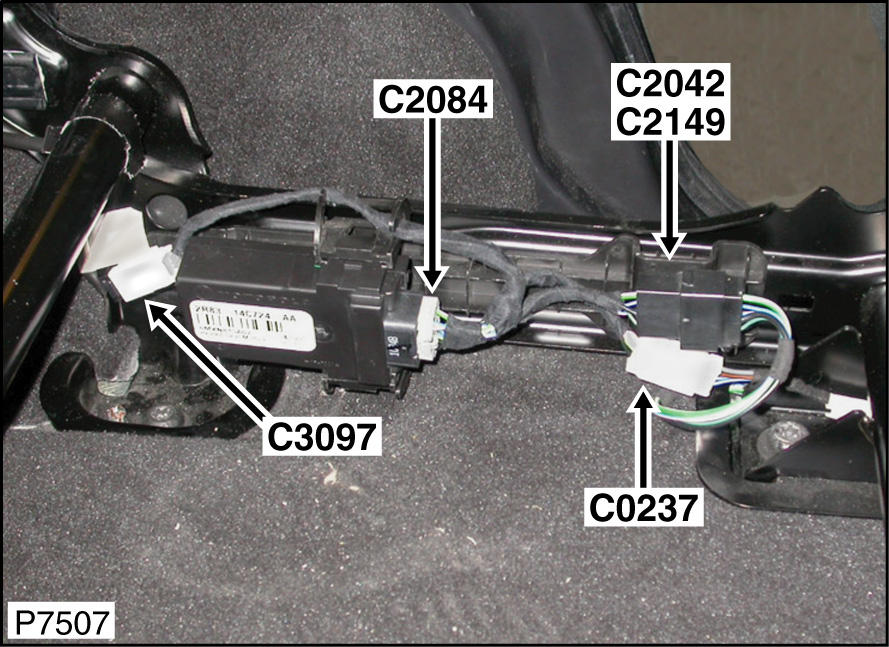

Fig 209: Under Rear Seat
G00451201Courtesy of LAND ROVER NORTH AMERICA, INC.

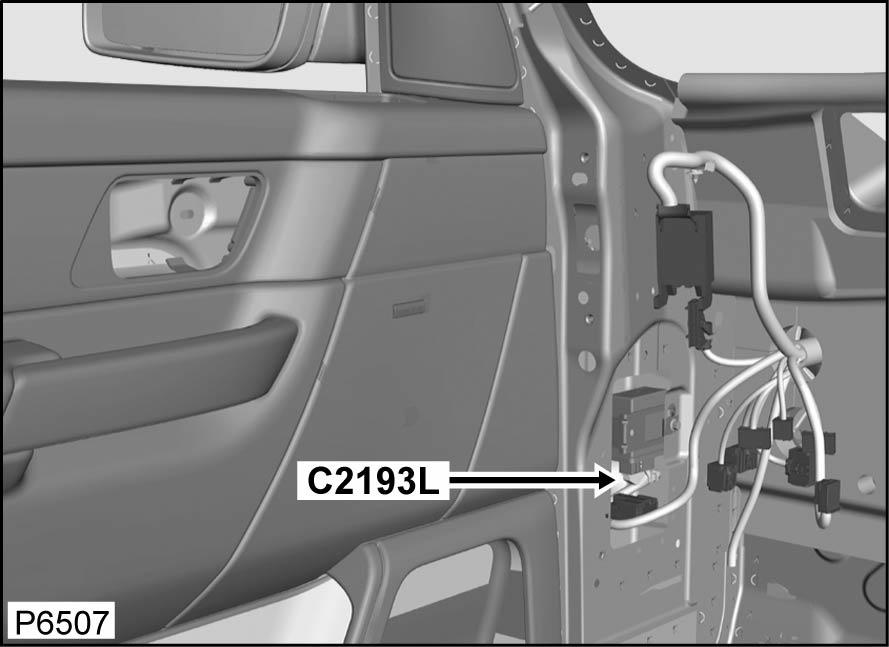

Fig 210: Left Kick Panel
G00451204Courtesy of LAND ROVER NORTH AMERICA, INC.

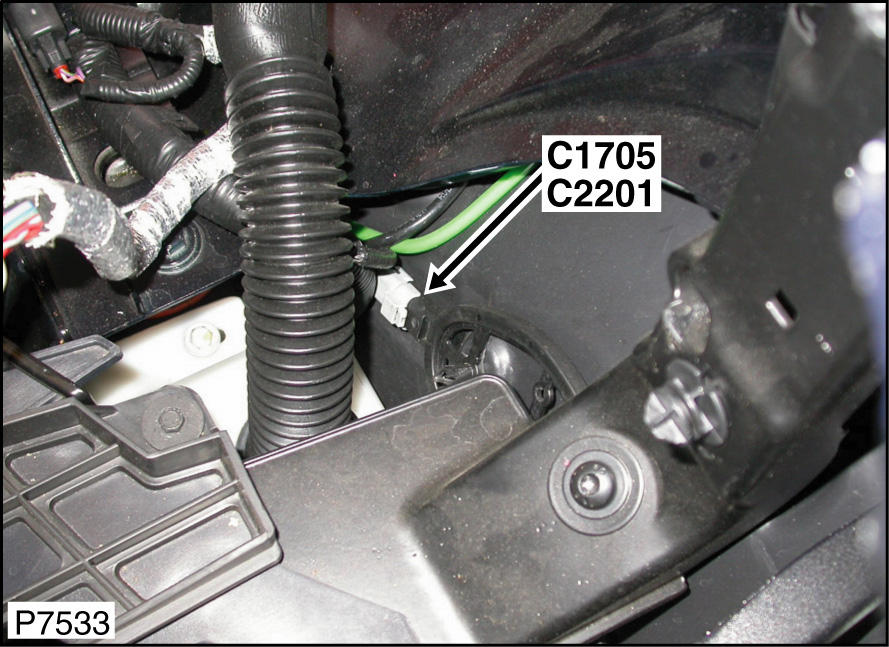

Fig 211: Right Rear Wheelwell
G00451205Courtesy of LAND ROVER NORTH AMERICA, INC.

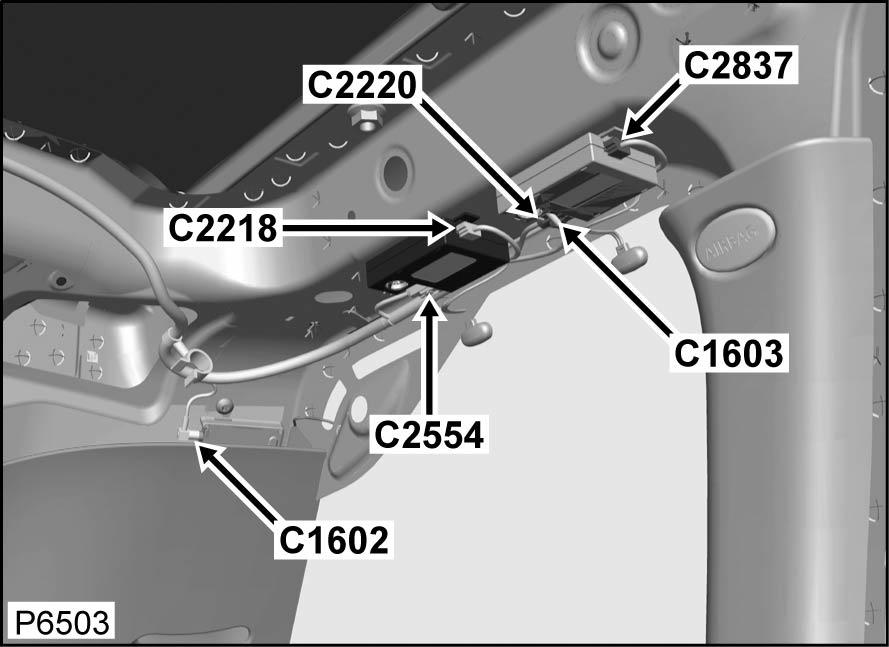

Fig 212: Left Rear Headliner
G00451206Courtesy of LAND ROVER NORTH AMERICA, INC.

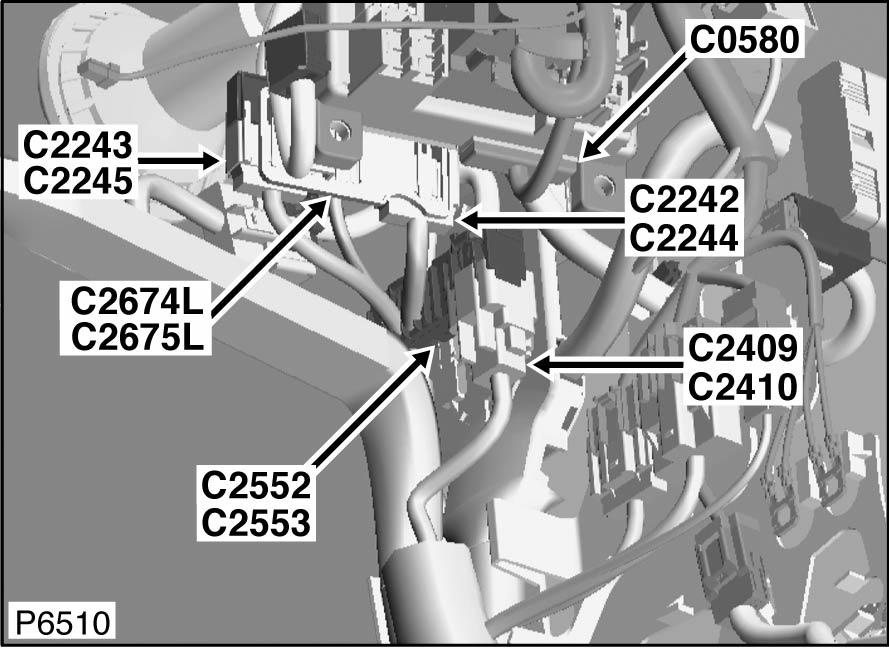

Fig 213: Left Kick Panel
G00451207Courtesy of LAND ROVER NORTH AMERICA, INC.

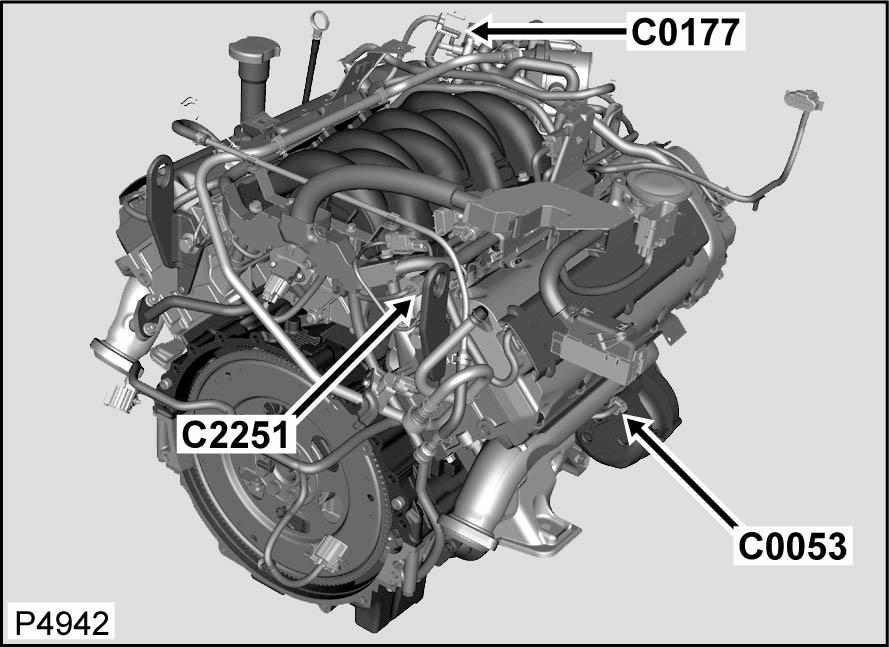

Fig 214: Rear Of Engine (4.4L)
G00451208Courtesy of LAND ROVER NORTH AMERICA, INC.

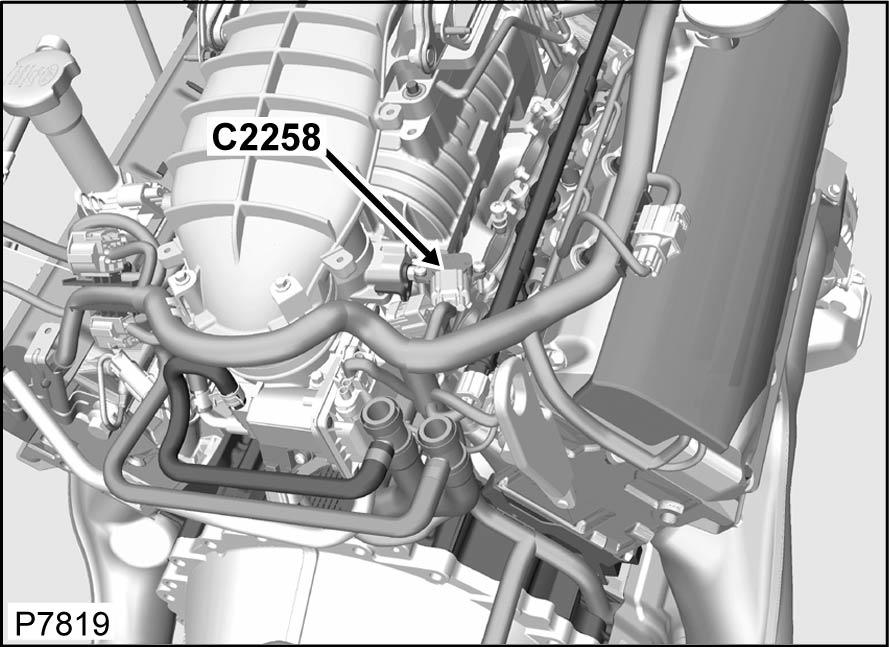

Fig 215: Top Rear Of Engine (4.2L)
G00451209Courtesy of LAND ROVER NORTH AMERICA, INC.

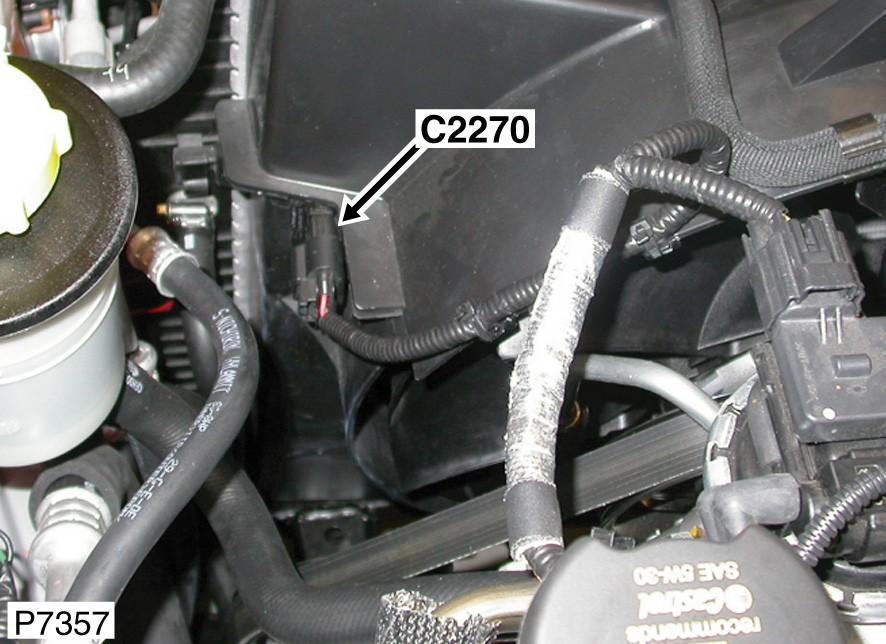

Fig 216: Front Of Engine Compartment
G00451210Courtesy of LAND ROVER NORTH AMERICA, INC.

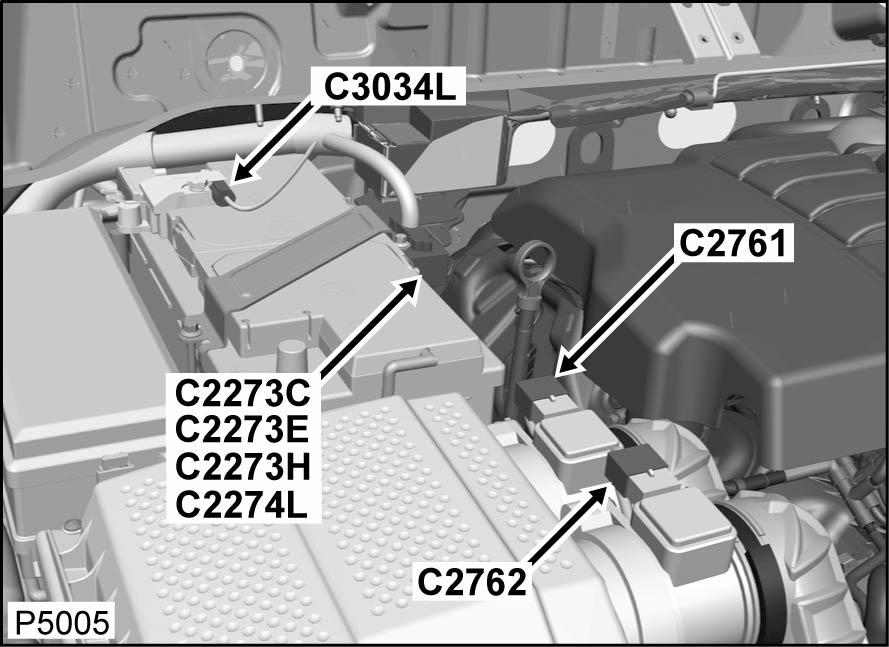

Fig 217: Right Side Of Engine Compartment
G00451211Courtesy of LAND ROVER NORTH AMERICA, INC.

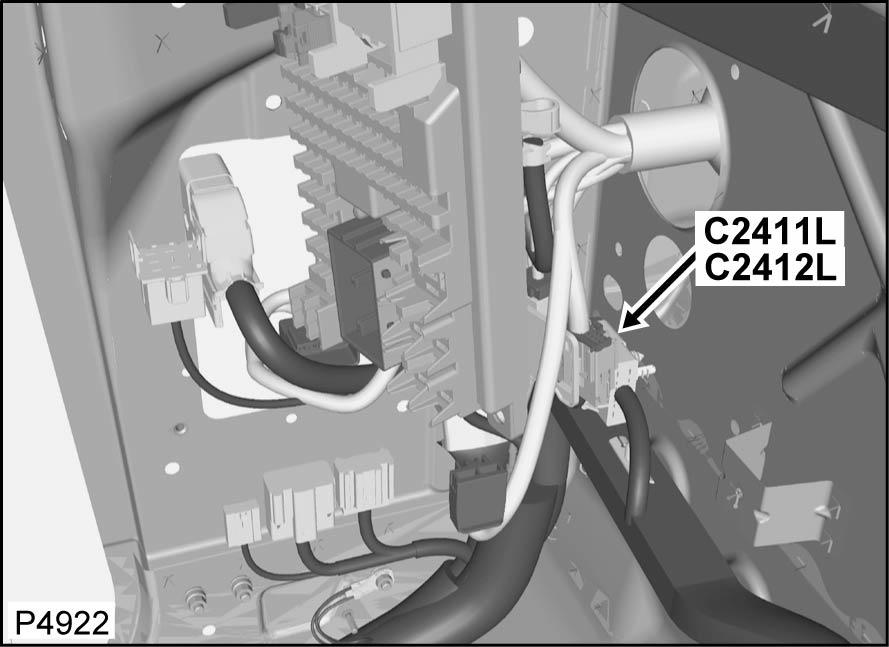

Fig 218: Right Kick Panel
G00451213Courtesy of LAND ROVER NORTH AMERICA, INC.

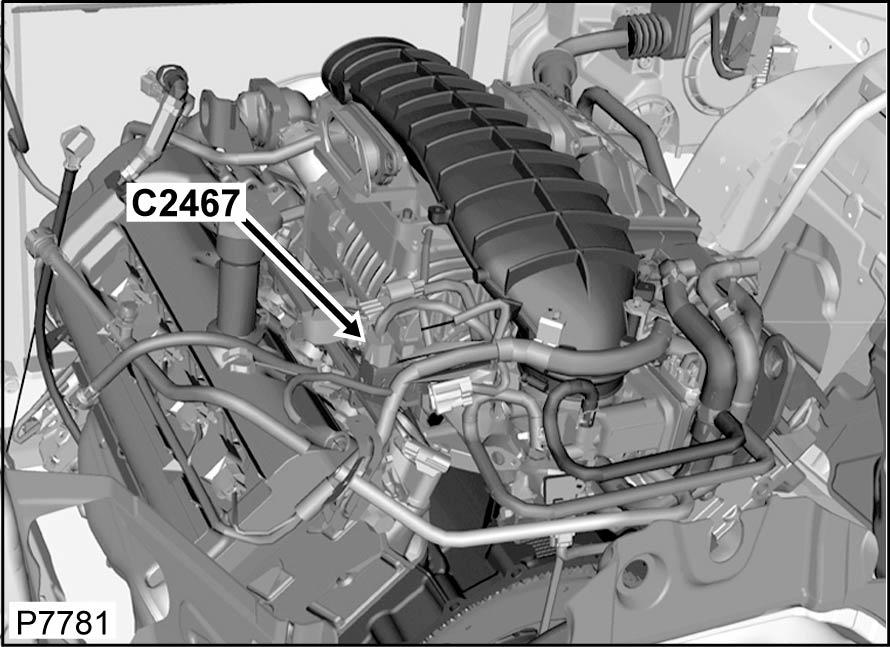

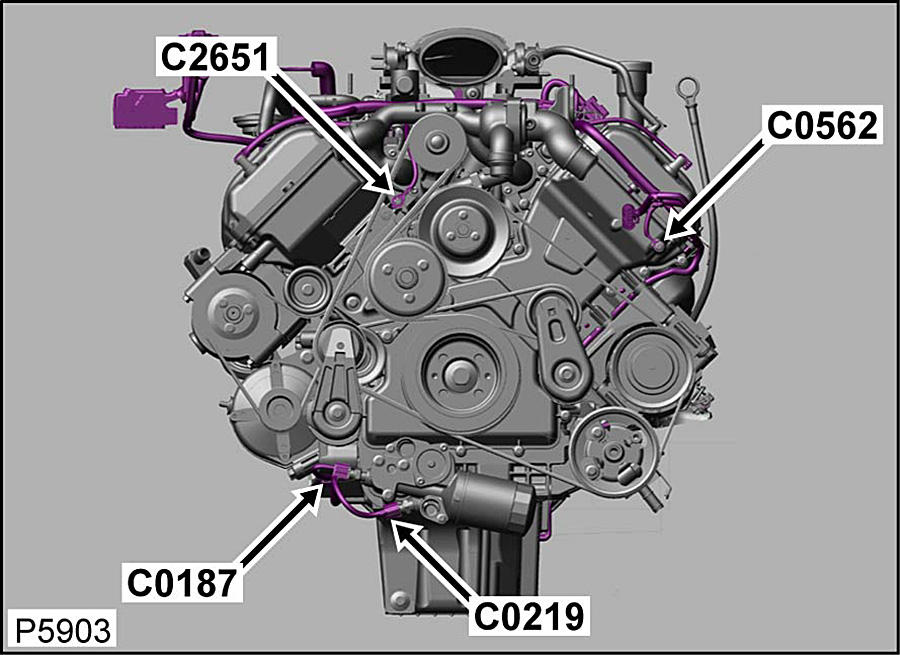

Fig 219: Rear Of Engine (4.2L)
G00451214Courtesy of LAND ROVER NORTH AMERICA, INC.

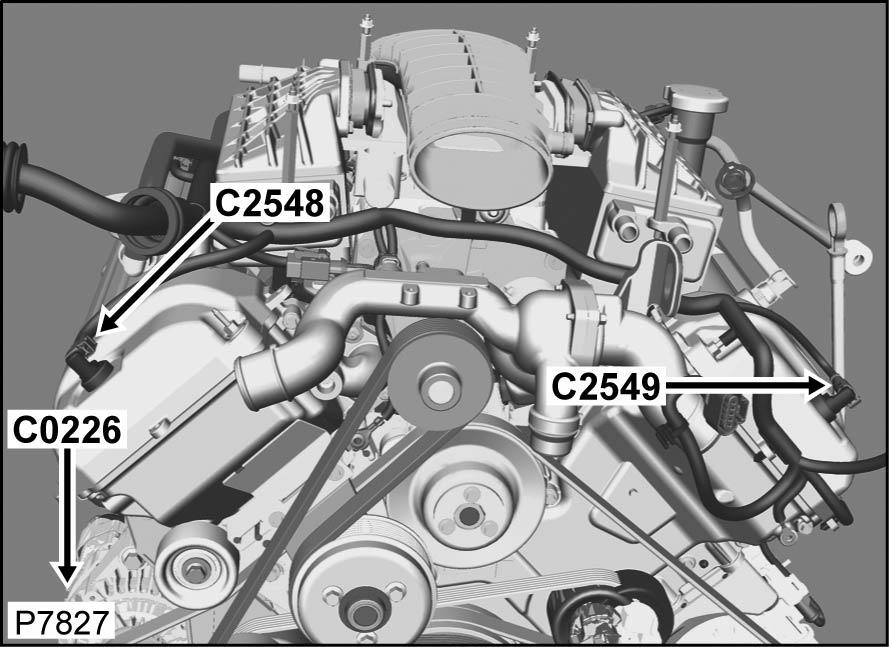

Fig 220: Front Of Engine (4.2L)
G00451215Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 221: Left Front Of Engine (4.4L)
G00451216Courtesy of LAND ROVER NORTH AMERICA, INC.

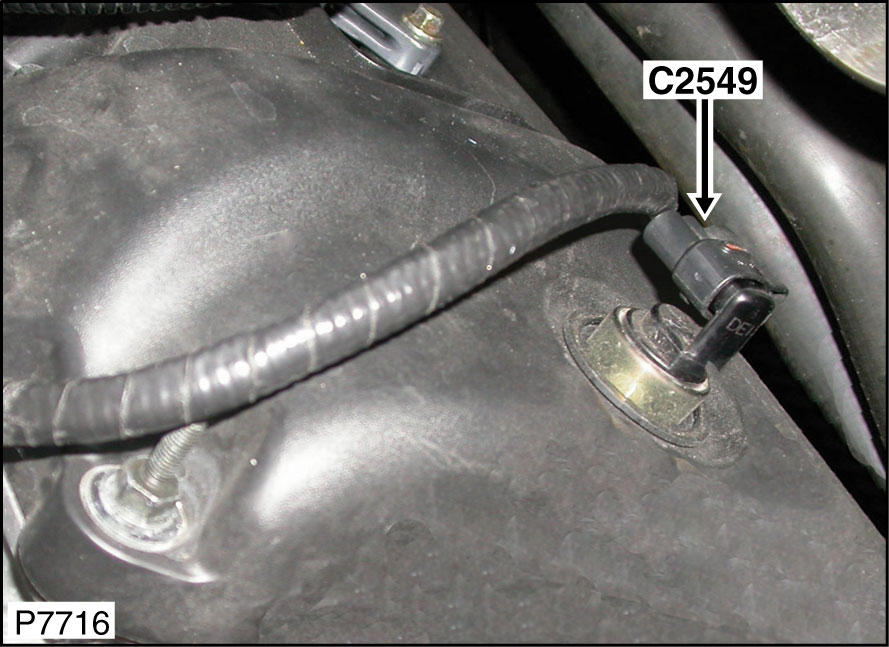

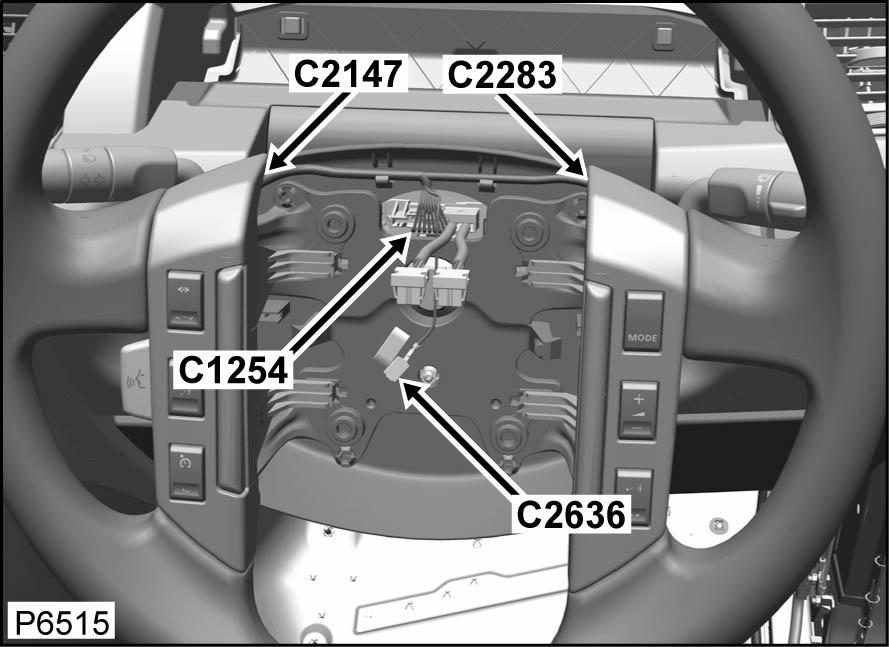

Fig 222: Steering Wheel
G00451217Courtesy of LAND ROVER NORTH AMERICA, INC.

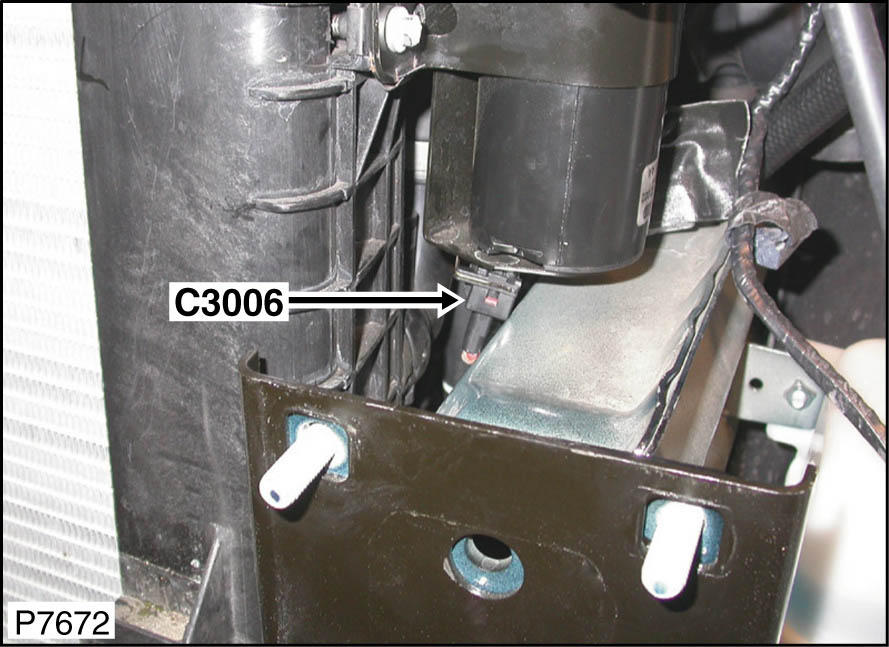

Fig 223: Front Center Of Engine Compartment
G00451218Courtesy of LAND ROVER NORTH AMERICA, INC.

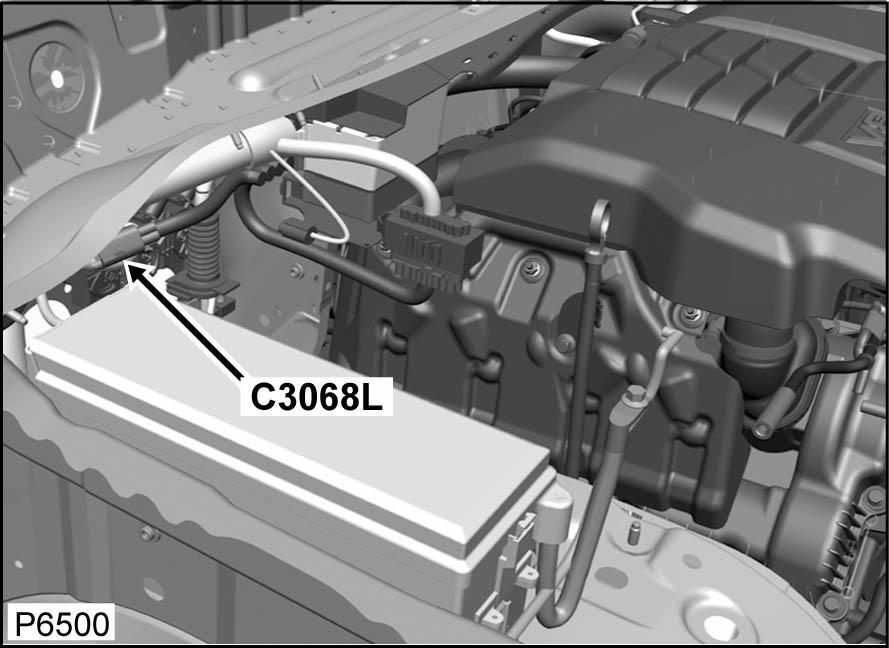

Fig 224: Right Rear Of Engine Compartment
G00451219Courtesy of LAND ROVER NORTH AMERICA, INC.

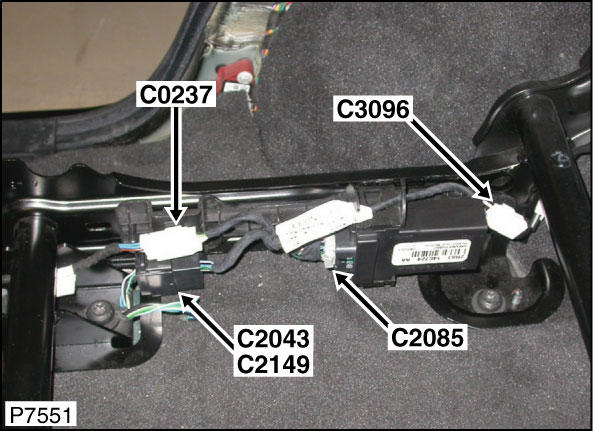

Fig 225: Under Rear Seat
G00451220Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 226: Right Side Of Front Bumper
G00451221Courtesy of LAND ROVER NORTH AMERICA, INC.

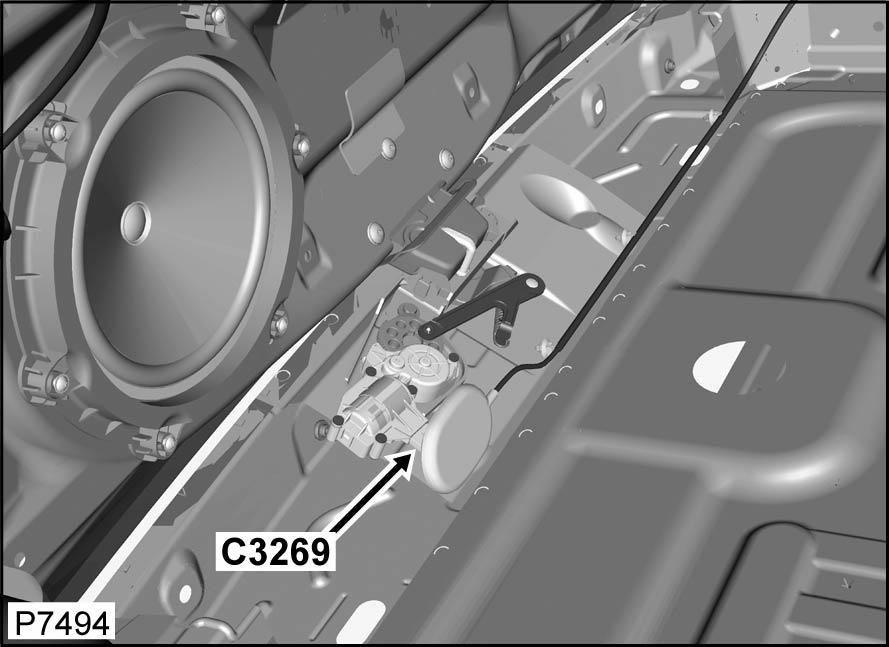

Fig 227: Rear Of Engine Compartment
G00451222Courtesy of LAND ROVER NORTH AMERICA, INC.

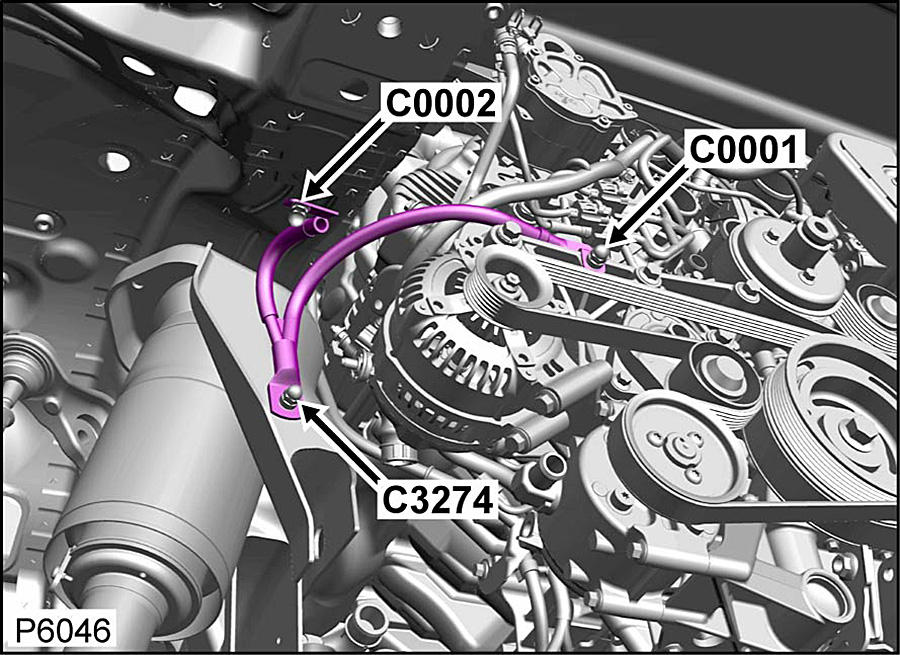

Fig 228: Right Front Of Engine
G00471574Courtesy of LAND ROVER NORTH AMERICA, INC.

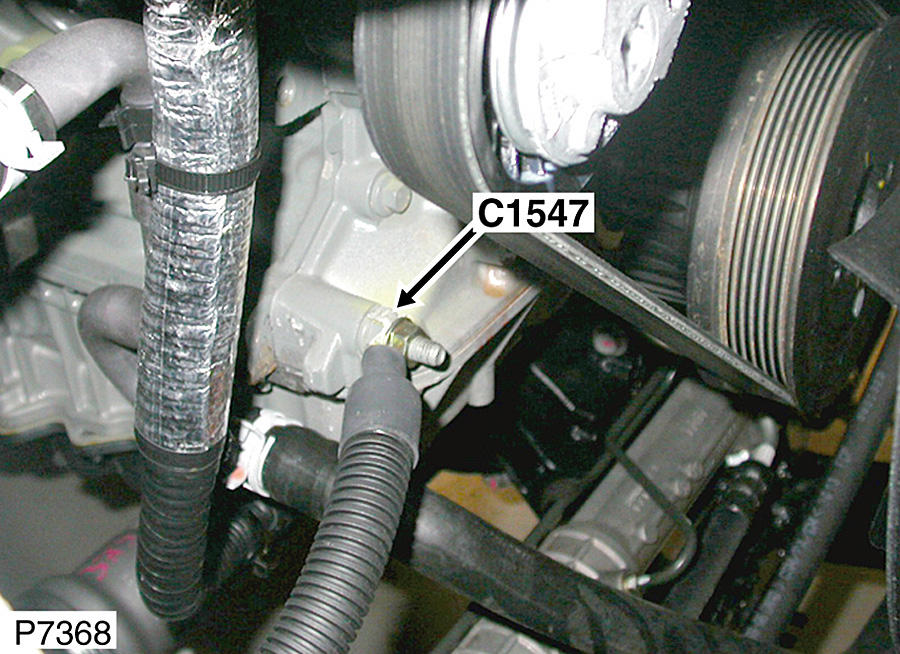

Fig 229: Right Side Of Engine
G00471575Courtesy of LAND ROVER NORTH AMERICA, INC.

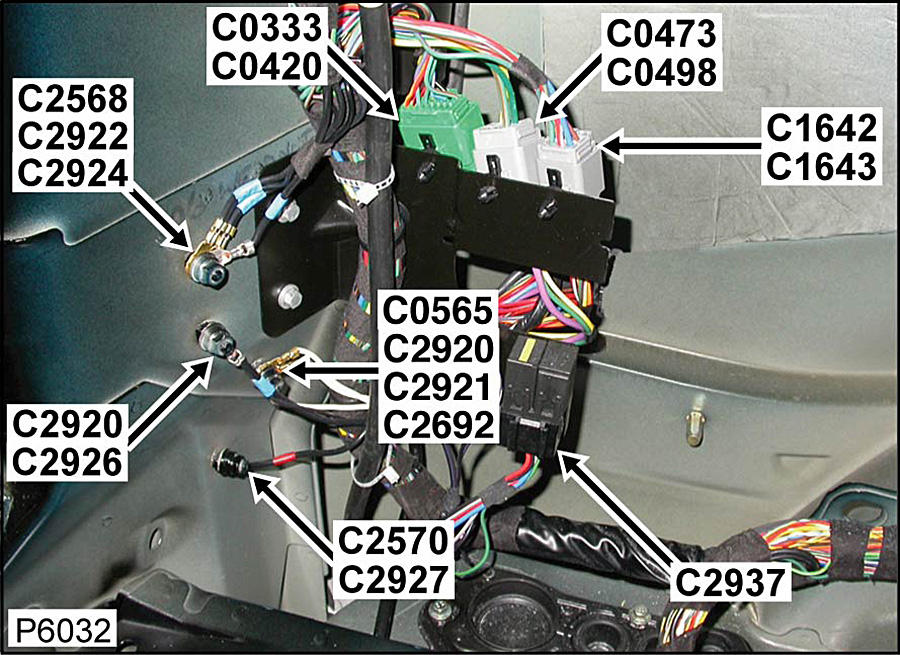

Fig 230: Left Side Of Luggage Compartment
G00471576Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 231: Right Front Of Engine
G00471577Courtesy of LAND ROVER NORTH AMERICA, INC.

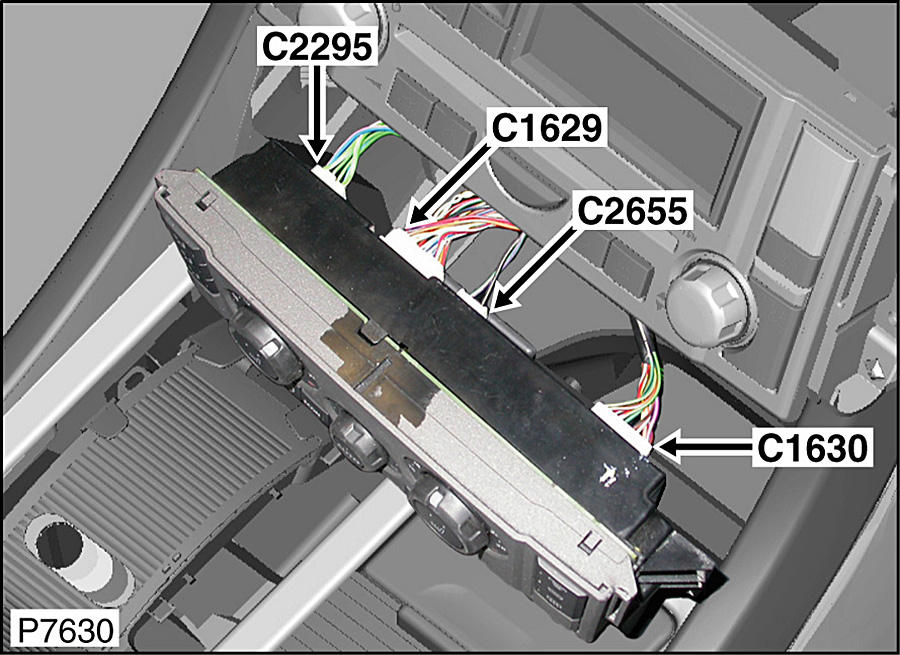

Fig 232: Lower Center Of Dash
G00471578Courtesy of LAND ROVER NORTH AMERICA, INC.

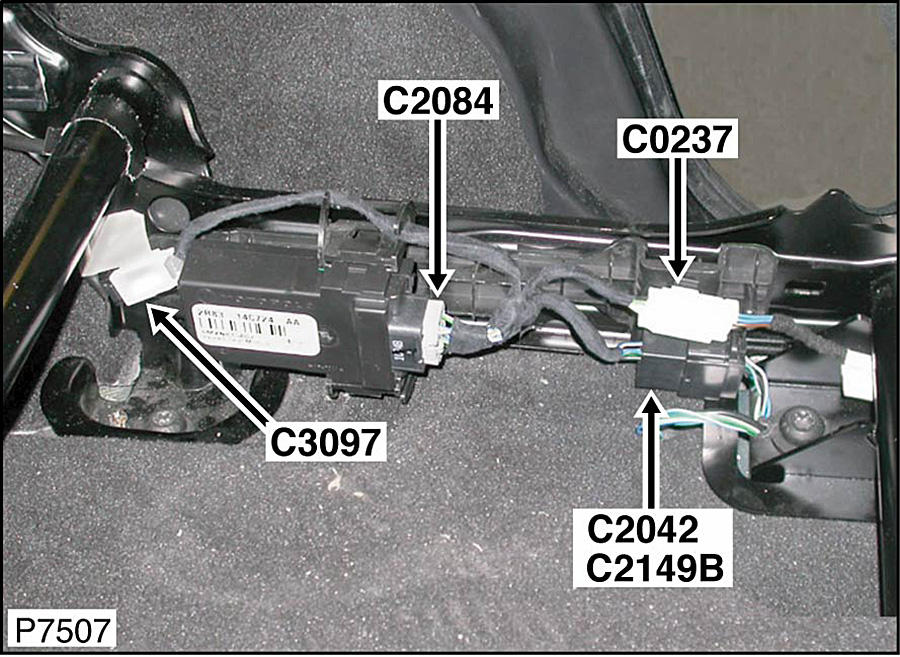

Fig 233: Under Left Rear Seat
G00471579Courtesy of LAND ROVER NORTH AMERICA, INC.

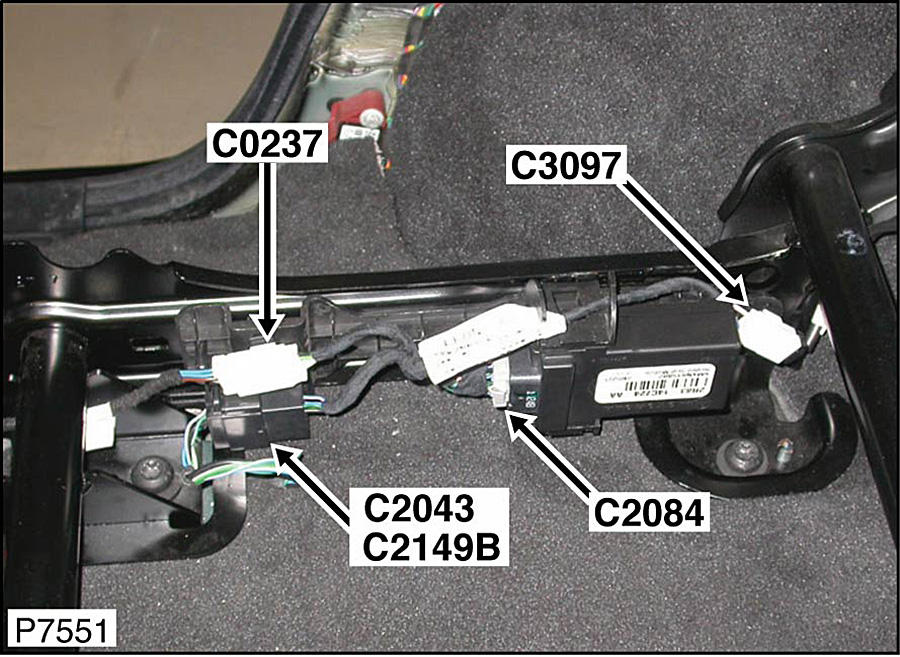

Fig 234: Under Right Rear Seat
G00471580Courtesy of LAND ROVER NORTH AMERICA, INC.

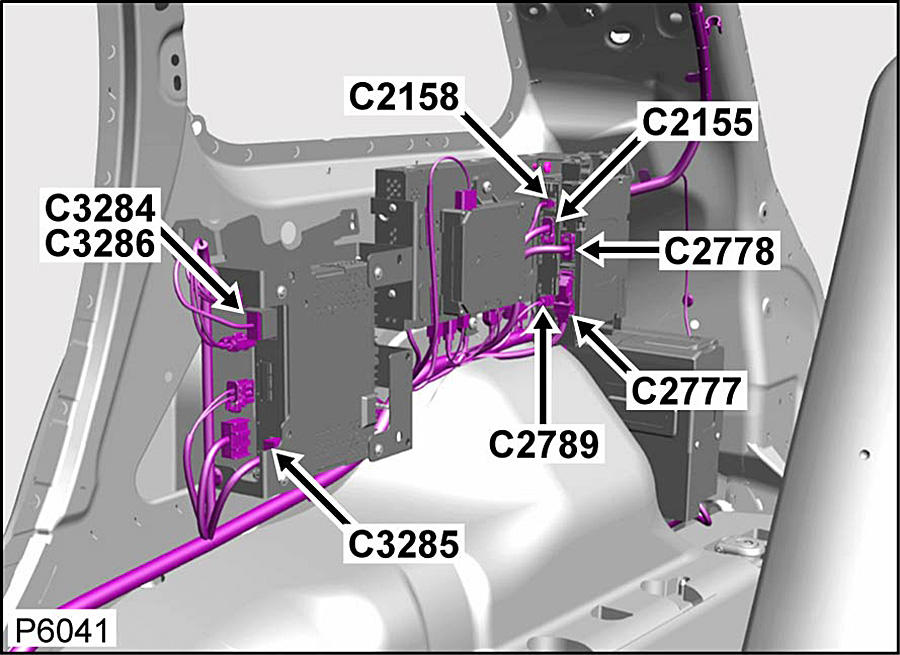

Fig 235: Right Rear Quarter Trim Panel
G00471581Courtesy of LAND ROVER NORTH AMERICA, INC.

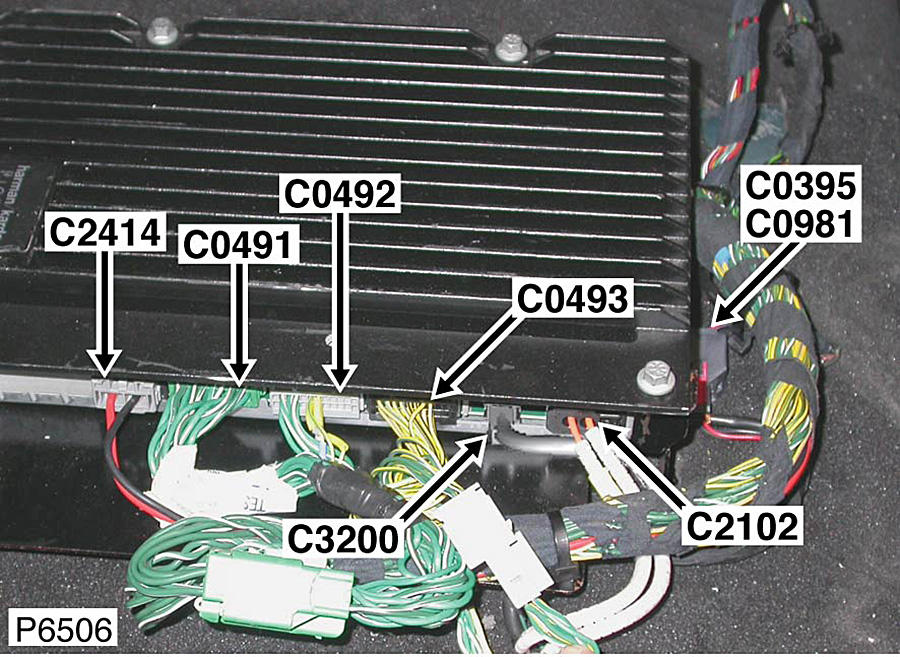

Fig 236: Under Front Passenger's Seat
G00471582Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 237: Center Rear Of Roof
G00471583Courtesy of LAND ROVER NORTH AMERICA, INC.

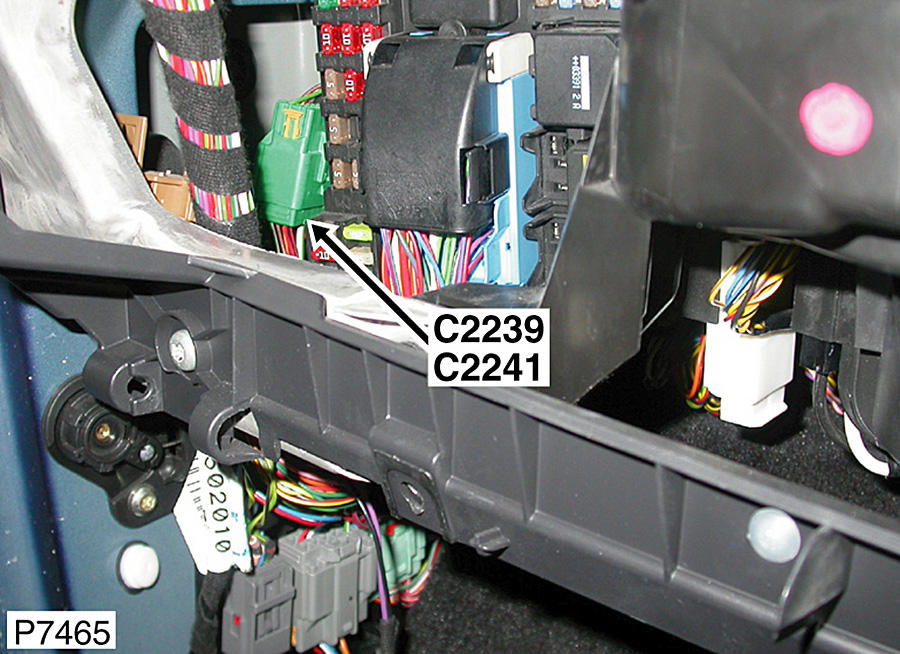

Fig 238: Base Of Right "A" Pillar
G00471584Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 239: Right Side Of Dash
G00471585Courtesy of LAND ROVER NORTH AMERICA, INC.

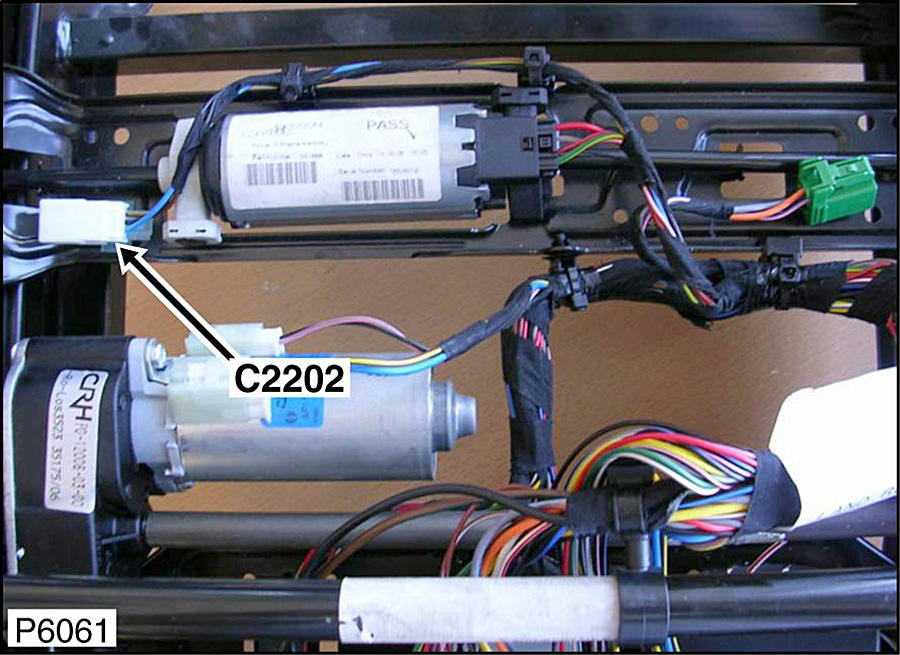

Fig 240: Under Front Passenger's Seat
G00471586Courtesy of LAND ROVER NORTH AMERICA, INC.
scientia non olet · About LEMON Manuals
