Transmission Cable: Notes

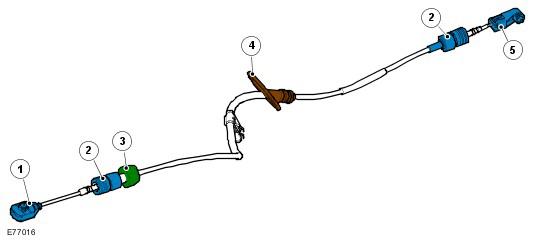

| Item Number | Description |
|---|---|
| 1 | Transmission eye end |
| 2 | Abutment |
| 3 | Damper weight |
| 4 | Bulkhead grommet |
| 5 | Selector lever arm eye end and setting button |
The transmission cable assembly is a one-piece, push/pull cable connected between the transmission and the selector lever.
The selector lever end of the cable has an adjustable eye end which locates on a ball pin on the selector lever. An abutment on the cable outer sheath locates in an aperture at the front of the selector lever shift housing.
A fireproof grommet seal is positioned approximately half way along the length of the cable and seals the cable through a hole in the bulkhead.
The transmission end of the cable also has an eye end which locates on a ball pin on the end of the transmission lever arm. An abutment on the outer sheath locates in a bracket attached to the top of the transmission.
Linear movement of the selector lever is transferred, via the inner cable, into movement of the transmission lever arm. The lever arm converts the linear movement of the selector cable into rotary movement of the manual shaft in the transmission.
