Component Location

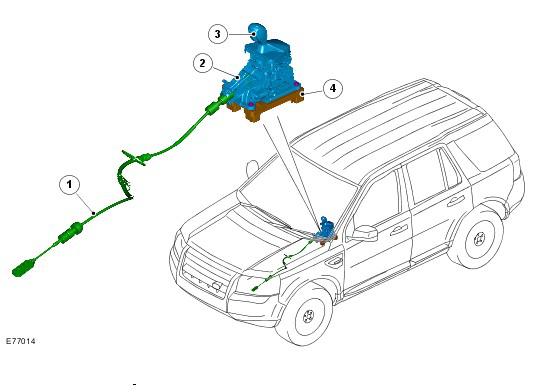

GJ0021520Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Selector cable
2 Selector lever assembly
3 Selector knob, gaiter and illumination module
4 Selector lever mounting plate
