Control Switches: Notes
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

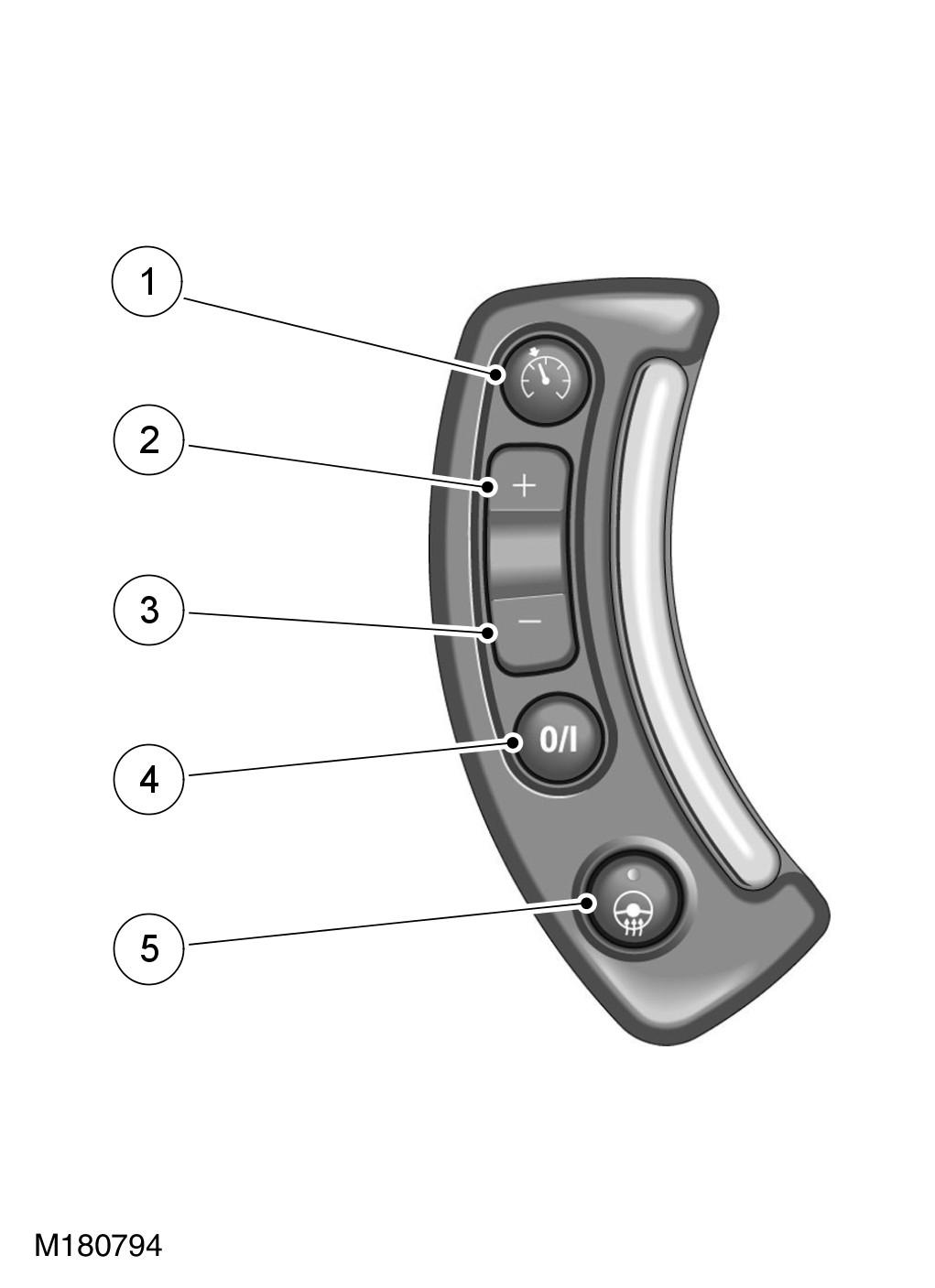

| Item Number | Description |
|---|---|
| 1 | Set speed/resume switch |
| 2 | Set/Accelerate switch |
| 3 | Decelerate switch |
| 4 | On/Suspend/Off switch |
| 5 | Steering wheel heater switch (if fitted - Ref. only) |
The speed control switches are located on the right-hand (RH) side of the steering wheel. The switches are connected via flyleads directly to the clock spring. All of the speed control switches are non-latching momentary switches.
The minimum set speed for speed control is 17 mph (27 (km/h), the maximum set speed is 155 mph (250 km/h). Speed control is automatically switched off if the vehicle speed falls below 15 mph (24 km/h).
