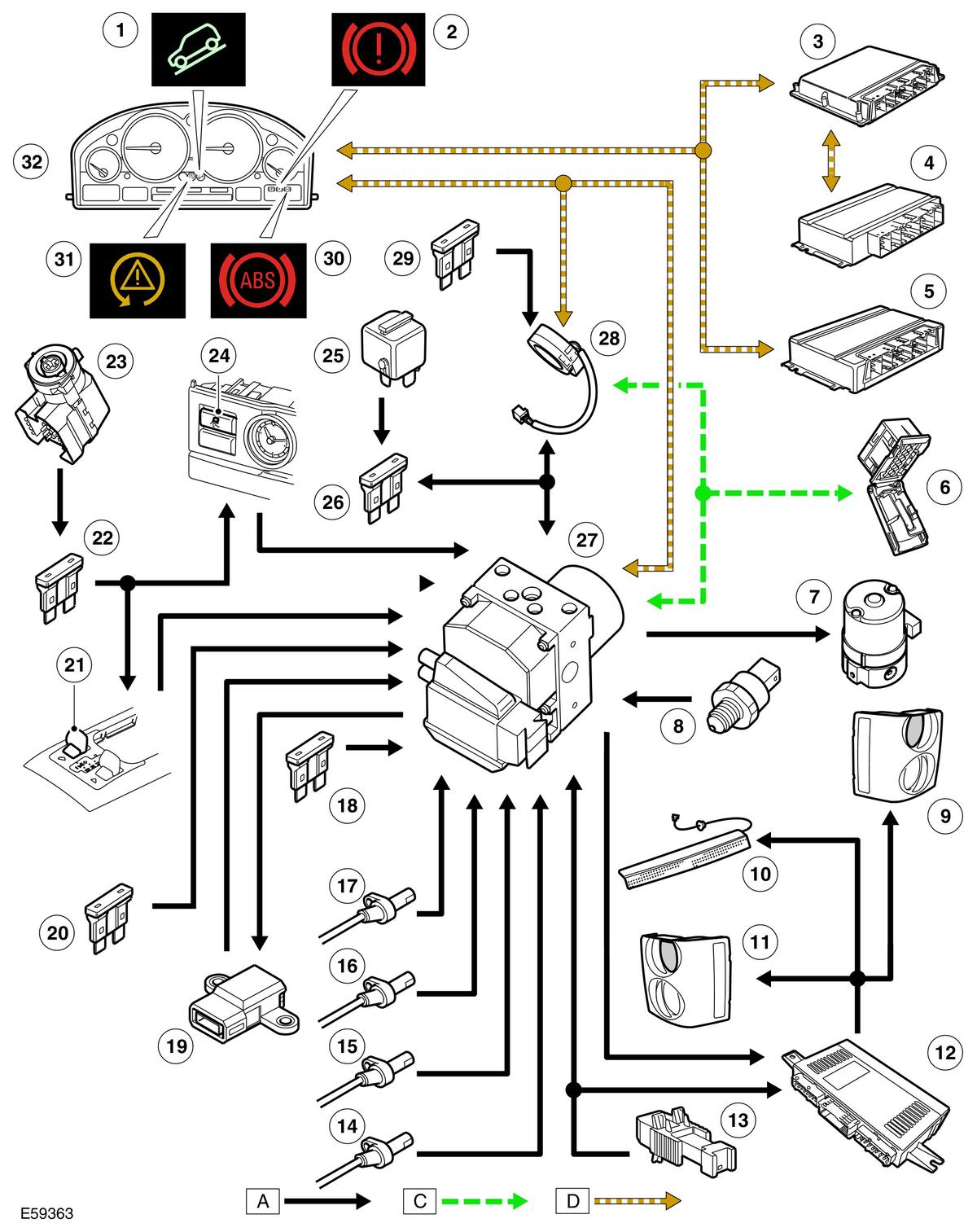

Control Diagram
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | HDC information indicator |
| 2 | Brake warning indicator |
| 3 | ECM |
| 4 | TCM |
| 5 | Transfer box control module |
| 6 | Diagnostic socket |
| 7 | Pre-charge pump |
| 8 | Brake pressure sensor |
| 9 | Left stoplamp |
| 10 | Center high mounted stoplamp |
| 11 | Right stoplamp |
| 12 | LCM |
| 13 | Stoplamp switch |
| 14 | Wheel speed sensor |
| 15 | Wheel speed sensor |
| 16 | Wheel speed sensor |
| 17 | Wheel speed sensor |
| 18 | Fuse 55, CJBECM |
| 19 | Yaw rate and lateral acceleration sensor |
| 20 | Maxi fuse 63, CJB |
| 21 | HDC switch |
| 22 | Fuse 35, CJB |
| 23 | Ignition switch |
| 24 | DSC switch |
| 25 | Main relay |
| 26 | Fuse 51, CJB |
| 27 | ABS module |
| 28 | Steering angle sensor |
| 29 | Fuse 13, CJB |
| 30 | ABS warning indicator |
| 31 | DSC warning indicator |
| 32 | Instrument cluster |
NOTE:
A = Hardwired connection; C = Diagnostic DS2 bus; D = High speed controller area network (CAN) bus
