Rear Wheel Speed Sensor: Removal

  1. Raise and support the vehicle.
  2. Remove the wheel and tire.

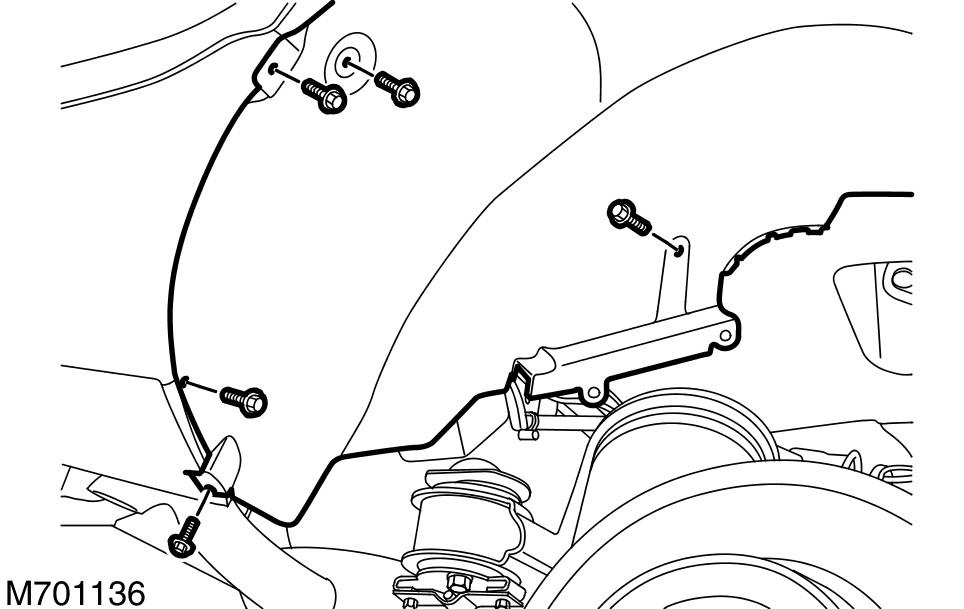

  3. Release the wheel arch liner.
    • Remove the 5 screws.
    GJ0018737

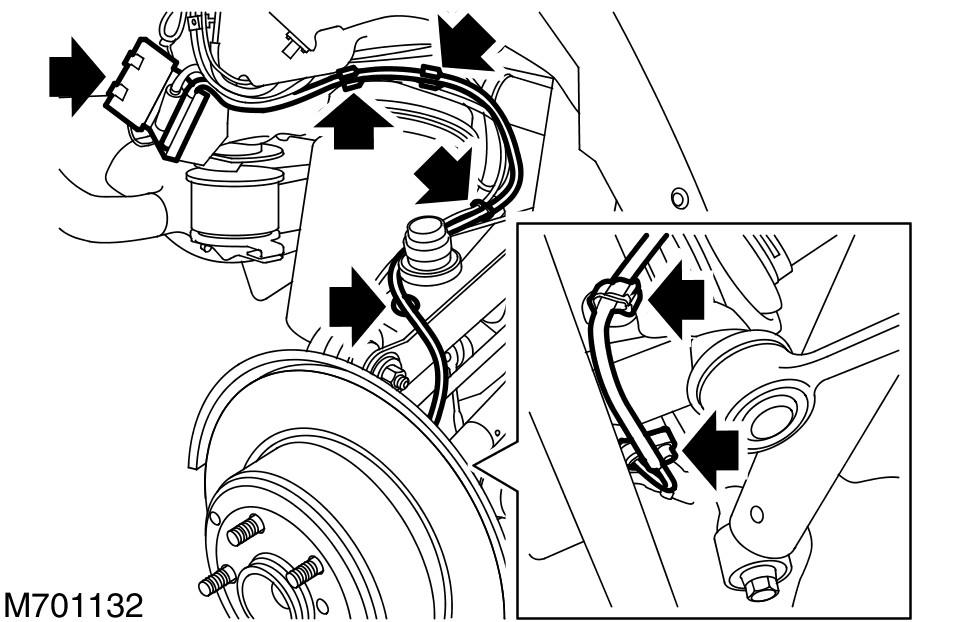

  4. Disconnect the rear wheel speed sensor electrical connector.
    • Open the electrical connector housing.
    • Release the electrical connector from the clip.
    GJ0018738
  5. Remove the rear wheel speed sensor.
    • Release the wiring harness from the 5 clips.
    • Remove the bolt.
