Video System Module: Removal

  1. Remove the LH loadspace trim panel.
  2. Disconnect the 2 electrical connectors from the video system module.

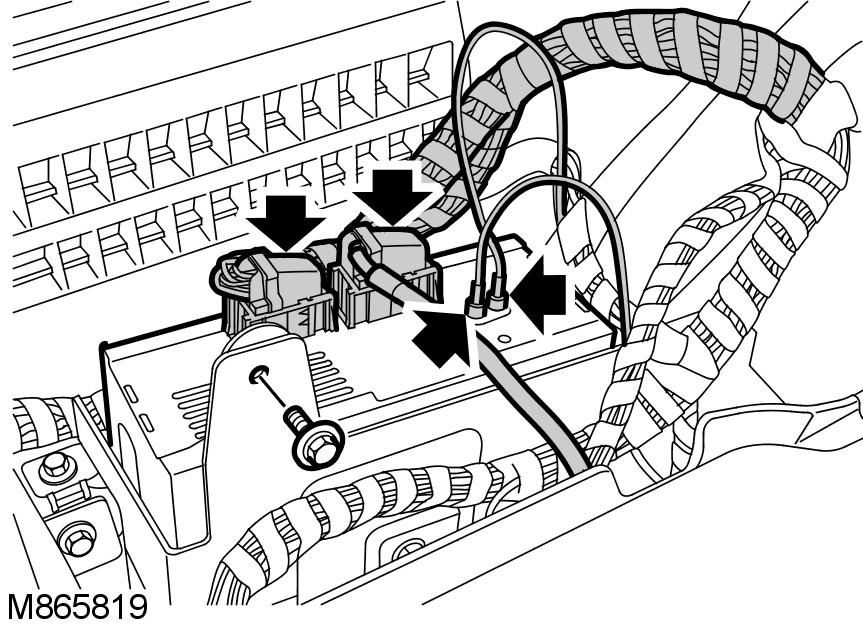

    GJ0018703
  3. Identify and disconnect the 2 coaxial cables.
  4. Remove the video system module.
    • Remove the bolt.
