Wheel Speed Sensors

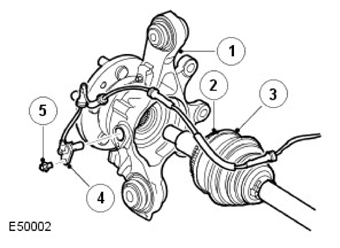

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Knuckle assembly |
| 2 | - | Sensor ring |
| 3 | - | Halfshaft |
| 4 | - | Wheel speed sensor |
| 5 | - | Screw |
An active wheel speed sensor is installed in each wheel hub to provide the ABS module with a rotational speed signal from each road wheel. The head of each wheel speed sensor is positioned close to a 48 tooth sensor ring on the outer diameter of the constant velocity joint of the halfshaft. A flying lead connects each sensor to the vehicle wiring.
The wheel speed sensors each have a power supply connection and a signal connection with the ABS module. When the ignition switch is in position II, the ABS module supplies power to the wheel speed sensors and monitors the return signals. Any rotation of the halfshafts induces current fluctuations in the return signals which are converted into individual wheel speeds and the overall vehicle speed by the ABS module.
The ABS module outputs the individual wheel speeds and the vehicle speed on the high speed CAN bus for use by other systems. The quality of the vehicle speed signal is also broadcast on the high speed CAN bus. If all wheel speed signals are available to calculate vehicle speed from, the quality of the vehicle speed signal is set to 'data calculated within specified accuracy'. If one or more wheel speed sensors is faulty, the quality of the vehicle speed signal is set to 'accuracy outside specification'.
The ABS module monitors the wheel speed sensor circuits for faults. If a fault is detected the ABS module stores a related fault code and illuminates the appropriate warning indicators, depending on the system functions affected (DSC/ETC, ABS, EBA/EBD, HDC). A warning chime sounds and, on vehicles with the high line instrument cluster, a related message is shown in the message center.
For additional information, refer to: INFORMATION AND MESSAGE CENTER .
Since the wheel speed sensors are active devices, a return signal is available when the road wheels are not turning, which enables the ABS module to check the sensors while the vehicle is stationary. In addition, the direction of travel of each wheel can be sensed. This information is broadcast on the high sped CAN bus for use by other systems.
