Passenger Compartment
NOTE:

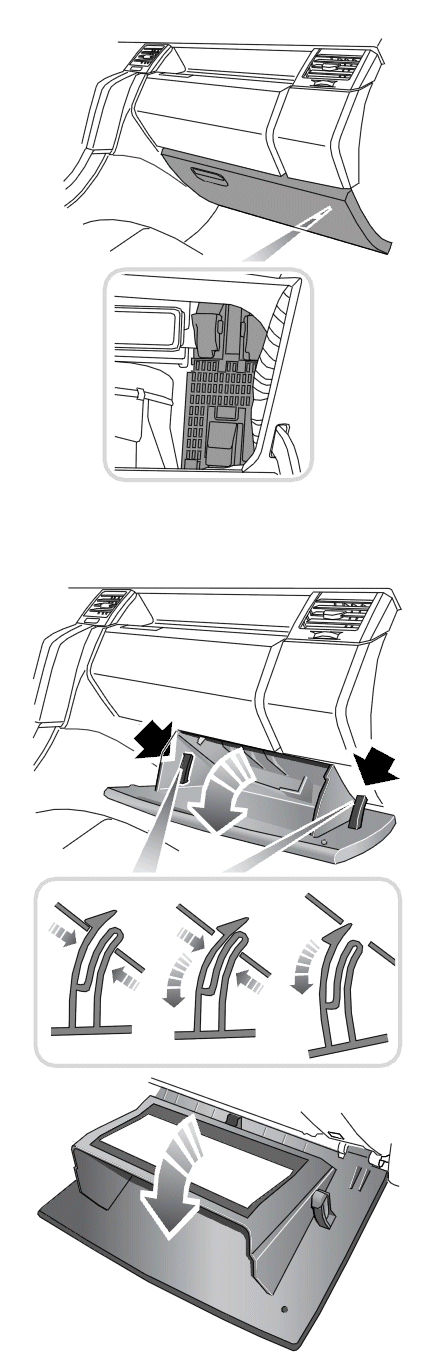

The passenger compartment fuse box is fitted behind the glovebox. To access the fuses, open the glovebox to the service position. This is done by opening the glovebox normally and then pinching the top of the support stays located either side of the hopper. This allows the glovebox to be lowered into the footwell. A label on the rear of the glovebox shows the circuits protected, the fuse values and their locations. See Fig 1

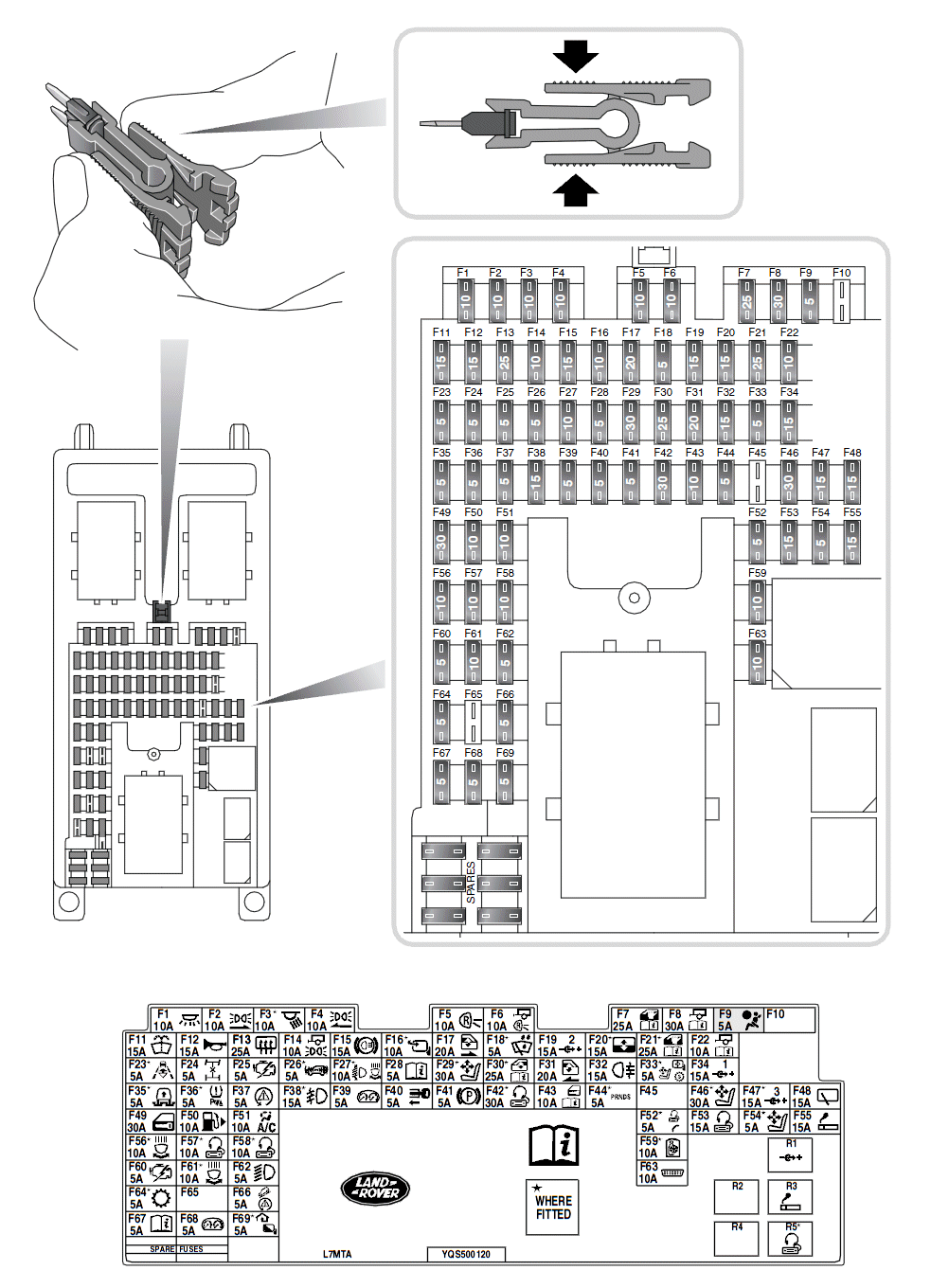

PASSENGER COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| 1 | 10A | Interior Lamps - Glovebox Lamp, Vanity Mirror Lamp, Map Lamps, Switchable Roof Lamps |
| 2 | 10A | RH Sidelamps |
| 3 | - | - |
| 4 | 10A | LH Sidelamps |
| 5 | 10A | Reverse Lamps |
| 6 | 10A | Tow Reverse Lamp |
| 7 | 25A | Driver's Window |
| 8 | 30A | Trailer Pick-up (Battery Feed) |
| 9 | 5A | Air Bags |
| 10 | - | - |
| 11 | 15A | Washer Pump |
| 12 | 15A | Horn |
| 13 | 25A | Heated Rear Window |
| 14 | 10A | Trailer Side Lamp |
| 15 | 15A | Brake Lamps, Brake Switch |
| 16 | - | - |
| 17 | 20A | Rear RH Window |
| 18 | 5A | Rain Sensor, Ambient Light Sensor (Auto Lamps) |
| 19 | 15A | Auxiliary Power Socket - 2nd Row |
| 20 | 15A | Sunroof |
| 21 | 25A | Passenger Window |
| 22 | 10A | Trailer Pick-up (Ignition Feed) |
| 23 | - | - |
| 24 | 5A | Transfer Box - Center Diff, Terrain Response |
| 25 | 5A | Engine Control Module (ECM) |
| 26 | 5A | Battery Back-up Sounder |
| 27 | 10A | Adaptive Front Lighting, Headlamp Levelling |
| 28 | 5A | Fuse Box Engine Compartment - Ignition |
| 29 | 30A | Passenger Electric Seat |
| 30 | 25A | - |
| 31 | 20A | Rear LH Window |
| 32 | 15A | Rear Fog Lamps |
| 33 | 5A | Mirror Adjust, Auto Transmission Selector |
| 34 | 15A | Auxiliary Power Socket - 1st Row |
| 35 | 5A | Air Suspension ECU |
| 36 | 5A | Park Distance Control, Tire Pressure Monitoring System (TPMS) |
| 37 | 5A | Dynamic Stability Control |
| 38 | 15A | Front Fog Lamps |
| 39 | 5A | Instrument Pack |
| 40 | 5A | Key-in Sensor |
| 41 | 5A | Electric Park Brake (EPB) |
| 42 | 30A | Audio Amp |
| 43 | 10A | RF Receiver, Tire Pressure Monitoring System (TPMS) |
| 44 | 5A | Auto Transmission Selector |
| 45 | - | - |
| 46 | 30A | Drivers Electric Seat |
| 47 | 15A | Auxiliary Power Socket - 3rd Row |
| 48 | 15A | Rear Wiper |
| 49 | 30A | Central Door Locking |
| 50 | 10A | Electric Fuel Flap Actuator |
| 51 | 10A | Climate Control ECU |
| 52 | 5A | Telephone, Traffic Message Center |
| 53 | 15A | Multi-media Module, Audio Unit, DVD Player, Video Display |
| 54 | 5A | Electric Seat - Memory |
| 55 | 15A | Cigar Lighter |
| 56 | 10A | Adaptive Front Lighting (left-hand unit) |
| 57 | 10A | Rear Seat Entertainment Module |
| 58 | 10A | Telephone, Touch-Screen Display, Multi-Media Module, TV Tuner |
| 59 | 10A | Cubby Box Cooler |
| 60 | 5A | Engine Control Module (ECM) |
| 61 | 10A | Adaptive Front Lighting (right-hand unit) |
| 62 | 5A | Low Beam, Auto Lamps |
| 63 | 10A | Diagnostic Socket |
| 64 | 5A | Auto Transmission |
| 65 | - | - |
| 66 | 5A | HDC Switch, Brake Switch, Steering Angle Sensor, DSC switch |
| 67 | 5A | Auto Lamps |
| 68 | 5A | Instrument Pack |
| 69 | 5A | Auto-Dimming Interior Mirror, Homelink |
