Dynamic Response Valve Block Lower Level Components Available (SSM71484)
Publication date: 2014-02-03Reference number: SSM71484
DYNAMIC RESPONSE VALVE BLOCK LOWER LEVEL COMPONENTS AVAILABLE
TECHNICAL SERVICE BULLETIN
Reference Number(s): SSM71484, Date of Issue:
February 3, 2014
| LAND ROVER: | Range Rover Sport/L320 |
| CATEGORY: | Chassis |
SERVICE INFORMATION
Symptom 304000 Suspension System
ISSUE
A customer may complain that the dynamic response lamp is illuminated and diagnostic trouble codes (DTC) C1119-09, C1119-22, C1119-62, C1119-91, C1B11-62, may be present.
Content
CAUSE

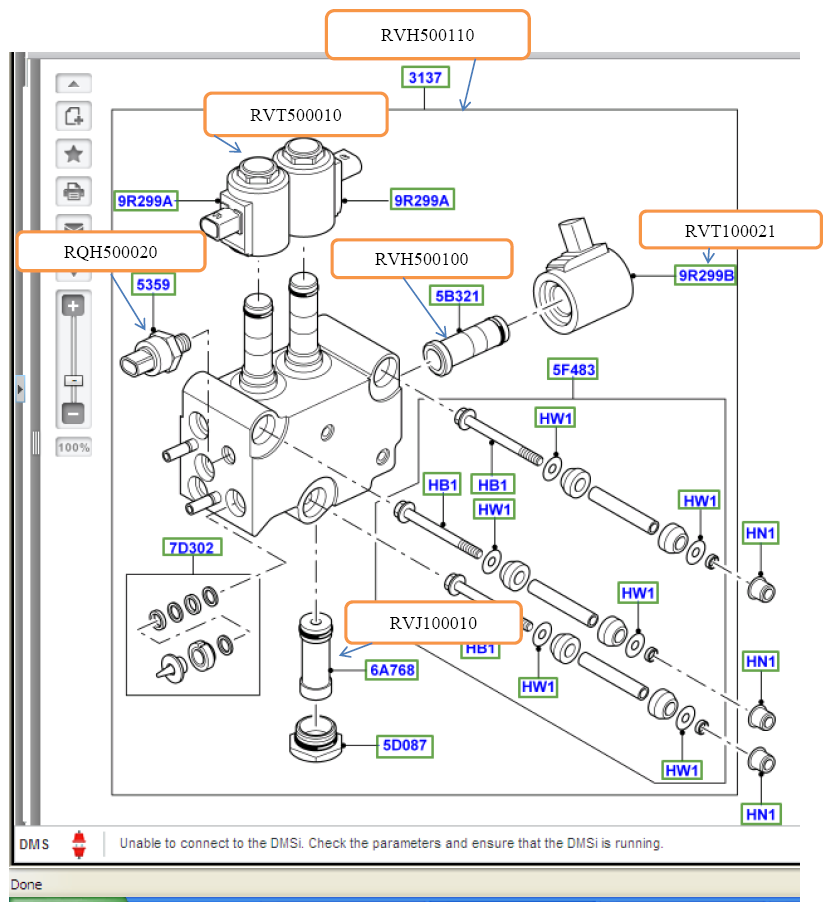

Replacement of the valve block may not be required as lower level components are available. See attached document for component location and part numbers.
ACTION
Please refer to TOPIx Section 100-00 General Information, DTC: Dynamic Response Module (ARCM) for possible DTC causes and actions which have recently been amended.
