Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

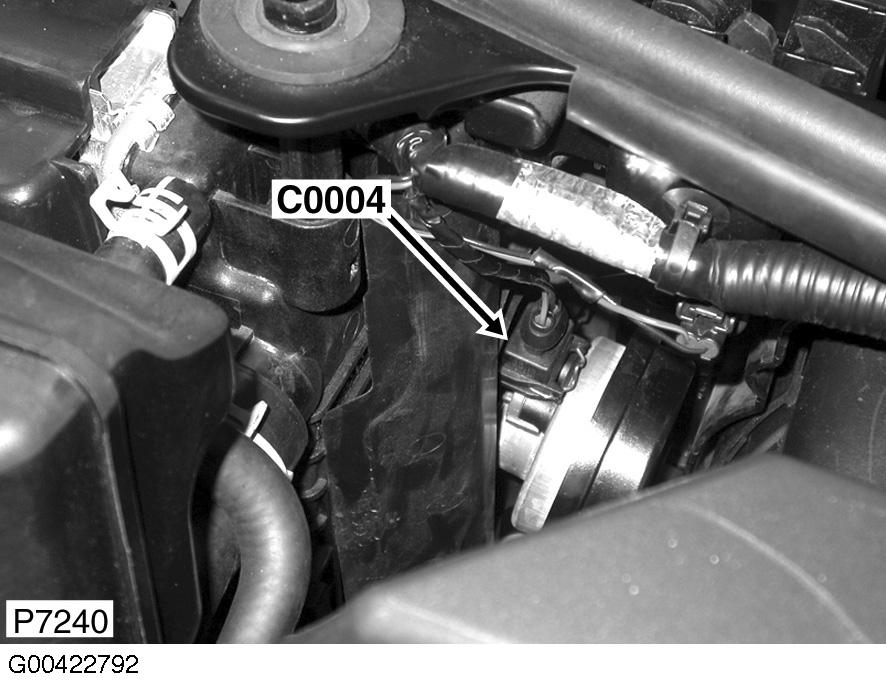

Fig 1: Right Front Of Engine Compartment
G00422792Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 2: Left Side Of Engine Compartment
G00422794Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 3: Left Rear Of Engine Compartment
G00422795Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 4: Rear Of Engine Compartment
G00422797Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 5: Left Side Of Dash
G00422798Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 6: Right Kick Panel
G00422800Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 7: Center Of Headliner
G00422801Courtesy of LAND ROVER NORTH AMERICA, INC.

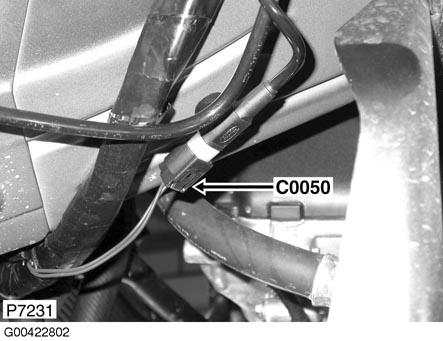

Fig 8: Left Front Wheel Arch
G00422802Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 9: Top Of Engine (4.4L)
G00422803Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 10: Top Of Engine (4.2L)
G00422804Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 11: Right Side Of Dash
G00422805Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 12: Left Kick Panel
G00422806Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 13: Steering Column
G00422808Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 14: Right "A" Pillar
G00422809Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 15: Under Driver's Seat
G00422810Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 16: Top Of Fuel Tank
G00422811Courtesy of LAND ROVER NORTH AMERICA, INC.

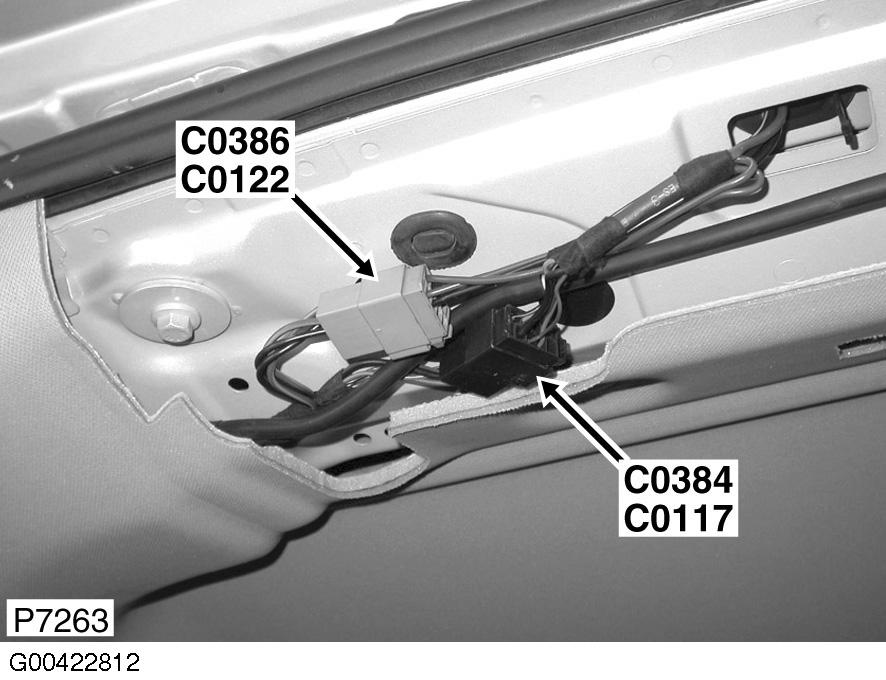

Fig 17: Rear Of Headliner
G00422812Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 18: Left Side Of Engine (4.4L)
G00422813Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 19: Rear Of Headliner
G00422814Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 20: Left Front Of Engine Compartment
G00422815Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 21: Right Front Of Engine Compartment (4.4L)
G00422816Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 22: Right Front Of Engine Compartment (4.2L)
G00422817Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 23: Rear Of Engine Compartment (4.4L)
G00422818Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 24: Top Of Engine (4.4L)
G00422819Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 25: Top Of Engine (4.2L)
G00422820Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 26: Lower Rear Center Of Engine
G00422821Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 27: Top Of Engine (4.4L)
G00422822Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 28: Top Of Engine (4.2L)
G00422823Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 29: Top Of Engine
G00422824Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 30: Right Rear Of Engine (4.4L)
G00422827Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 31: Center Front Of Engine (4.2L)
G00422828Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 32: Top Of Engine (4.4L)
G00422829Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 33: Top Of Engine (4.4L)
G00422831Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 34: Top Of Engine (4.4L)
G00422832Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 35: Rear Of Transmission
G00422994Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 36: Top Of Engine (4.4L)
G00422995Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 37: Left Kick Panel
G00422996Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 38: Left Side Of Dash
G00422997Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 39: Right Side Of Dash
G00423000Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 40: Under Driver's Seat
G00423001Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 41: Center Console
G00423002Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 42: Right Rear Underside Of Vehicle
G00423003Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 43: Top Of Engine (4.4L)
G00423004Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 44: Top Of Engine (4.2L)
G00423005Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 45: Left Rear Door
G00423006Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 46: Left Rear Corner Of Vehicle
G00423007Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 47: Rear Of Headliner
G00423008Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 48: Center Headliner
G00423009Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 49: Left Rear Wheelwell
G00423010Courtesy of LAND ROVER NORTH AMERICA, INC.

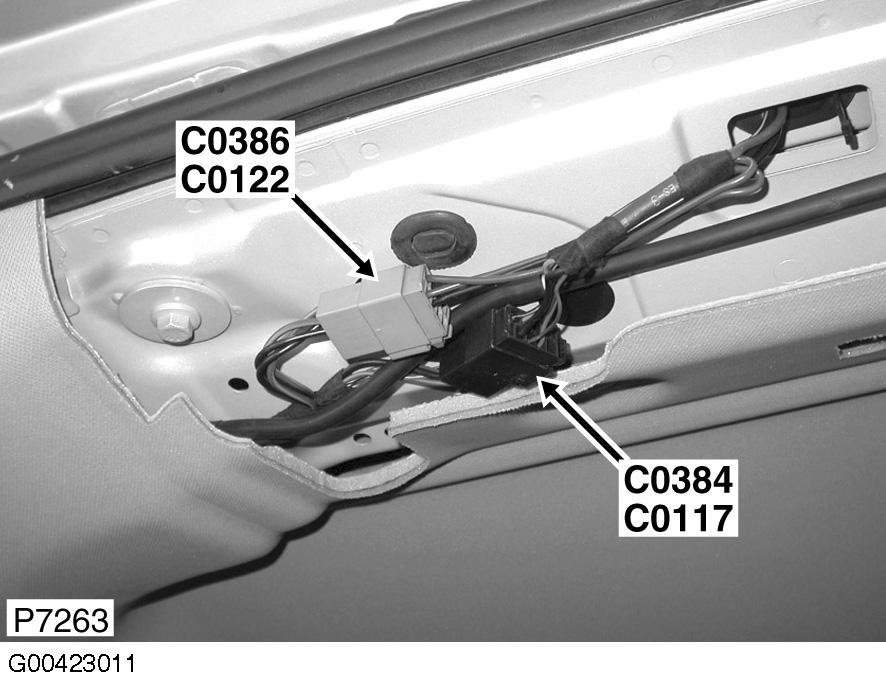

Fig 50: Rear Of Headliner
G00423011Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 51: Center Of Tailgate
G00423012Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 52: Front Bumper
G00423014Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 53: Front Bumper
G00423015Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 54: Front Of Engine Compartment
G00423016Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 55: Center Of Dash
G00423017Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 56: Left Rear Corner Of Vehicle
G00423018Courtesy of LAND ROVER NORTH AMERICA, INC.

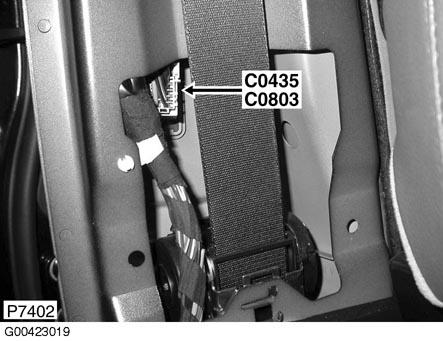

Fig 57: Left "B" Pillar
G00423019Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 58: Right "B" Pillar
G00423020Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 59: Left Kick Panel
G00423021Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 60: Driver's Door
G00423022Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 61: Left Rear Door
G00423023Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 62: Left Kick Panel
G00423024Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 63: Right Kick Panel
G00423025Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 64: Left "D" Pillar
G00423026Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 65: Under Driver's Seat
G00423027Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 66: Left Rear Wheelwell
G00423029Courtesy of LAND ROVER NORTH AMERICA, INC.

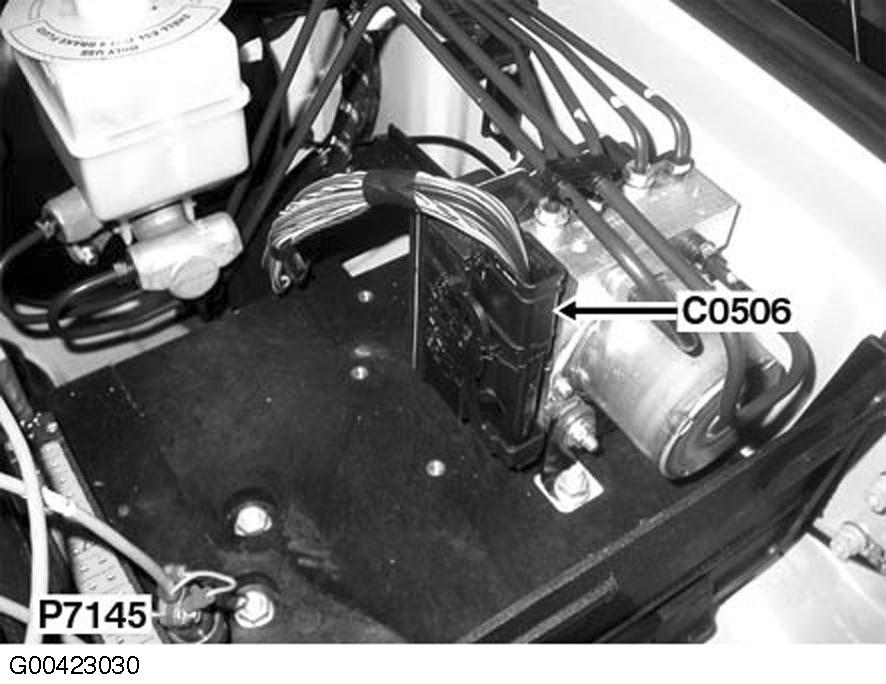

Fig 67: Left Rear Of Engine Compartment
G00423030Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 68: Left Front Wheelwell
G00423031Courtesy of LAND ROVER NORTH AMERICA, INC.

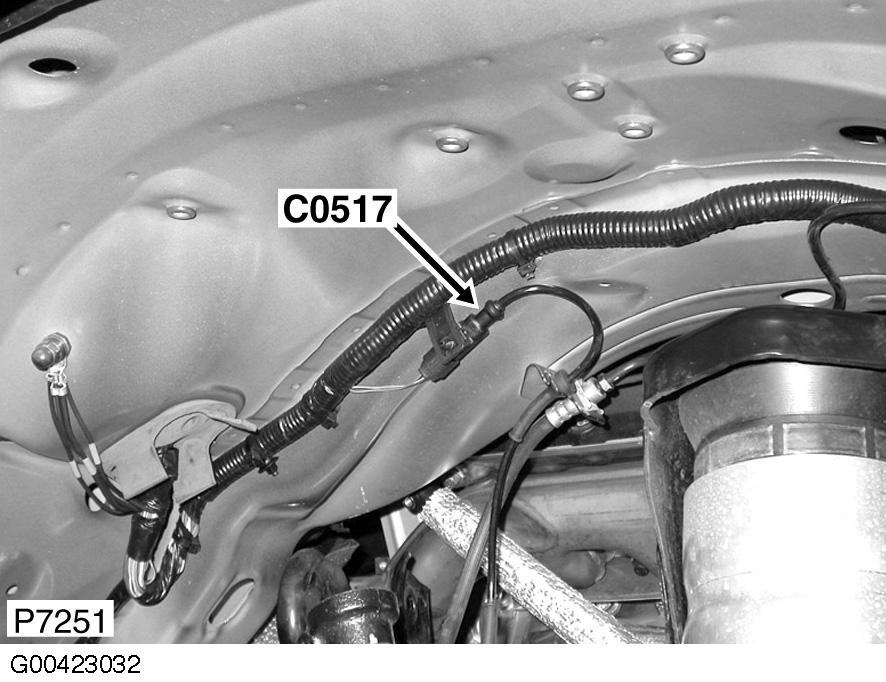

Fig 69: Right Front Wheelwell
G00423032Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 70: Top Of Engine
G00423033Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 71: Top Of Engine (4.4L)
G00423034Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 72: Top Of Engine (4.2L)
G00423035Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 73: Top Of Engine (4.4L)
G00423036Courtesy of LAND ROVER NORTH AMERICA, INC.

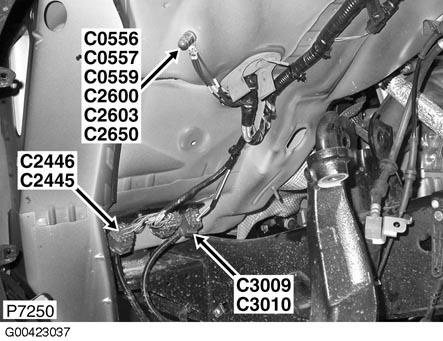

Fig 74: Right Front Wheelwell
G00423037Courtesy of LAND ROVER NORTH AMERICA, INC.

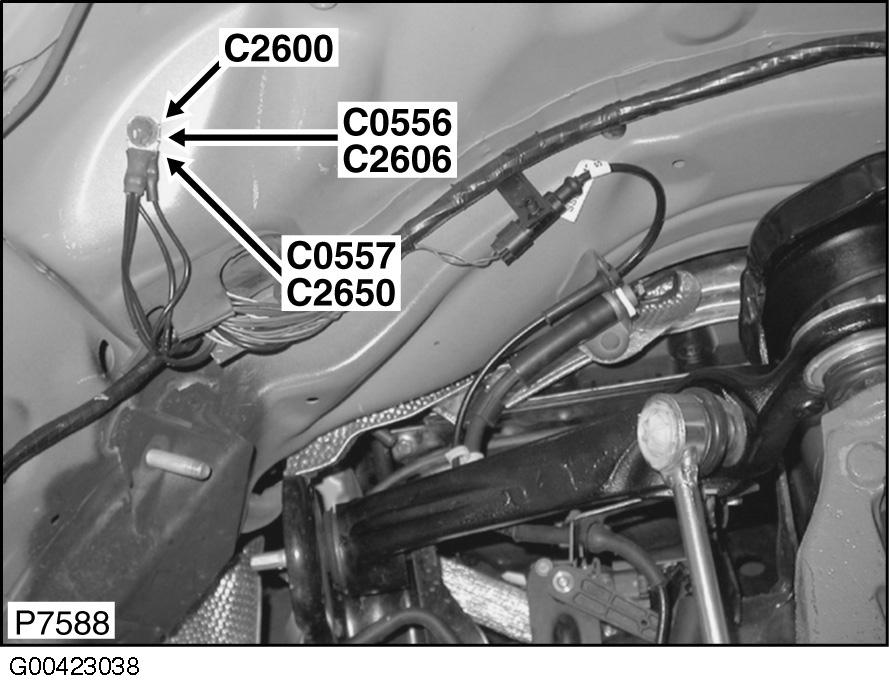

Fig 75: Right Front Wheelwell
G00423038Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 76: Right Kick Panel
G00423039Courtesy of LAND ROVER NORTH AMERICA, INC.

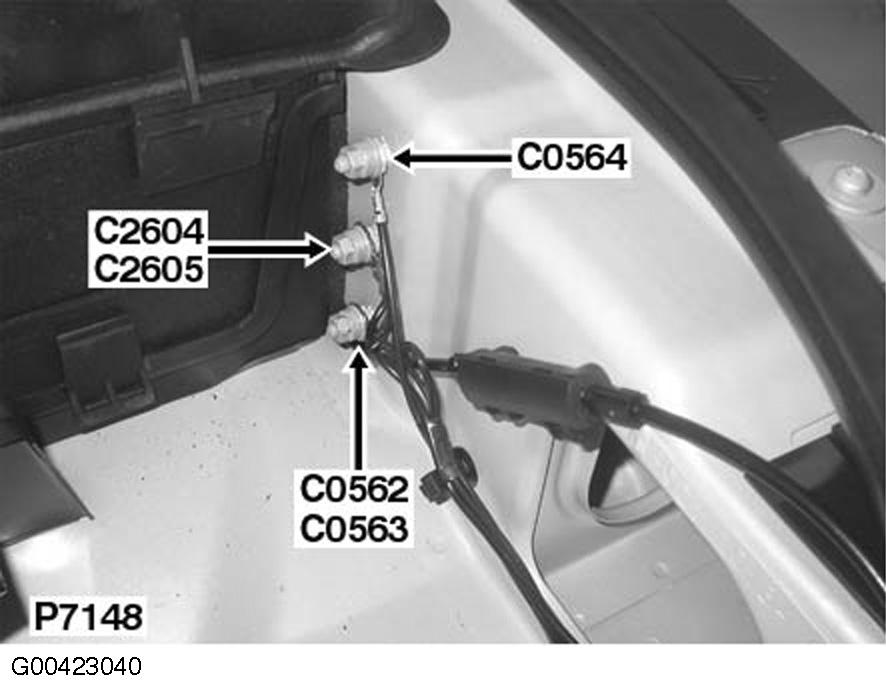

Fig 77: Left Front Of Engine Compartment
G00423040Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 78: Right Front Of Engine Compartment
G00423041Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 79: Right Side Of Dash
G00423042Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 80: Right "A" Pillar
G00423043Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 81: Center Of Tailgate
G00423044Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 82: Left Side Of Engine Compartment
G00423045Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 83: Front Center Of Engine
G00423046Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 84: Right Rear Of Engine Compartment (4.4L)
G00423047Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 85: Right Rear Underside Of Vehicle
G00423048Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 86: Right Side Of Engine (4.4L)
G00423049Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 87: Right Side Of Gearbox (4.4L)
G00423050Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 88: Left Rear Underside Of Vehicle
G00423053Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 89: Right "B" Pillar
G00423054Courtesy of LAND ROVER NORTH AMERICA, INC.

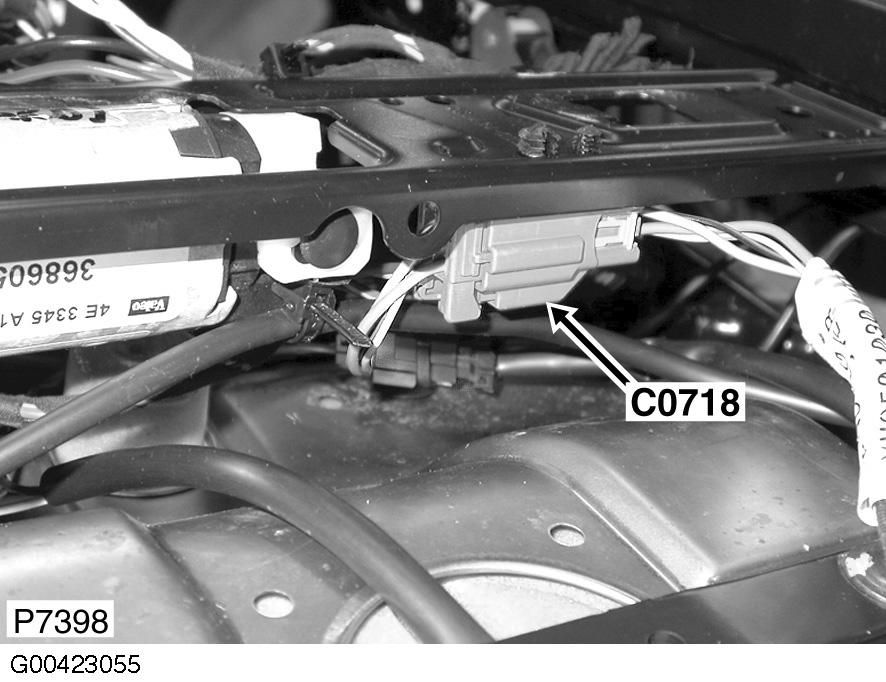

Fig 90: Under Driver's Seat
G00423055Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 91: Under Front Passenger's Seat
G00423056Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 92: Under Driver's Seat
G00423057Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 93: Front Door (Passenger's Shown)
G00423058Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 94: Right Rear Quarterpanel
G00423059Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 95: Under Driver's Seat
G00423060Courtesy of LAND ROVER NORTH AMERICA, INC.

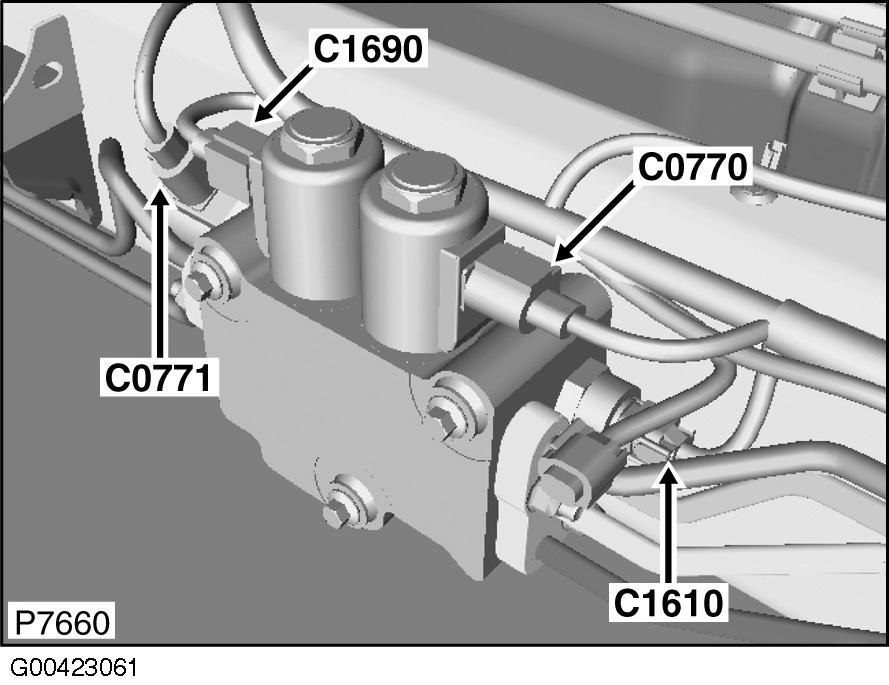

Fig 96: Right Rear Underside Of Vehicle
G00423061Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 97: Left Underside Of Vehicle
G00423062Courtesy of LAND ROVER NORTH AMERICA, INC.

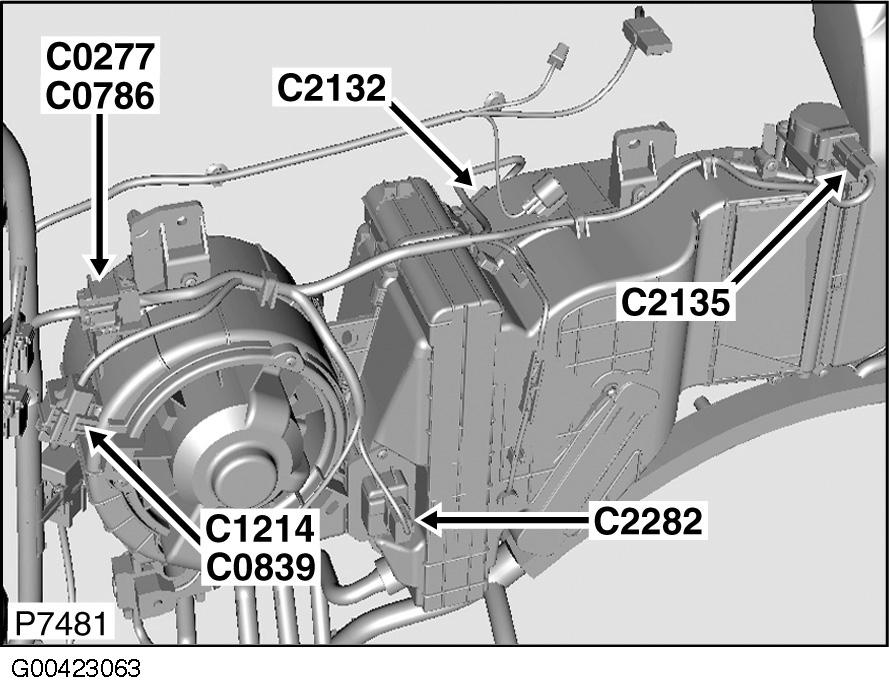

Fig 98: Left Rear Quarterpanel
G00423063Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 99: Center Of Dash
G00423064Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 100: Left "B" Pillar
G00423065Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 101: Right "B" Pillar
G00423066Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 102: Left "A" Pillar
G00423067Courtesy of LAND ROVER NORTH AMERICA, INC.

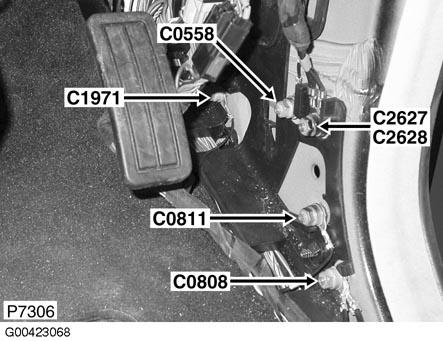

Fig 103: Right Kick Panel
G00423068Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 104: Left Side Of Engine Compartment
G00423070Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 105: Left Rear Quarterpanel
G00423071Courtesy of LAND ROVER NORTH AMERICA, INC.

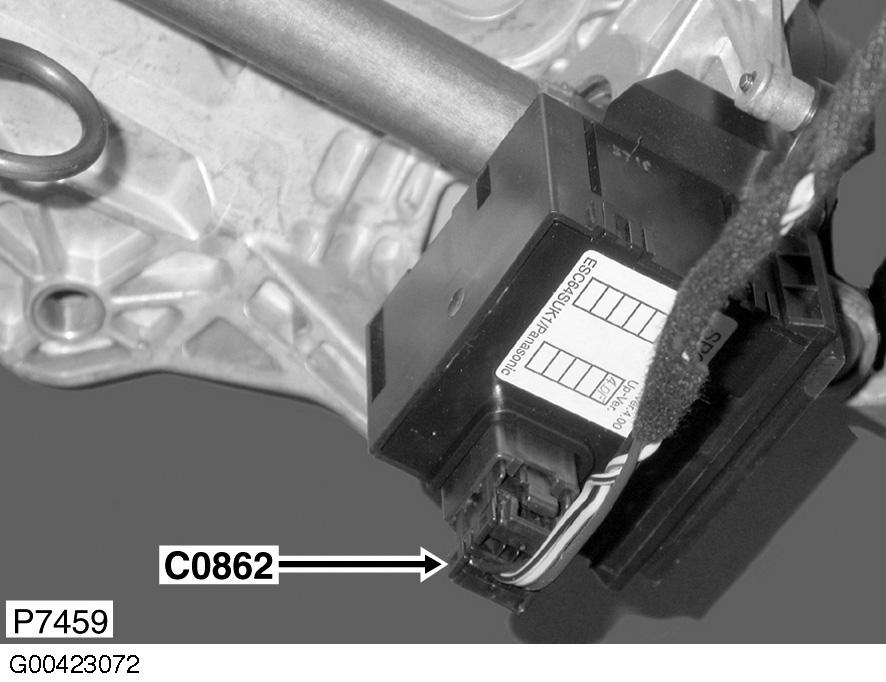

Fig 106: Steering Column
G00423072Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 107: Left Rear Of Vehicle
G00422834Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 108: Center Console
G00422835Courtesy of LAND ROVER NORTH AMERICA, INC.

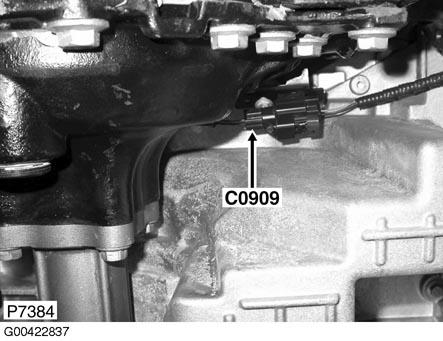

Fig 109: Rear Of Engine (4.4L)
G00422837Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 110: Rear Engine Compartment Lid
G00422838Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 111: Front Doors (Front Passenger's Shown)
G00422839Courtesy of LAND ROVER NORTH AMERICA, INC.

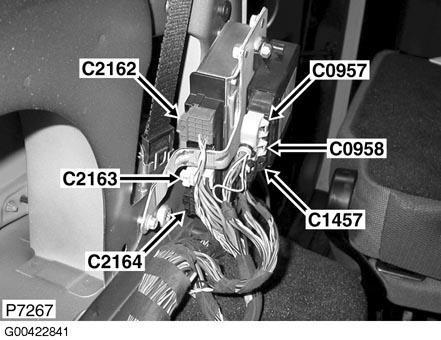

Fig 112: Left "C" Pillar
G00422841Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 113: Rearview Mirror
G00422842Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 114: Under Front Passenger's Seat
G00422843Courtesy of LAND ROVER NORTH AMERICA, INC.

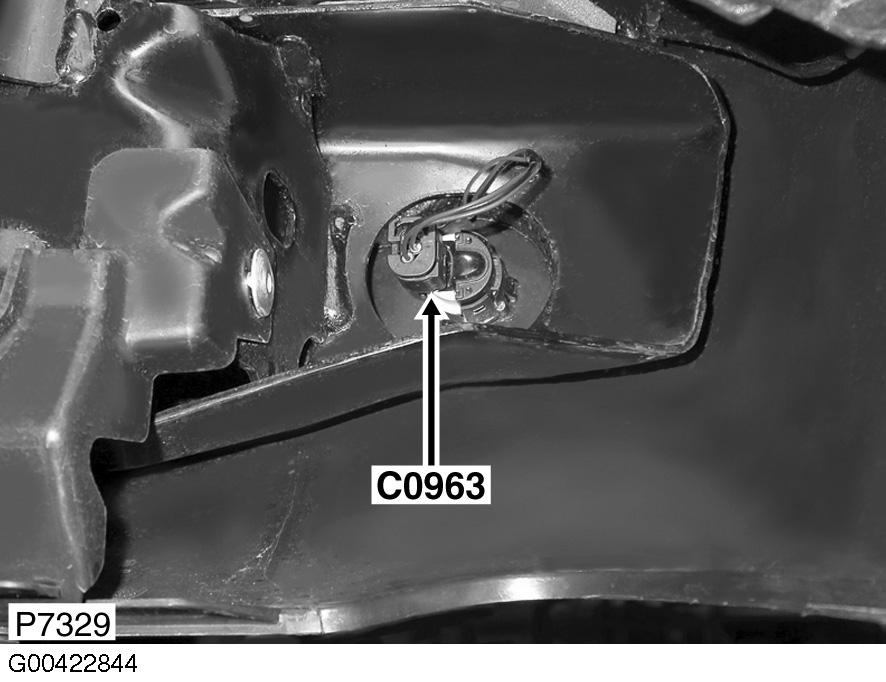

Fig 115: Rear Bumper
G00422844Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 116: Right Rear Wheelwell
G00422845Courtesy of LAND ROVER NORTH AMERICA, INC.

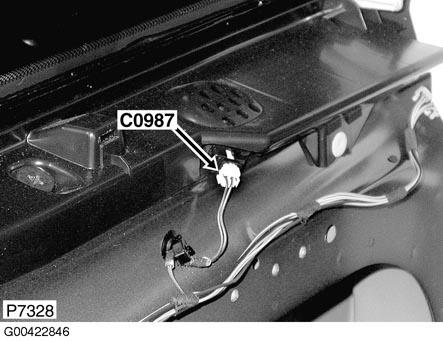

Fig 117: Left Rear Quarterpanel
G00422846Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 118: Right Kick Panel
G00422847Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 119: Left Kick Panel
G00422848Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 120: Top Of Engine (4.4L)
G00422849Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 121: Center Underside Of Vehicle
G00422850Courtesy of LAND ROVER NORTH AMERICA, INC.

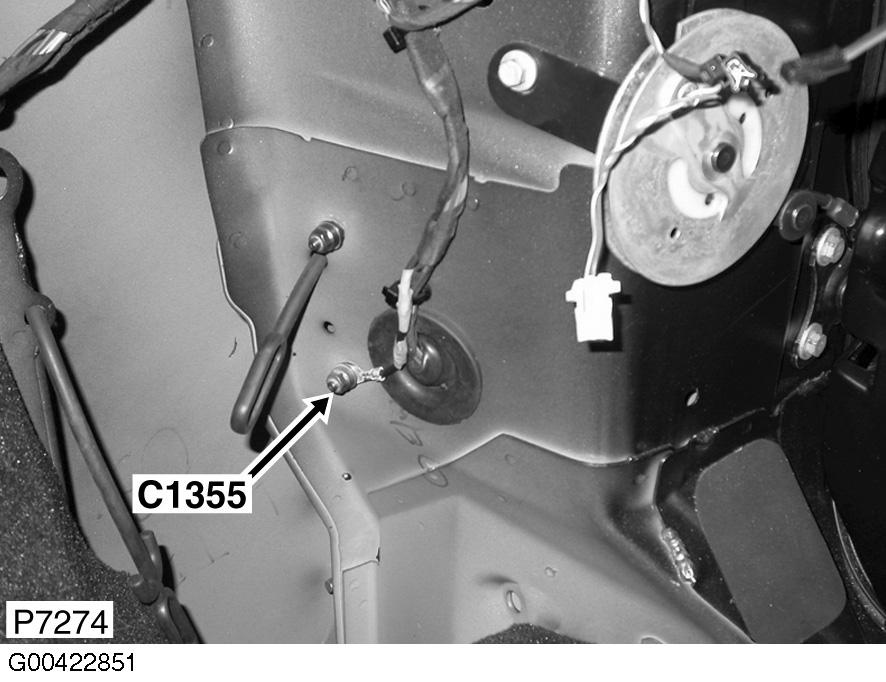

Fig 122: Right "D" Pillar
G00422851Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 123: Right Rear Quarterpanel
G00422852Courtesy of LAND ROVER NORTH AMERICA, INC.

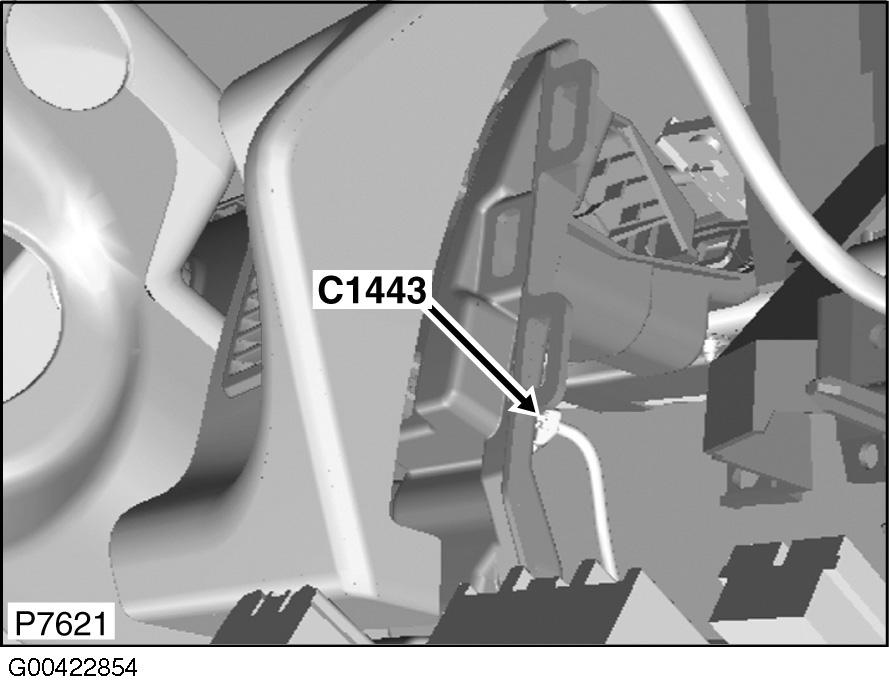

Fig 124: Left Side Of Dash
G00422854Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 125: Left Side Of Engine Compartment
G00422857Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 126: Left Front Of Headliner
G00422858Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 127: Right Front Of Headliner
G00422859Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 128: Front Of Headliner
G00422860Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 129: Rear Of Headliner
G00422861Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 130: Under Front Passenger's Seat
G00422864Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 131: Left "D" Pillar
G00422865Courtesy of LAND ROVER NORTH AMERICA, INC.

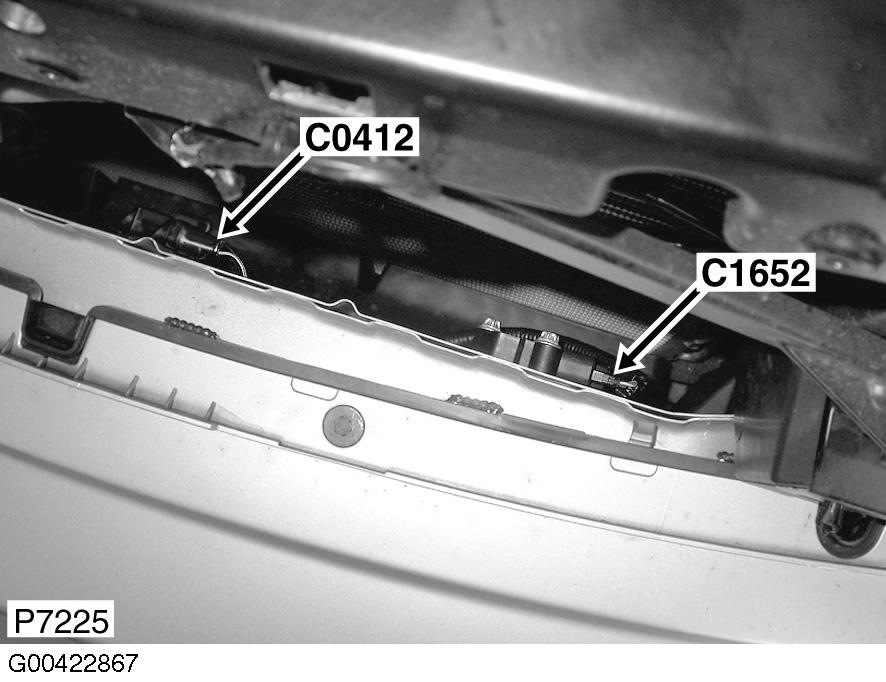

Fig 132: Left Front Corner Of Engine Compartment
G00422867Courtesy of LAND ROVER NORTH AMERICA, INC.

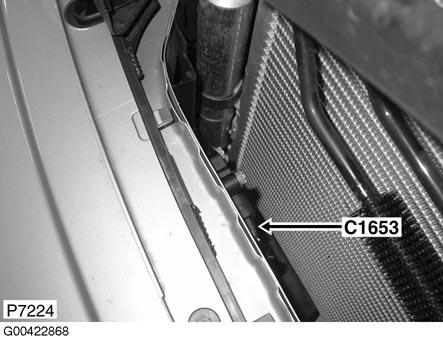

Fig 133: Right Front Corner Of Engine Compartment
G00422868Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 134: Rear Quarterpanels (Left Shown)
G00422869Courtesy of LAND ROVER NORTH AMERICA, INC.

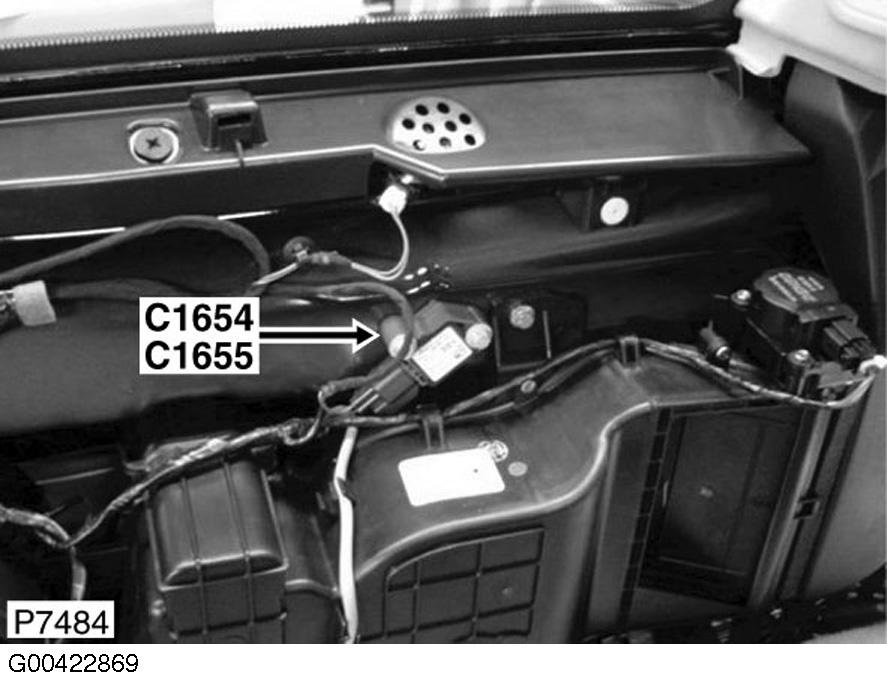

Fig 135: Center Console
G00422870Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 136: Tailgate
G00422871Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 137: Tailgate
G00422872Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 138: Left Front Wheelwell
G00422874Courtesy of LAND ROVER NORTH AMERICA, INC.

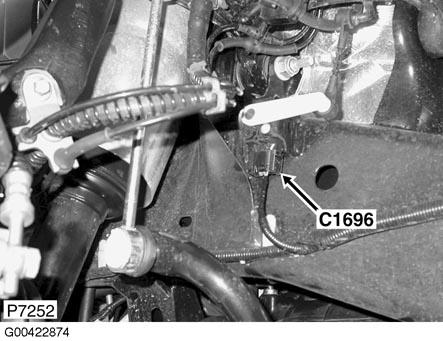

Fig 139: Right Front Wheelwell
G00422875Courtesy of LAND ROVER NORTH AMERICA, INC.

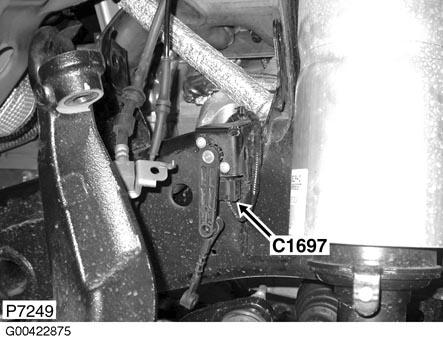

Fig 140: Right Rear Wheelwell
G00422876Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 141: Left Rear Wheelwell
G00422877Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 142: Top Of Engine (4.4L)
G00422878Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 143: Top Of Engine (4.4L)
G00422879Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 144: Top Of Engine (4.2L)
G00422880Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 145: Top Of Engine (4.2L)
G00422881Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 146: Rear Of Headliner
G00422882Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 147: Rear Of Engine Compartment
G00422883Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 148: Left Rear Of Vehicle
G00422885Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 149: Behind Front Grille
G00422886Courtesy of LAND ROVER NORTH AMERICA, INC.

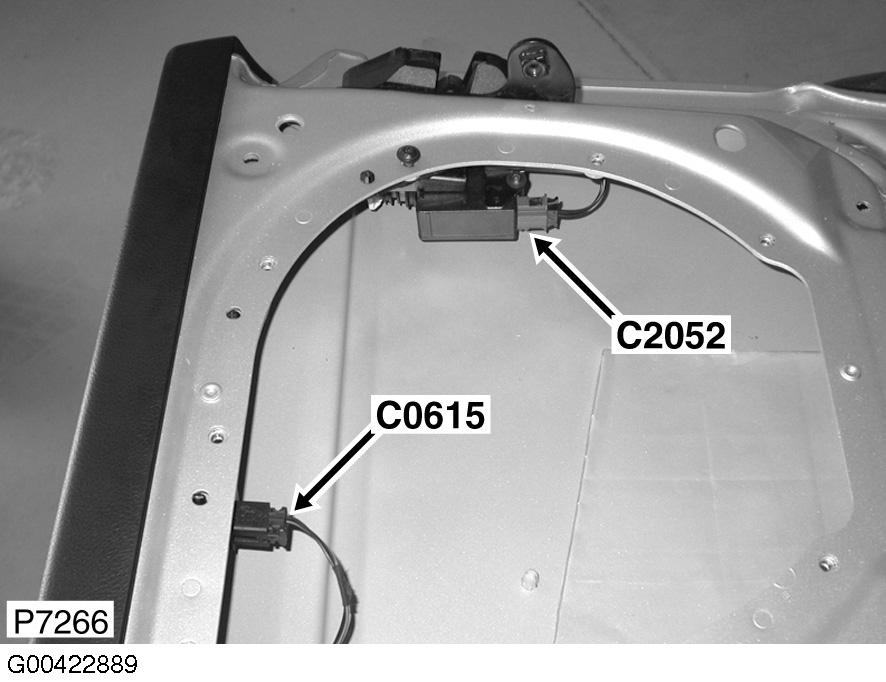

Fig 150: Tailgate
G00422889Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 151: Center Console
G00422890Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 152: Top Of Engine (4.4L)
G00422892Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 153: Top Of Engine (4.2L)
G00422893Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 154: Right Front Wheelwell
G00422894Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 155: Left Rear Wheelwell
G00422895Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 156: Center Of Dash
G00422899Courtesy of LAND ROVER NORTH AMERICA, INC.

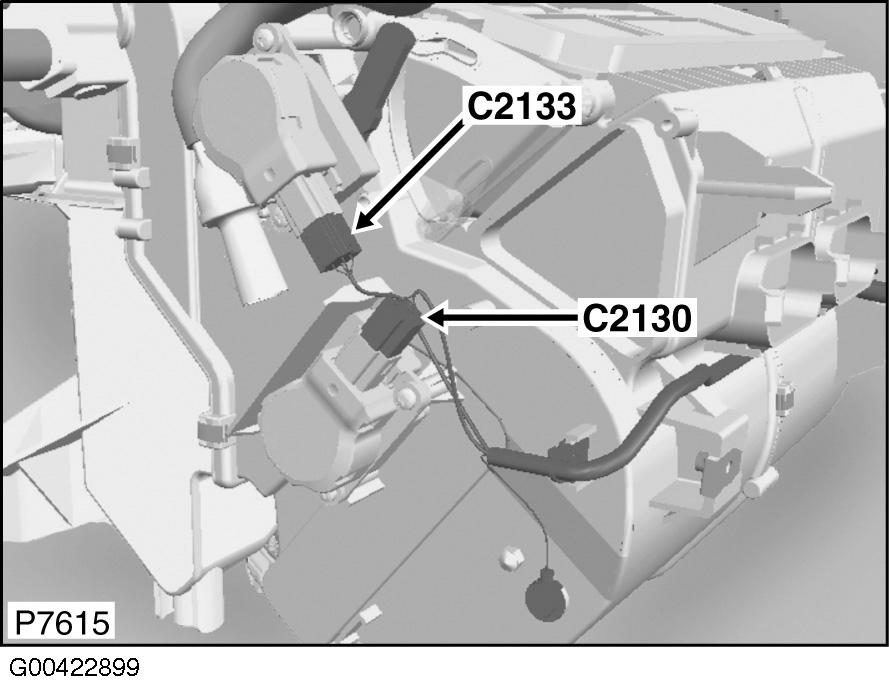

Fig 157: Center Of Dash
G00422900Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 158: Under Rear Seat
G00422901Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 159: Right Rear Quarterpanel
G00422902Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 160: Right Rear Quarterpanel
G00422903Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 161: Left "C" Pillar
G00422904Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 162: Rear Of Transmission
G00422905Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 163: Under Center Of Vehicle
G00422906Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 164: Under Center Of Vehicle
G00422907Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 165: Center Console
G00422908Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 166: Left Front Wheelwell
G00422910Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 167: Right Front Wheelwell
G00422911Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 168: Rear Wheelwells (Left Shown)
G00422912Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 169: Center Of Tailgate
G00422909Courtesy of LAND ROVER NORTH AMERICA, INC.

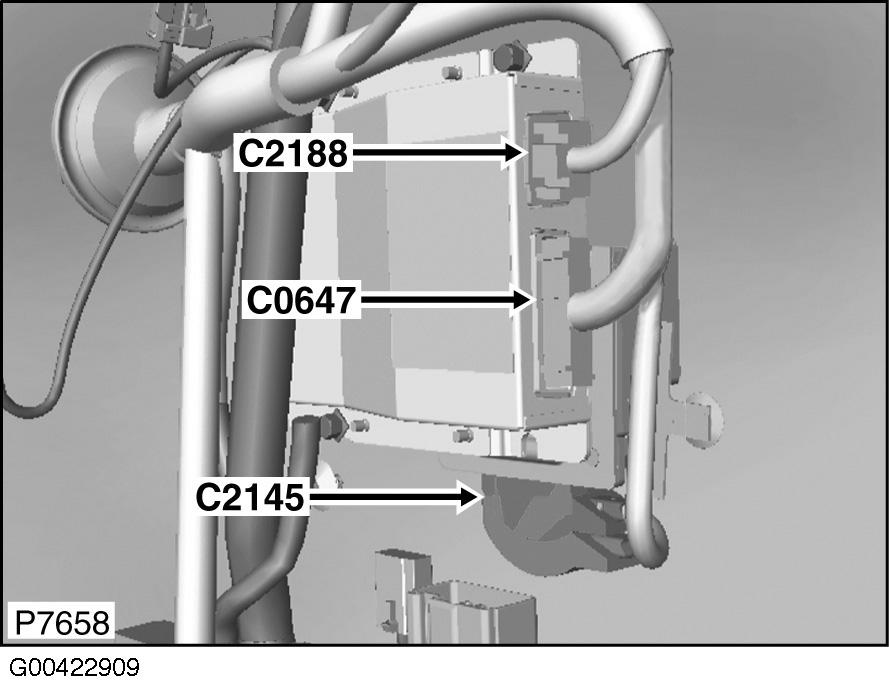

Fig 170: Behind Right Headlight
G00422898Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 171: Behind Center Of Dash
G00422897Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 172: Left Front Wheelwell
G00422896Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 173: Behind Right Headlight
G00422891Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 174: Under Front Passenger's Seat
G00422888Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 175: Right Rear Of Engine Compartment
G00422887Courtesy of LAND ROVER NORTH AMERICA, INC.

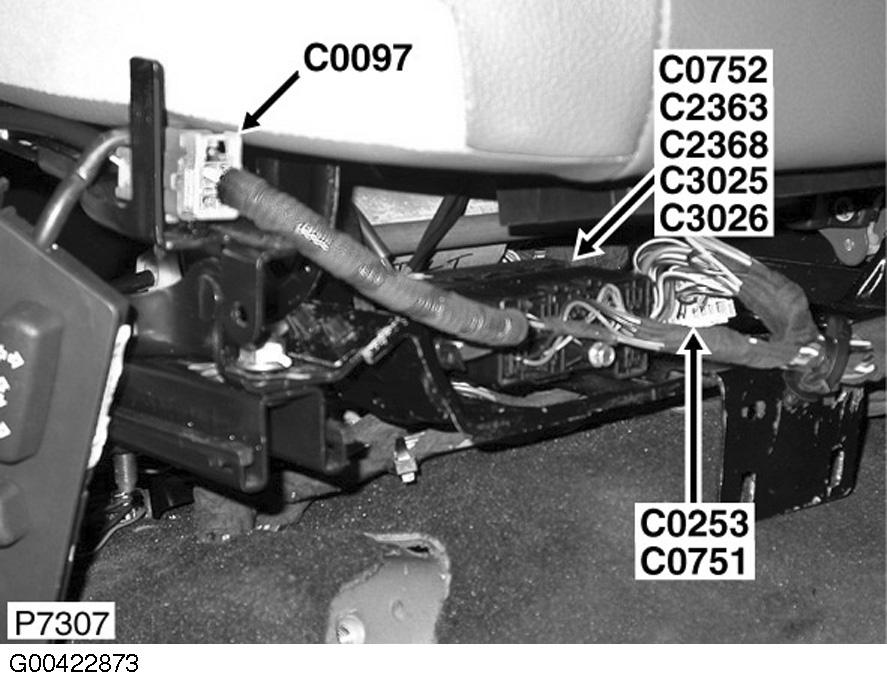

Fig 176: Under Front Passenger's Seat
G00422873Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 177: Left Rear Quarterpanel
G00422866Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 178: Right Rear Of Engine Compartment
G00422863Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 179: Under Driver's Seat
G00422862Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 180: Under Driver's Seat
G00422856Courtesy of LAND ROVER NORTH AMERICA, INC.

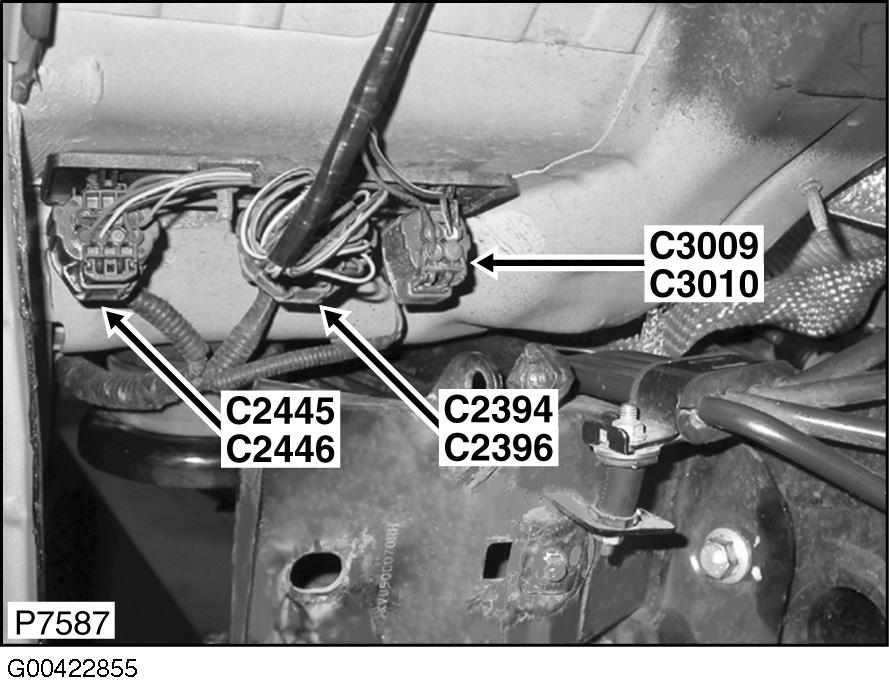

Fig 181: Right Front Wheelwell
G00422855Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 182: Right Kick Panel
G00422853Courtesy of LAND ROVER NORTH AMERICA, INC.

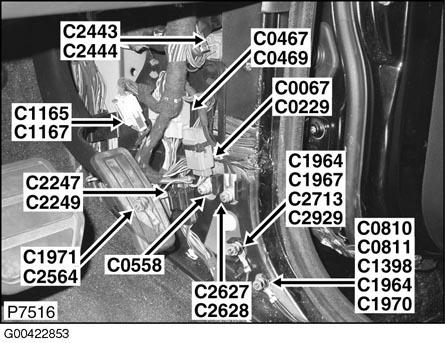

Fig 183: Right Rear Door
G00422840Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 184: Center Console
G00423073Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 185: Left Front Wheelwell
G00423069Courtesy of LAND ROVER NORTH AMERICA, INC.

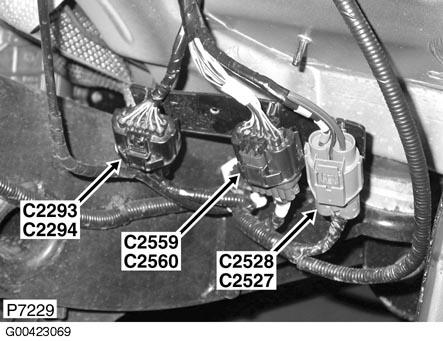

Fig 186: Front Of Engine (4.4L)
G00423051Courtesy of LAND ROVER NORTH AMERICA, INC.

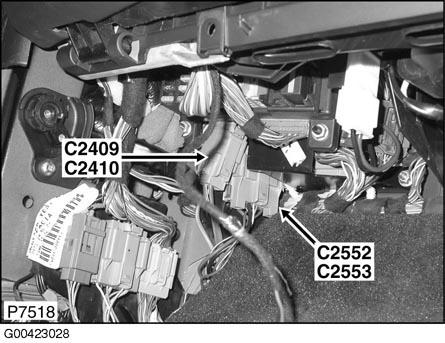

Fig 187: Left Kick Panel
G00423028Courtesy of LAND ROVER NORTH AMERICA, INC.

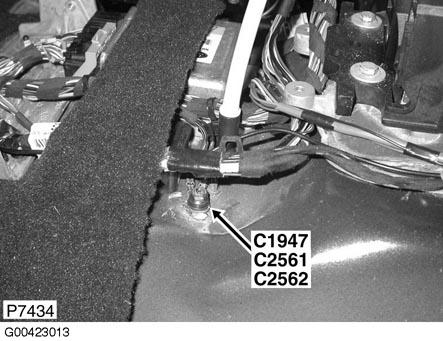

Fig 188: Center Console
G00423013Courtesy of LAND ROVER NORTH AMERICA, INC.

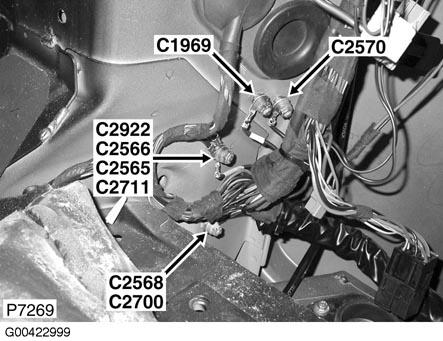

Fig 189: Left "D" Pillar
G00422999Courtesy of LAND ROVER NORTH AMERICA, INC.

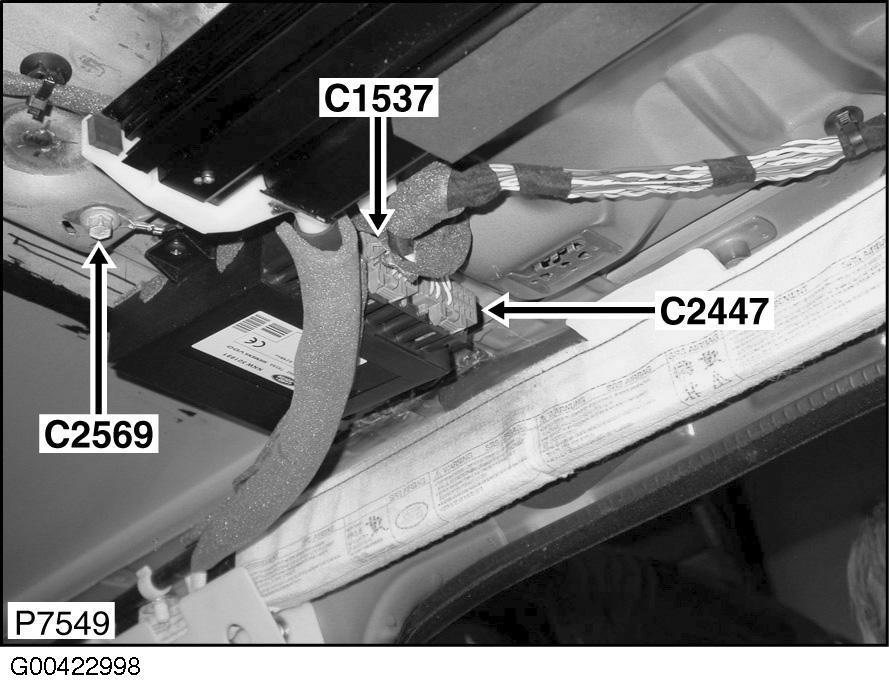

Fig 190: Center Of Headliner
G00422998Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 191: Near Pedal Box
G00422830Courtesy of LAND ROVER NORTH AMERICA, INC.

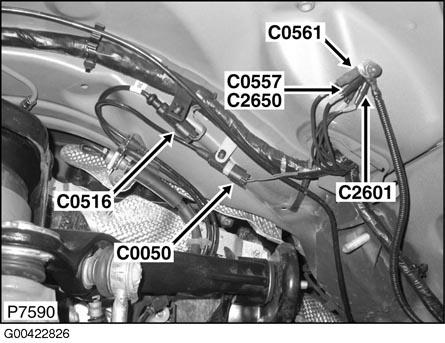

Fig 192: Right Front Wheelwell
G00422826Courtesy of LAND ROVER NORTH AMERICA, INC.

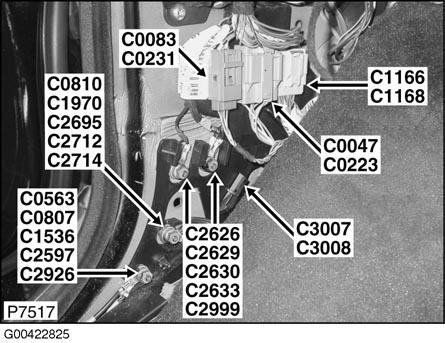

Fig 193: Left Kick Panel
G00422825Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 194: Under Front Seat
G00422807Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 195: Left Front Corner Of Engine Compartment
G00422799Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 196: Left Front Of Engine Compartment
G00422791Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 197: Right Side Of Engine Compartment
G00422913Courtesy of LAND ROVER NORTH AMERICA, INC.

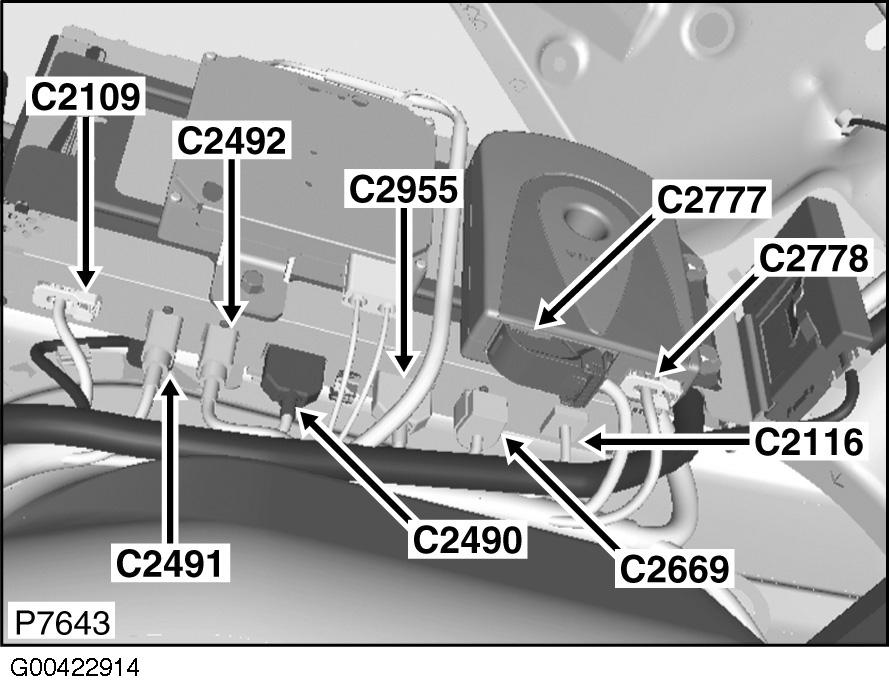

Fig 198: Right Rear Quarterpanel
G00422914Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 199: Right Rear Quarterpanel
G00422915Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 200: Right Rear Wheelwell
G00422916Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 201: Under Driver's Seat
G00422917Courtesy of LAND ROVER NORTH AMERICA, INC.

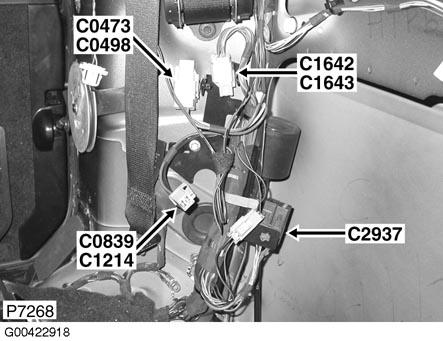

Fig 202: Left "D" Pillar
G00422918Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 203: Left "A" Pillar
G00422919Courtesy of LAND ROVER NORTH AMERICA, INC.
Fig 204: Under Driver's Seat
G00422920Courtesy of LAND ROVER NORTH AMERICA, INC.
scientia non olet · About LEMON Manuals
