Description And Operation: Seats: Notes
WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

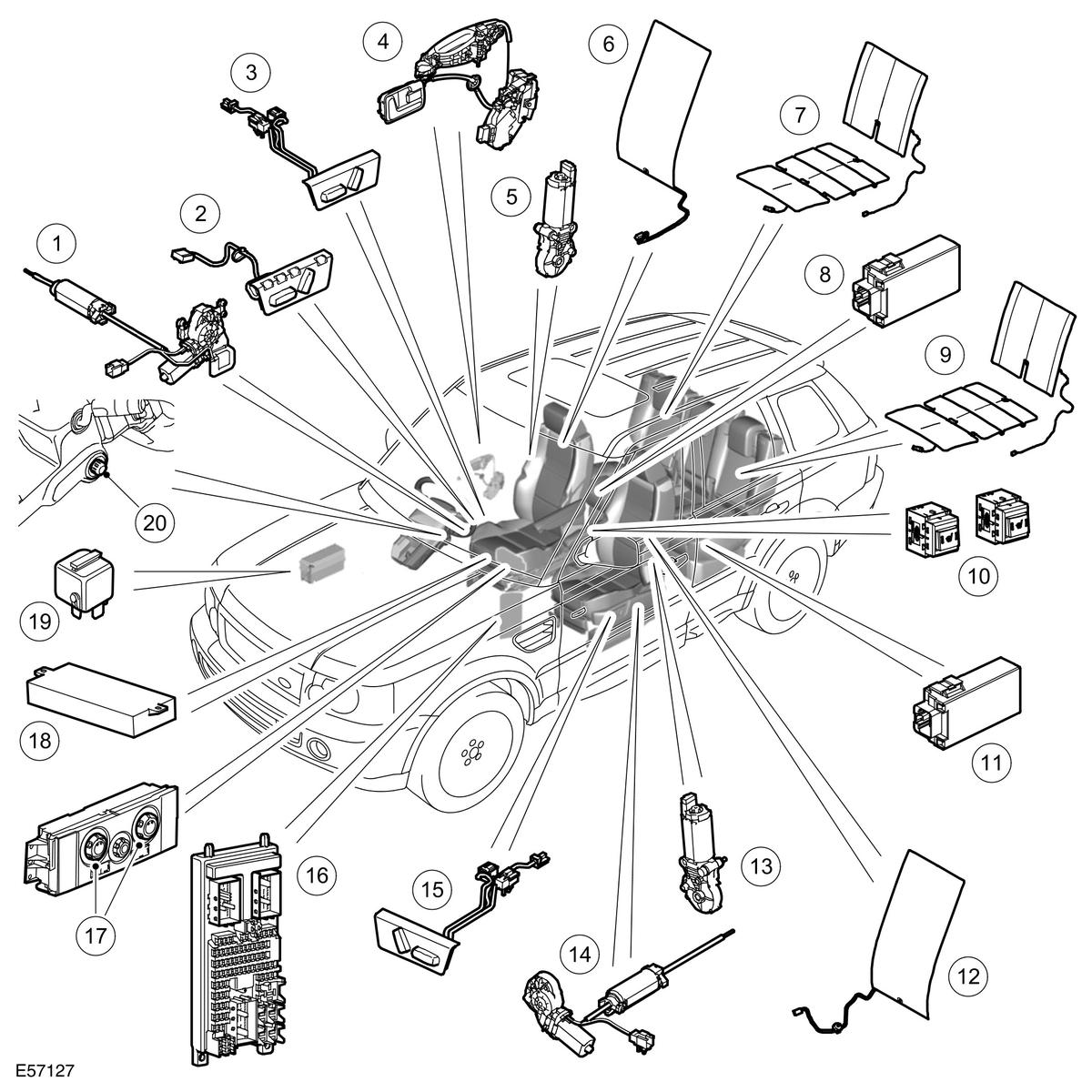

Component Location
| Item Number | Description |
|---|---|
| 1 | Drivers seat cushion adjustment motor assembly |
| 2 | Drivers seat memory switch pack |
| 3 | Drivers seat non-memory switch pack |
| 4 | Drivers door ajar switch |
| 5 | Drivers seat squab motor |
| 6 | Drivers seat heating element |
| 7 | Second row RH seat heating element |
| 8 | Second row RH seat heating module |
| 9 | Second row LH seat heating element |
| 10 | Second row heated seat switches |
| 11 | Second row LH seat heating module |
| 12 | Front passenger seat heating element |
| 13 | Front passenger seat squab motor |
| 14 | Front passenger seat cushion adjustment motor assembly |
| 15 | Front passenger seat switch pack |
| 16 | Central Junction Box (CJB) |
| 17 | Front heated seat switch pack (climate control system) |
| 18 | Memory control module |
| 19 | Front passenger seat power relay |
| 20 | Steering rake and reach adjustment |
NOTE:
RH drive shown, LH drive similar
