Drivers Memory Seat: Notes

WARNING: This page is about a different car, the 2006 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

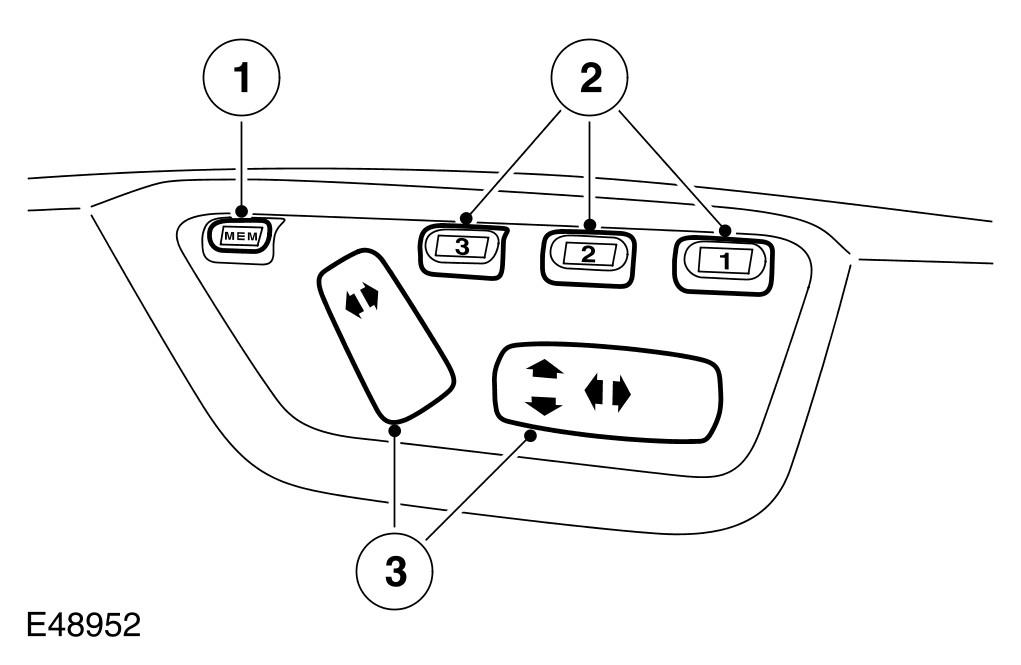

Item Number	Description
1	Memory store button
2	Memory preset buttons
3	Seat adjustment controls

NOTE: 6-way switch pack shown.

The memory control module can store up to three different driver seating, mirror and electric steering column (where fitted) positions for each key (up to 3 keys). The three-numbered memory and single memory store switches control memory storage and recall operations. Each switch is a momentary action push switch.

All seat adjustments are available whilst the ignition key is in position I or II or for a 10 minutes period from when either the driver door status is changed or the ignition key status changes from position I to position 0 (key in).

NOTE: This does not include lazy entry (refer to the lazy entry section for more information).

The mirror adjustment is only enabled when the ignition key is in position I or II.
