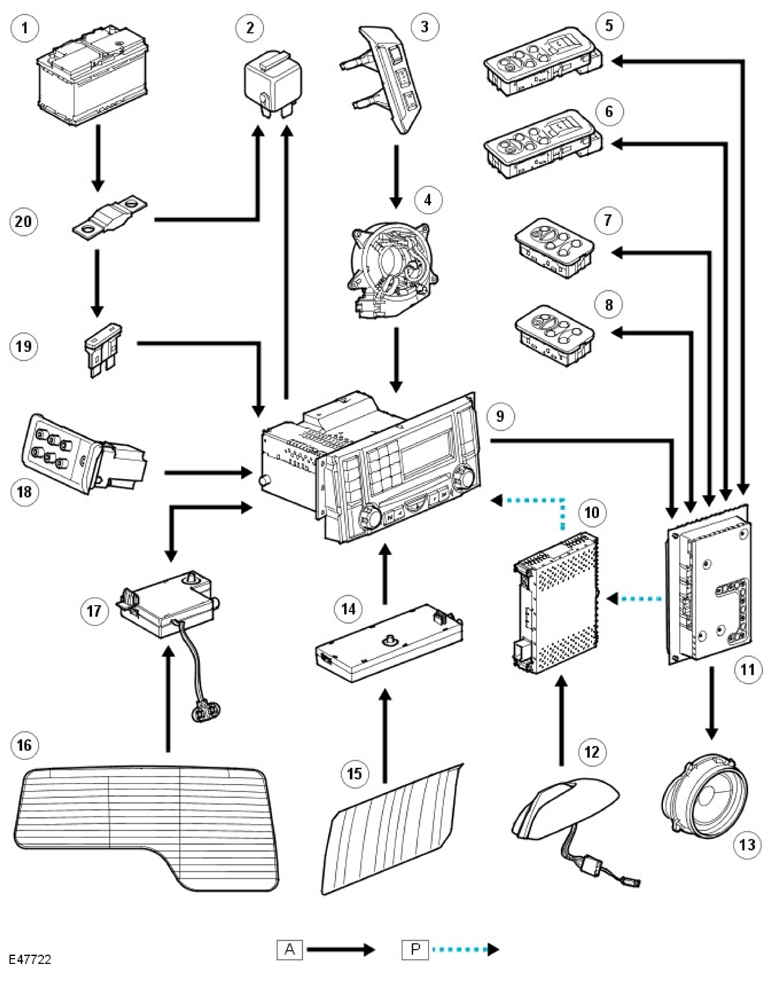

Integrated Head Unit (IHU) - Audio Control Diagram
NOTE:
A= Hardwired; P= MOST
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Battery |
| 2 | - | Infotainment main relay |
| 3 | - | Audio remote controls |
| 4 | - | Clock spring |
| 5 | - | Row two audio remote controls |
| 6 | - | Row two audio remote controls |
| 7 | - | Row three audio remote controls |
| 8 | - | Row three audio remote controls |
| 9 | - | Integrated Head Unit (IHU) |
| 10 | - | SDARS tuner |
| 11 | - | Audio amplifier |
| 12 | - | SDARS/telephone antenna roof mounted pod |
| 13 | - | Speakers |
| 14 | - | Side screen antenna diversity amplifier |
| 15 | - | Side screen AM/FM antenna |
| 16 | - | Rear screen antennas |
| 17 | - | Rear screen antenna amplifier |
| 18 | - | Audio/video input/output panel |
| 19 | - | Fuse 53p |
| 20 | - | Fuseable link 18E |
