Front Wheel Speed Sensor: Removal

    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
  1. Raise and support the vehicle.
  2. Remove the fender splash shield.

    For additional information, refer to: FENDER SPLASH SHIELD .

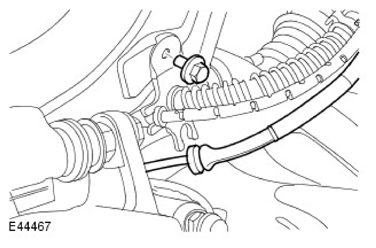

  3. Release the brake hose bracket from the wheel knuckle.
    • Remove the retaining bolt.
    G08764401
    4. CAUTION: Do not allow the brake caliper to hang on the brake hose.

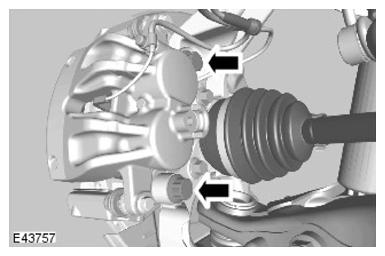

  4. Release the brake caliper anchor plate from the wheel knuckle and tie the caliper aside.
    • Remove the two retaining bolts.
    G08764402

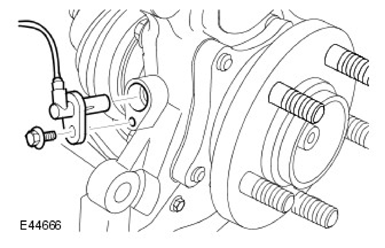

  5. Release the wheel speed sensor from the wheel knuckle.
    • Remove the bolt.
    G08764403

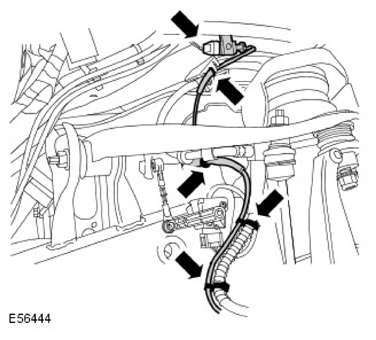

  6. Remove the wheel speed sensor.
    • Disconnect the electrical connector.
    • Release the wiring harness from the 5 clips.
    G08764404
