Torque Converter Drive Plate: Installation

1. Clean bolt holes in crankshaft using an old drive plate bolt with two saw cuts at an angle of 45° to the bolt shank.
2. Clean drive plate and mating face of crankshaft.
3. Position LRT-12-161 and LRT-12-199 to crankshaft pulley to restrain crankshaft.
4. Position drive plate to crankshaft.
5. Fit new Patchlok bolts securing drive plate to crankshaft and tighten in sequence shown. See Fig 1:
   • Stage 1 - 25 Nm (18 ft. lbs.)
   • Stage 2 - 100 Nm (74 ft. lbs.)
6. Remove LRT-12-161 and LRT-12-199 from crankshaft pulley.
7. Fit automatic gearbox. See GEARBOX (KV6) .

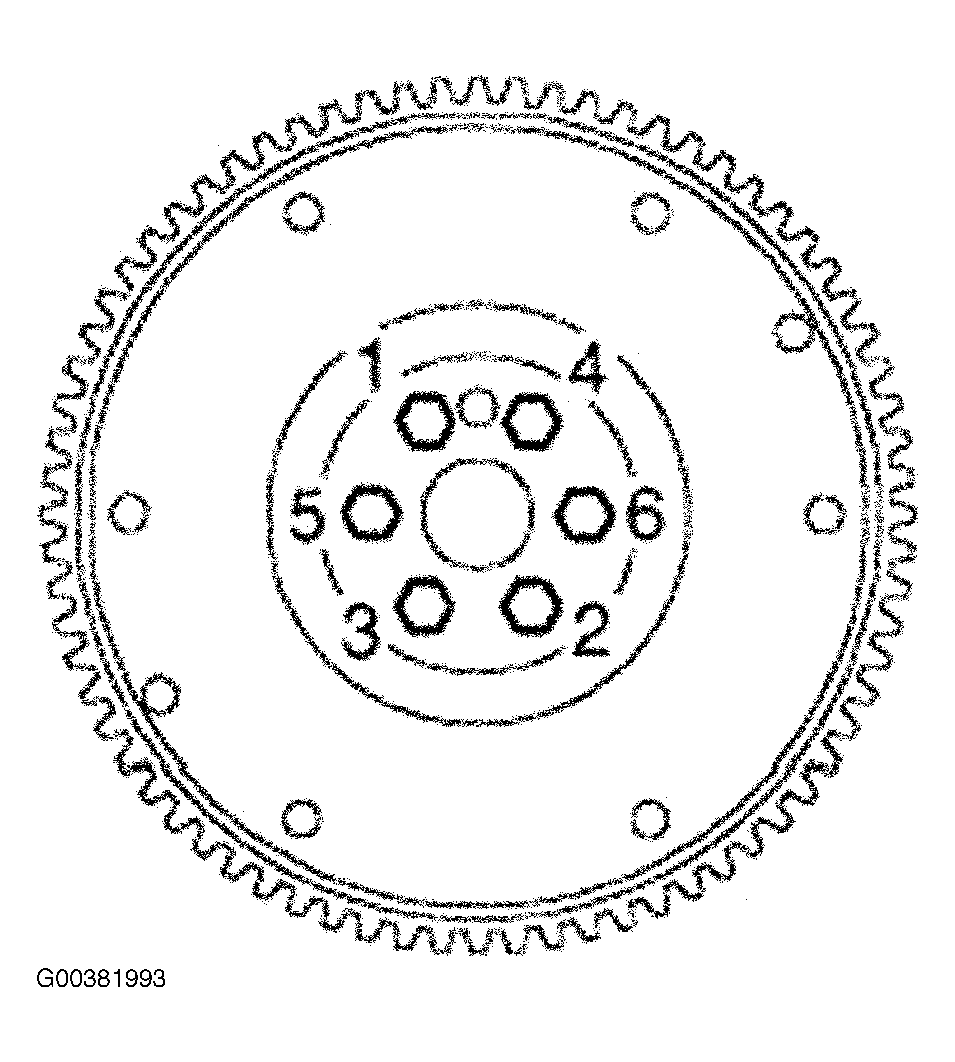

Fig 1: Tightening Drive Plate-To-Crankshaft Bolts In Sequence

Courtesy of LAND ROVER NORTH AMERICA, INC.
