86.54.30 Control Unit - Power Fold Mirrors - Up To 02MY: Remove

  1. Remove the front console.

    See 76.25.01 CONSOLE - FRONT - UP TO 04MY .

  2. Release the two clips securing the power fold mirror control unit.

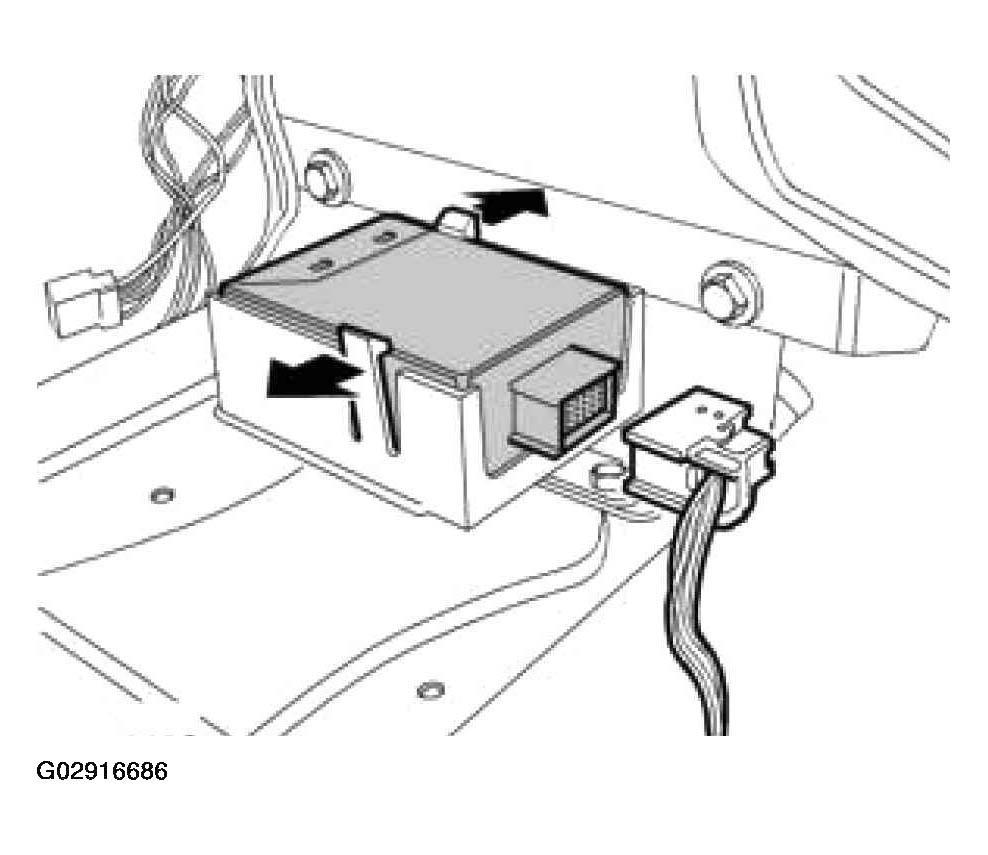

    Fig 1: Removing Power Fold Mirror Control Unit
    G02916686Courtesy of LAND ROVER NORTH AMERICA, INC.
  3. Release the control unit from its mounting and disconnect the multiplug.
  4. Remove the control unit.
