General Data: Weights

CAUTION: Axle weights are non additive. The individual maximum weights and gross vehicle weight must not be exceeded.

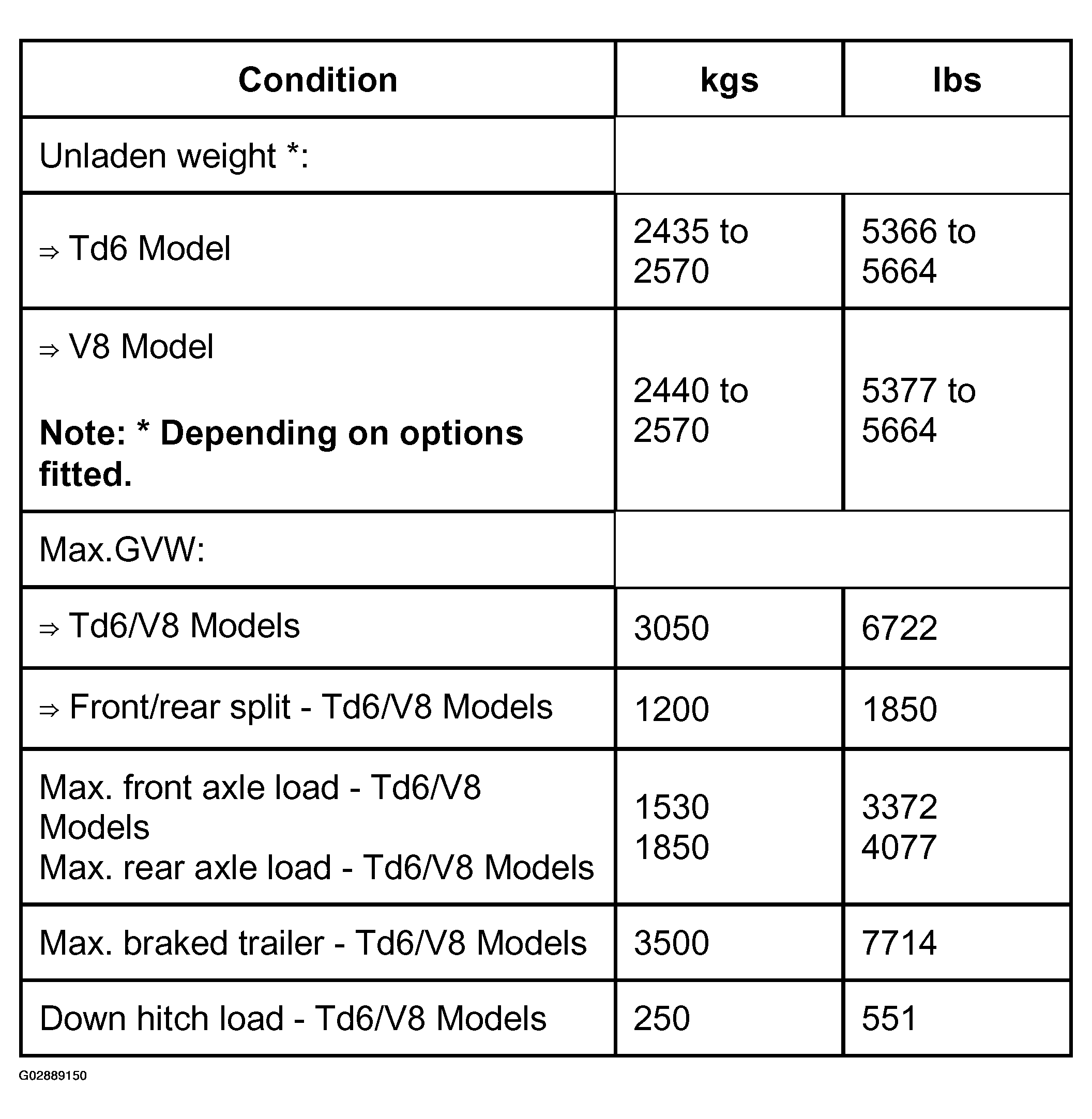

Fig 1: Weights Specifications
G02889150Courtesy of LAND ROVER NORTH AMERICA, INC.
