Fuel System - Td6
Fuel System - Td6

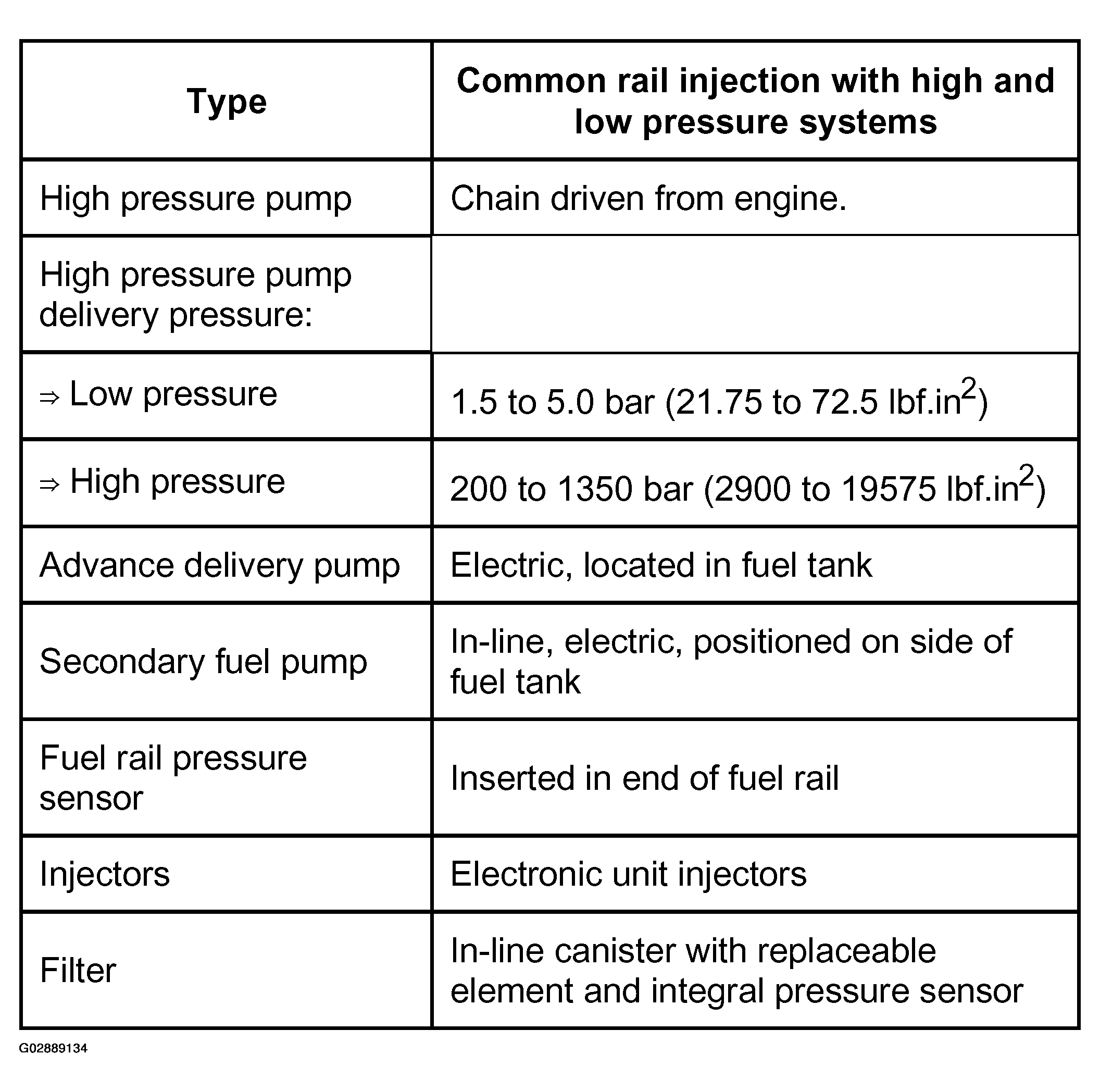

Fig 1: Fuel System Td6 Specifications
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
