Engine - Td6

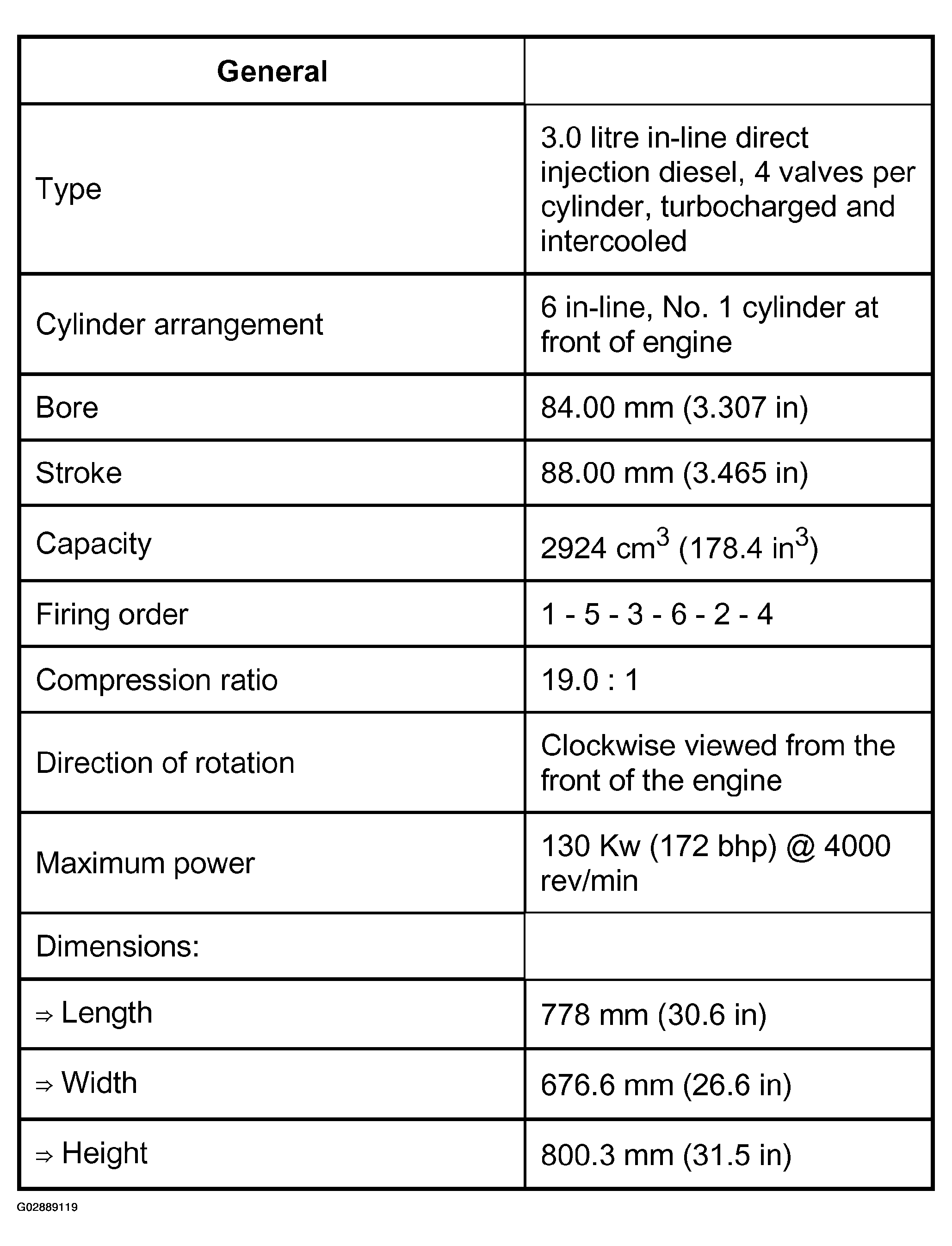

Fig 1: Engine Td6 Specifications(1 Of 8)

G02889119

Courtesy of LAND ROVER NORTH AMERICA, INC.

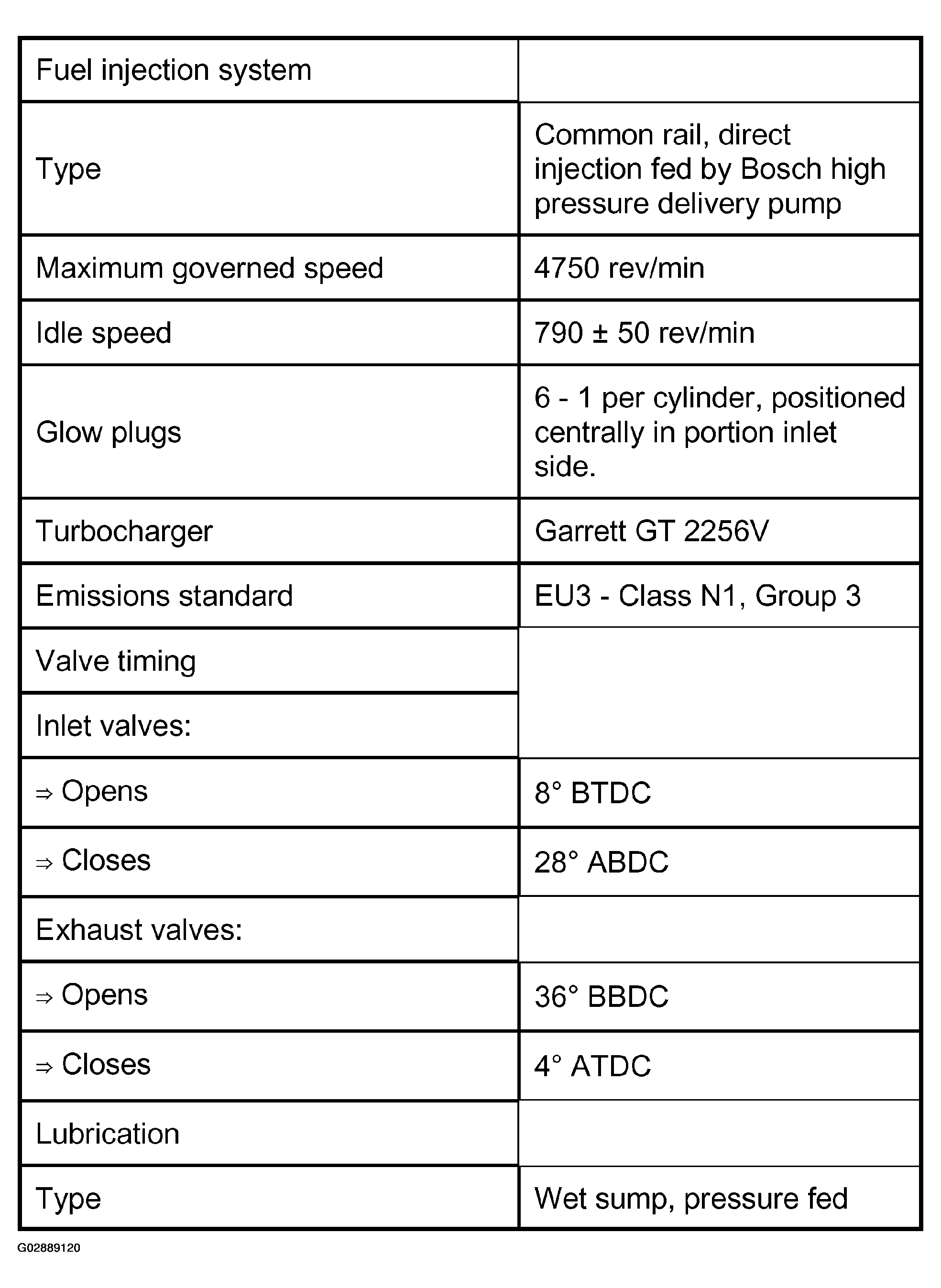

Fig 2: Engine Td6 Specifications(2 Of 8)

G02889120

Courtesy of LAND ROVER NORTH AMERICA, INC.

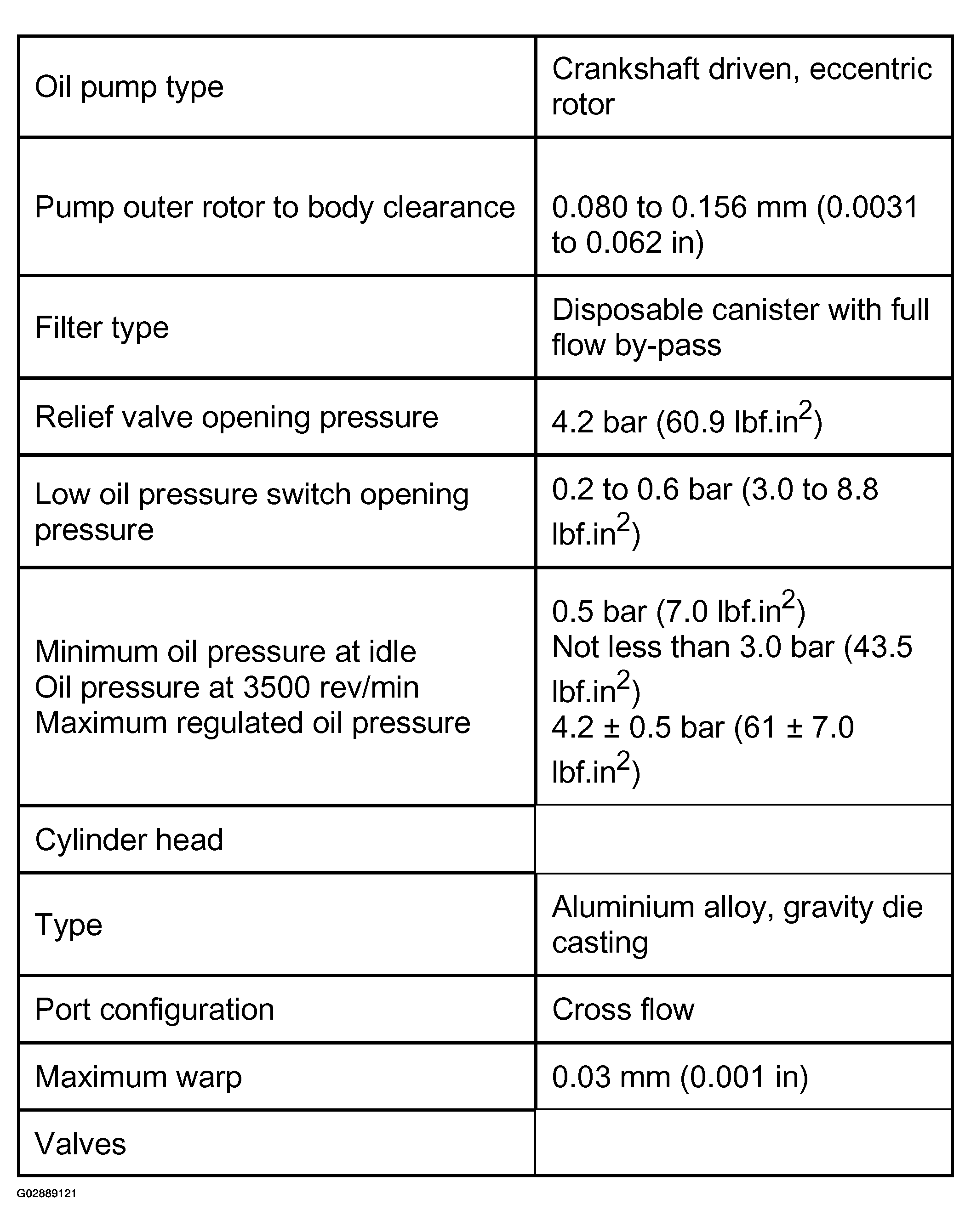

Fig 3: Engine Td6 Specifications(3 Of 8)

G02889121

Courtesy of LAND ROVER NORTH AMERICA, INC.

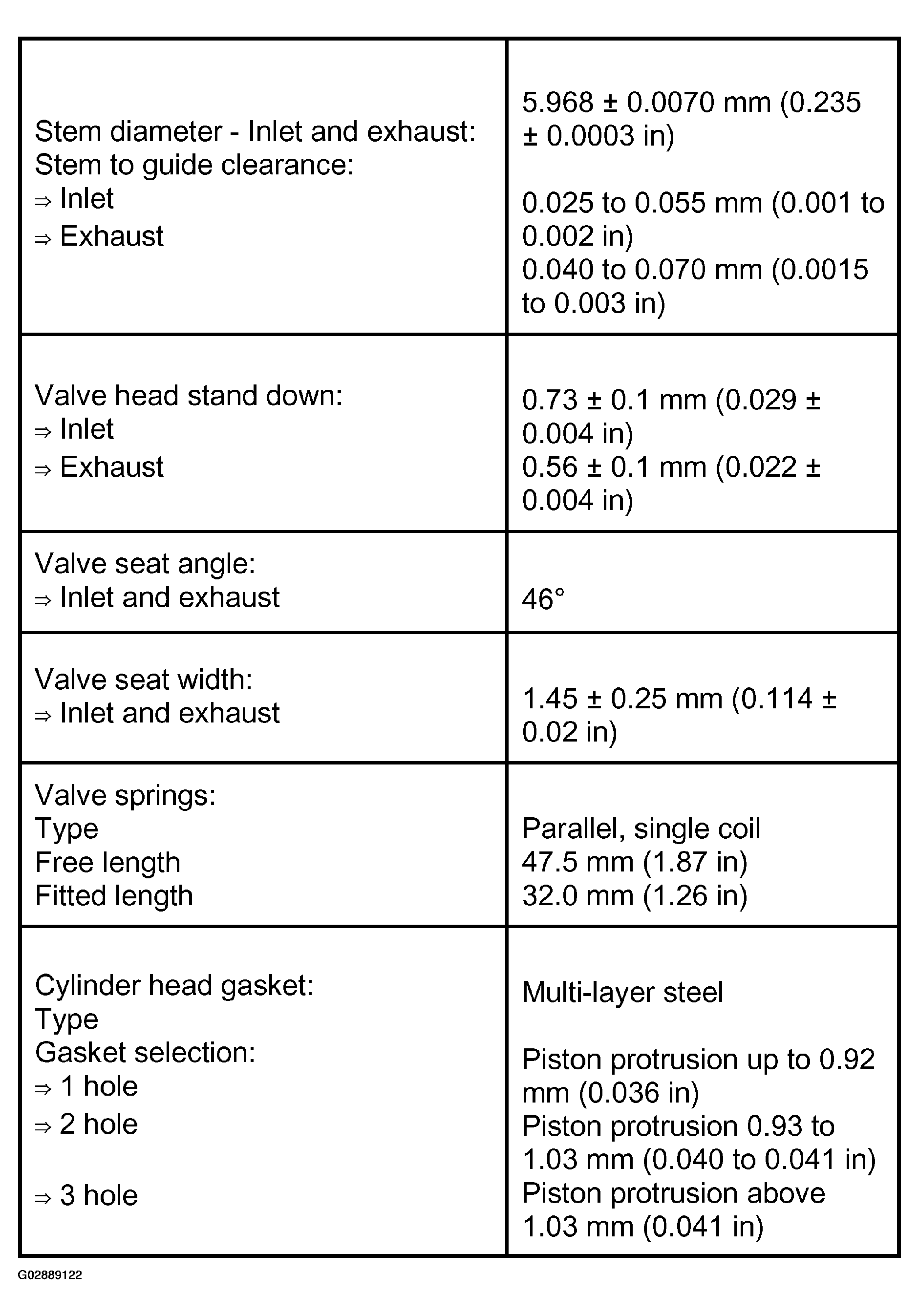

Fig 4: Engine Td6 Specifications(4 Of 8)

G02889122

Courtesy of LAND ROVER NORTH AMERICA, INC.

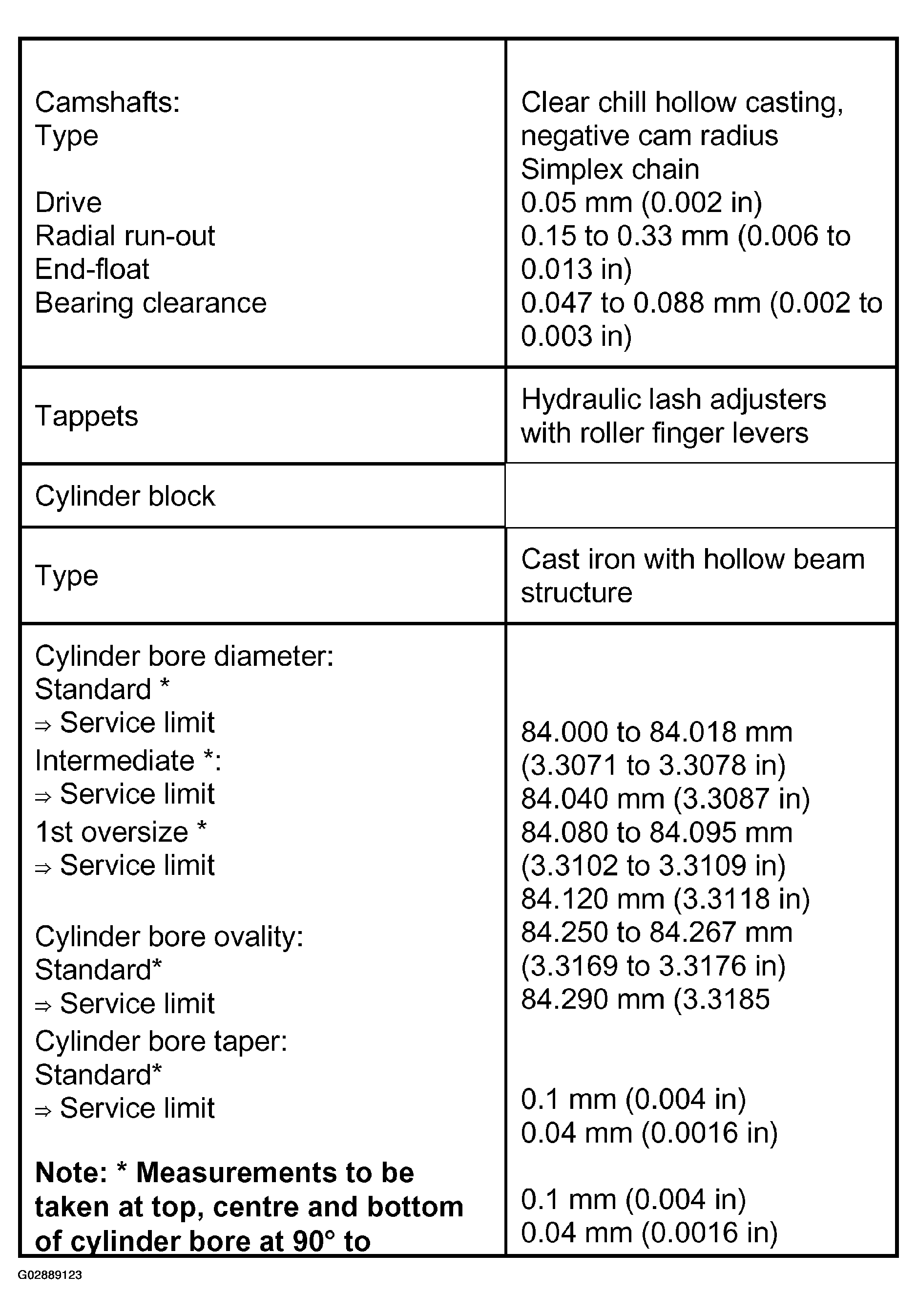

Fig 5: Engine Td6 Specifications(5 Of 8)

G02889123

Courtesy of LAND ROVER NORTH AMERICA, INC.

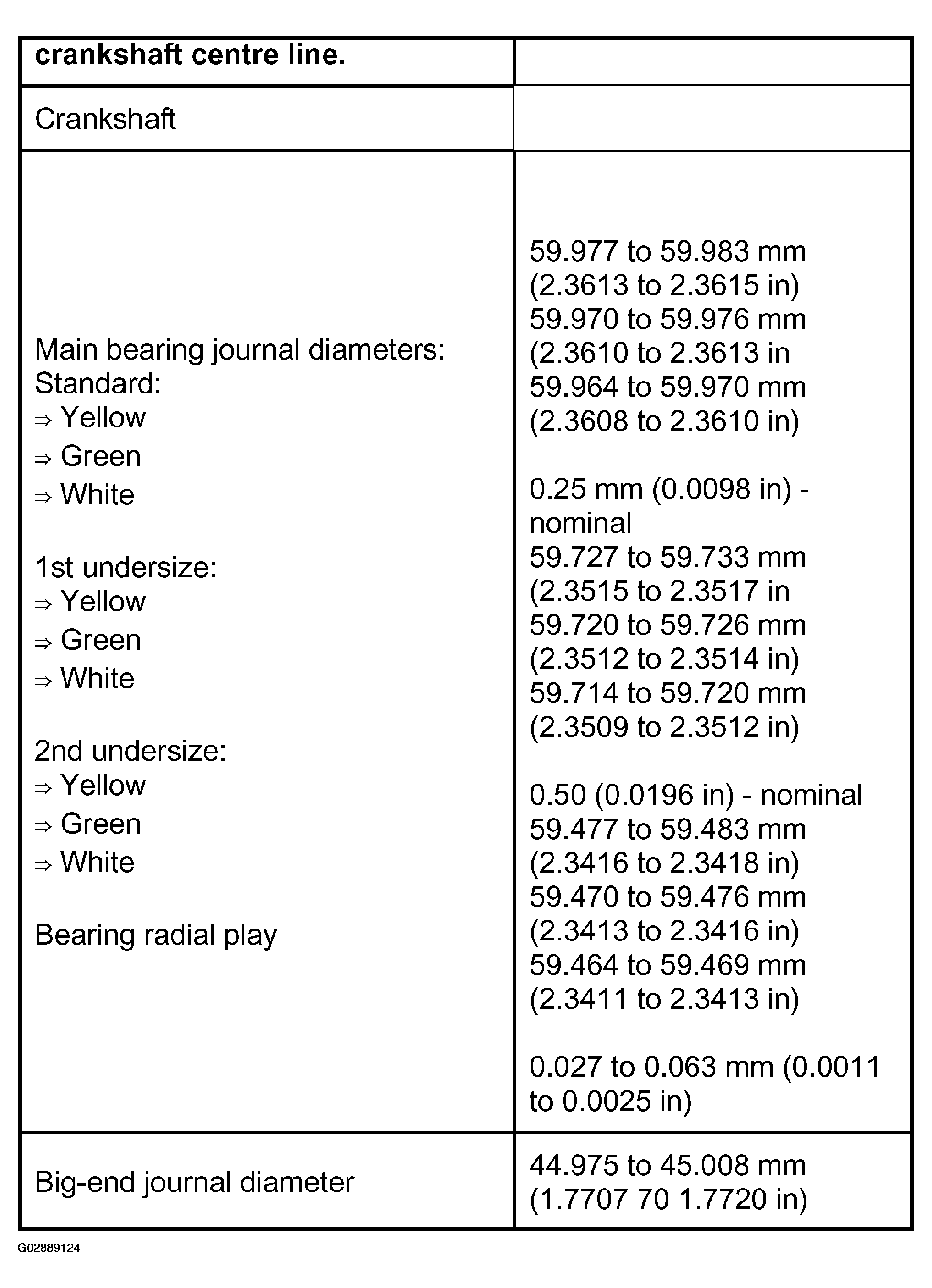

Fig 6: Engine Td6 Specifications(6 Of 8)

G02889124

Courtesy of LAND ROVER NORTH AMERICA, INC.

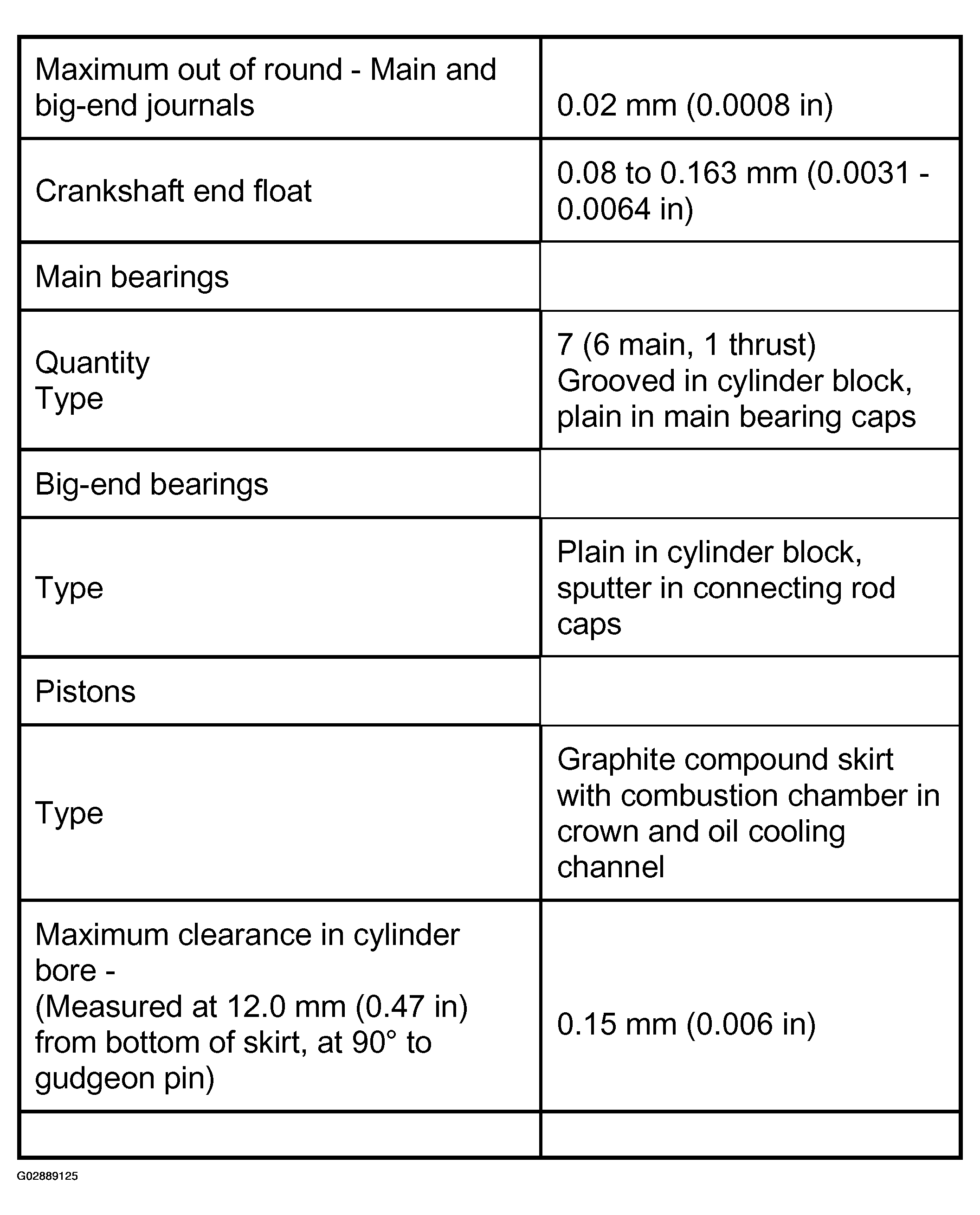

Fig 7: Engine Td6 Specifications(7 Of 8)

G02889125

Courtesy of LAND ROVER NORTH AMERICA, INC.

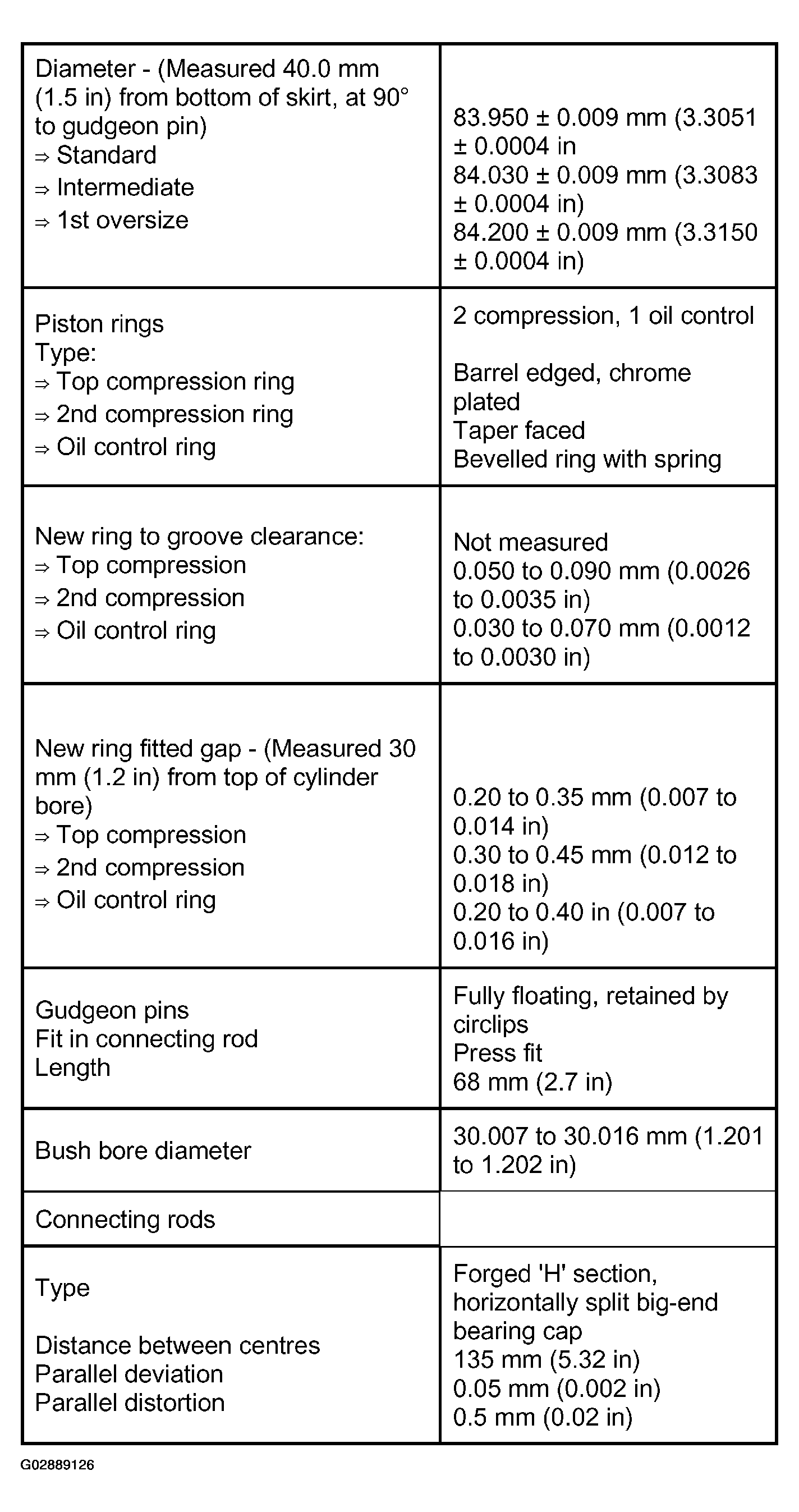

Fig 8: Engine Td6 Specifications(8 Of 8)

G02889126

Courtesy of LAND ROVER NORTH AMERICA, INC.
