General Data
>>
Brakes
General Data: Brakes

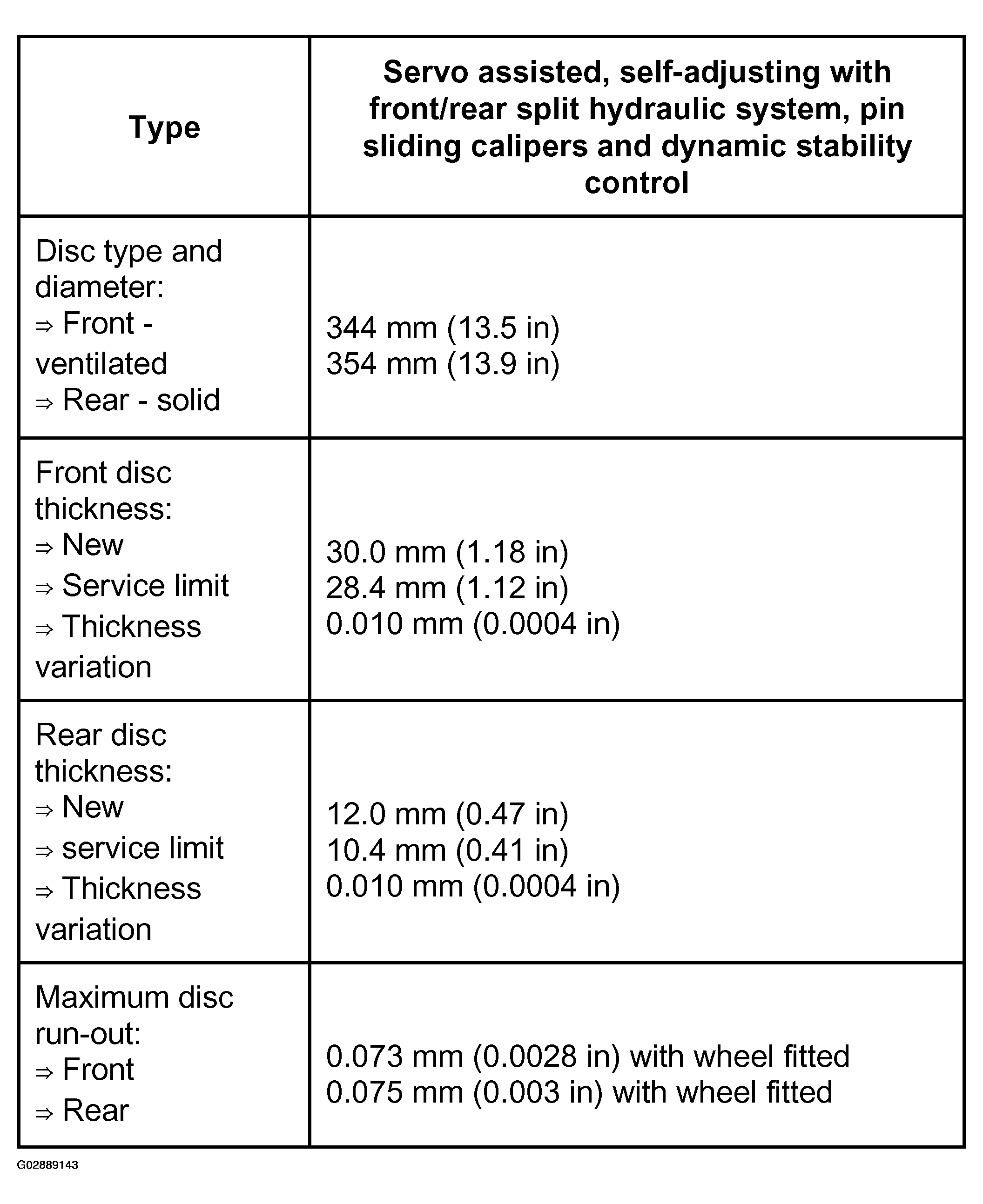

Fig 1: Brakes Specifications(I Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

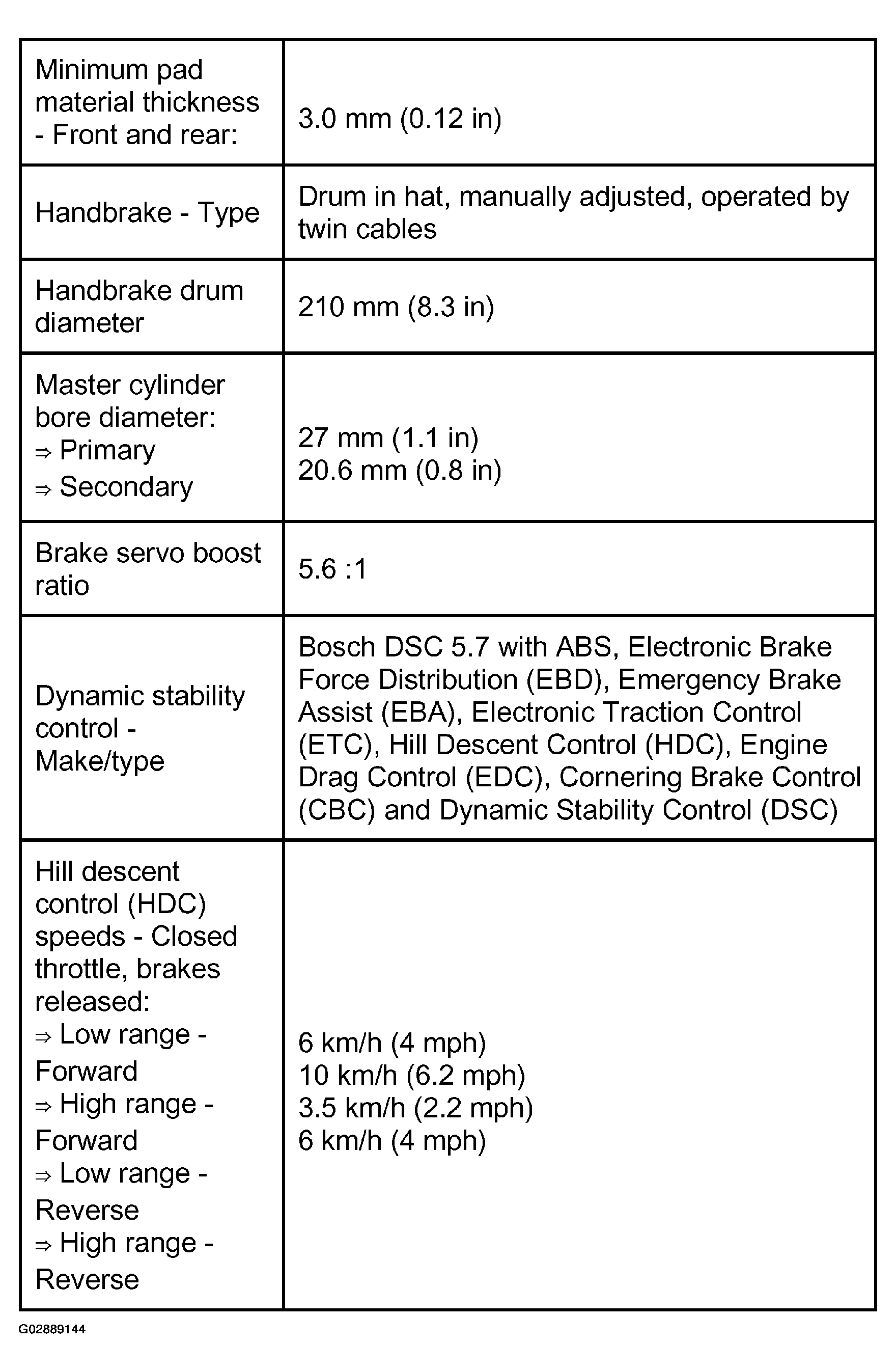

Fig 2: Brakes Specifications(2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
