Test Results

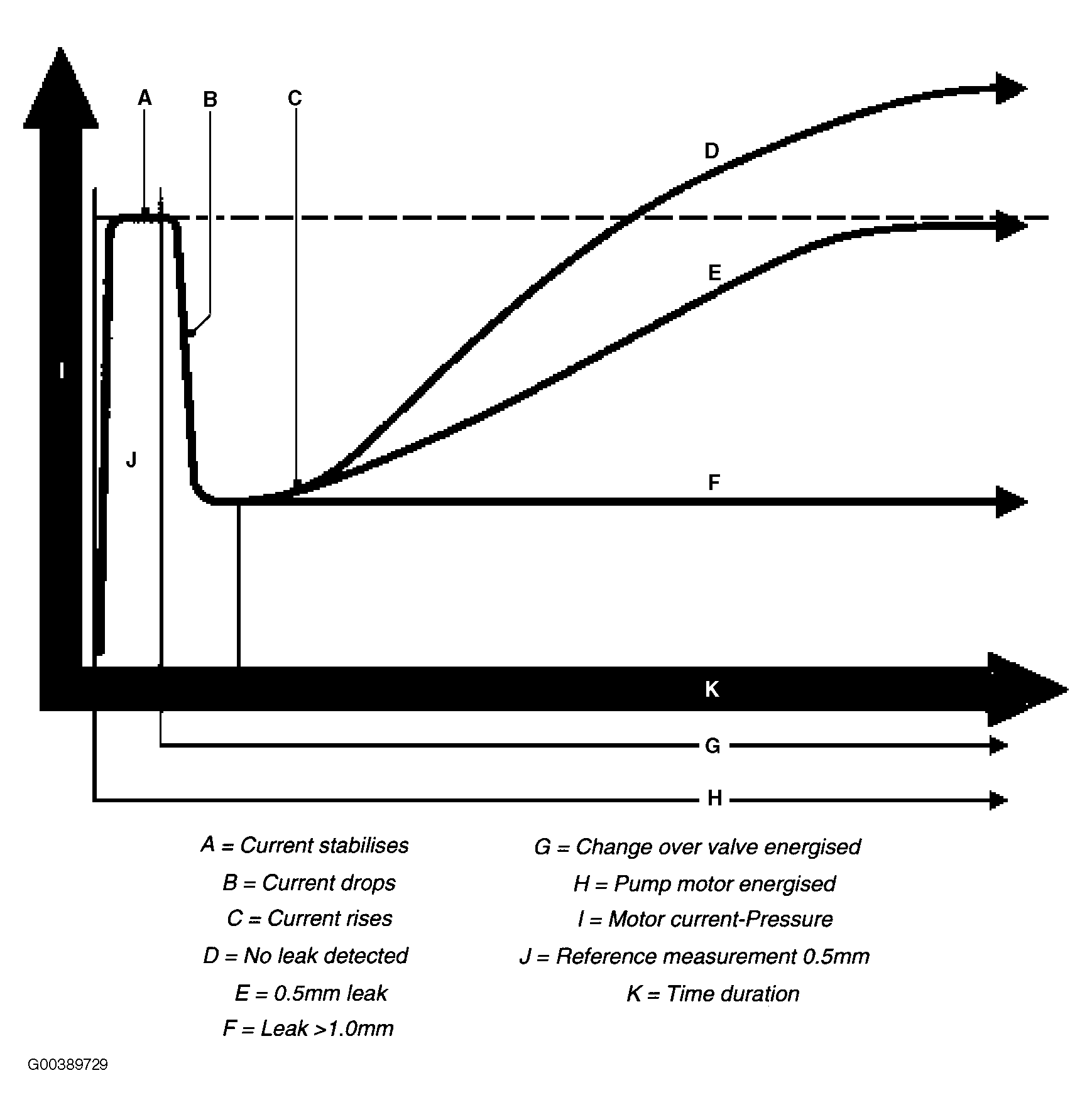

The time duration varies between 45-270 seconds depending on the resulting leak diagnosis test results (developed tank pressure "amperage" within a specific time period). However the chart above depicts the logic used to determine fuel system leaks. See Fig 1.
