Brake System Control Diagram
Brake System Control Diagram

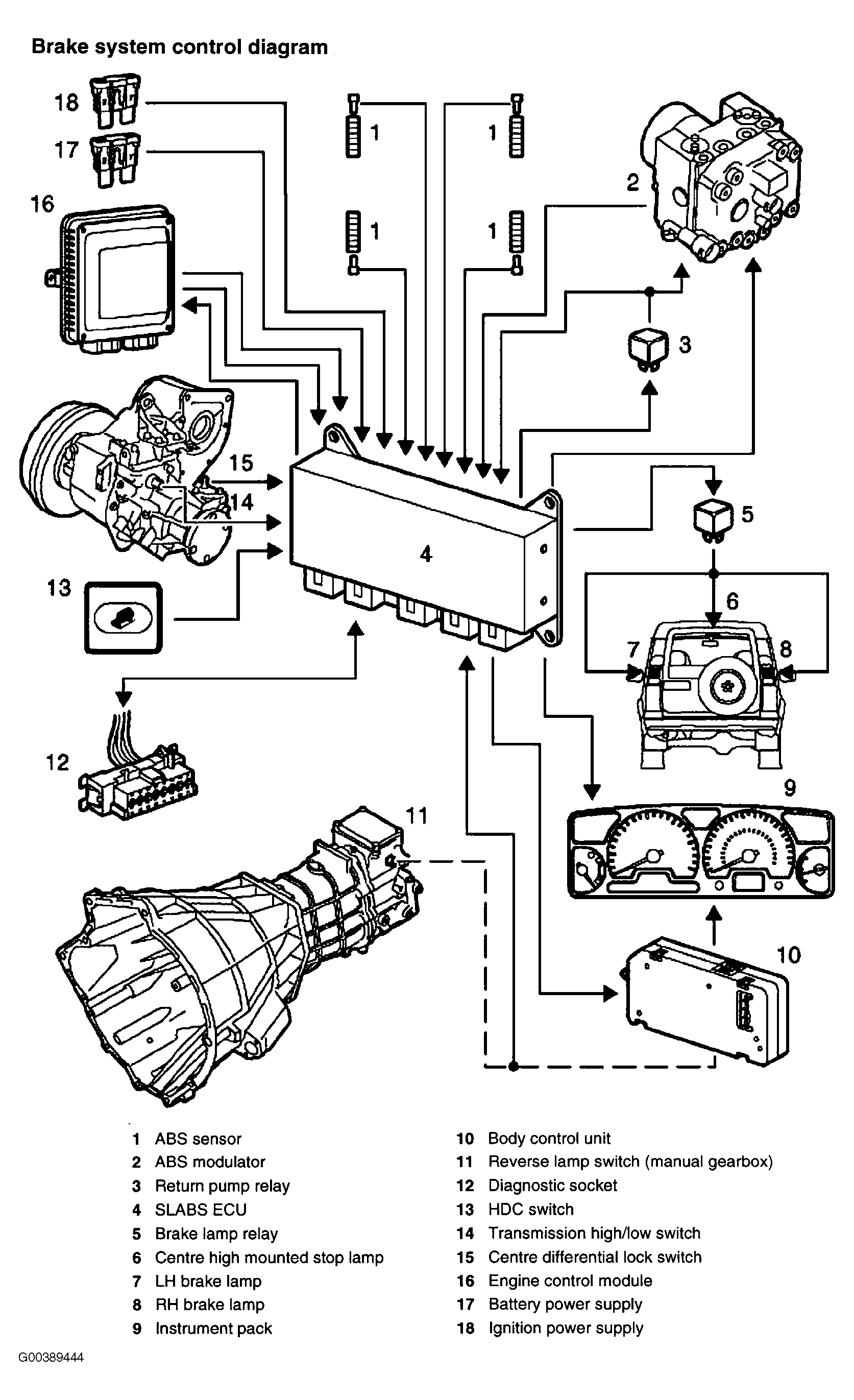

Fig 1: Identifying Brake System Control Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
