Component Locations

For transmission component locations, see Fig 1 and Fig 2 .

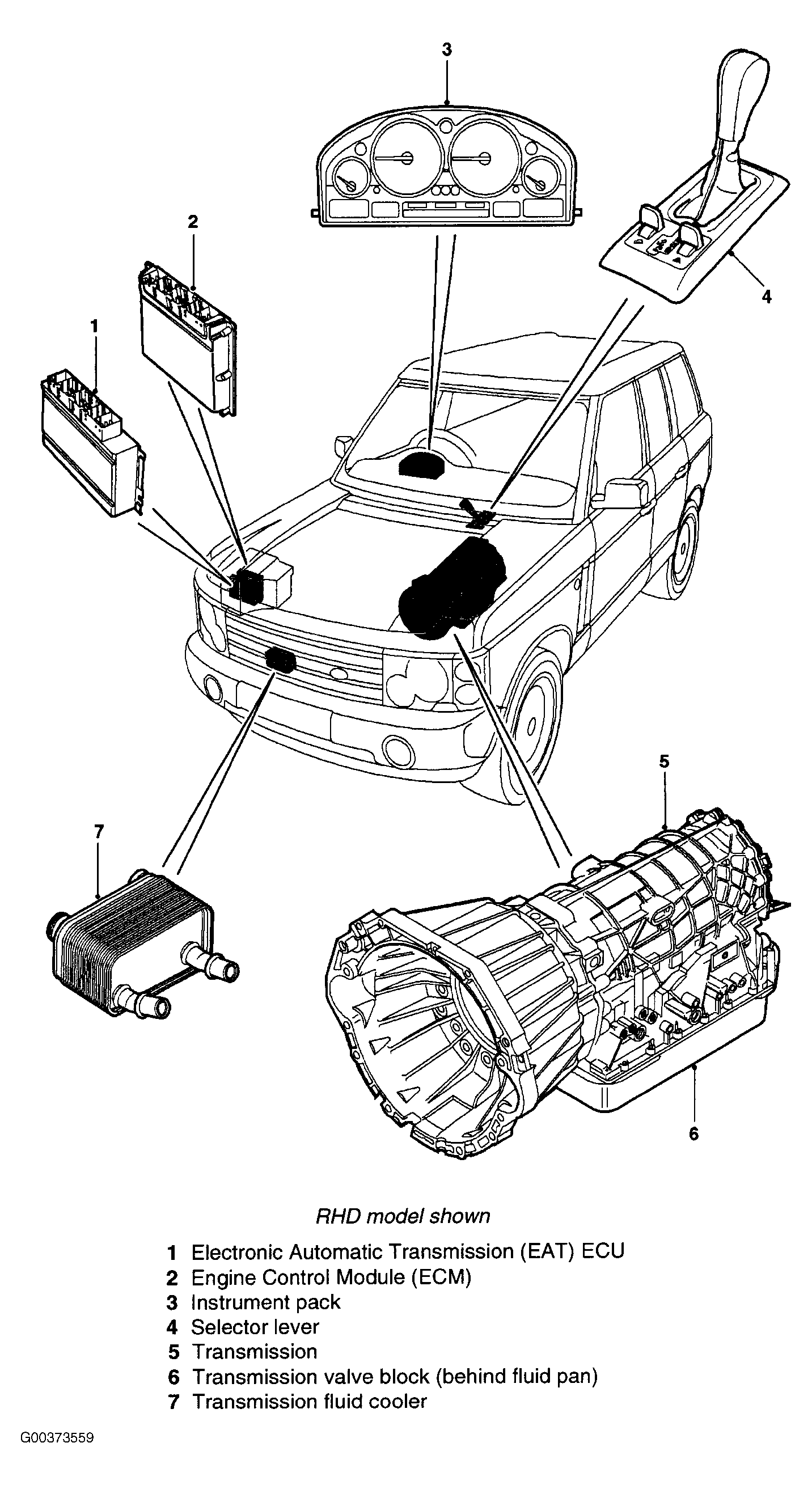

Fig 1: Locating ZF 5HP24 Automatic Transmission Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

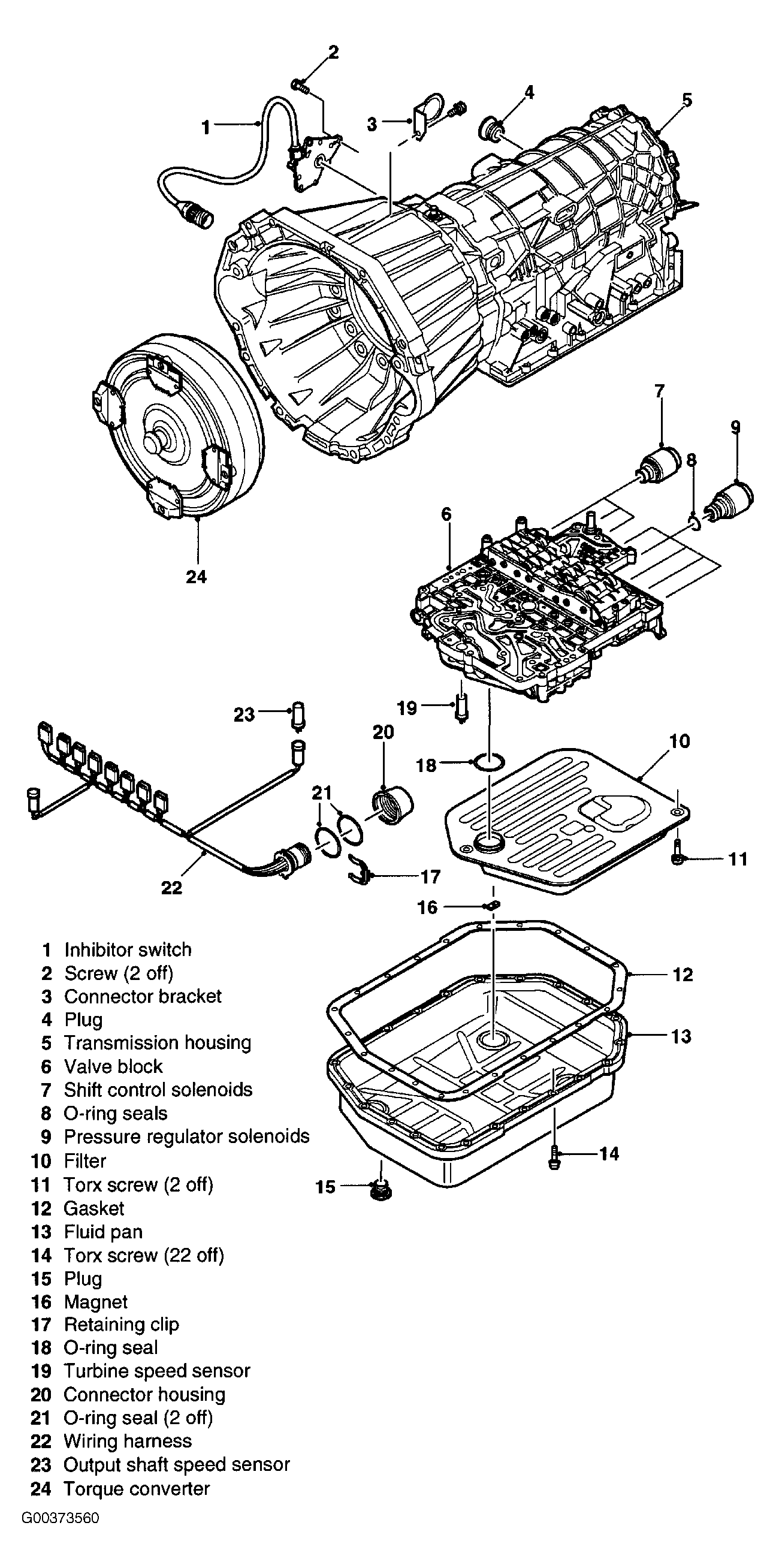

Fig 2: Exploded View Of ZF 5HP24 Automatic Transmission

Courtesy of LAND ROVER NORTH AMERICA, INC.
