Ignition Switch Lock Harness Connector

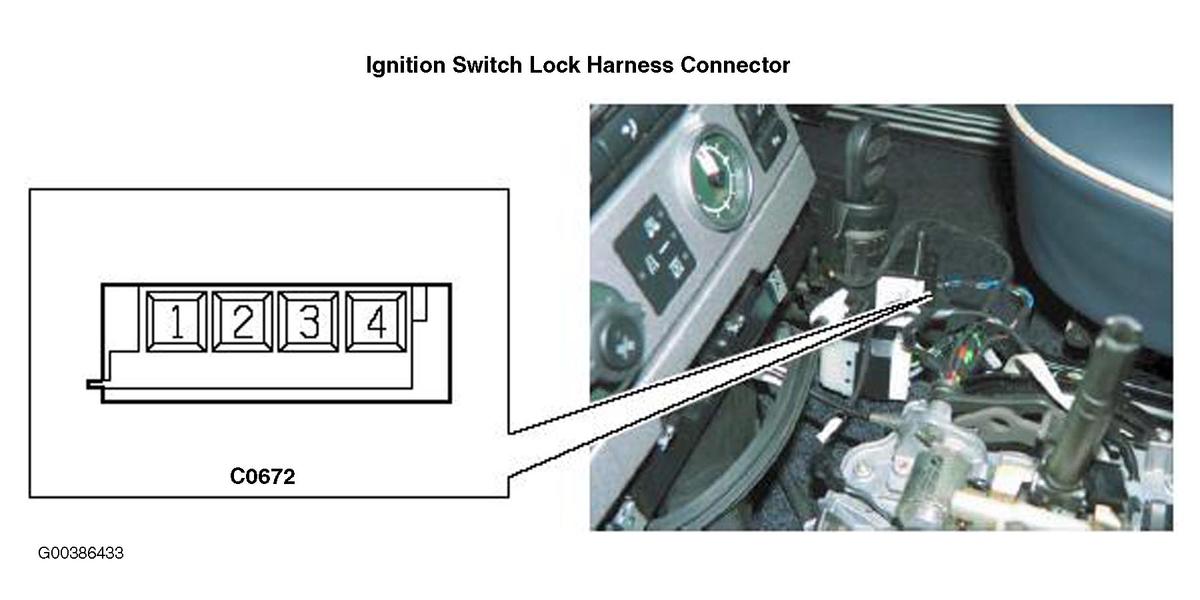

For ignition switch lock harness connector location and pin identification, see Fig 1. For ignition switch lock harness connector pin description, see IGNITION SWITCH LOCK HARNESS CONNECTOR C0672 PIN DETAILS table.
IGNITION SWITCH LOCK HARNESS CONNECTOR C0672 PIN DETAILS
| Pin No. (1) | Description | Input/Output | ||
|---|---|---|---|---|
| 1 | Ignition Switch Detection Of Rotation | Output | ||
| 2 | Ignition Switch Detection Of Rotation Voltage | Input | ||
| 3 | Ignition Switch Lock Solenoid Actuator | Input | ||
| 4 | Ground | - | ||
|
||||
