Power Steering Pressure Test: Check

  1. Position vehicle on lift.
  2. Disconnect battery earth lead.
  3. Siphon PAS fluid from reservoir.
  4. Remove undertray. See 76.11.81 UNDERTRAY -- FRONT .
  5. Position a suitable container below PAS pump.
  6. Loosen union nut, disconnect PAS outlet hose from pump and discard "O" ring. See Fig 1.
  7. Fit adaptor LRT-57-034A to high pressure port of PAS pump. See Fig 2.
  8. Fit adaptor LRT-57-035 to existing high pressure hose.
  9. Fit hose LRT-57-002 to each adapter.
  10. Fit pressure gauge LRT-57-005 to test valve LRT-57-001.
  11. Connect hoses LRT-57-002 to LRT-57-001 and tighten unions.
  12. Connect battery earth lead.
  13. Ensure steering system and test equipment are free from leaks.
  14. Maintain maximum fluid level during test.
  15. With the test valve open, start the engine.
  16. With the engine at idle, slowly turn the steering wheel and hold on full lock.
  17. Repeat procedure for other lock.
  18. Record pressure reading.
  19. With the engine at idle, release the steering wheel. Pressure should read below 7 bar (101.5 psi).
  20. Pressures outside the above tolerance indicates a fault.
  21. To determine if fault is in steering pump or steering rack, close the test valve for a maximum of 5 seconds.
    CAUTION: Pump damage will occur if test valve is closed for longer periods.
  22. If figures recorded fall outside the values specificed, replace the PAS pump. See POWER ASSISTED STEERING (PAS) PUMP & RESERVOIR  under DESCRIPTION.
  23. If maximum pump pressure is correct, suspect the steering rack.
  24. On completion stop engine, disconnect battery earth lead and siphon fluid from PAS reservoir.
  25. Dismantle test equipment.
  26. PAS pump and pipe union.
  27. Fit NEW "O" ring to high pressure outlet pipe union, align to PAS pump and tighten PAS pump high pressure pipe union to 25 Nm (18 ft. lbs.).
  28. Remove container from below PAS pump.
  29. Dispose of PAS fluid and clean container.
  30. Connect battery earth lead.
  31. Refill and bleed PAS system. See POWER ASSISTED STEERING (PAS) SYSTEM - BLEED .
  32. Fit undertray. See 76.11.81 UNDERTRAY -- FRONT .

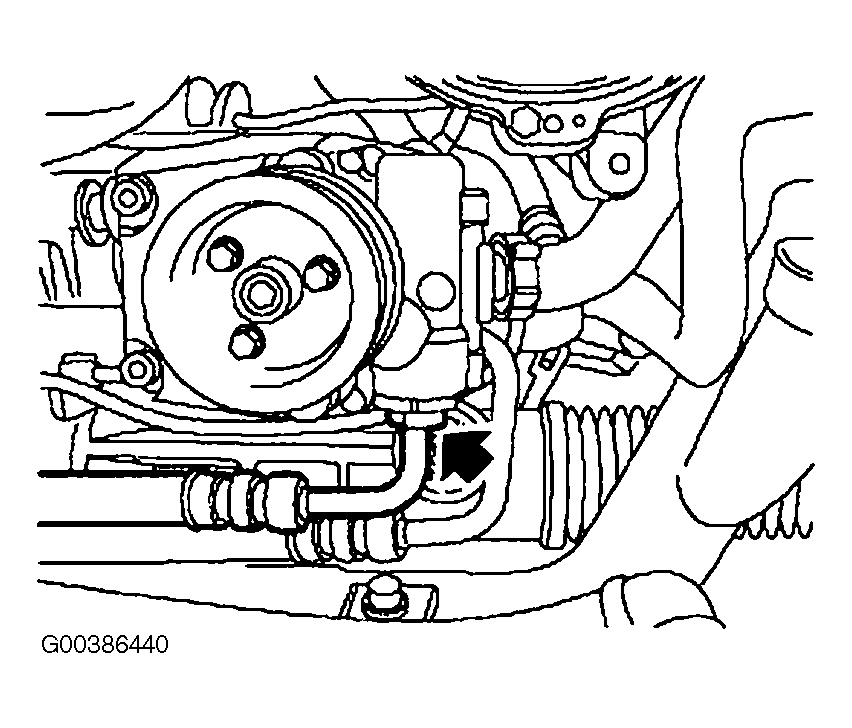

Fig 1: Disconnecting PAS Pump Outlet Hose
G00386440Courtesy of LAND ROVER NORTH AMERICA, INC.

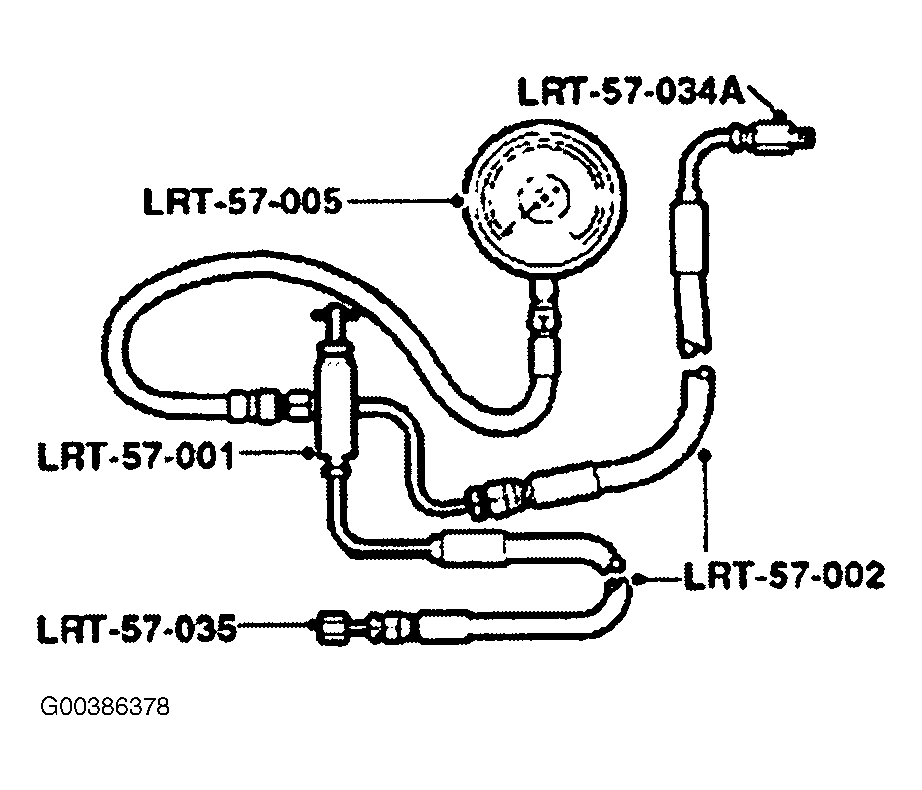

Fig 2: Identifying PAS Pressure Testing Adaptors
G00386378Courtesy of LAND ROVER NORTH AMERICA, INC.
