Thermostat Monitoring Structure

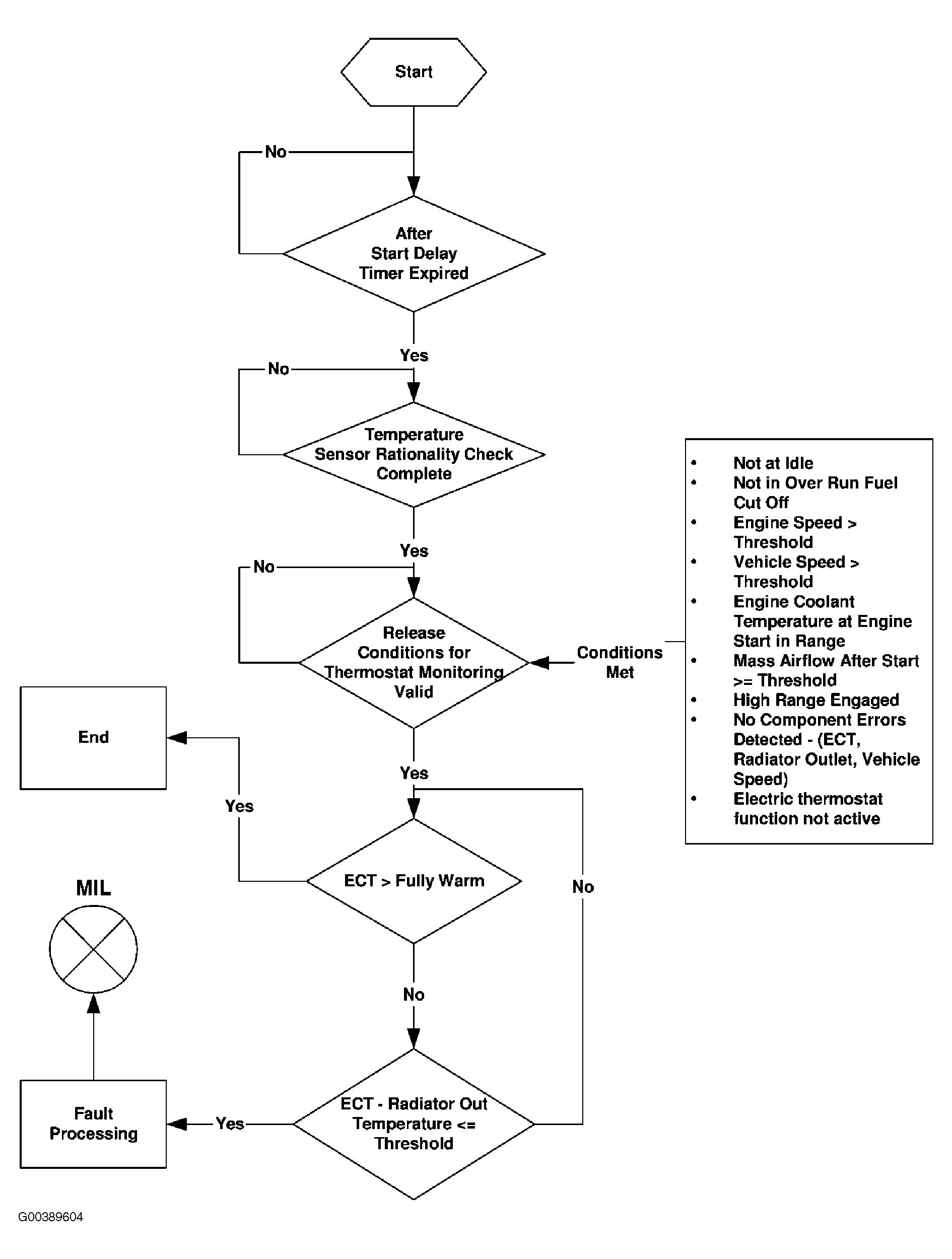

For thermostat monitoring structure and flow chart, see Fig 1 .

Fig 1: Thermostat Monitoring Structure & Flow Chart

G00389604

Courtesy of LAND ROVER NORTH AMERICA, INC.
