Inlet Manifold Component Layout

For inlet manifold component layout, see Fig 1.

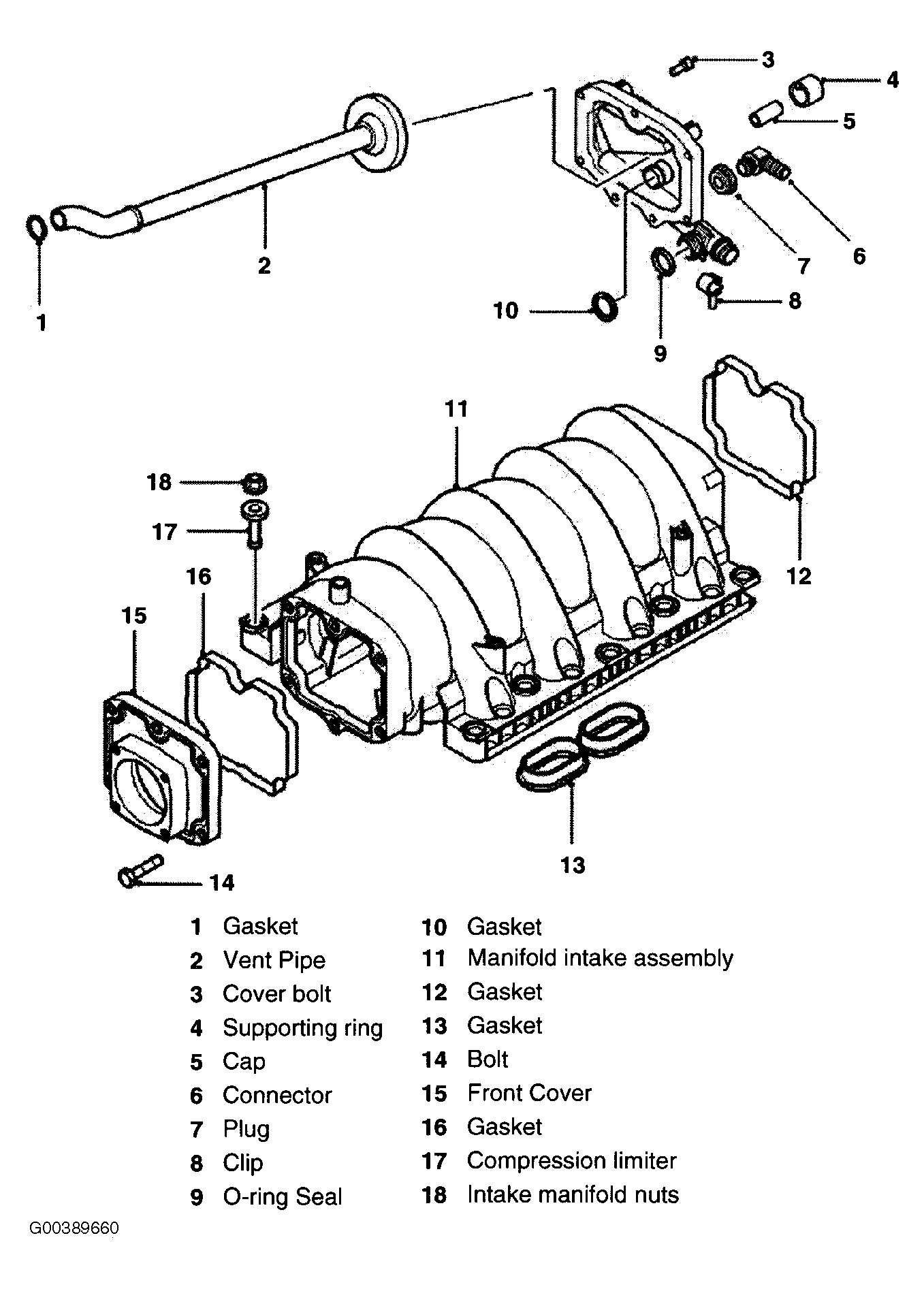

Fig 1: Identifying Inlet Manifold Component Layout

G00389660

Courtesy of LAND ROVER NORTH AMERICA, INC.
