Passenger Compartment Fuse Box

NOTE: The passenger compartment fuse box is located behind the glove box. See Fig 1. For fuse box and fuse identification, see Fig 2-Fig 5 .

Fig 1: Locating Passenger Compartment Fuse Box

Courtesy of LAND ROVER NORTH AMERICA, INC.

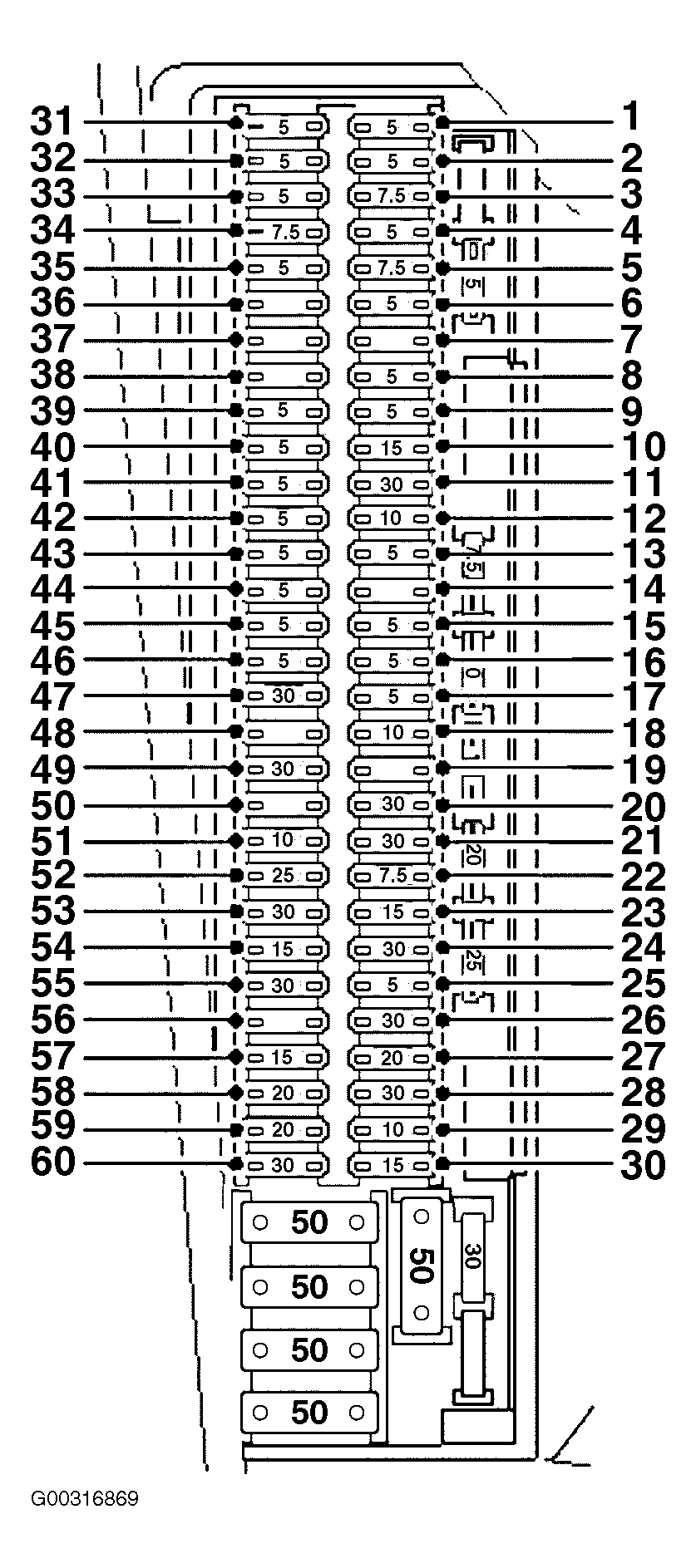

Fig 2: Passenger Compartment Fuse Box Identification

Courtesy of LAND ROVER NORTH AMERICA, INC.

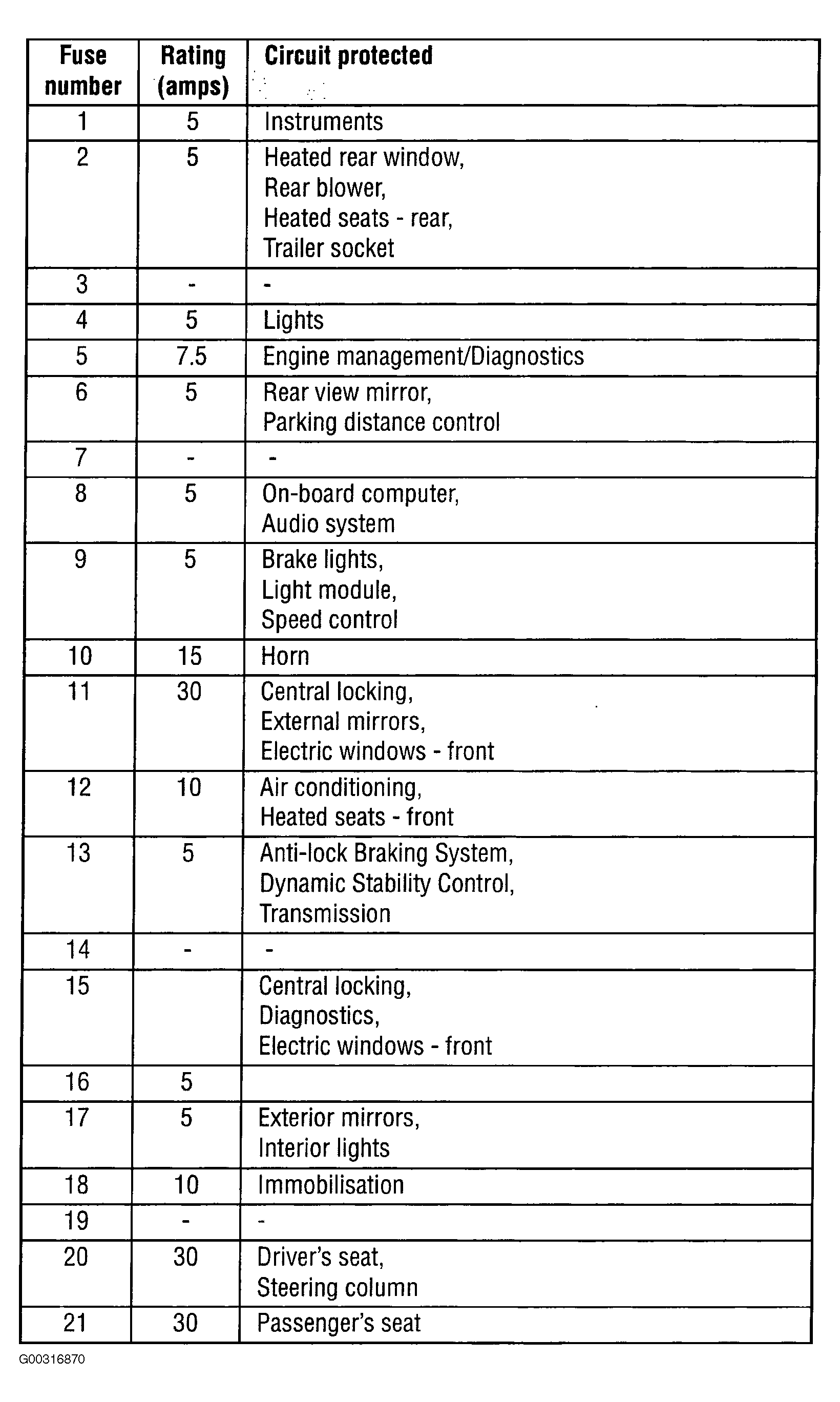

Fig 3: Passenger Compartment Fuse Identification (Fuses 1-21)

Courtesy of LAND ROVER NORTH AMERICA, INC.

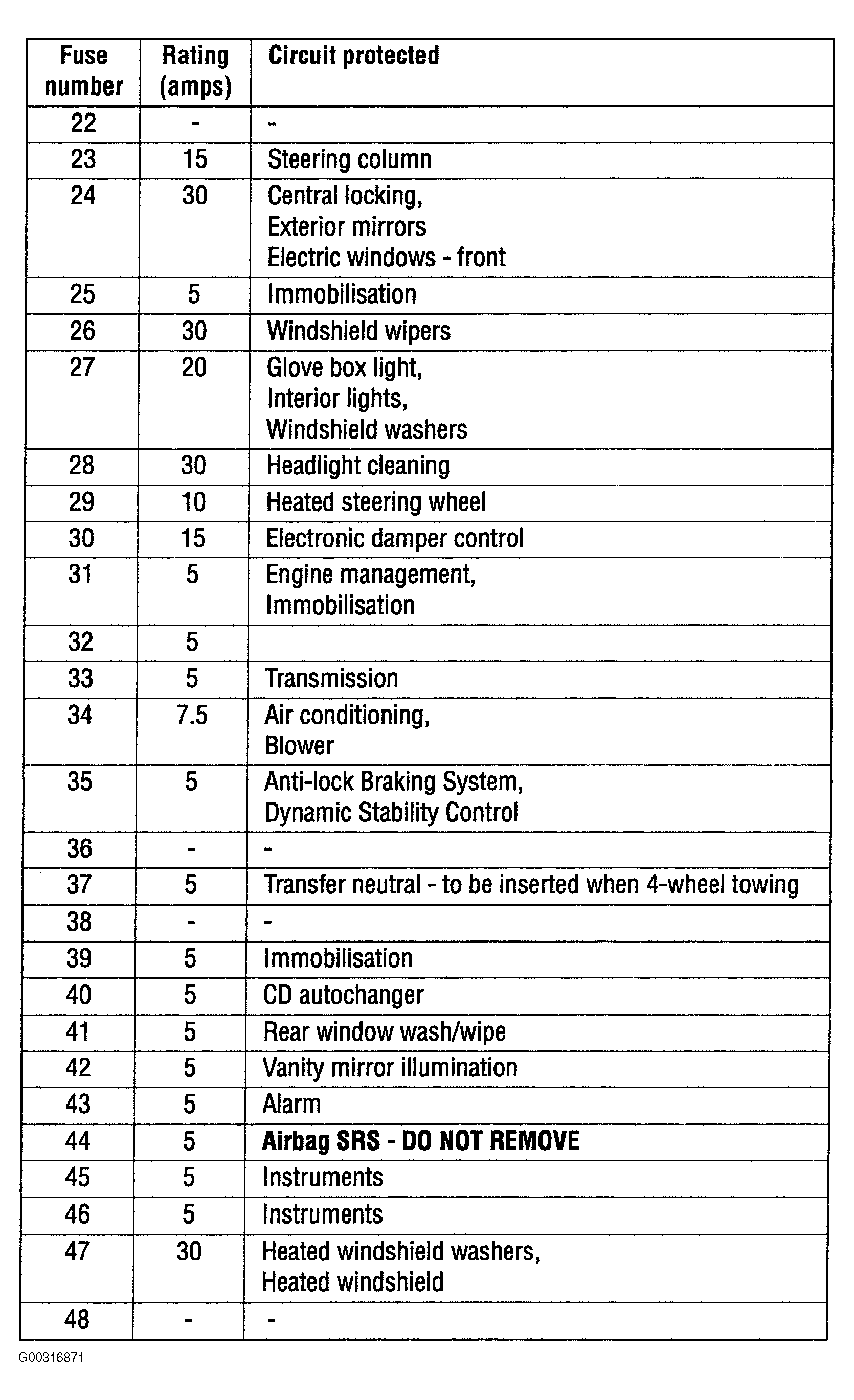

Fig 4: Passenger Compartment Fuse Identification (Fuses 22-48)

Courtesy of LAND ROVER NORTH AMERICA, INC.

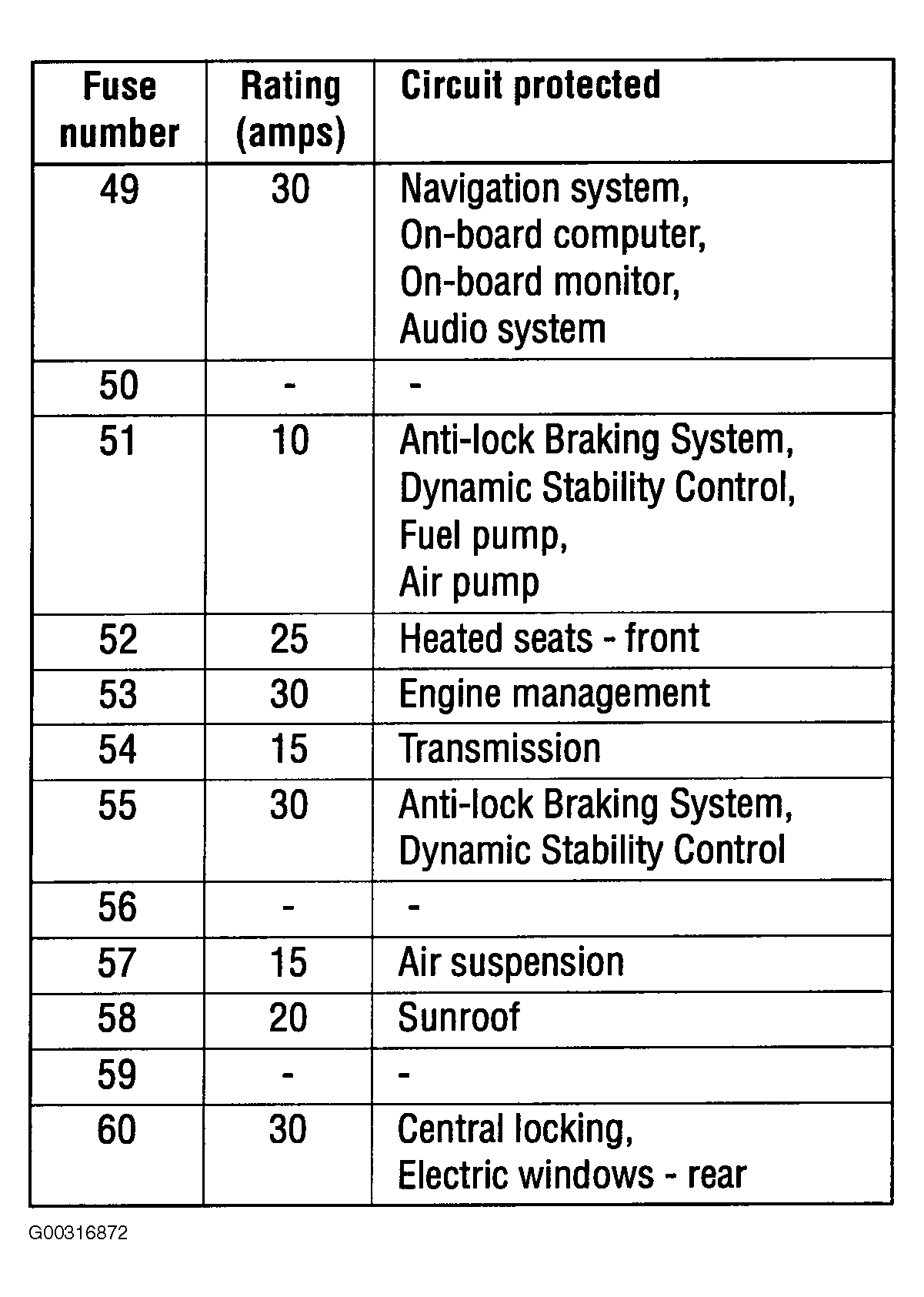

Fig 5: Passenger Compartment Fuse Identification (Fuses 49-60)

Courtesy of LAND ROVER NORTH AMERICA, INC.
