Base Plate Adaptor

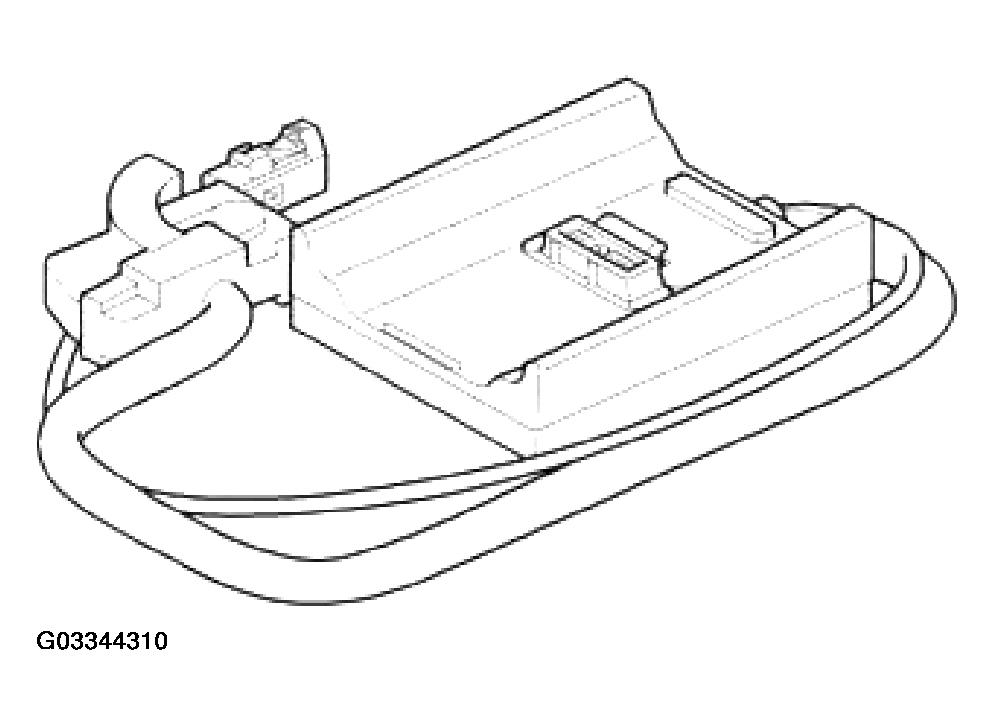

Fig 1: Identifying Base Plate Adaptor

Courtesy of LAND ROVER NORTH AMERICA, INC.

The base plate adaptor is located in the center arm rest. The base plate adaptor is the interface between the telephone adaptor cradle and the transceiver module. The following pin out table details the connections at the base plate adaptor from the transceiver module.
