Audio Amplifier

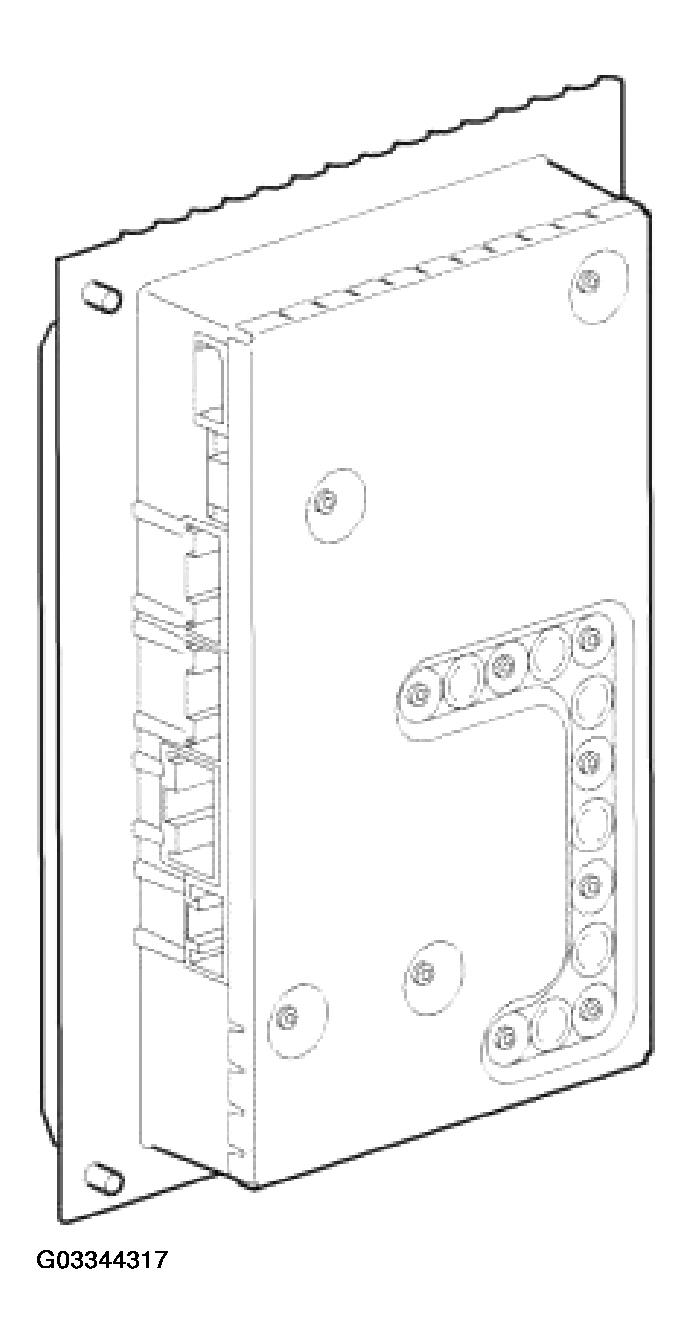

Fig 1: Identifying Audio Amplifier

Courtesy of LAND ROVER NORTH AMERICA, INC.

DSP amplifier shown

The amplifier (DSP or Logic7) is located in the rear LH side of the luggage compartment. The audio amplifier receives audio from the TM on the MOST ring, the audio is then processed and passed out to the speakers. Refer to AUDIO SYSTEM COMPONENT LOCATION - FROM 2005 MY for further details on the audio amplifier.
