Thermostat Circuit Monitoring

For thermostat circuit monitoring and enabling conditions, see Fig 1 .

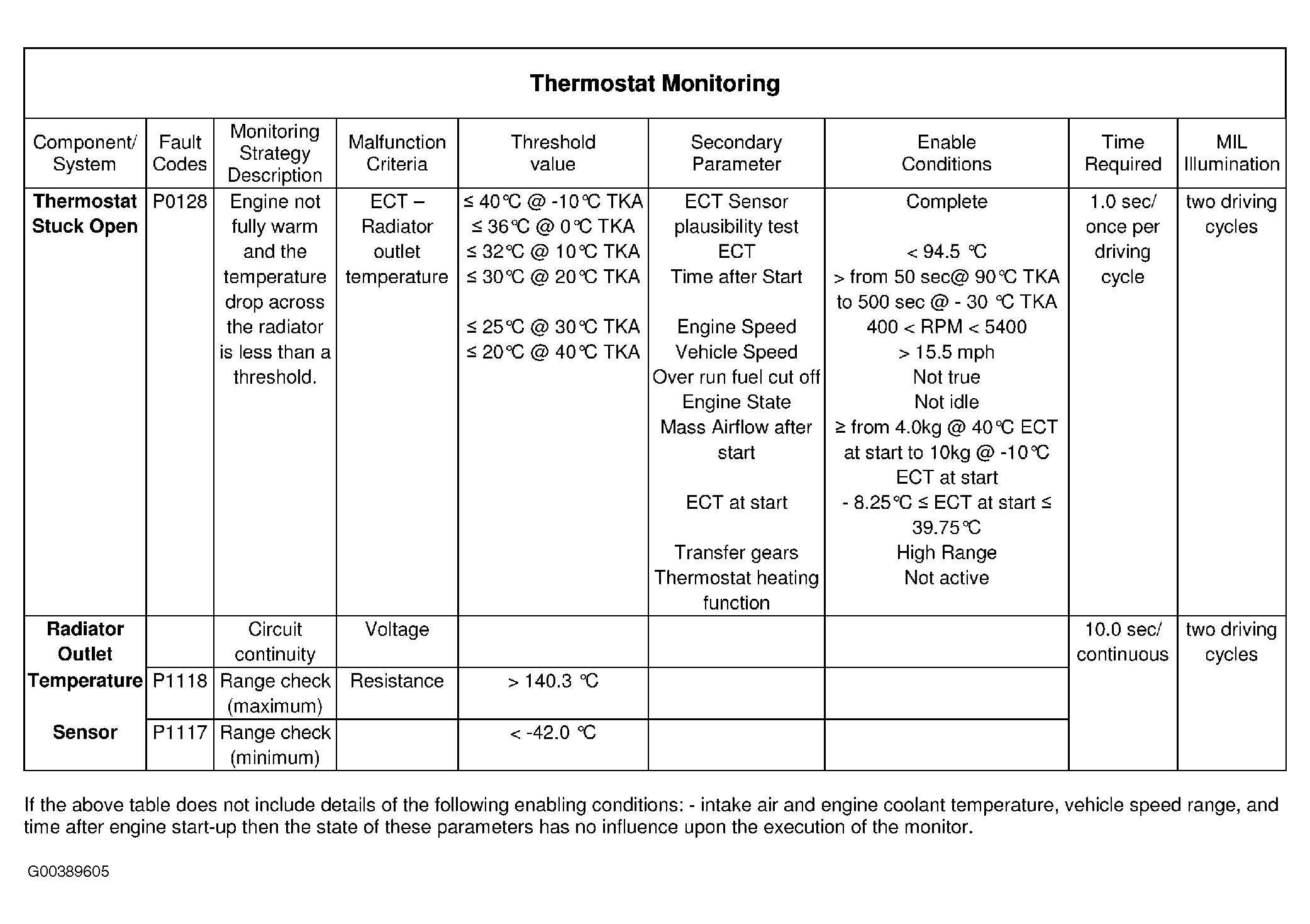

Fig 1: Thermostat Monitoring & Enabling Conditions
G00389605Courtesy of LAND ROVER NORTH AMERICA, INC.
