Engine Control Module (ECM): Removal

  1. Disconnect battery earth lead.

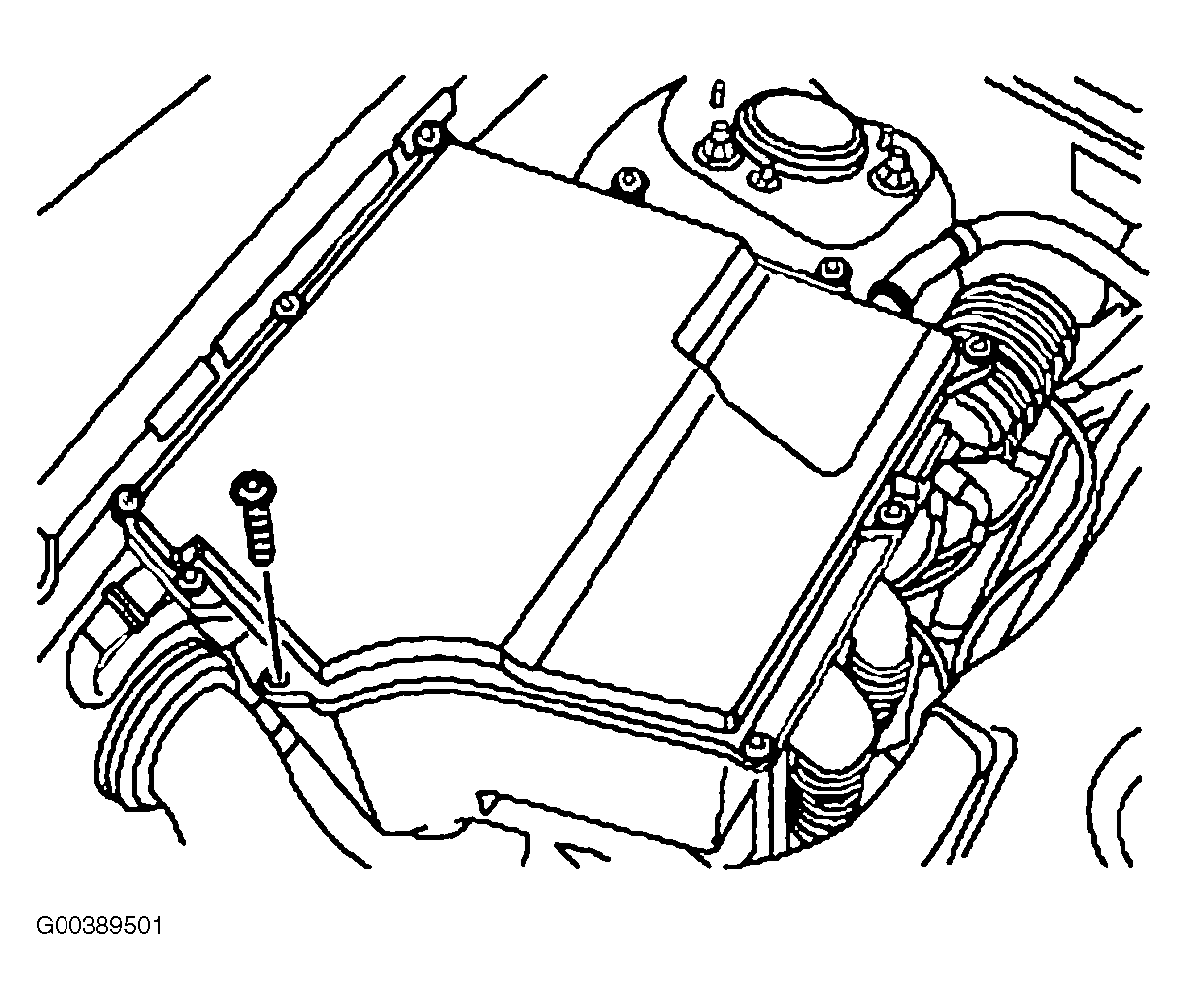

  2. Remove 10 Allen screws securing E-box cover and remove cover. See Figure.
  3. Disconnect 5 multiplugs from ECM. See Fig 1.
  4. Release 2 clips and remove ECM.

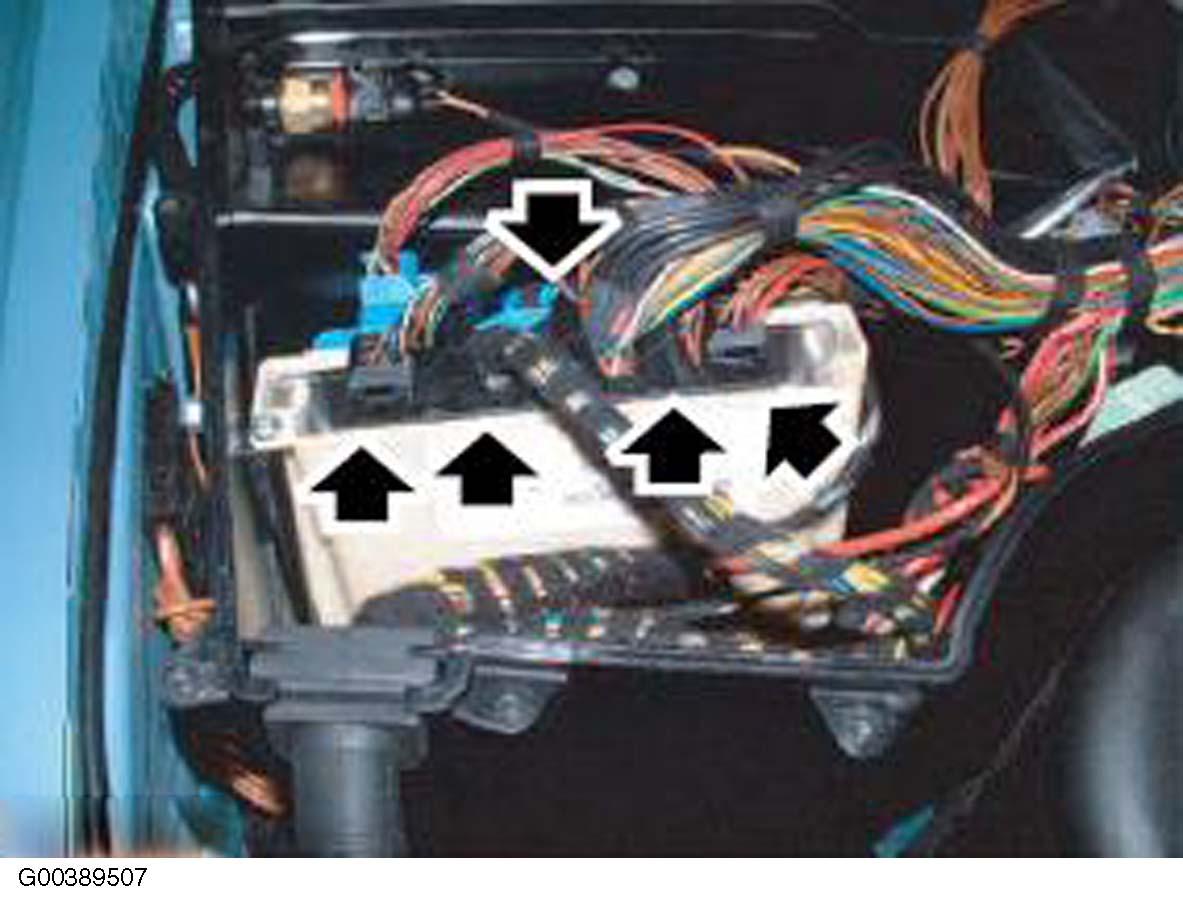

Fig 1: Disconnecting 5 ECM Multiplugs
G00389507Courtesy of LAND ROVER NORTH AMERICA, INC.
