Navigation Computer Connector C0899 Pin Details

Pin No.	Description	InputOutput
1	Data signal	Output
2	Data signal	Input
3	Permanent battery power supply	Output
4	Ground for antenna	-
5	Red video signal	Output
6	Green video signal	Output
7	Blue video signal	Output
8	I bus	Input/Output
9	Auxiliary power supply	Input
10	Permanent battery power supply	Input
11	Data signal, inverted	Output
12	Data signal, inverted	Input
13	Auxiliary power supply	Output
14	Not used	-
15	Video signal ground	-
16	Synchronization signal	Output
17	Navigation audio positive	Output
18	Navigation audio negative	Output
19	Ground	-
20	Road speed	Input

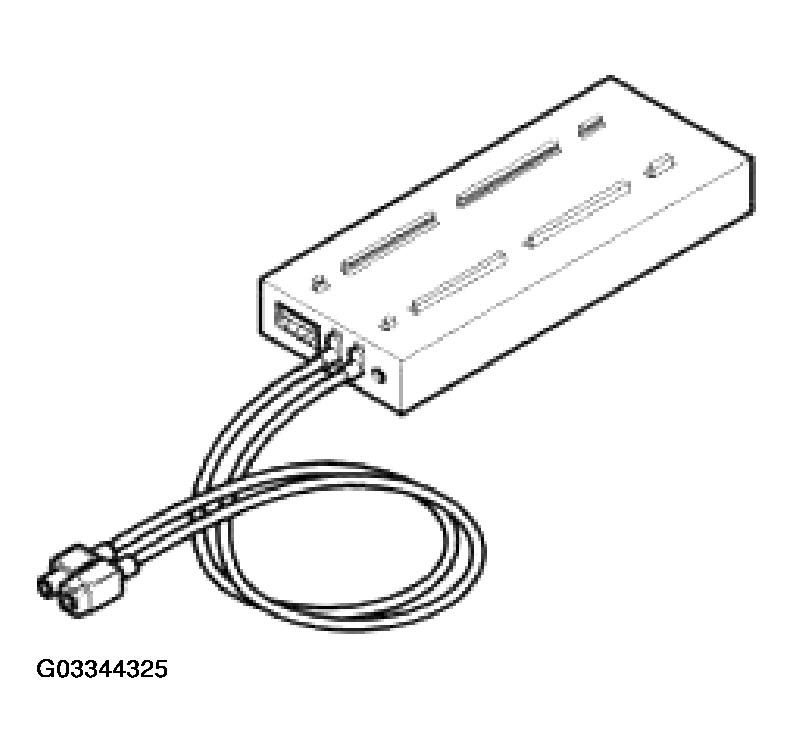

Fig 1: Identifying Navigation Computer (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

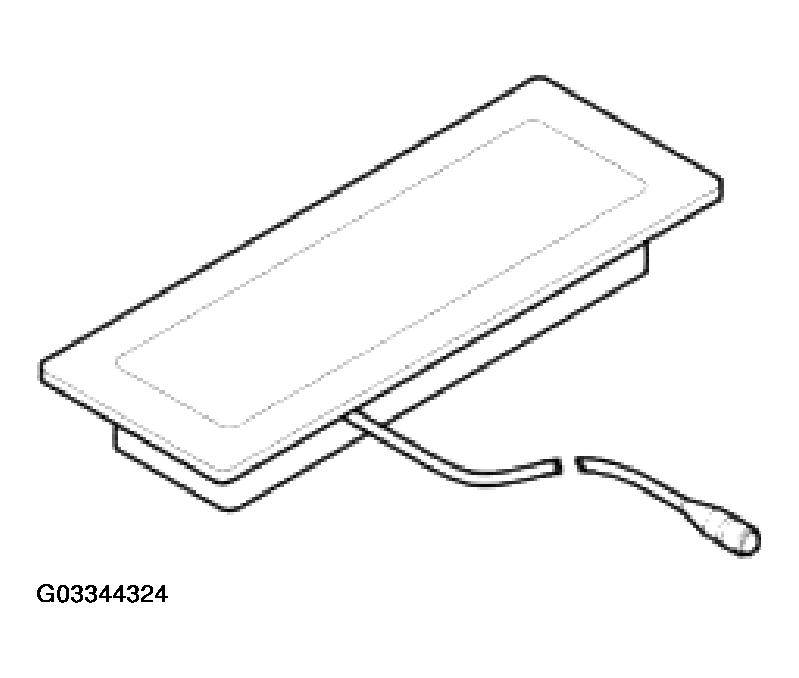

Fig 2: Identifying Navigation Computer (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
