Navigation System Components: Microphone

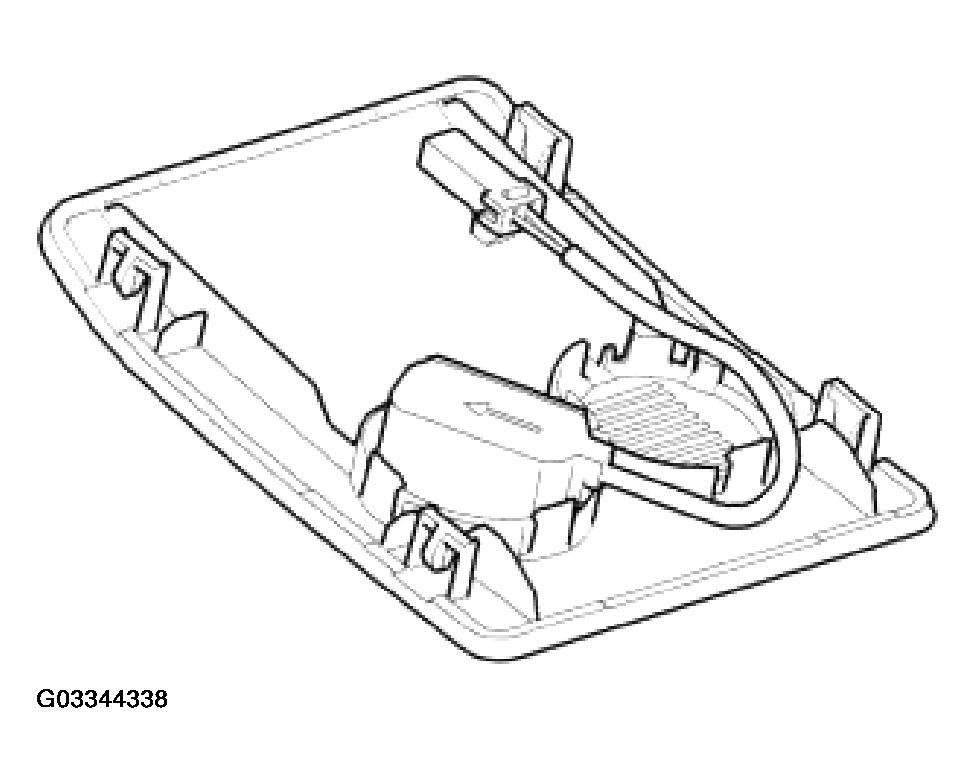

Fig 1: Identifying Microphone

Courtesy of LAND ROVER NORTH AMERICA, INC.

The microphone is located in the front interior lamp console. The standard, directional type microphone is connected to the Integrated Head Unit (IHU) and the navigation computer for voice recognition of the navigation system and the telephone. The microphone has an integrated noise suppression system for hands-free telephone use.
